PDB
| Quantity: | |
|---|---|

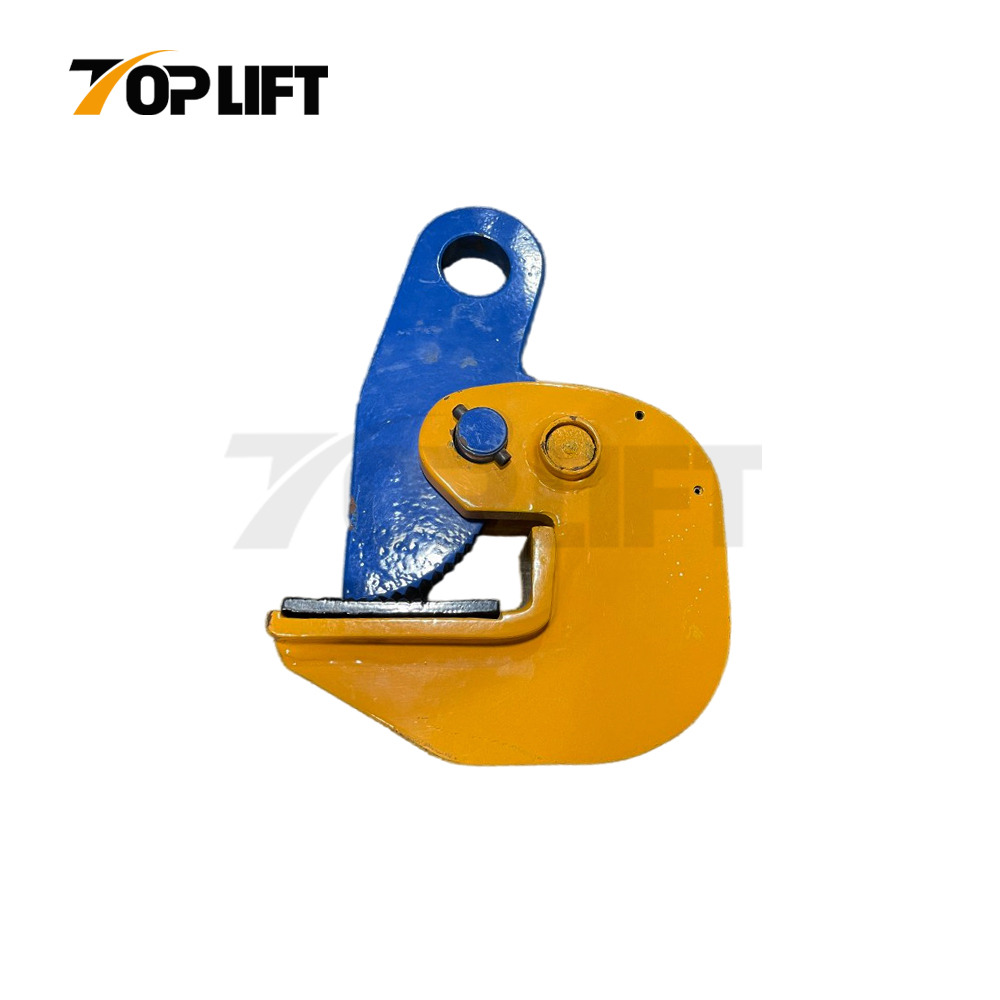

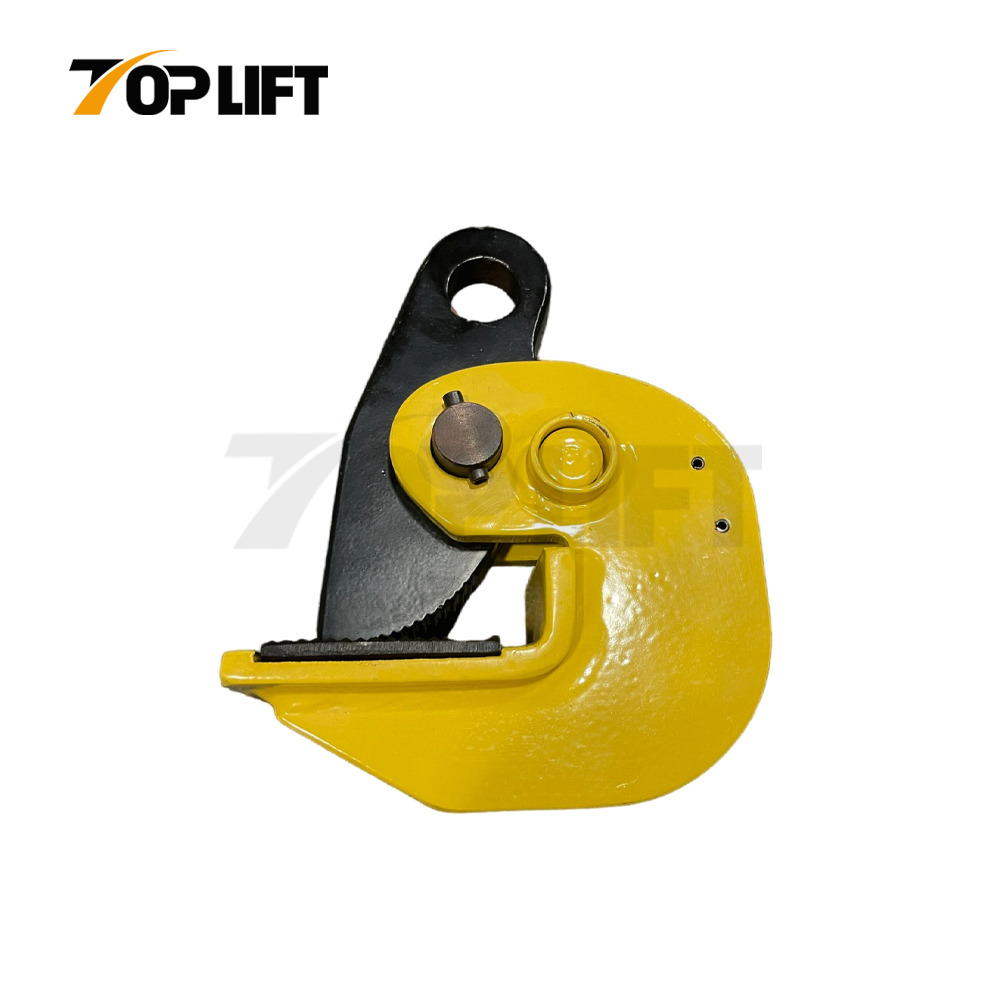

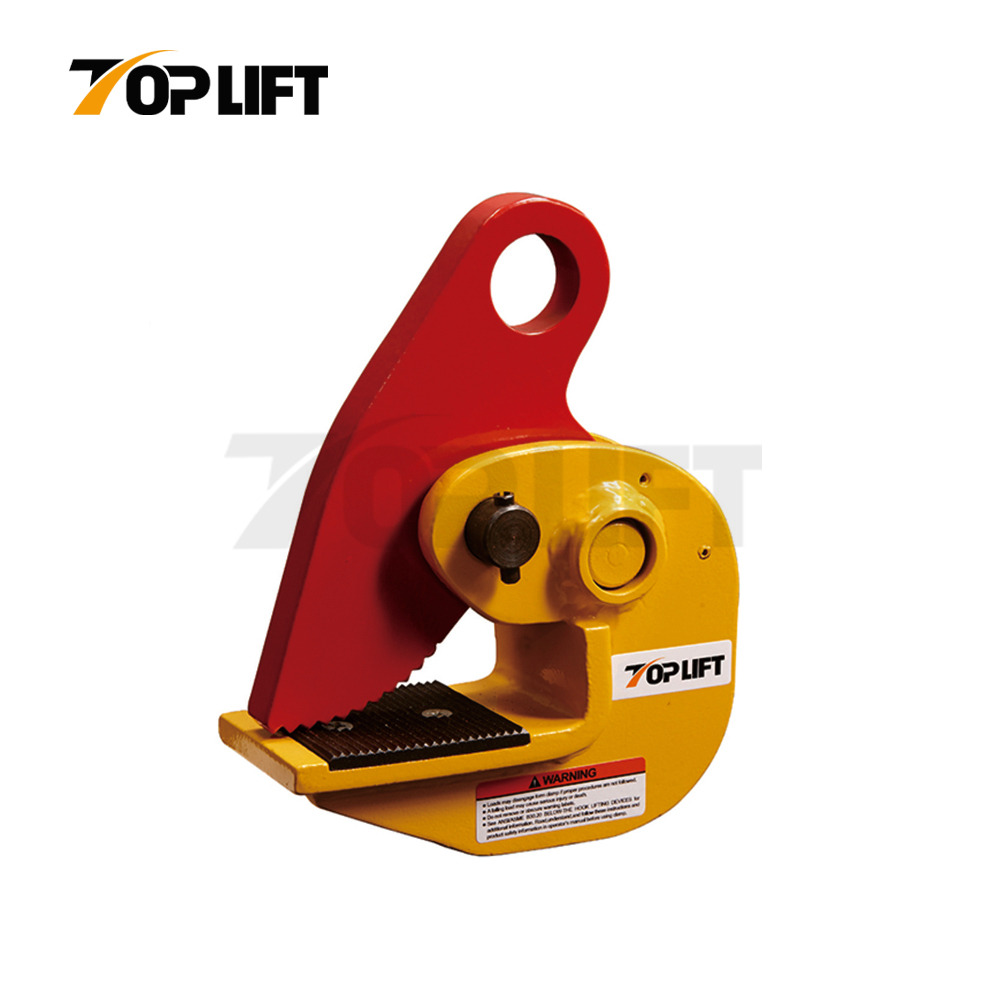

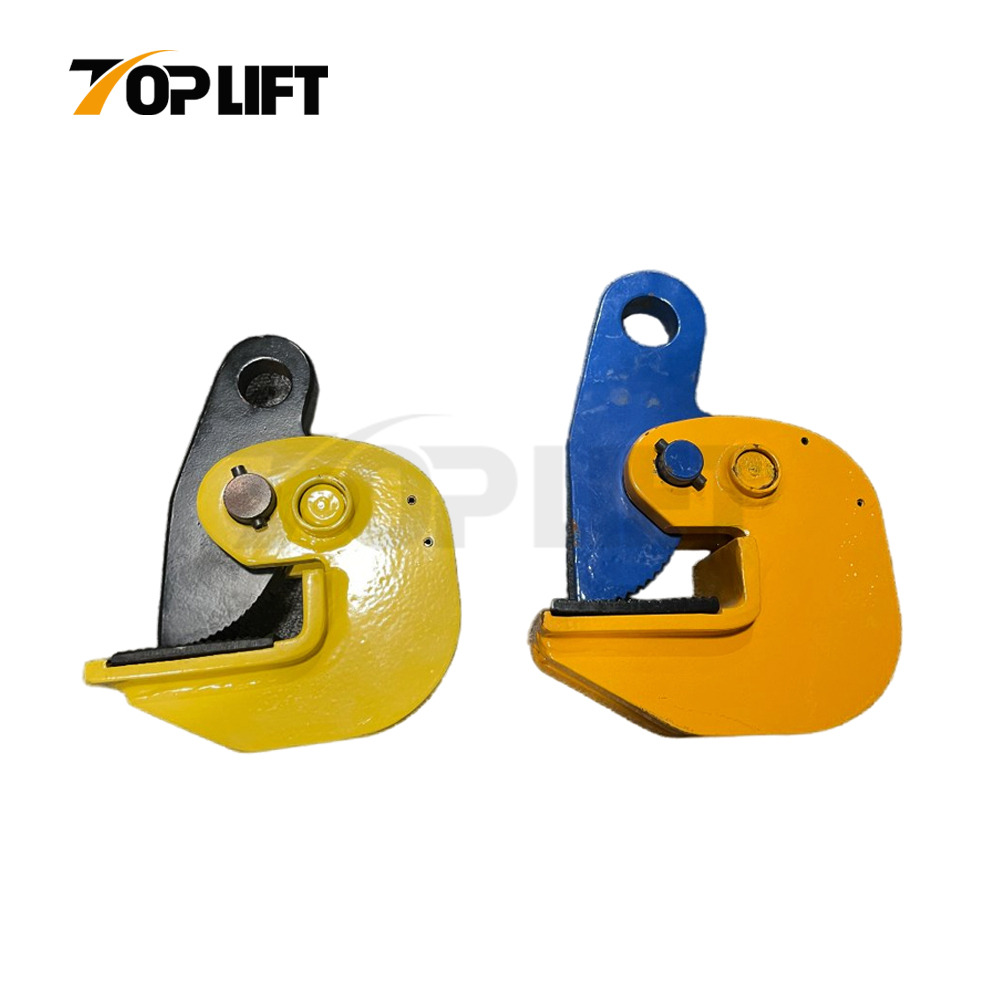

TP-LIFTING PDB Industry Standard Horizontal Plate Clamp
WLL:800-10000KGS
Introducing the PDB Horizontal Plate Clamp - a reliable and professional solution for all your lifting needs. Crafted with utmost precision, these clamps are manufactured using high-quality carbon steel, ensuring exceptional durability and longevity.
Designed to handle even the most demanding lifting tasks, our PDB Horizontal Plate Clamps are equipped with advanced features to ensure safe and efficient operations. With a focus on safety, these clamps are specially designed to avoid any potential damage caused by snatch or shock loads.
The screw jaw of the body can be easily changed, allowing for versatility and adaptability in various lifting applications. Additionally, our clamps are equipped with a safety button, providing an extra layer of security during lifting operations.
Basic Info.
Model NO. | PDB | Type | Horizontal | |
Color | Powder Painted | Transport Package | Carton or Wooden Box | |
Specification | 800-10000 KGS | Trademark | TOPLIFT or OEM | |
Origin | China | HS Code | 82041100 |
Features
lThe PDB horizontal plate clamps are suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
lManufactured from high quality carbon steel.
lAvoid snatch re shock load.
lThe screw jaw of the body can be changed, also have a safety button.
NB: The top angle between the chain / rope legs must not exceed 45 degree from vertical
Inspection, Care & Use
Do not side load PDB clamps
Do not use on a quad sling. When lifting long plates, use a beam or spreader bar that has a double leg sling at each end and connect clamps to the slings.

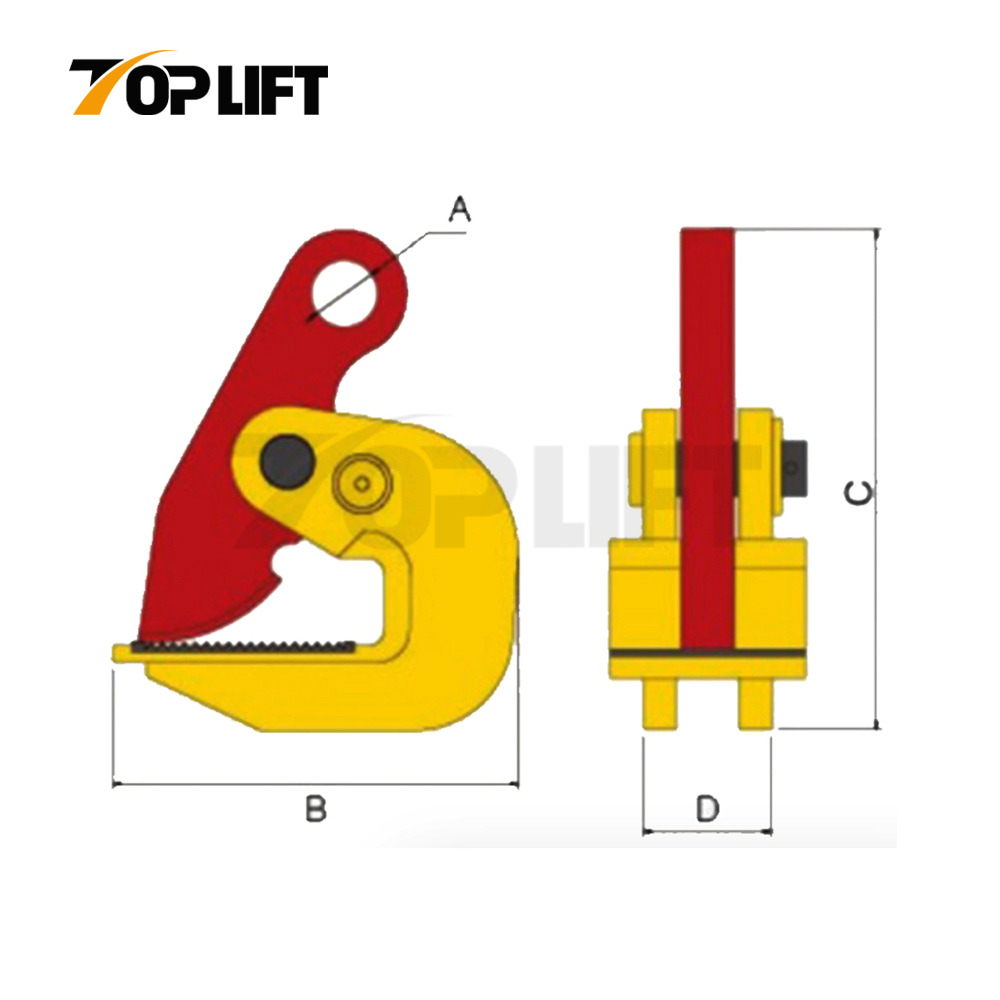

Specification
Model | Jaw Opening (mm) | Load Capacity (kg) | A (mm) | B (mm) | C (mm) | D (mm) | Net Weight (kg) |
PDB-0.8T | 0-25 | 800 | 22 | 125 | 165 | 40 | 2.5 |
PDB-1T | 0-30 | 1000 | 25 | 148 | 205 | 40 | 3.5 |
PDB-1.6T | 0-30 | 1600 | 30 | 148 | 205 | 45 | 4 |
PDB-2T | 0-40 | 2000 | 30 | 172 | 245 | 47 | 5 |
PDB-3.2T | 0-45 | 3200 | 30 | 180 | 245 | 50 | 6 |
PDB-4T | 0-50 | 4000 | 30 | 170 | 260 | 52 | 6.5 |
PDB-5T | 0-55 | 5000 | 30 | 180 | 260 | 56 | 7.5 |
PDB-6T | 25-65 | 6000 | 37 | 210 | 308 | 62 | 10.5 |
PDB-6BT | 0-130 | 6000 | 37 | 316 | 310 | 62 | 22 |
PDB-8T | 0-100 | 8000 | 55 | 282 | 400 | 65 | 22 |
PDB-10T | 0-125 | 10000 | 55 | 325 | 500 | 75 | 33 |
Product Details
1. Integrated Forging Design
2. Thicken Carbon Steel Tonue
3. Safety Anti-slip Chute

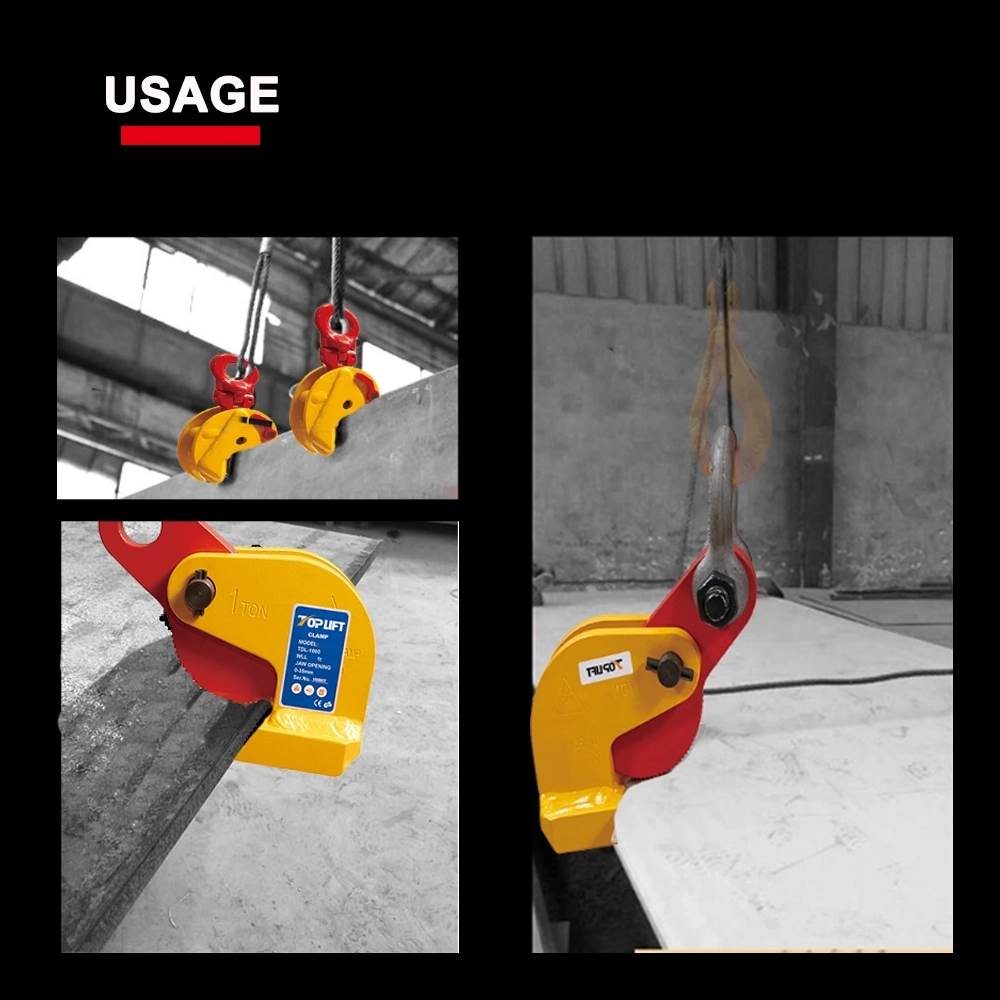

Usage
The clamps are suitable for lifting and transport of steel plates, construction and profiled bar in horizontal position.
Our advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
