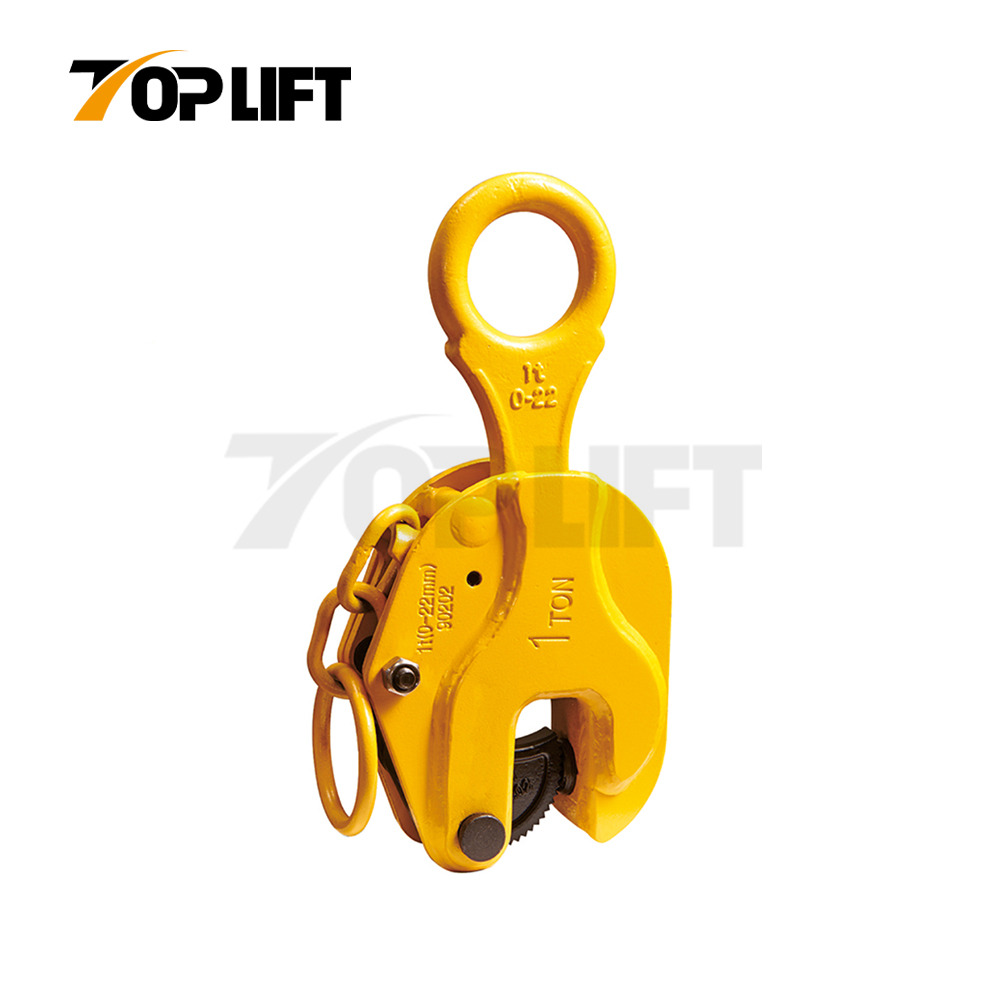

TP-Lifting CDH Standard Plate Clamp with Safety Hook
WLL.: 800-3000 KGS
Basic Info
| Place of Origin | China |
| Name | Vertical plate lifting clamp(CDH type) |
| Material | Alloy Steel |
| Surface | Painted |
| Color | Yellow |
| Type | Vertical |
| Usage | lifting goods |
| Application | Industry |
| Package | Carton+Pallet |
Features
Standard design clamp for vertical lifting of steel plates and steel structures.
The spring-loaded tightening lock mechanism assures a positive initial clamping force.
Clamps are equipped with safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
High-frequency quenching of die-forced special alloy steels gives greater durability to the cam.
NB: The plate surface of the material must have a hardness lever below HRC30 / Brinell 300
INSPECTION, CARE & USE
Do not side load clamp more than 15° for side loading.
Do not lift plates with a temperature greater than 100ºC.
Do not use to lift stainless steel, lead or copper.
Do not use on a double, triple, or quad sling, When using two clamps to lift a steel plate, a lifting beam must be used between the two clamps, so the clamps operate in a vertical position.
Specification

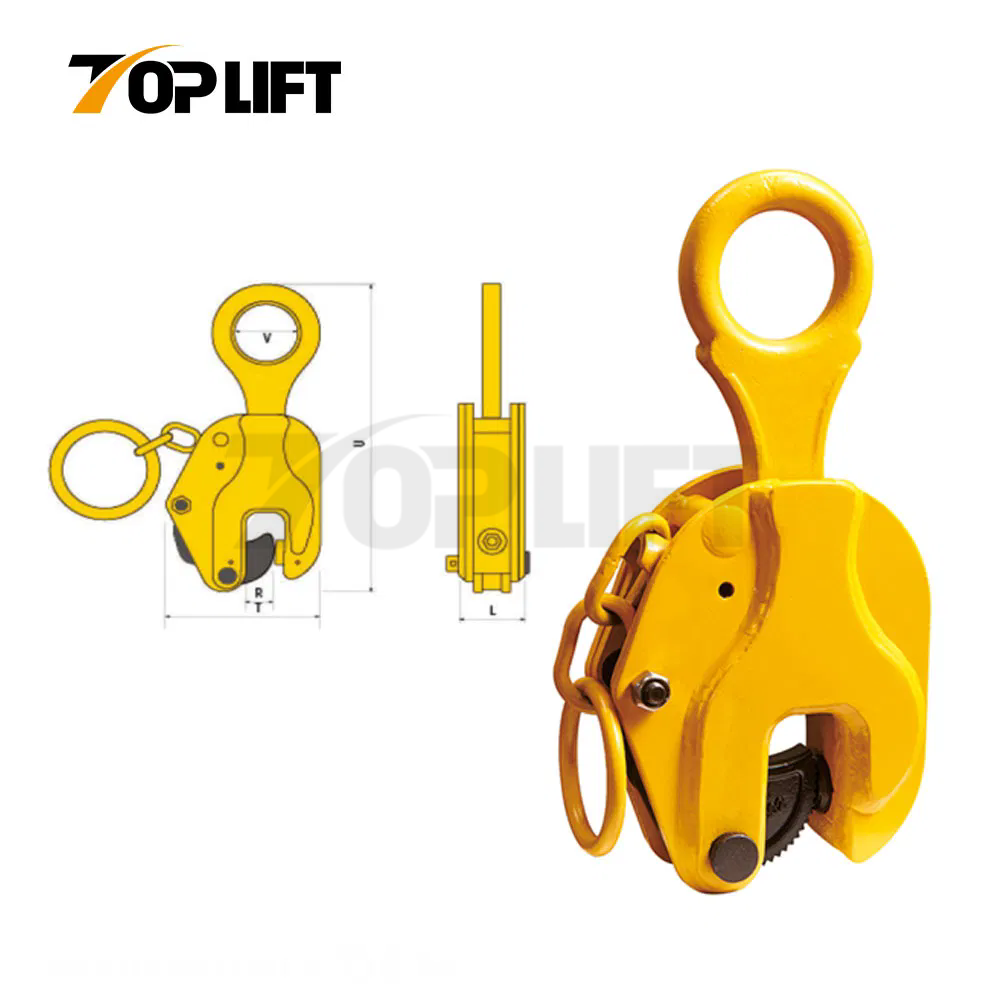

Model | Jaw Opening (mm) | Load Capacity (kg) | T (mm) | U (mm) | V (mm) | L (mm) | Net Weight (kg) |
CDH-0.8T | 0-16 | 800 | 123 | 265 | 40 | 44 | 2.8 |
CDH-1T | 0-22 | 1000 | 124 | 295 | 50 | 54 | 3.6 |
CDH-2T | 0-30 | 2000 | 154 | 385 | 54 | 56 | 5.5 |
CDH-3T | 0-40 | 3000 | 180 | 400 | 60 | 72 | 10 |
CDH-5T | 0-50 | 5000 | 222 | 483 | 68 | 76 | 17 |
CDH-8T | 0-60 | 8000 | 265 | 535 | 65 | 90 | 26 |
CDH-10T | 0-90 | 10000 | 290 | 600 | 80 | 95 | 32 |
CDH-12T | 25-90 | 12000 | 408 | 700 | 80 | 113 | 48 |
CDH-16T | 60-125 | 16000 | 465 | 780 | 100 | 121 | 80 |
CDH-20T | 0-90 | 20000 | 563 | 933 | 100 | 140 | 149 |
CDH-30T | 10-90 | 30000 | 568 | 918 | 100 | 142 | 155 |

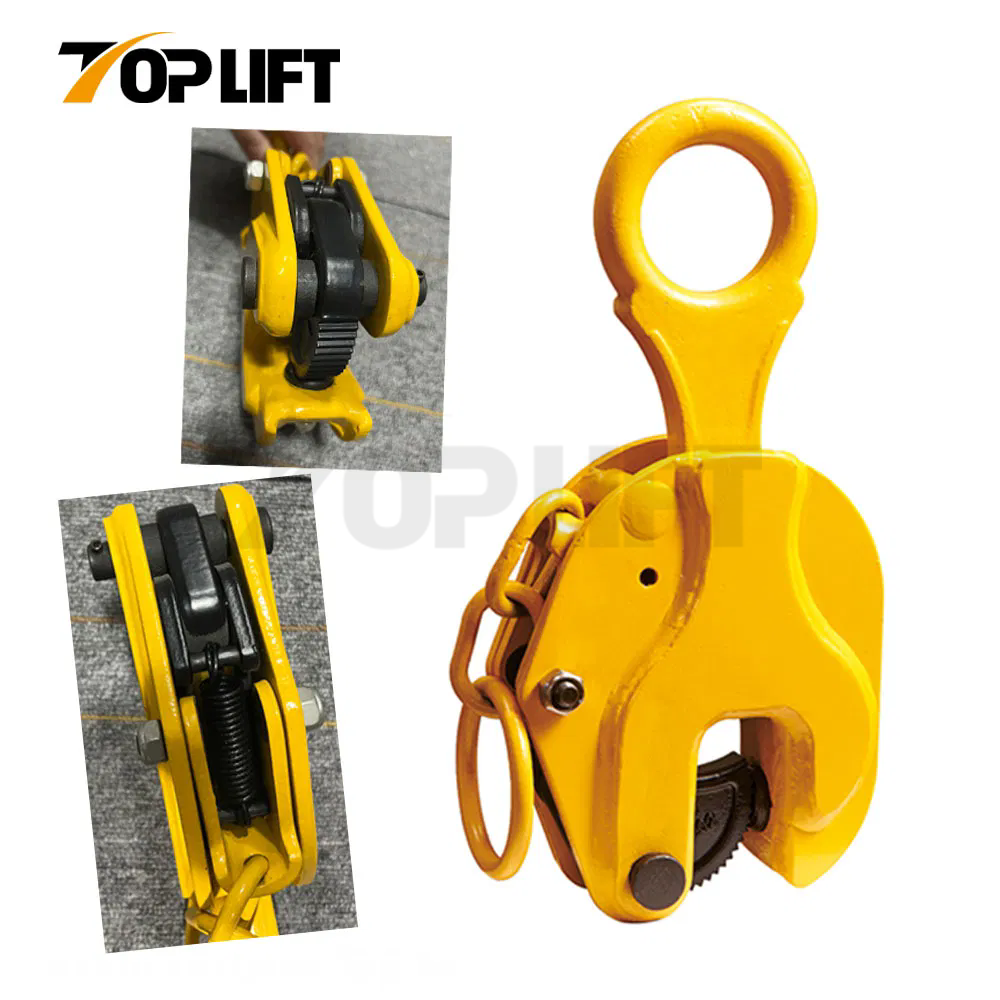

Product Details
1. With thickened tongue forceps
2. The clamp is forged intagrally, which is strong and durable.
3. With firm Spring Firmware, high-strength lifting ring and reliable Alloy steel block
FAQ
Q: How do you assure the quality?
Attaching great importance to quality controlling, We check every step from raw material to the finished bag one by one to make sure backpack in good quality. We test each order three steps:
Material test before production.
Random test during production progress
Test finished products before shipment.
The test report can be provided.
Q: Can you make customized items?
A: Yes. Please provide us the samples or the sketches, then we could assist you!
Q: What is your turnaround time?
A: Generally 30-45 days. Actually it is according to your order quantity. Customized products will take longer. But we could rush the order if you need urgently.
