WLL: 1500-3000KGS

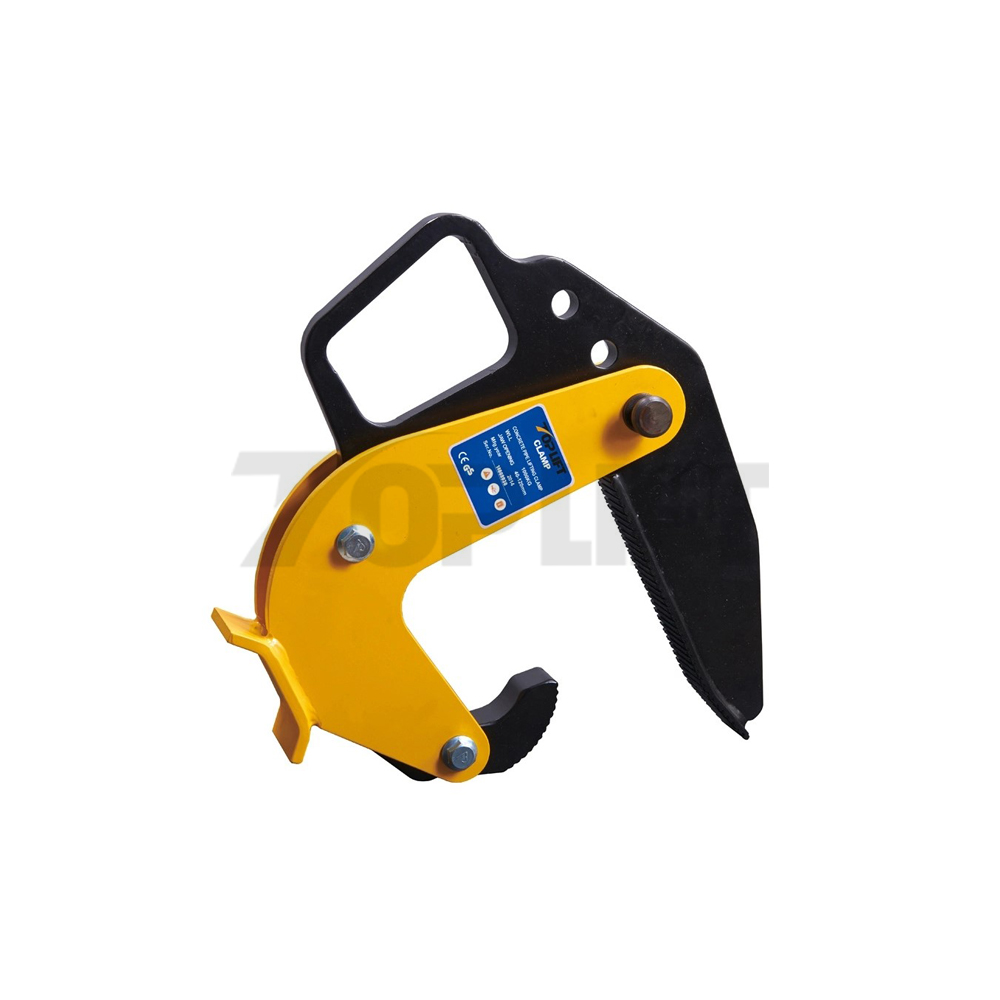

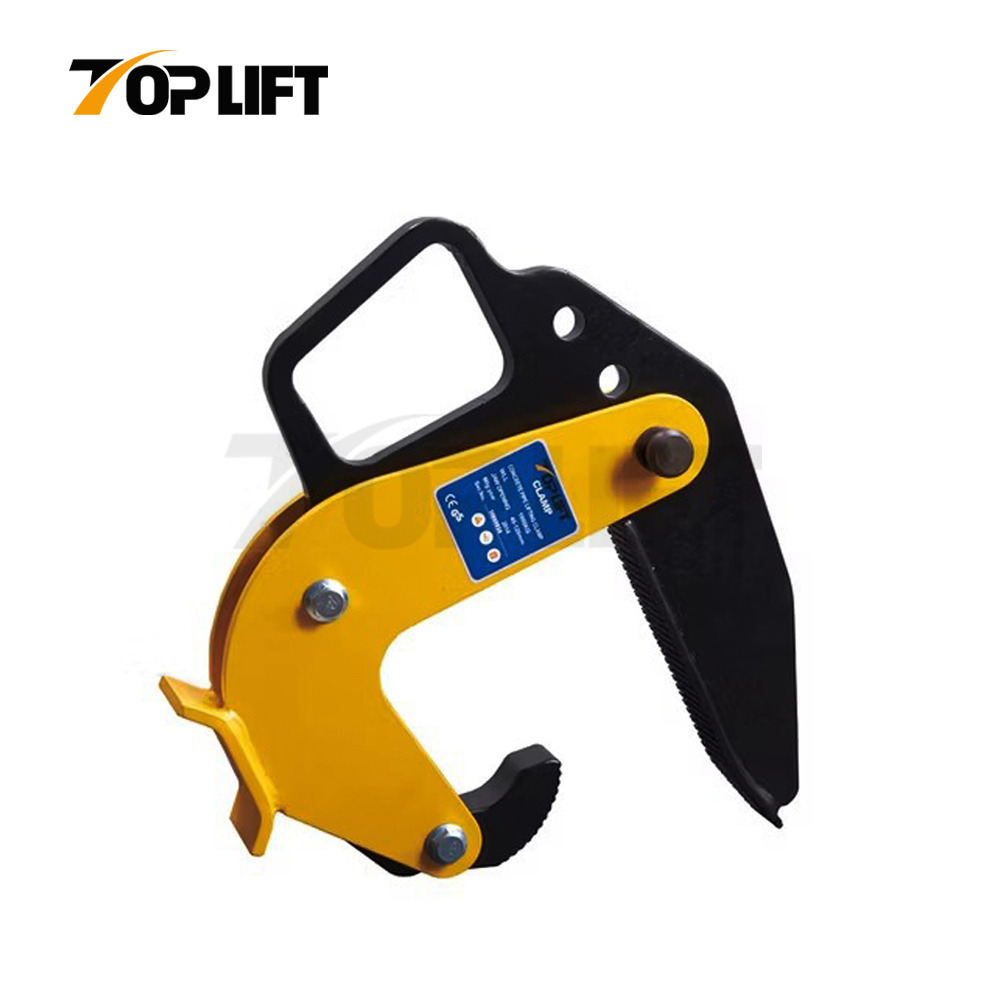

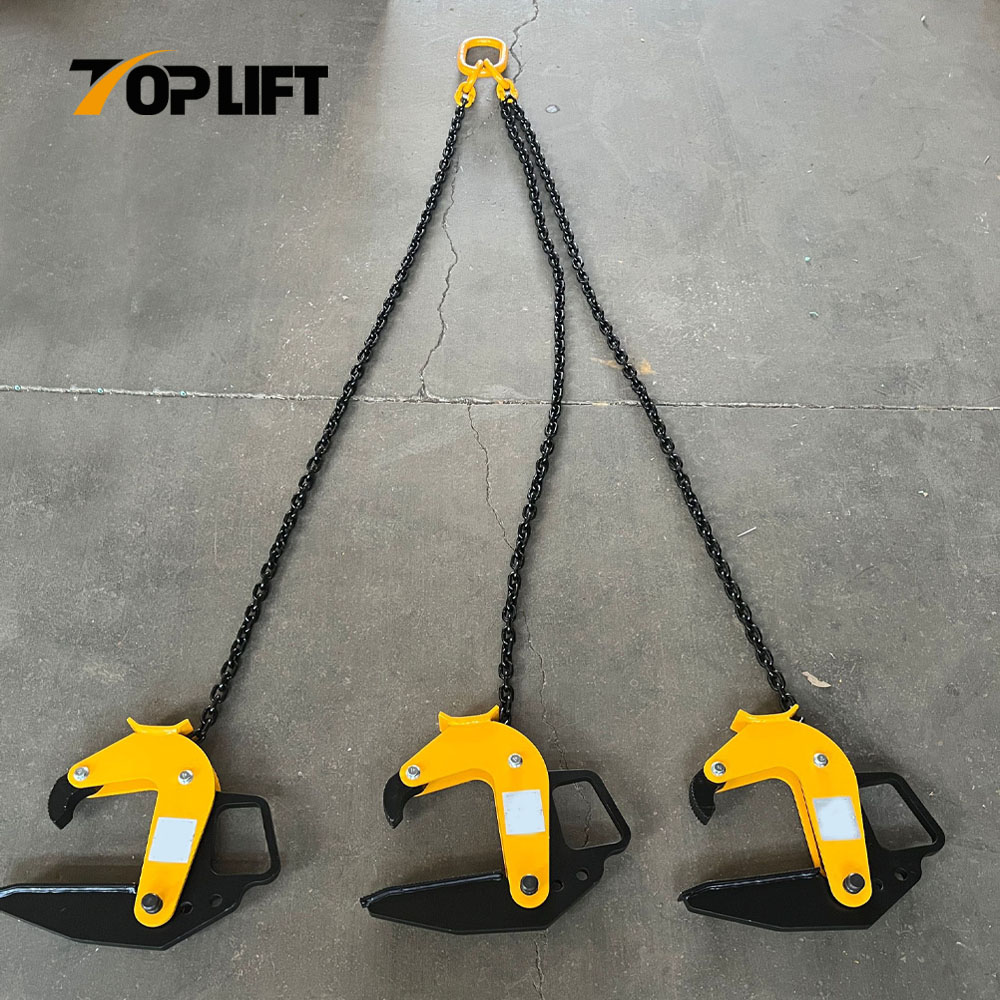

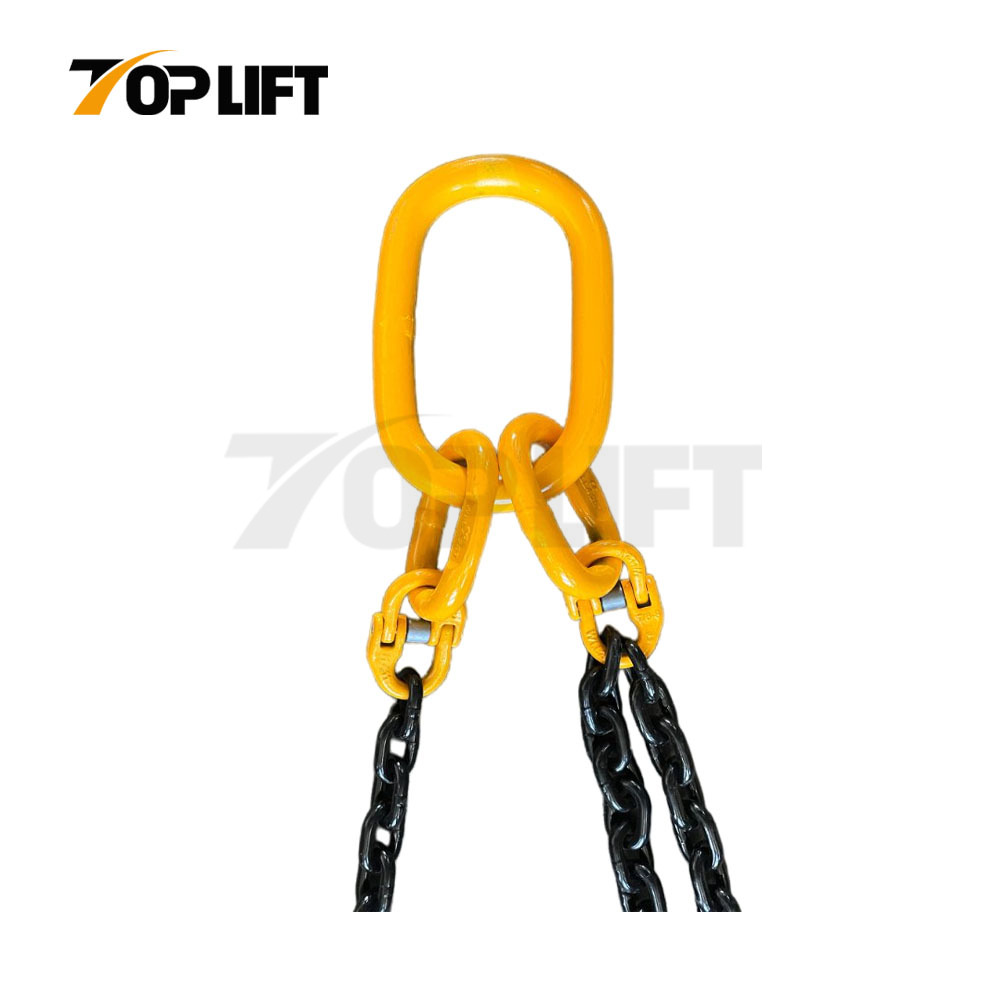

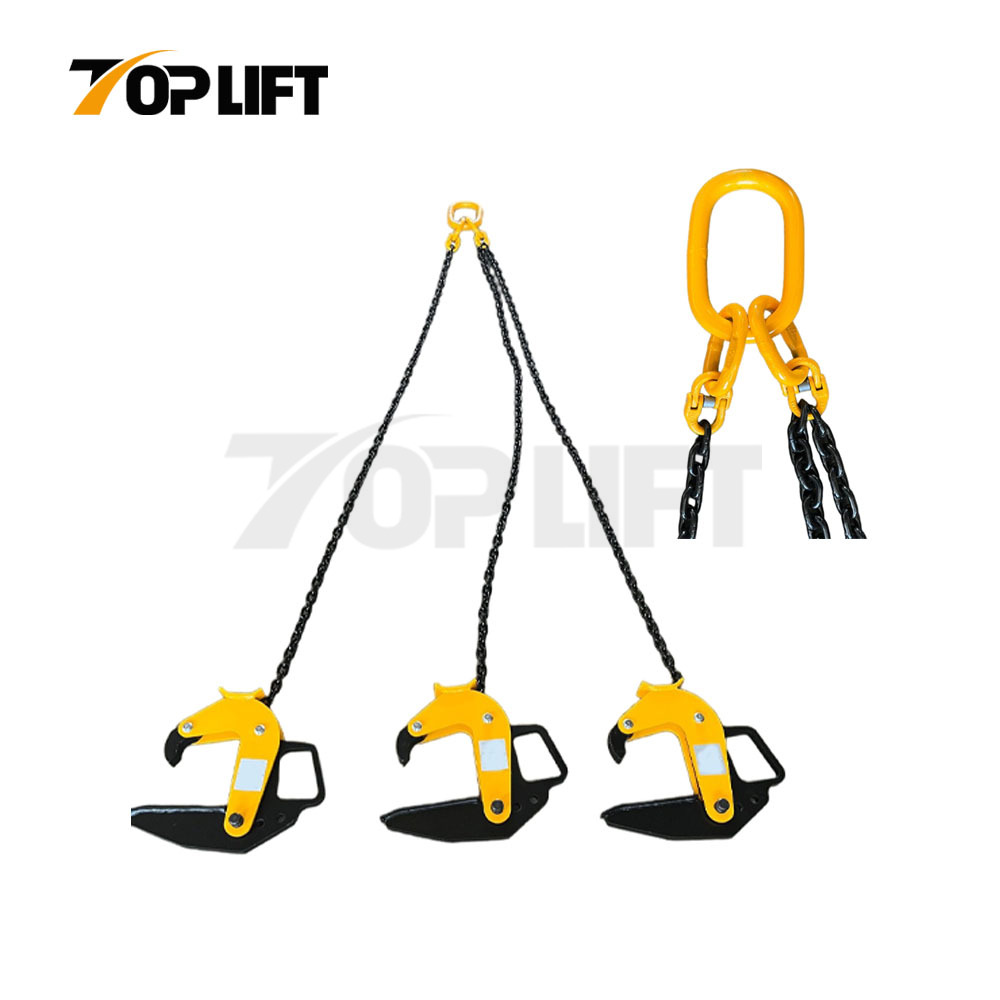

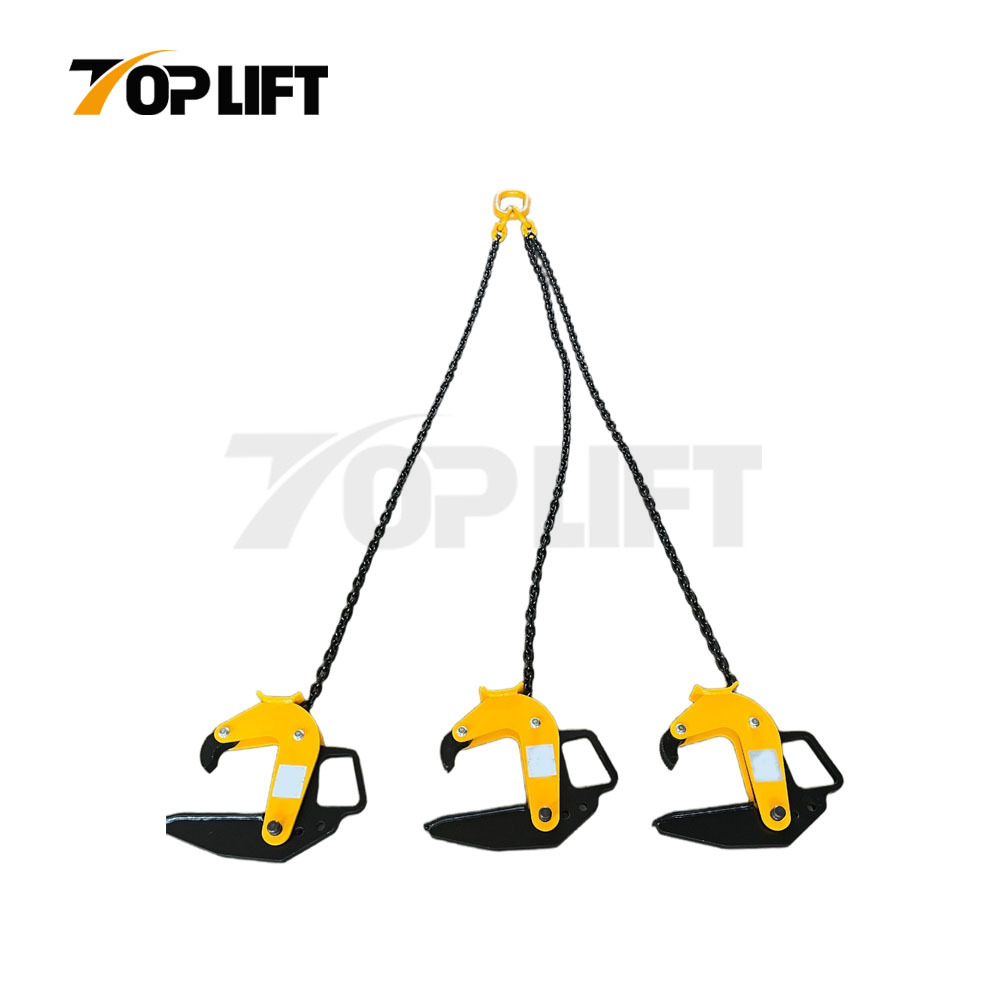

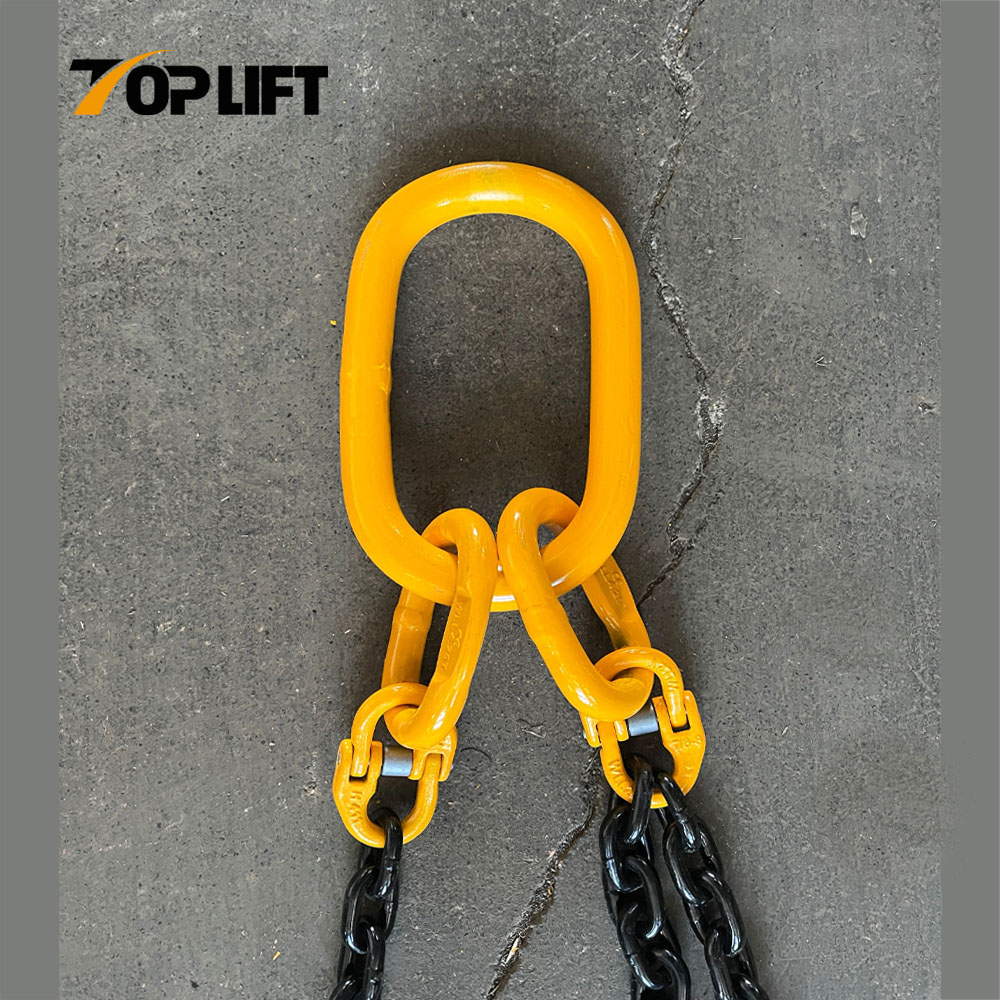

The PLG concrete pipe lifting clamps are sold in sets of three and they come complete with chain slings(the working load limits shown are based on a set of three clamps). They are designed for the vertical transportation of concrete pipe sections with a diameter of up to 2m. The jaw capacity is designed for pipe thickness of 40-220mm. Attachment and removal of the clamps from the pipes is extremely easy due to the simple and straightforward design.
Features
Solid construction For heavy duty use
Factor of safety 4:1
Lightweight design
Simple and safe handling For concrete
Large jaw capacity according to DIN4034
Specification

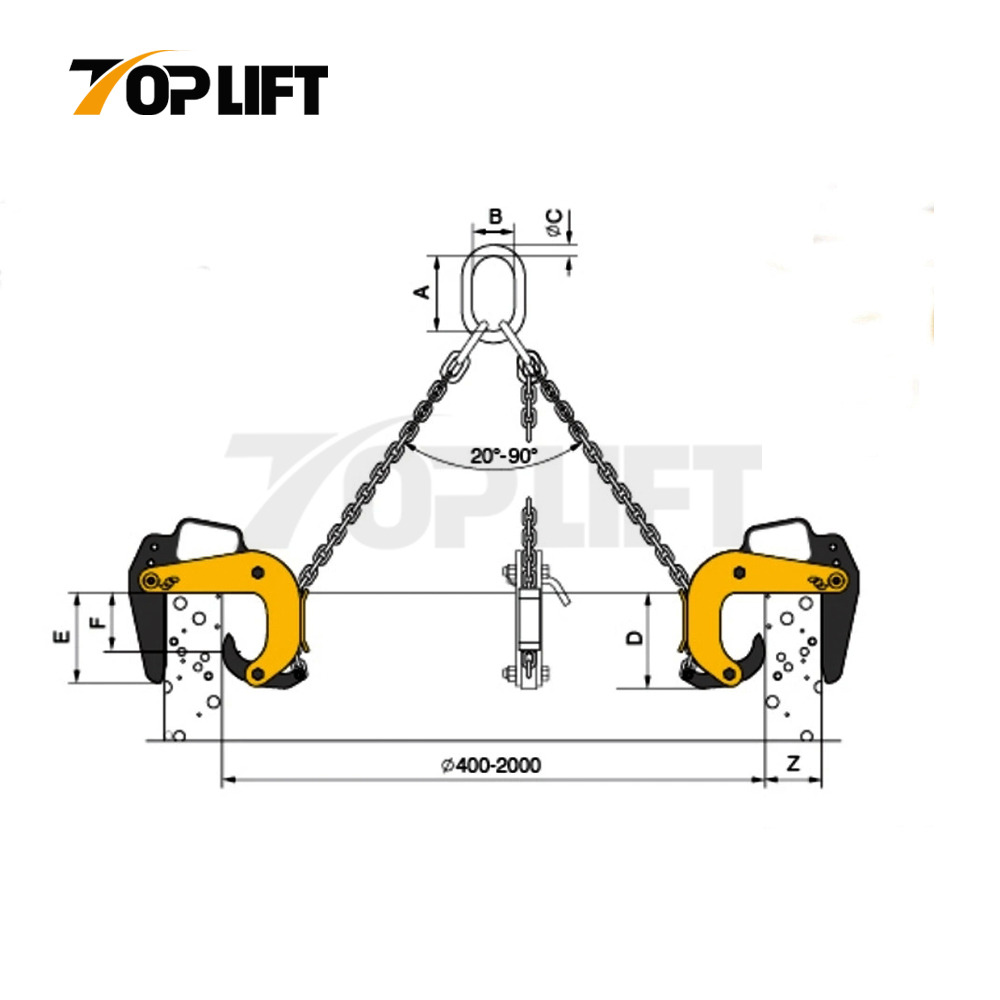

Model | WLL (kgs) | JawCapacity (Z) (mm) | Mouth Depth (E) (kg) | Pressure Line (F) (mm) | A (mm) | B (mm) | C (mm) | D (mm) | Net Weight (kg) |
PLG1500/3 | 1500 | 40-120 | 165 | 100 | 135 | 75 | 18 | 180 | 10 |
PLG3000/3 | 3000 | 50-180 | 245 | 175 | 180 | 100 | 26 | 310 | 18 |
PLG3000L/3 | 3000 | 90-220 | 245 | 175 | 180 | 100 | 26 | 310 | 27 |
Product Details
1. Attachment and removal of the clamps from the pipes is extremely easy due to the simple and straightforward design.
2. The gear of the clamp can hold the object and is easy to drop.
3. The clamp, with high quality firmware, has longer service life, and is safer.
Our products
FAQ
1. Do you provide OEM service?
Yes, of course. We have professional team to support your ideas.
2. How to get samples to check your quality?
We provide free samples with small quantity, but express charges are accounted to buyers..
3.How about the production time ?
Normally 35 days are needed for production after deposit received. Customized products are excepted.
4.How will my order be shipped?
Usually shipped by sea, small order or urgent order can be delivered by air or by express.
5.How about the mini order ?
Depend on the particular products, please confirm with us.
