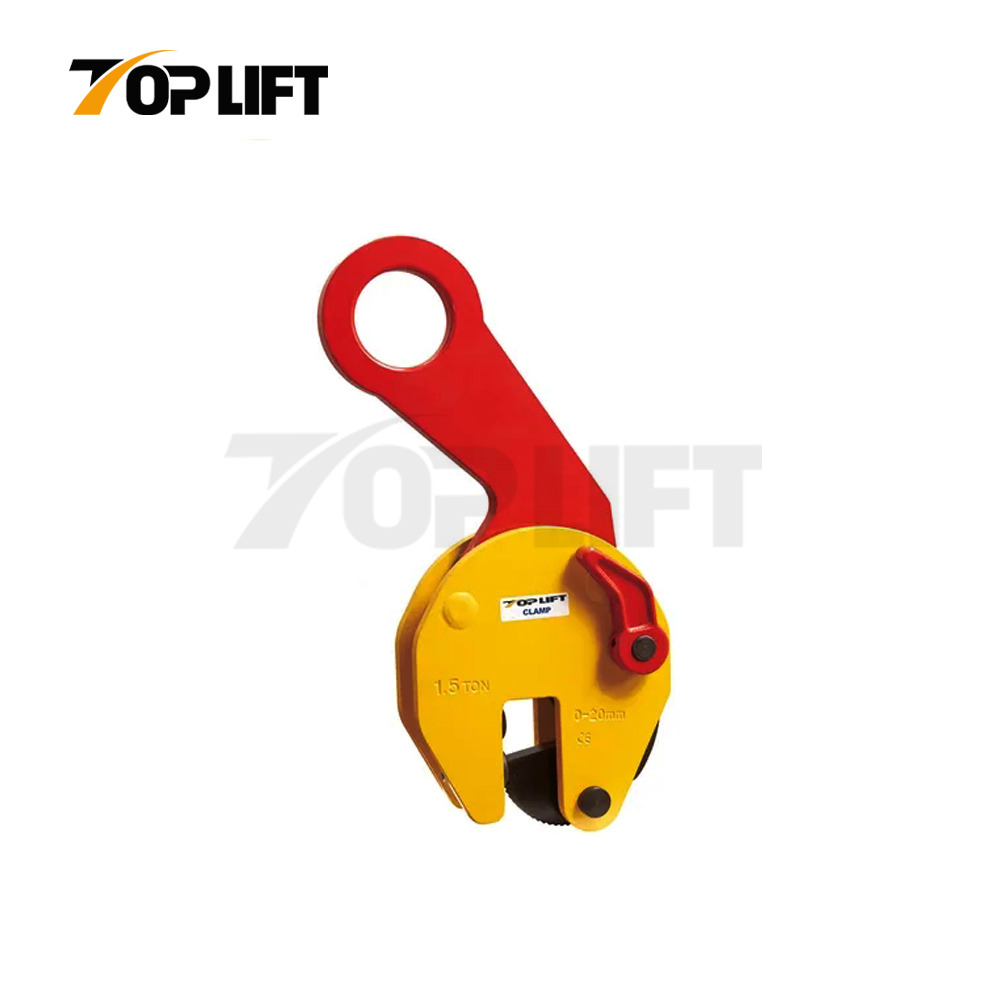

TBK Vertical Clamp for Steel Beams with 1.5T-3T Capacity
WLL:1500-3000KGS
Basic Info.
Model NO. | TBK | Specification | 1500-3000 KGS | |
Trademark | TOPLIFT or OEM | Origin | China | |
HS Code | 82041100 |
Features

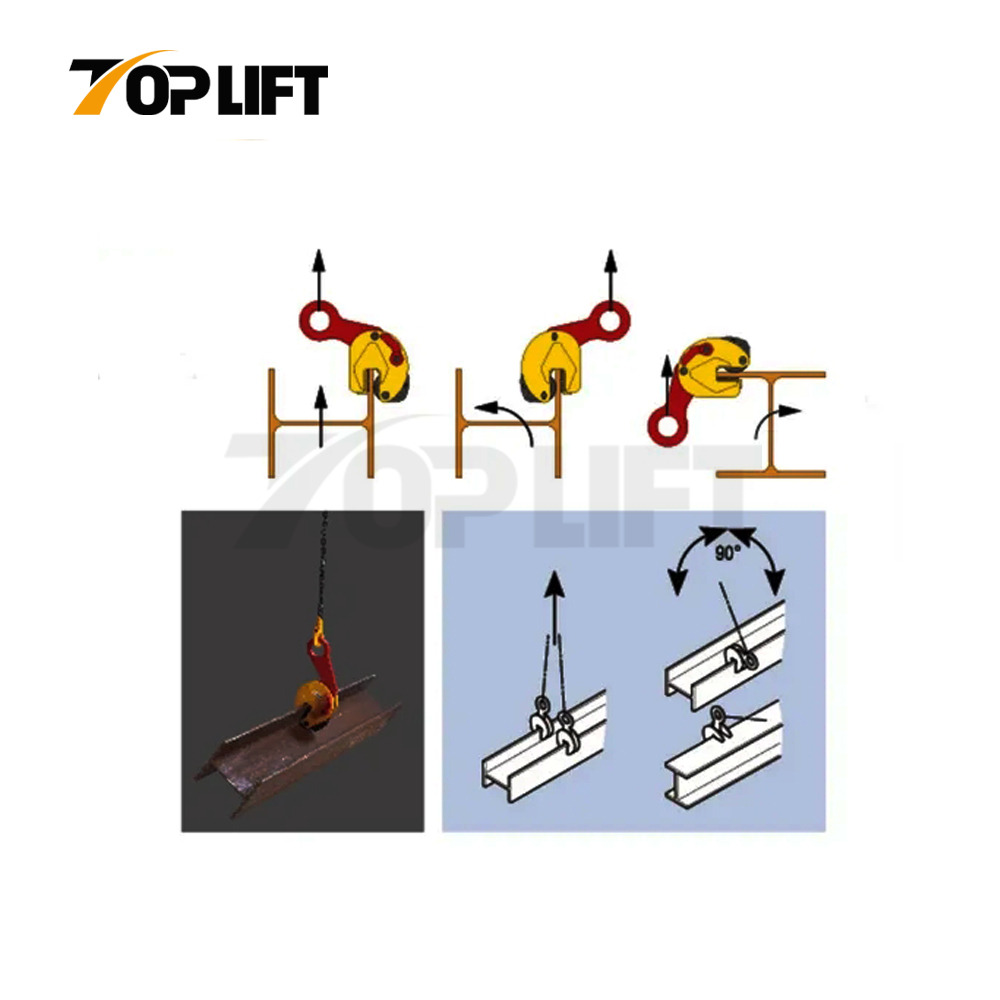

For lifting and transporting steel beams, profiles and structures where the load must stay in position.
The special shape of the lifting shackle places the center of the gravity of the beam beneath the lifting
shackle.
This maintains the equilibrium of the beam once it has been lifted and keeps the flanges vertical
so that the beam can easily be stacked or positioned.
Recommend for transporting and stacking of steel beams.
NB:The plate surface of the material must have a hardness lever below HRC30/Brinell 300.
Inspection, Care& Use
DO NOT exceed 60° angle when lifting
DO NOT lift plates with a temperature greater than 100ºC
DO NOT use to lift stainless steel lead or copper

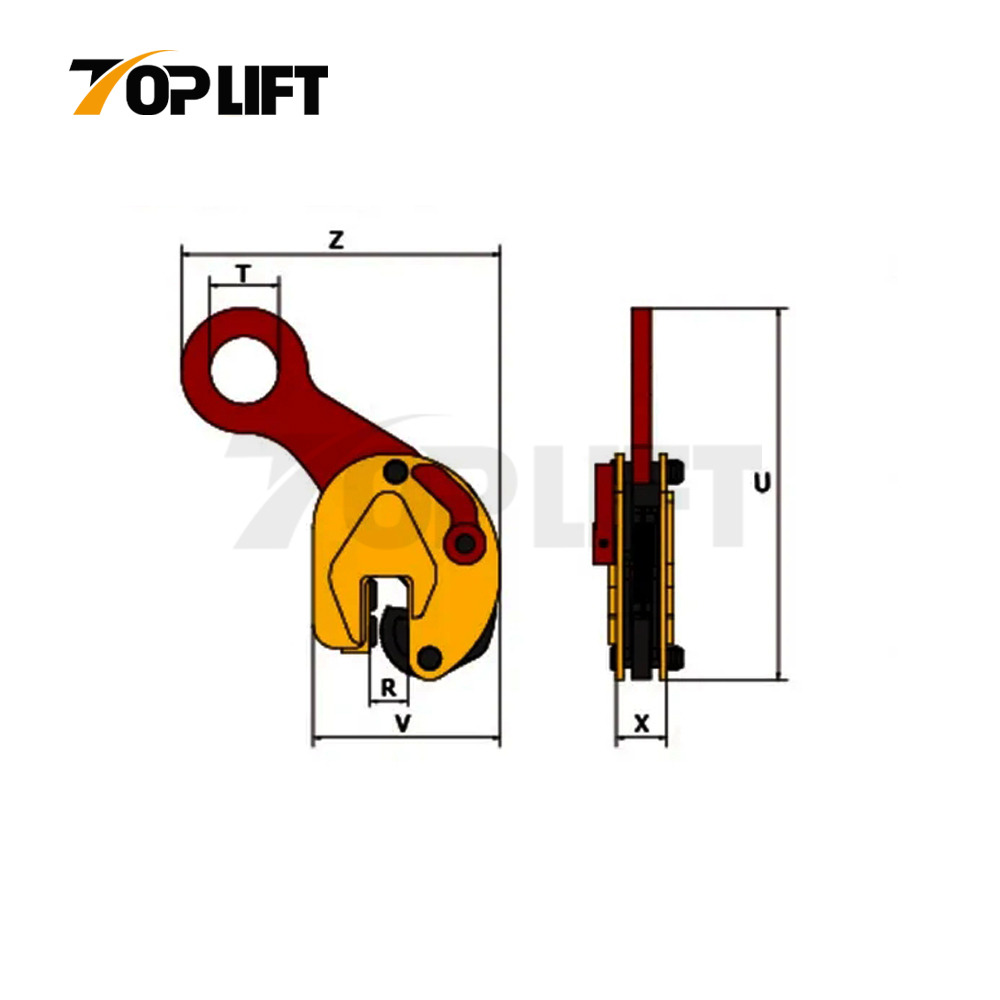

Specification
Model | Jaw Opening (mm) | Load Capacity (kg) | V (mm) | T (mm) | Z (mm) | X (mm) | U (mm) | Weight (kg) |
TBK-1.5T | 0-20 | 1500 | 170 | 60 | 312 | 56 | 374 | 7 |
TBK-3T | 0-25 | 3000 | 208 | 70 | 380 | 77 | 410 | 15 |
Product Details
1. Thickened wear-resistant hook, safer and strong.
2. The plate clamp body is integrated molding, strong and durable.
Use
Other Popular Products
FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
