TPH
| Quantity: | |
|---|---|

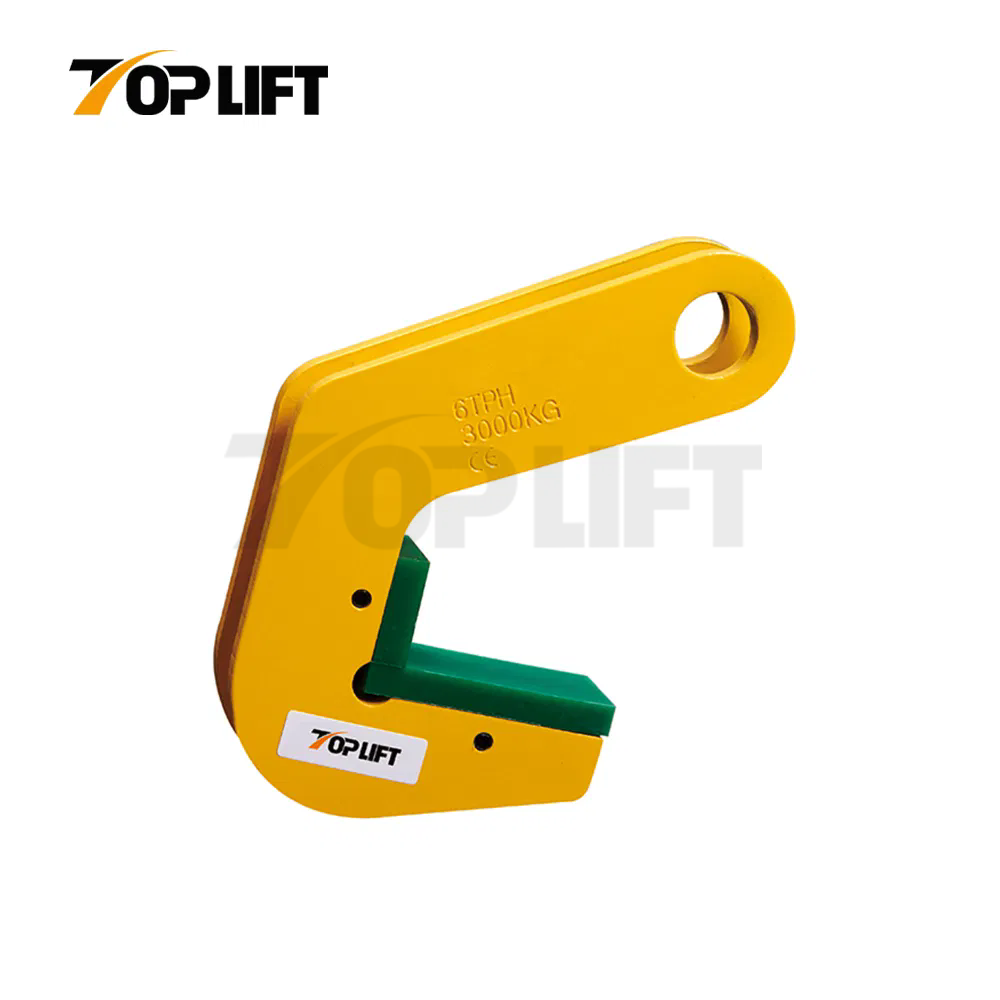

TP-LIFTING TPH Pipe Lifting Clamp
WLL:1500-18000 KGS
The TPH Pipe Lifting Clamp - the ultimate solution for efficient and secure horizontal lifting and transporting of steel and concrete pipes. Designed with utmost precision and engineered to perfection, this cutting-edge clamp is a must-have for any construction or industrial project.
One of the standout features of our TPH Pipe Lifting Clamp is its compact shape and relatively low unit weight. This ensures easy handling and maneuverability, making it a breeze to transport and position pipes with utmost precision. Despite its lightweight design, this clamp boasts an impressive lifting Working Load Limit (W.L.L), guaranteeing exceptional performance and reliability.
Basic Info.
Model NO. | TPH | Type | Vertical, Horizontal, Sidelong | |
Specification | 1500-18000 KGS | Trademark | TOPLIFT/ OEM | |
Origin | China | HS Code | 82041100 |
Features
The TPH pipe plate clamps for horizontal lifting and transporting of steel and concrete pipes.
Compact shape and relatively low unit weight with high lifting W.L.L
The surface is equipped with "special" plastic.
Plastic cover replacement parts are available and easy to change.
Inspection, Care& Use
ØDo not lift plates with a temperature greater than 100ºC
Specification

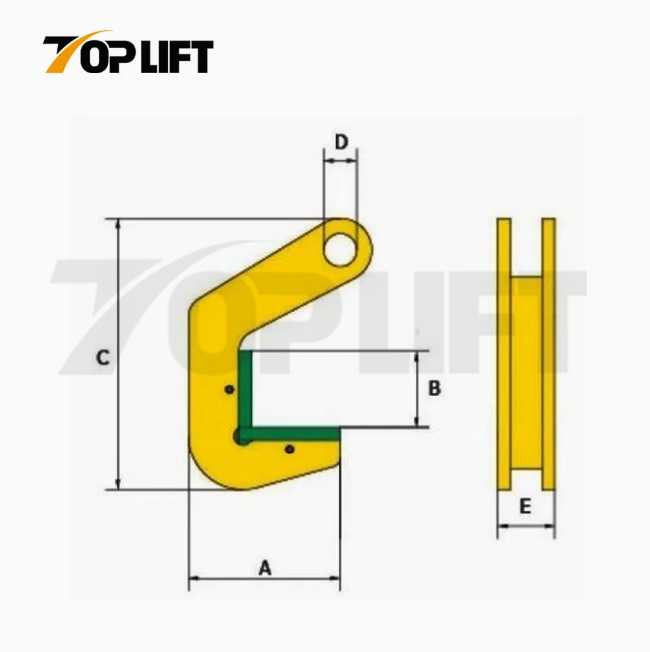

Model | Jaw Opening (mm) | Load Capacity (kg) | A (mm) | B (mm) | D (mm) | E (mm) | Net Weight (kg) |
TPH-1.5T | 40 | 1500 | 127 | 40 | 27 | 35 | 1.5 |
TPH-3T | 40 | 3000 | 142 | 40 | 27 | 35 | 3 |
TPH-4T | 50 | 4000 | 144 | 50 | 30 | 40 | 4 |
TPH-6T | 50 | 6000 | 152 | 50 | 30 | 40 | 5 |
TPH-8T | 70 | 8000 | 155 | 70 | 30 | 42 | 6.7 |
TPH-12T | 70 | 12000 | 175 | 70 | 33 | 46 | 10 |
TPH-16T | 70 | 16000 | 175 | 70 | 40 | 56 | 13 |
TPH-18T | 70 | 18000 | 145 | 70 | 52 | 68 | 15 |
Product Details
1. The plate clamp body is integrated molding, strong and durable; the whole surface is powder plastified, smooth and beautiful.
2. Thickened alloy steel plate and integrated design.
3. The lifting ring is molded by die-forging and quenched at high temperature for strong bearing capacity.
USAGE
Our Advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
