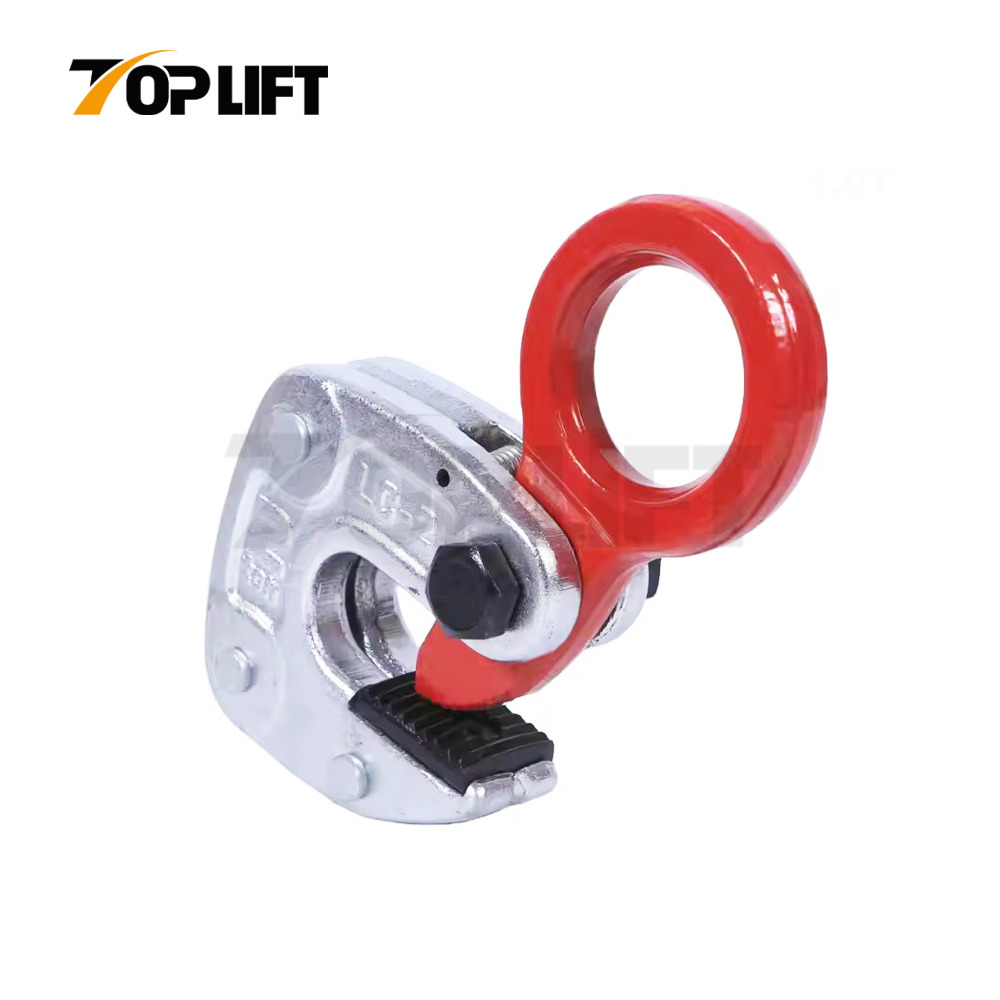

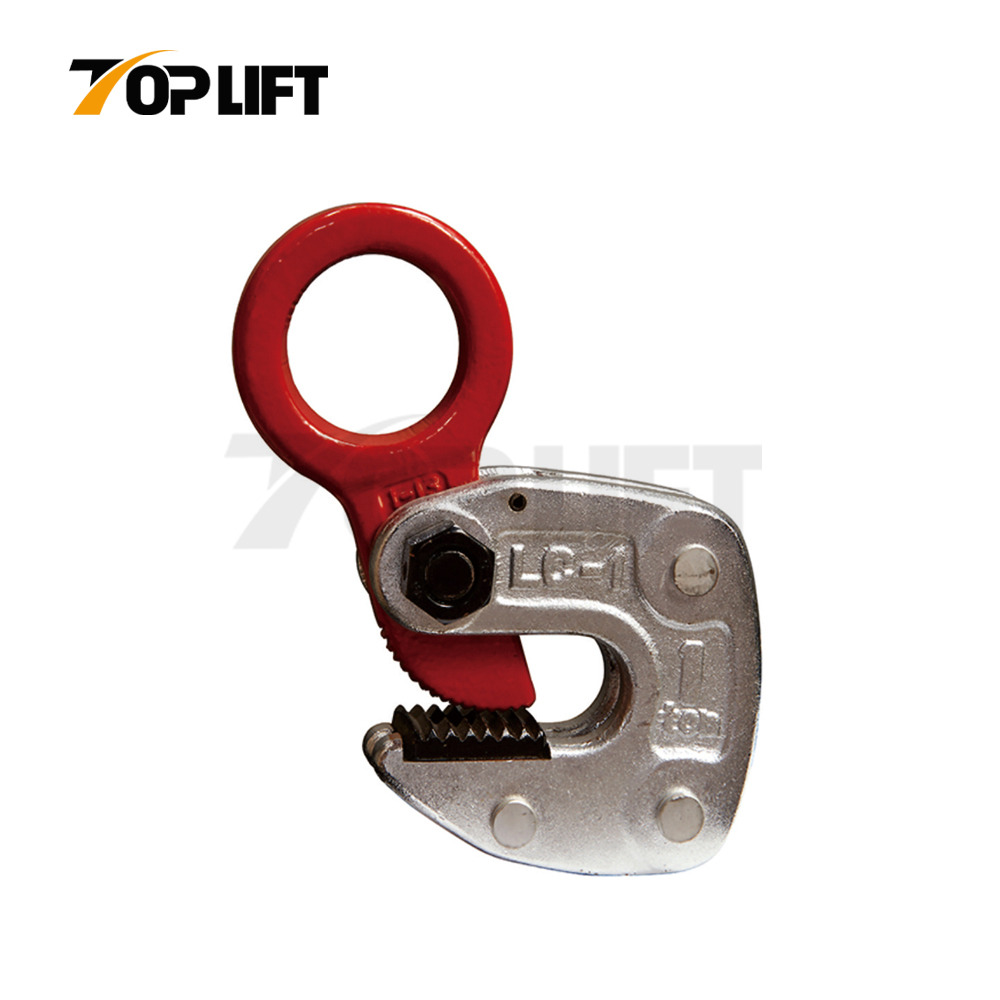

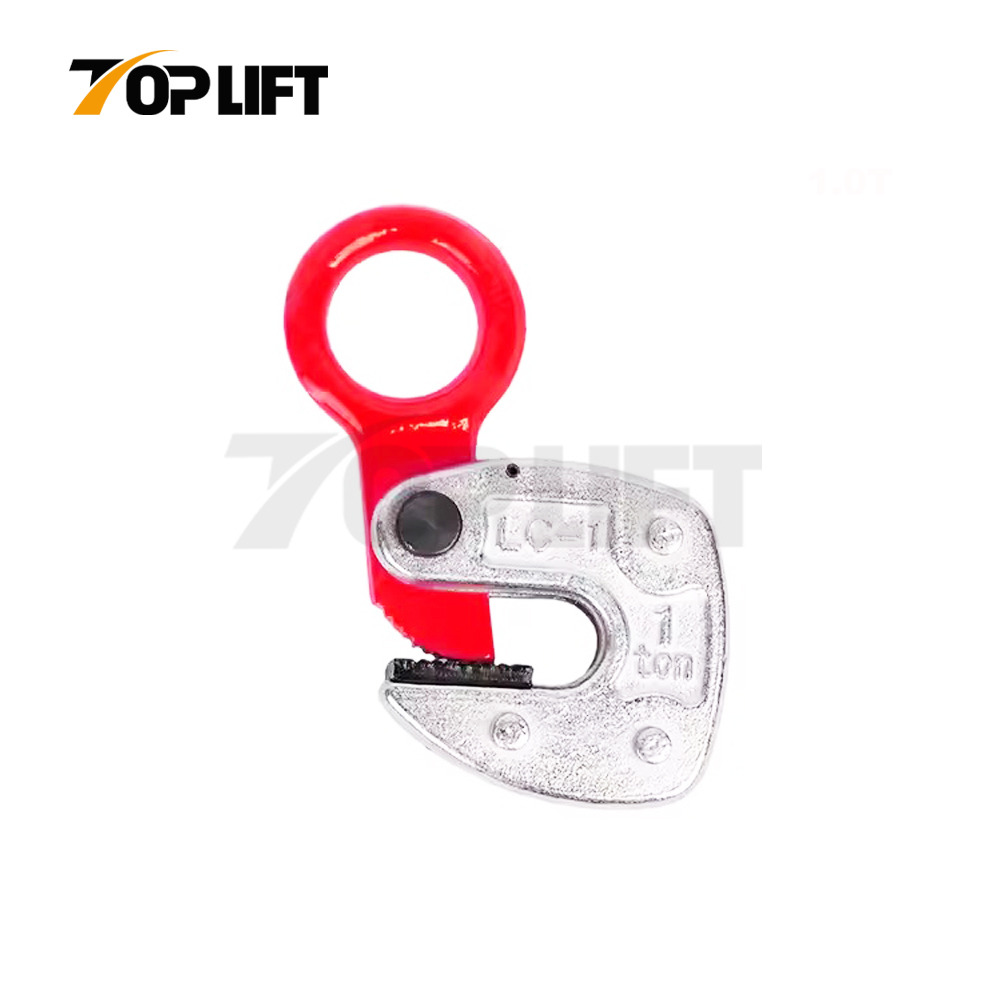

TP-LIFTING LC Structure Clamp
WLL:1000-3000 KGS
Introducing the LC Structure Clamp: a compact, lightweight, and easy-to-use solution for lifting horizontal shaped structured steel. Designed with utmost precision and engineered to perfection, this professional-grade clamp is the ideal companion for your lifting operations.
The LC Structure Clamp is specifically crafted to provide unparalleled convenience and efficiency. Its compact size ensures easy handling and maneuverability, allowing you to effortlessly lift and secure horizontal shaped structured steel with utmost precision. Weighing in at a lightweight, this clamp guarantees ease of use without compromising on strength or durability.
Basic Info.
Model NO. | LC | Type | Vertical, Horizontal, Sidelong | |
Craft | Forged | Transport Package | Carton or Wooden Box | |
Specification | 1000-3000 KGS | Trademark | TOPLIFT or OEM | |
Origin | China | HS Code | 82041100 |
Features
When the sling wire slackens due to the load coming to rest on the floor, the spring loaded initial clamping force will prevent the clamp from detaching from the work piece. It is unnecessary to hold the clamp after setting it onto the work piece.
The main body and parts ate made from die-forged special alloy steels, which are optimally tempered for maximum strength and durability.
Inspection, Care & Use
Do not exceed 60° angle when lifting
Do not lift plates with a temperature greater than 100ºC
Do not use to lift stainless steel, lead or copper
Specification

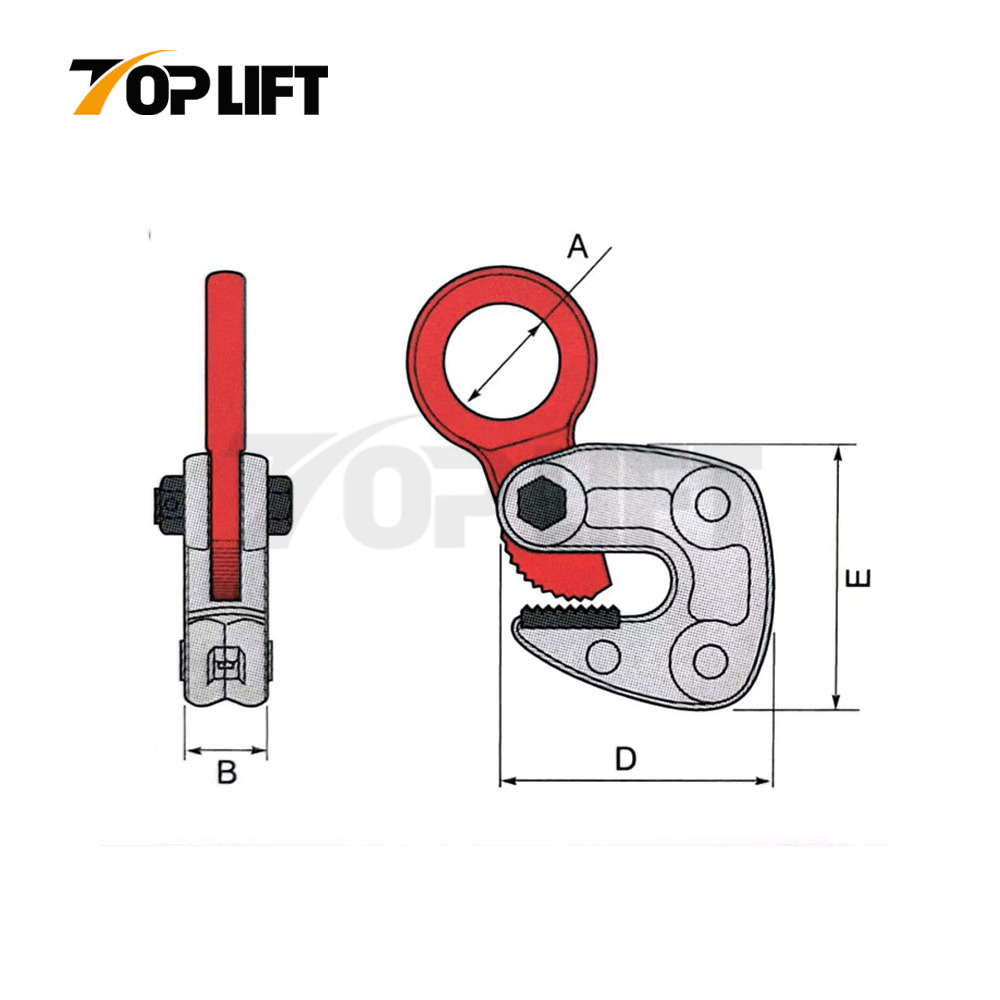

Model | Jaw Opening (mm) | Load Capacity (kg) | A (mm) | B (mm) | D (mm) | E (mm) | Net Weight (kg) |
LC-1T | 1-13 | 1000 | 45 | 31 | 108 | 105 | 2 |
LC-2T | 3-22 | 2000 | 58 | 42 | 145 | 135 | 4.5 |
LC-3T | 12-35 | 3000 | 42 | 52 | 180 | 175 | 8.9 |
Product Details

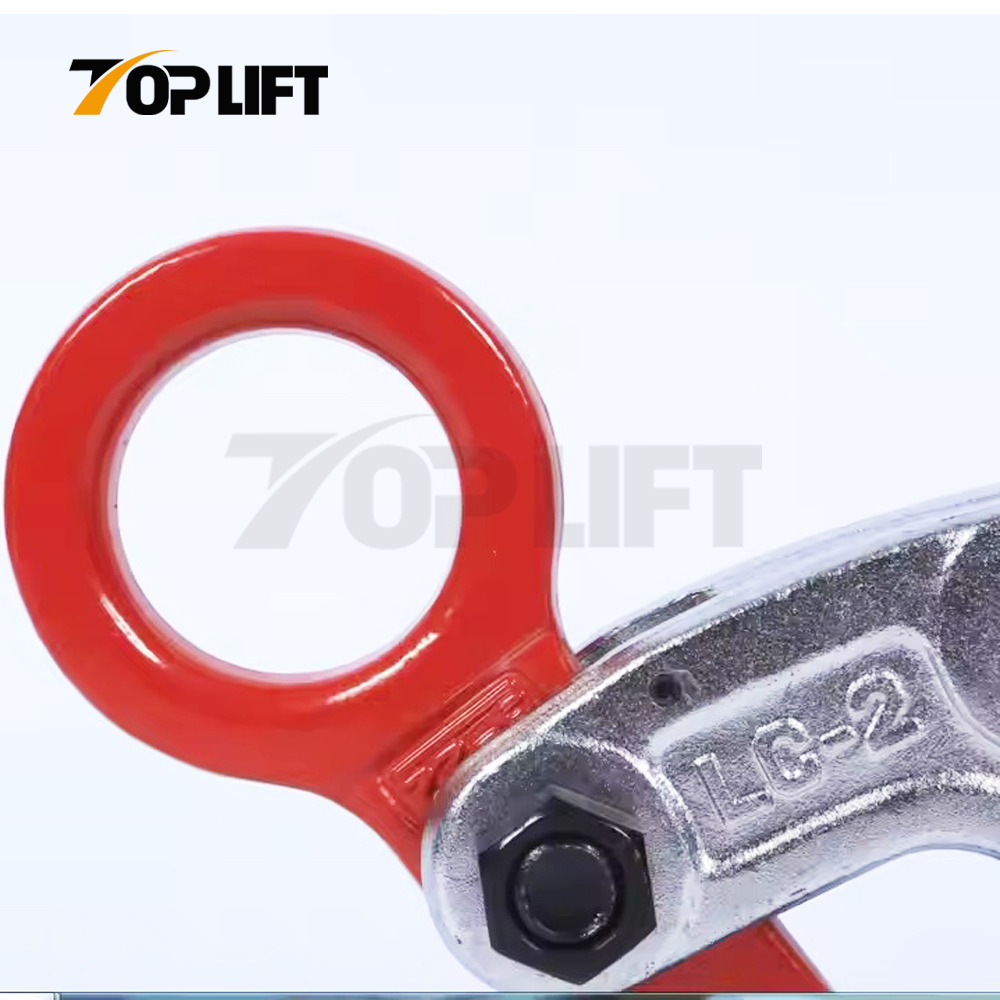

1. Die-forged Special Alloy Steels: The main body and parts are made of die-forged special alloy steels, which are optimally temperd for maximum strength and durability.

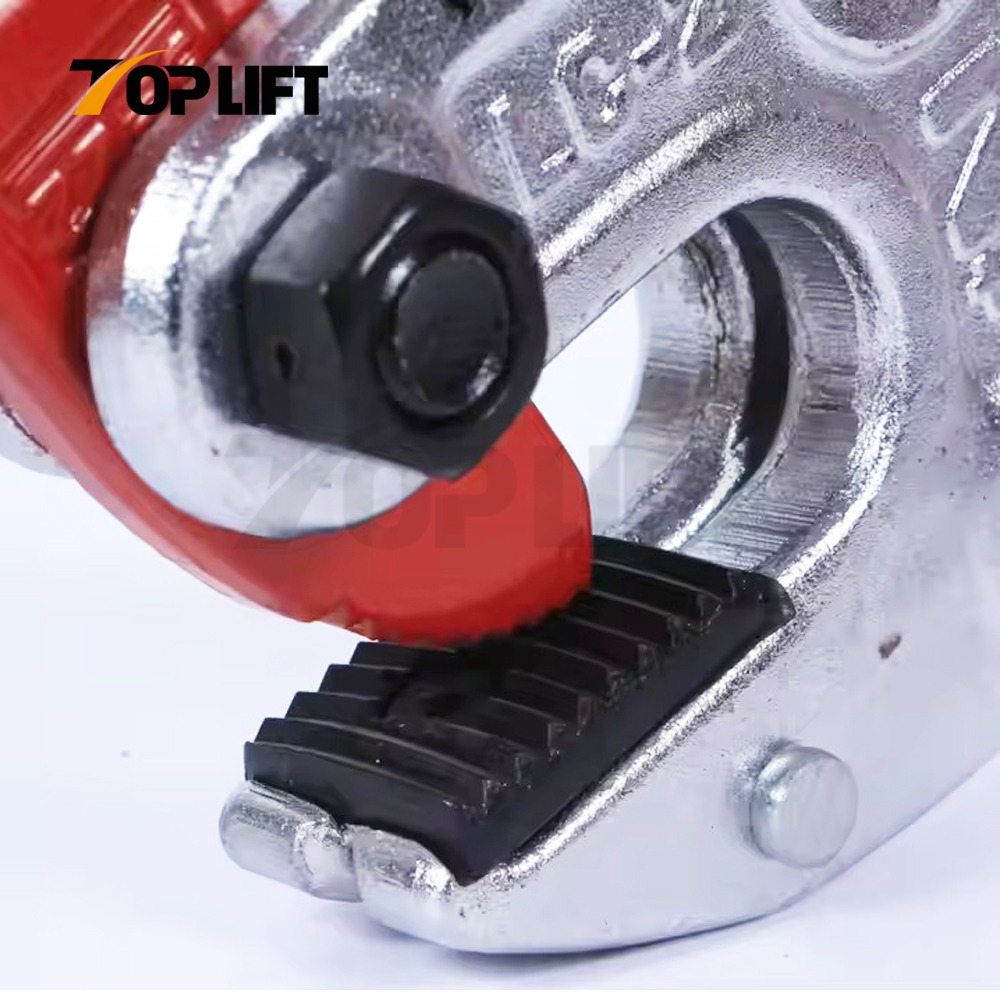

2. Safety Anti-slip Chute: Tightly lock the steel plate, preventing from slipping and effectively improving the safety factor.
Other Products
FAQ
Q:What can we do?
A:1. Meet all of your lifting equipment &rigging' needs.
2. Service on inspection for lifting equipment and rigging material.
Q:How do you control your quality?
A:1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
Q:What are your advantages compared with others?
A:1.Specializing in the field of lifting equipment and rigging product supply for around 10 years, have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
