TCH
| Quantity: | |
|---|---|
WLL:1000-10000KGS
Basic Info.
Model NO. | TCH | Specification | 1000-10000 KGS | |
Trademark | TOPLIFT or OEM | Origin | China | |
HS Code | 82041100 |
Features

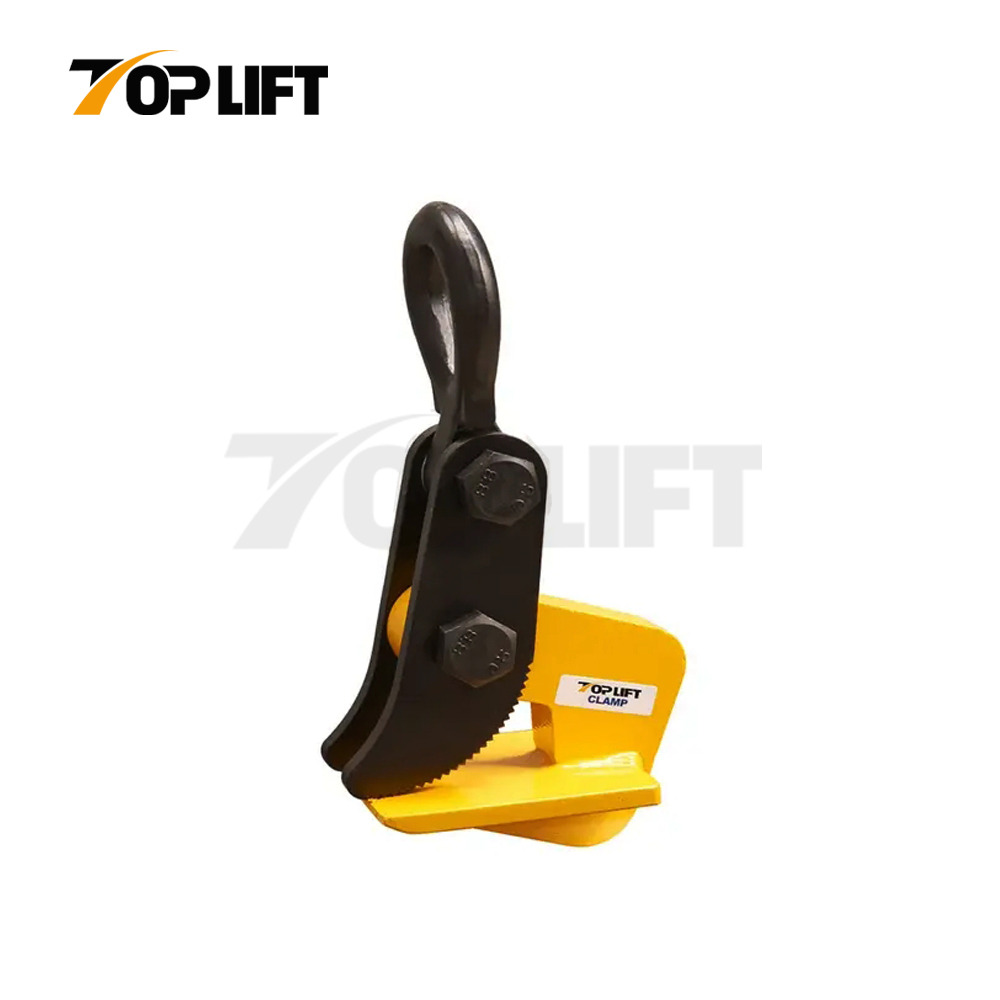

The TCH horizontal plate clamps have been specially designed to be used in pairs, for the transportation of plate bundles as well as single plates with a minimum thickness of 5mm.

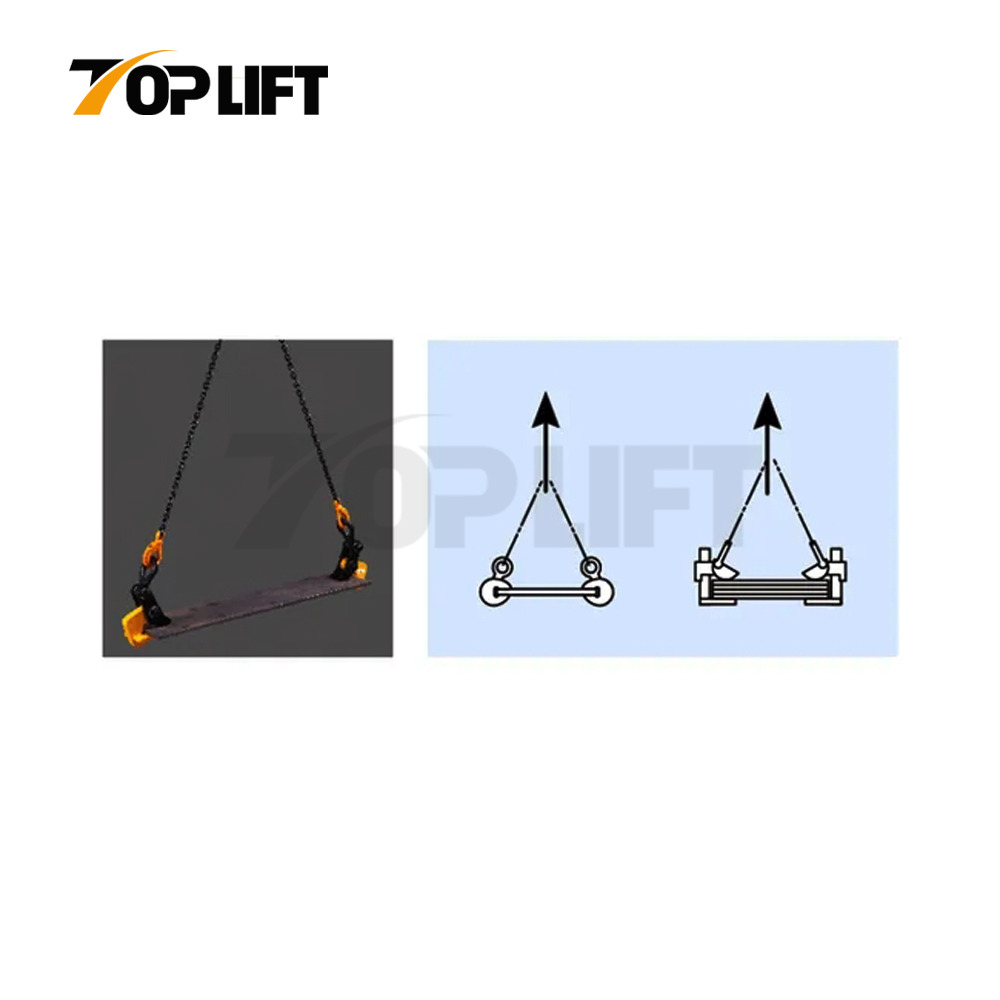

A pair of clamps used with a two legged chain sling are suitable for small plates up to 1500mm in length. It is recommended to use two pairs in cinjunction with a spreader beam for handling of larger plates.
These units are supplied as standard with a smooth jaw.
There is also the option of hardened steel teeth for special applications.
Please cintact our technical department for further details.
NB: The top angle between the chain / rope legs must not exceed 45 degree from vertical.
Inspection, Care& Use
DO NOT exceed 60° angle when lifting
DO NOT lift plates with a temperature greater than 100ºC
DO NOT use to lift stainless steel lead or copper
Specification
Model | Jaw Opening (mm) | Load Capacity (kg) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Net Weight (kg) |
TCH1T | 5-32 | 1000 | 245 | 110 | 44 | 100 | 32 | 6 |
TCH2T | 5-32 | 2000 | 220 | 88 | 73 | 100 | 50 | 5.4 |
TCH4T | 5-50 | 4000 | 265 | 118 | 92 | 100 | 64 | 10 |
TCH6T | 5-75 | 6000 | 350 | 172 | 130 | 130 | 90 | 24.5 |
TCH8T | 5-75 | 8000 | 350 | 172 | 130 | 130 | 90 | 28.5 |
TCH10T | 5-100 | 10000 | 470 | 215 | 130 | 150 | 114 | 48 |
TCH10T | 5-150 | 10000 | 510 | 215 | 130 | 150 | 114 | 52 |
Product Details
1. The gear of clamp can tighten plate, safe and reliable.
2. Thickened alloy steel plate and integrated design.
FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
