STB
| Quantity: | |
|---|---|
Basic Info.

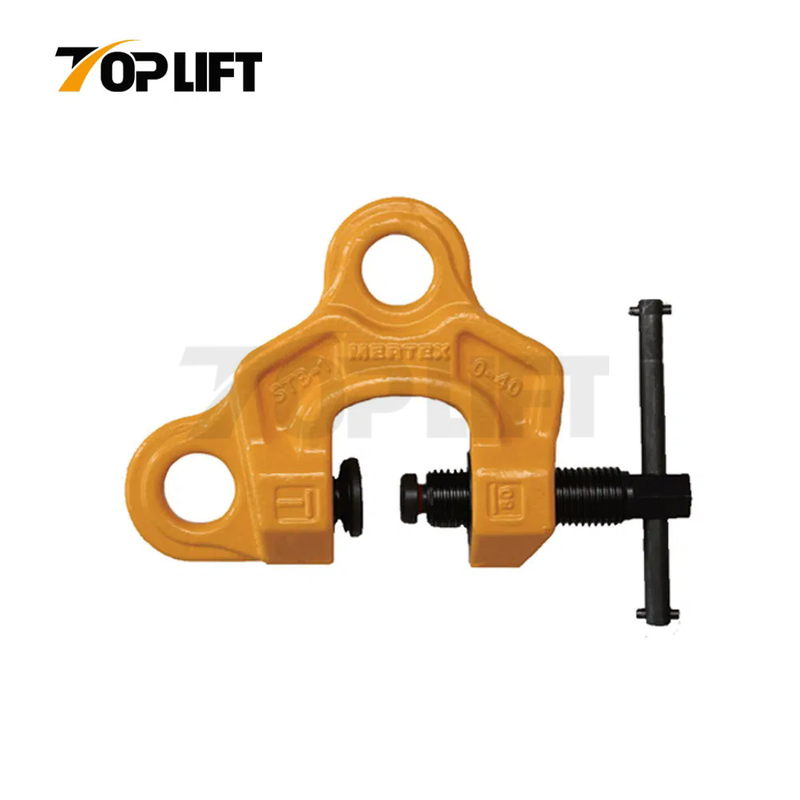

Universal high-technology clamp which does the work of several models, all by itself. Lifting, turning over, moving, suspending, tensioning, and clamping fixtures.
Model NO. | TP-STB | Color | Powder Painted | |
Type | Double Eye Type | Package | Carton / Wooden Box | |
HS Code | 82041100 | Origin | China |
Features
Application
Vertical lifting of flat steel plates.
Vertical lifting of oddly shaped steel plates.
Horizontal lifting of thick steel plates.
Lifting flanged steel.
Lifting H steel at an angle.
Lifting oddly shaped, flanged steel at an angle.
Lifting large steel pipes.

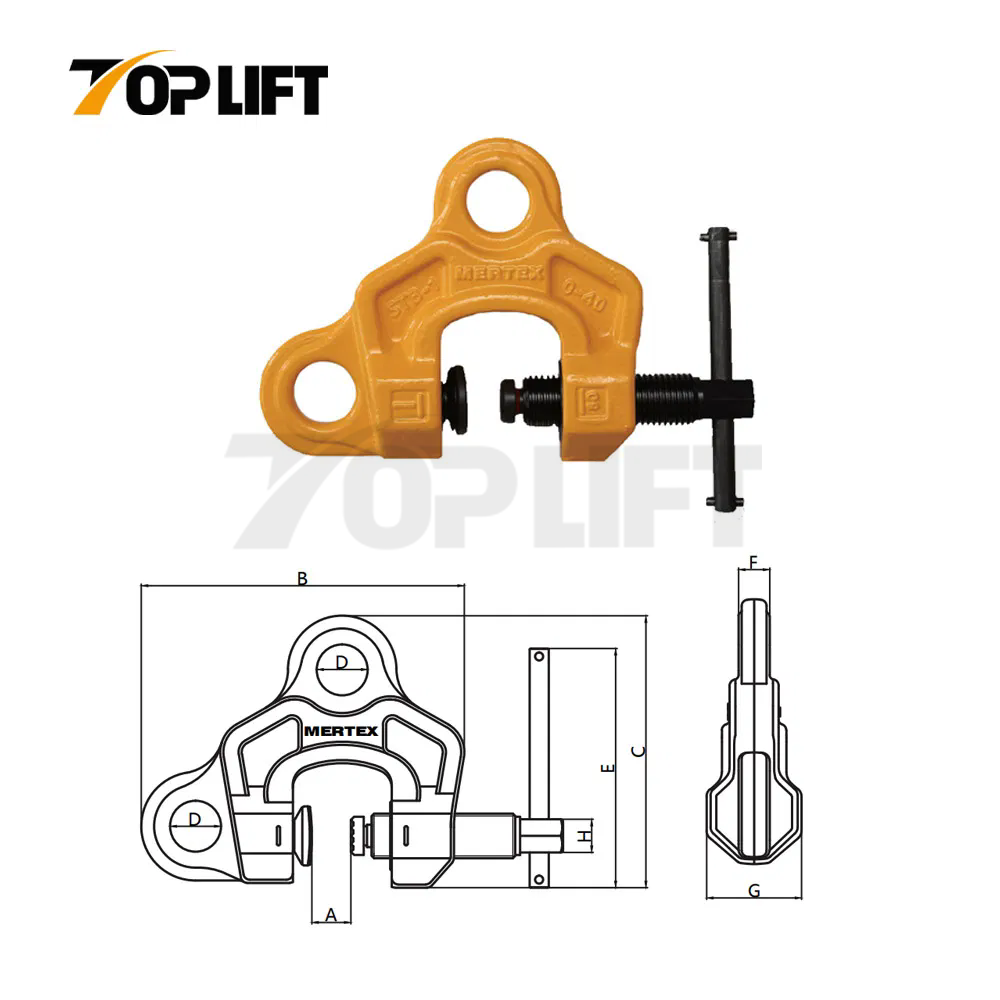

Specification
Item No. | Capacity (Ton) | Clamp range A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | N.W. (KG) | Min.tightning torque |
STB-1 | 1 | 0-40 | 203 | 170 | φ32 | 150 | 20 | 61 | 21 | 4.3 | 25N.m |
STB-2 | 2 | 0-40 | 226 | 190 | 36 | 150 | 27 | 76 | 21 | 8.2 | 25N.m |
STB-3.2 | 3 | 5-40 | 250 | 205 | 45 | 150 | 33 | 86 | 21 | 10 | 25N.m |
Product Details
1. A circular double cam lock method is employed, resulting in a stronger clamping force to ensure safe work.
2. Two suspension holes allow work to be performed in all directions.
3. The main body forged special alloy steel for durable and long service life.
FAQ
What can we do?
1. Meet all of your lifting equipments &riggings' needs.
2. Service on inspection for lifting equipments and rigging material.
How do you control your quality?
1.Selection of high-quality steel material from famous steel group.
2.Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4.The third party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6.Inspection before loading
What are your advantages compared with others?
1.Specializing in the field of lifting equipments and rigging product supply for around 10 years., have rich experience in Production.
2.The same quality product, the best price.
3.Timely Delivery with the support of 3000 square meters workshop.
4.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.
