TMS
| Quantity: | |
|---|---|
Features

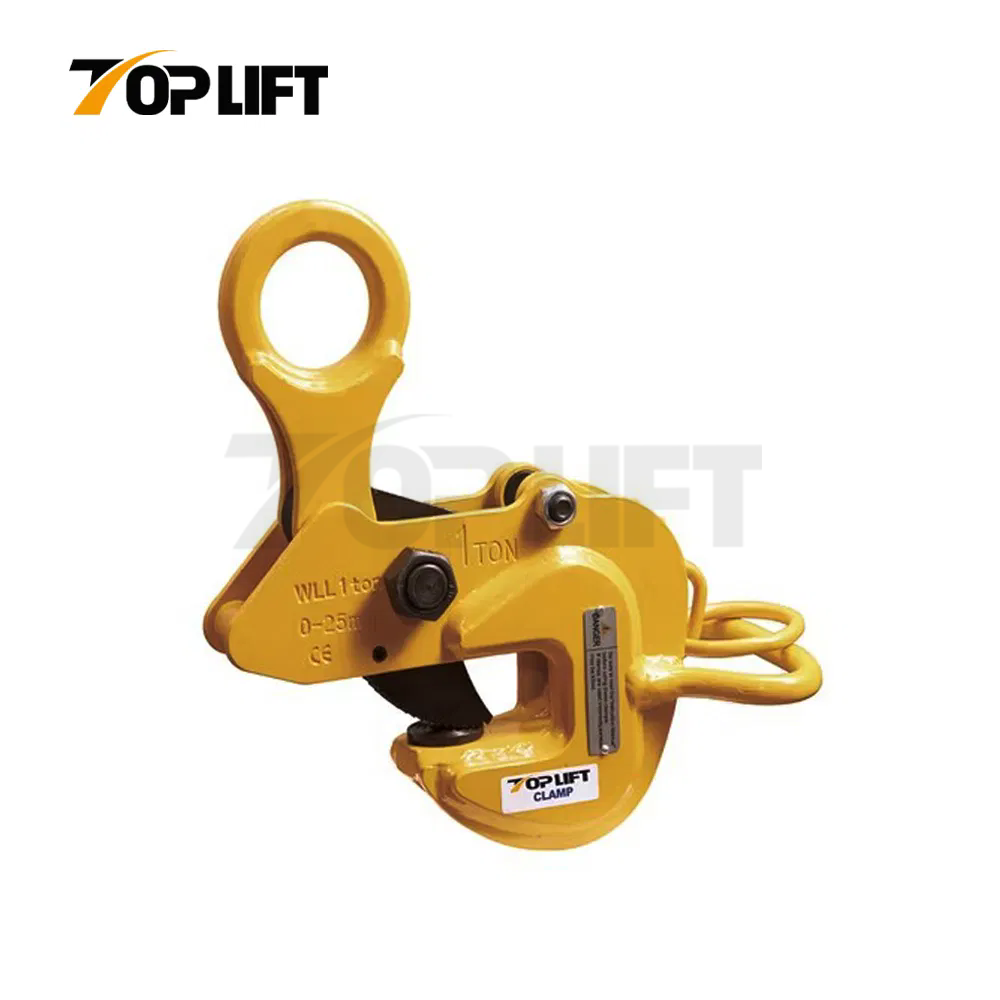

Versatile Lifting Capability: The TMS Horizontal Plate Clamp handles sheets, sheet stacks, profiles, and bundles with a lifting capacity range from 0.5T to 5T.
Safety Locking System: Features an integrated safety-latch system that locks securely to prevent accidental release during lifting operations.

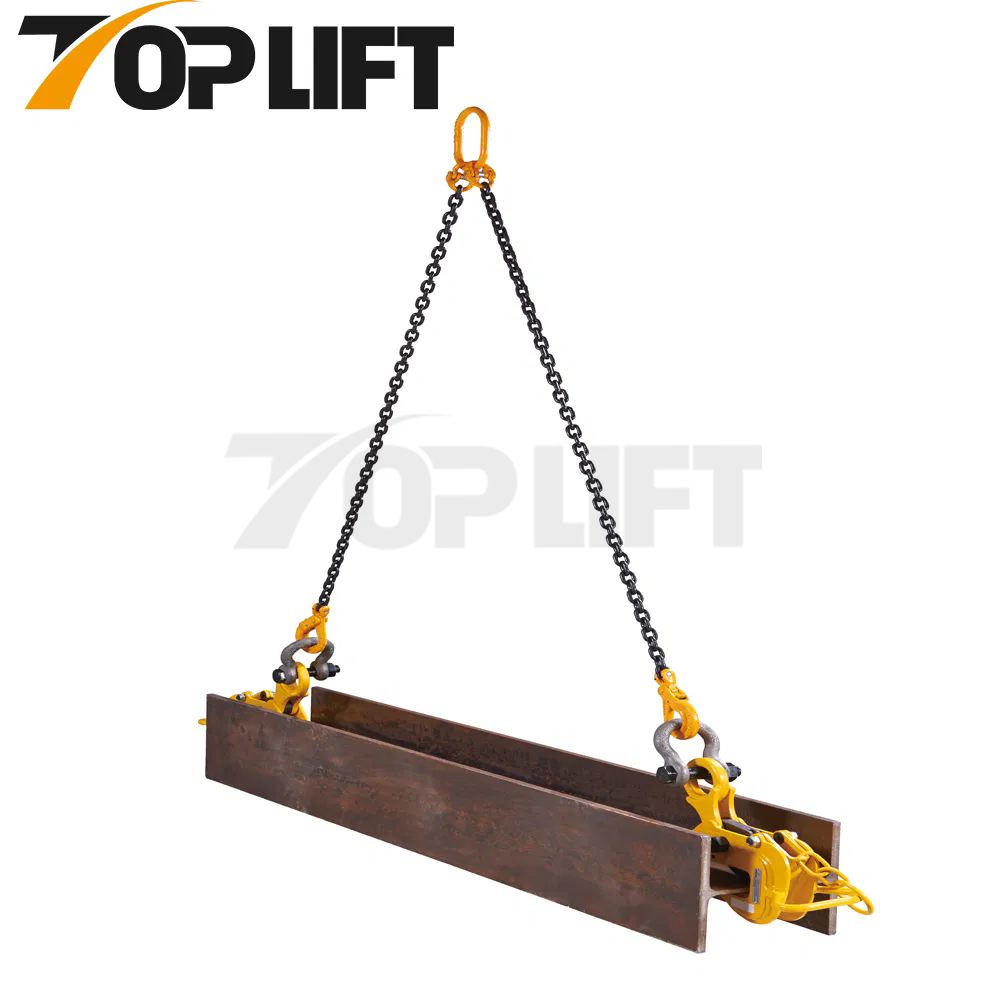

Pair Use for Stability: Designed to be used in pairs, providing optimal stability and secure handling when lifting large or heavy loads.

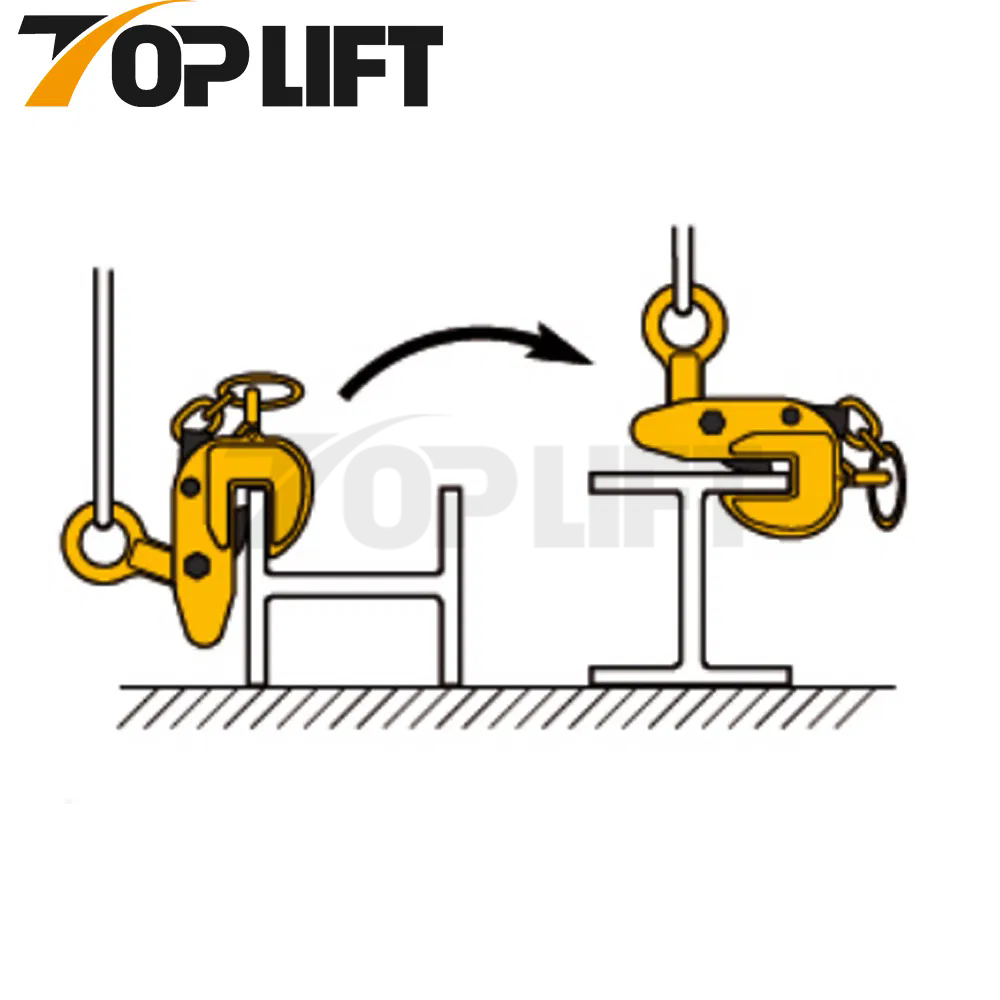

Efficient Handling of Girders: Ideal for lifting girders, sheets, and bundles of sheets, enhancing efficiency and safety in construction and manufacturing settings.
Suitable for Multi-Clamp Applications: Works effectively with slings using three clamps or more, making it ideal for complex lifting tasks and heavy-duty lifting needs.
Our Advantage
The clamp body is integrated molding, strong and durable.
The logo we can use TOP LIFT, also we accept you to customize the logo

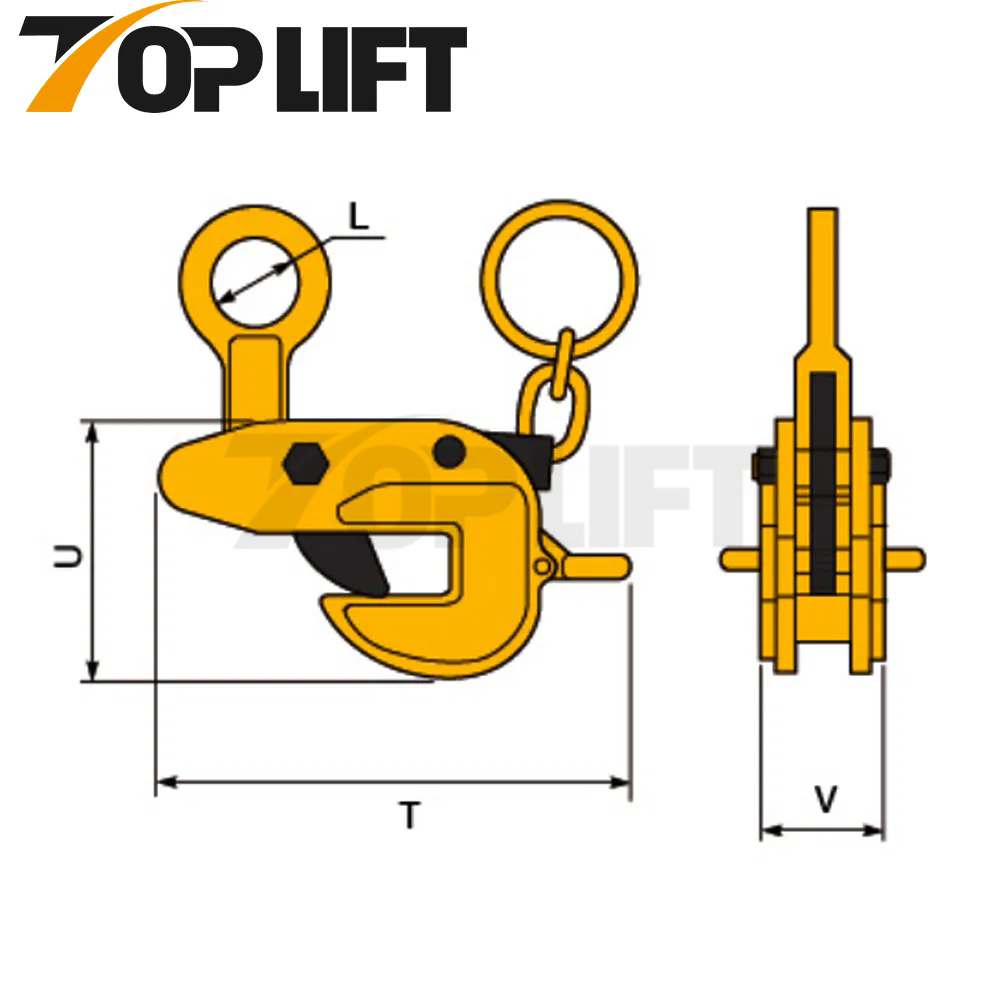

| Model | Jaw Opening (mm) | Load Capacity (kg) | T(mm) | U(mm) | V(mm) | L(mm) | Net Weight (kg) |
| TMS-0.5T | 0-25 | 500 | 235 | 122 | 54 | 44 | 3.2 |
| TMS-1T | 0-25 | 1000 | 262 | 155 | 60 | 50 | 5.3 |
| TMS-2T | 0-30 | 2000 | 280 | 177 | 72 | 56 | 7.9 |
| TMS-3T | 0-38 | 3000 | 315 | 209 | 88 | 58 | 10.5 |
| TMS-5T | 0-40 | 5000 | 380 | 261 | 104 | 60 | 27.6 |
DESCRIPTION
PRODUCT DETAILS
USING TIPS
FAQ
What can we do?
1. Meet all of your lifting equipment & rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from a famous steel group.
2. Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4. Third-party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in lifting equipment and rigging product supply for around 10 years, we have rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of a 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
