TP-UBC-3.0T
TOPLIFT
| Quantity: | |
|---|---|
Model No: UBC
Globally Tried and Tested

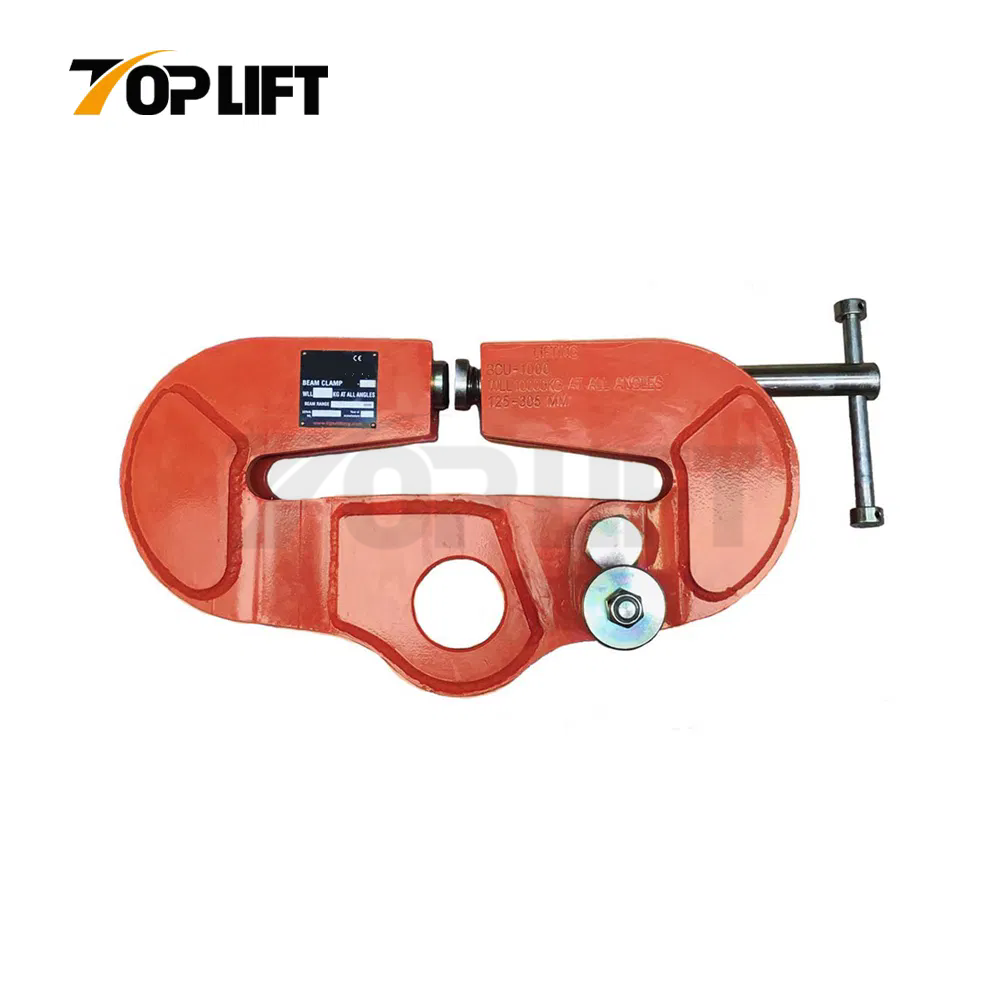

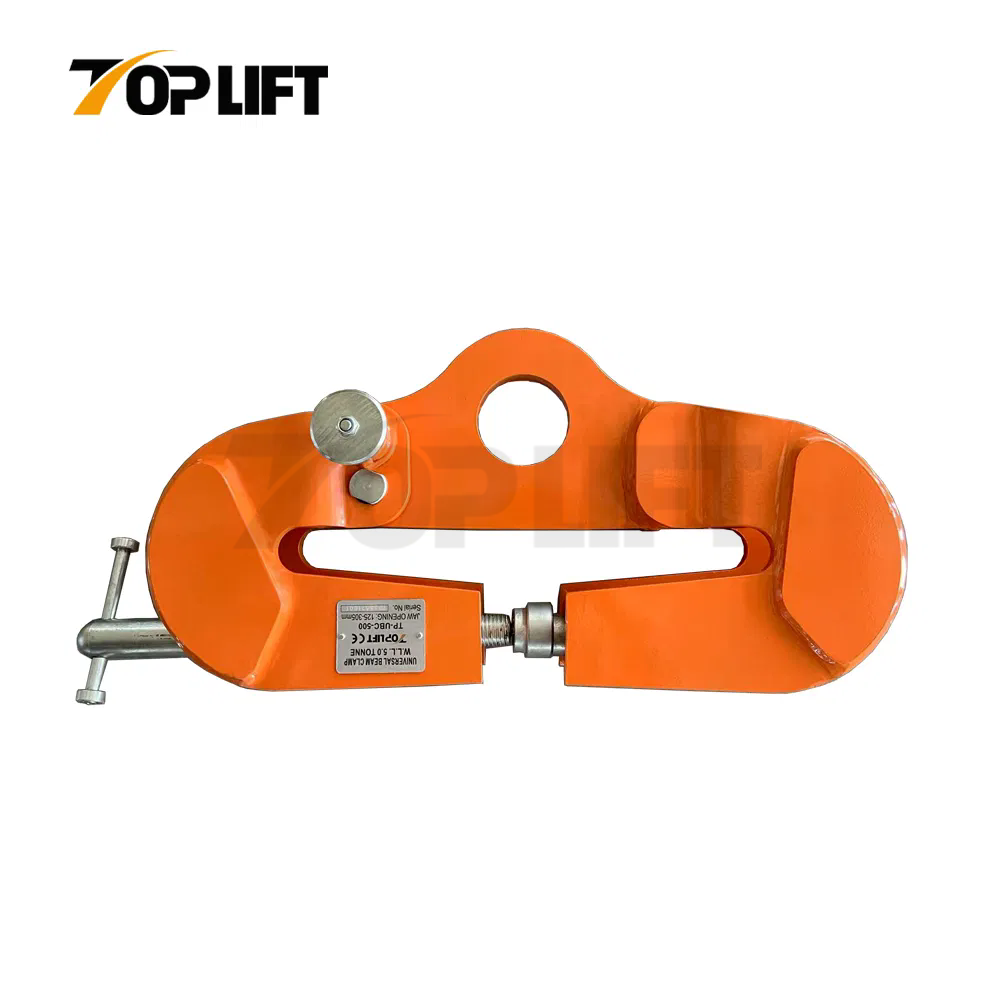

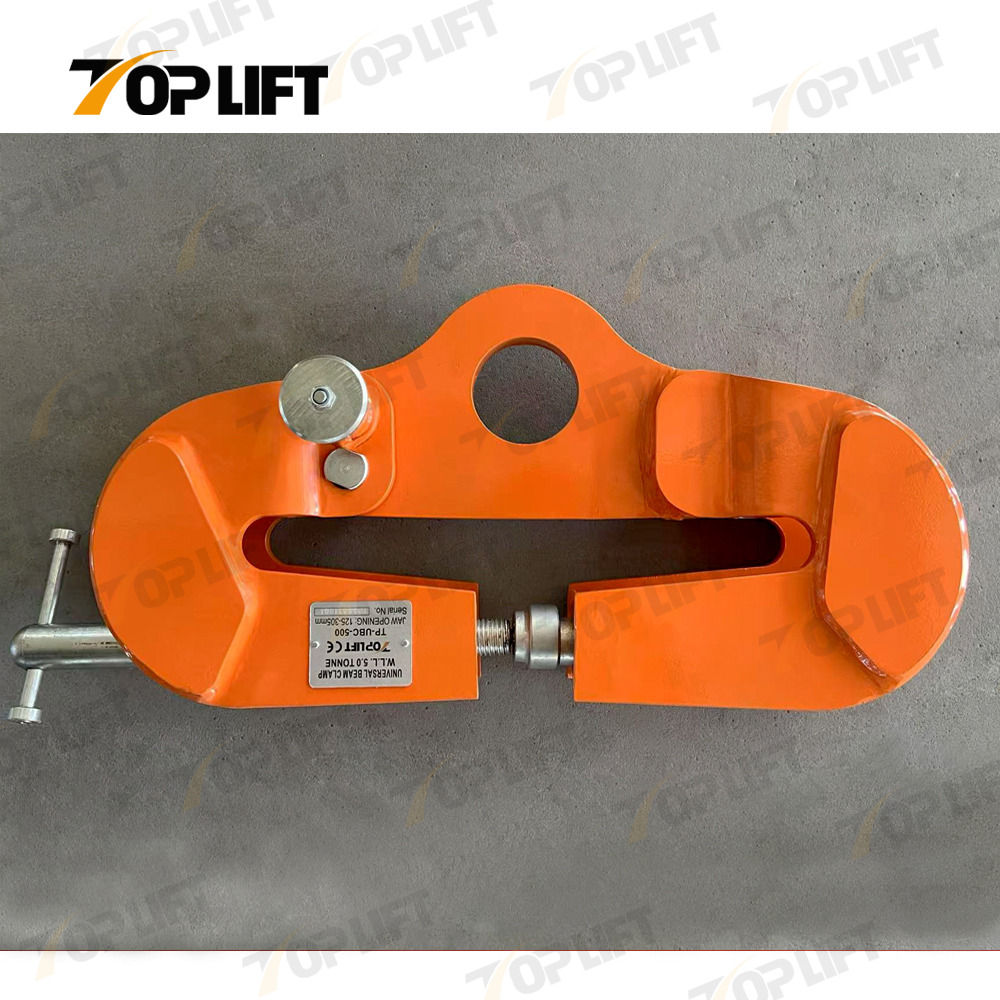

The UBC Universal Beam Clamp is a robust and reliable lifting solution, engineered for both vertical lifting and side load applications—situations where conventional beam clamps may not be suitable. Globally tested in demanding environments, the UBC clamp delivers outstanding flexibility and strength, making it ideal for a wide range of industrial tasks including lifting, pulling, and serving as a semi-permanent anchor point.
Designed to perform in multi-directional lifting operations, this clamp can be loaded at any angle, effectively reducing the need for spreader beams and simplifying rigging setups. A deep flange 10-ton option (up to 40mm) is now available for wider compatibility.
Complete technical documentation is available to support product performance, ensuring full confidence and guidance for safe usage.
⚠️ Warning: Do not exceed the rated working load limit. Not suitable for lifting flat plate sections.
Full rated capacity at any lifting angle – Ensures consistent performance, even in angular loading scenarios.
Available in 3.0t, 5.0t, and 10.0t capacities – Covers a wide range of lifting needs.
New 10-ton deep flange option (up to 40mm) – Enhances beam compatibility.
Quick and versatile rigging point – Ideal for attaching hoists and lifting gear with minimal setup.
Low headroom design – Perfect for environments with space constraints.
Highly adaptable – Suitable for vertical lifting, angled pulling, or as a semi-permanent anchoring solution.
Engineered for both vertical and side loading – Can be safely used at any angle.
Compatible with a wide range of beam widths – Ensures versatility across various site conditions.

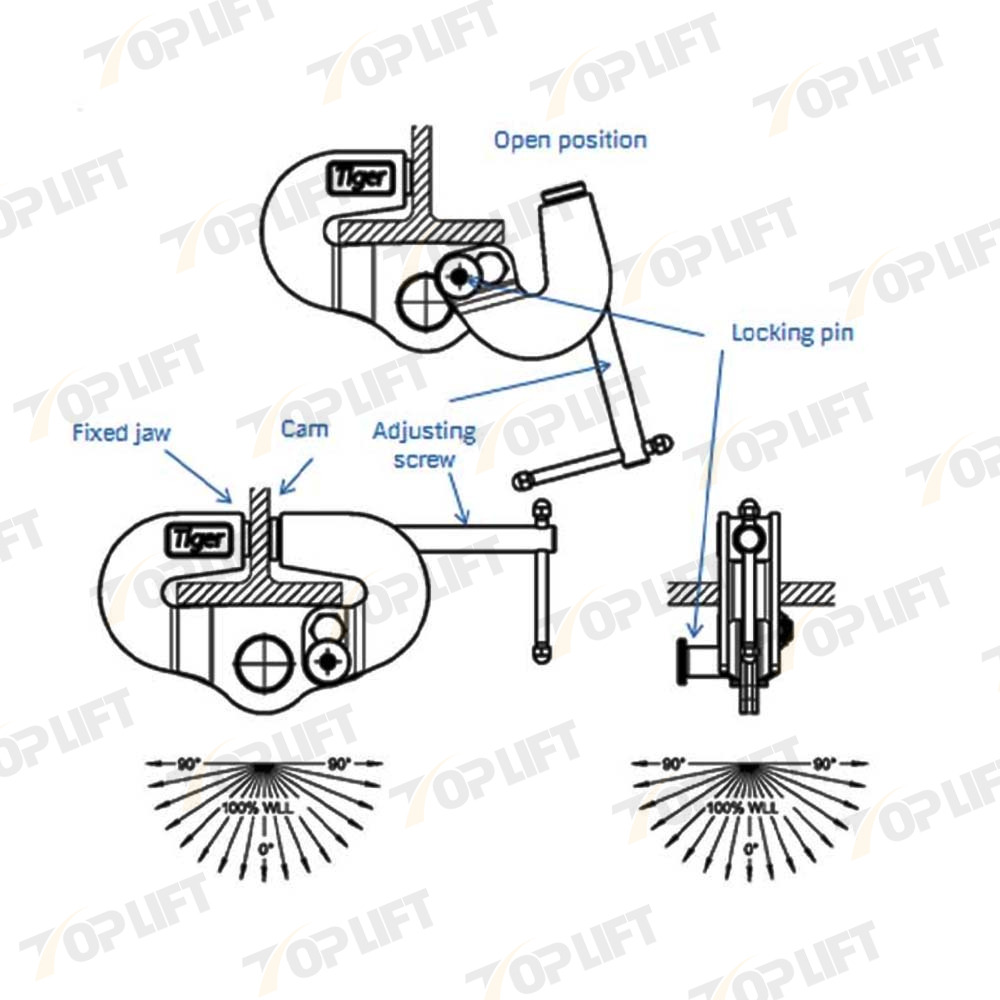

Multidirectional adjusting screw spindle – Provides strong clamping force on the beam web for secure attachment.
Operating temperature range: -40°C to +80°C (optional extended range: -60°C to +80°C)
High safety factors –
5:1 for straight lifting and pulling
4:1 for angular loading applications
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment supply for around 10 years, with rich experience in Production.

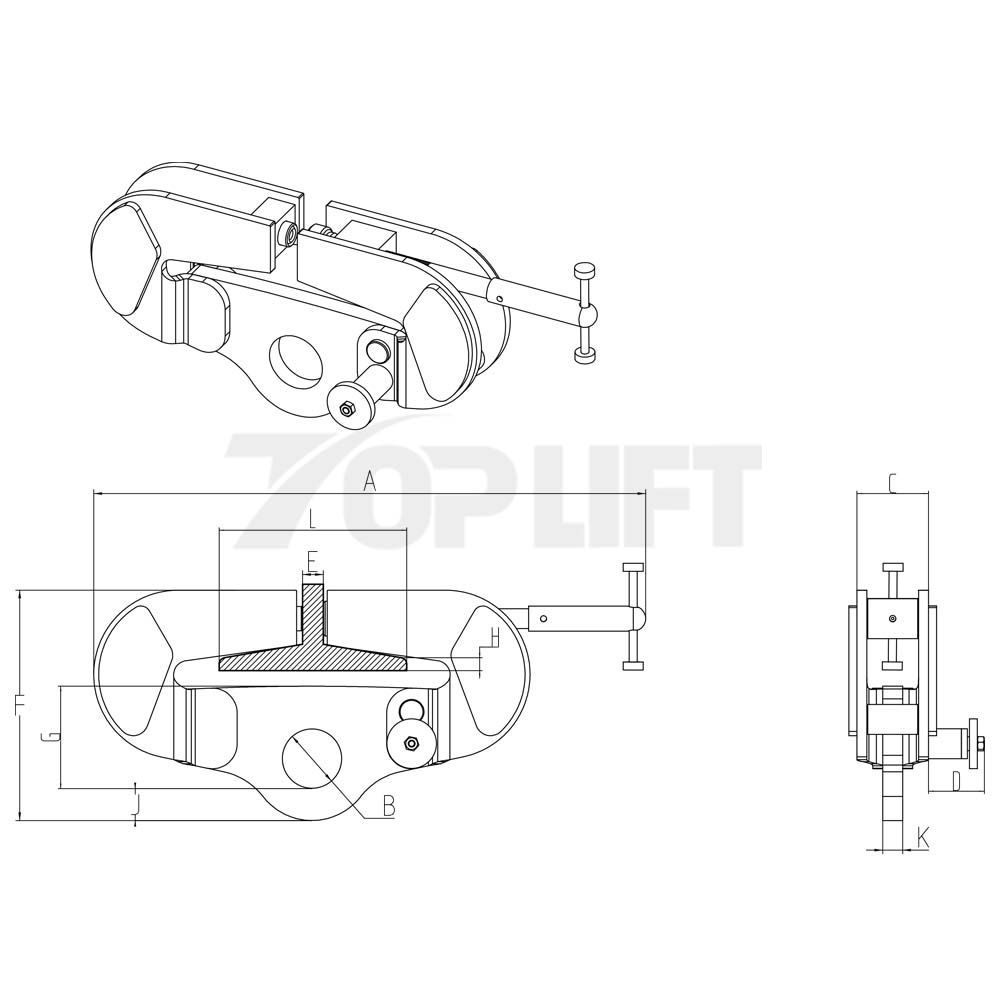

Specification
| Product Code | Capacity /T | Dimension/mm | Net Weight /KG | ||||||||||
| A | B | C | D | E | F | G | H | J | K | L | |||
| TP-UBC-3T | 3.0 | 565 | 60 | 70 | 70 | 32 | 232 | 102 | 20 | 32 | 20 | 125-240 | 15 |
| TP-UBC-5T | 5.0 | 645 | 70 | 84 | 80 | 32 | 270 | 120 | 23 | 38 | 25 | 125-305 | 24 |
| TP-UBC-10T | 10.0 | 645 | 70 | 88 | 80 | 32 | 270 | 120 | 23 | 38 | 25 | 125-305 | 27 |
Details

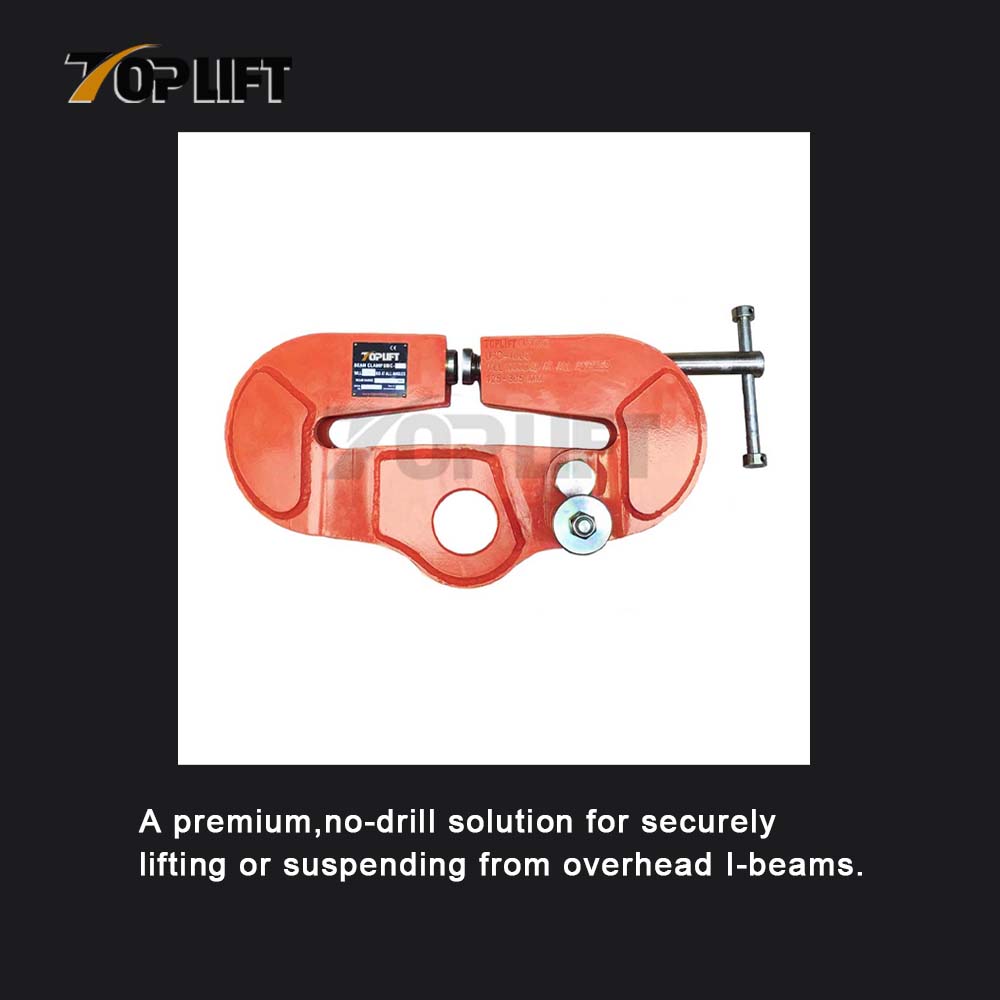

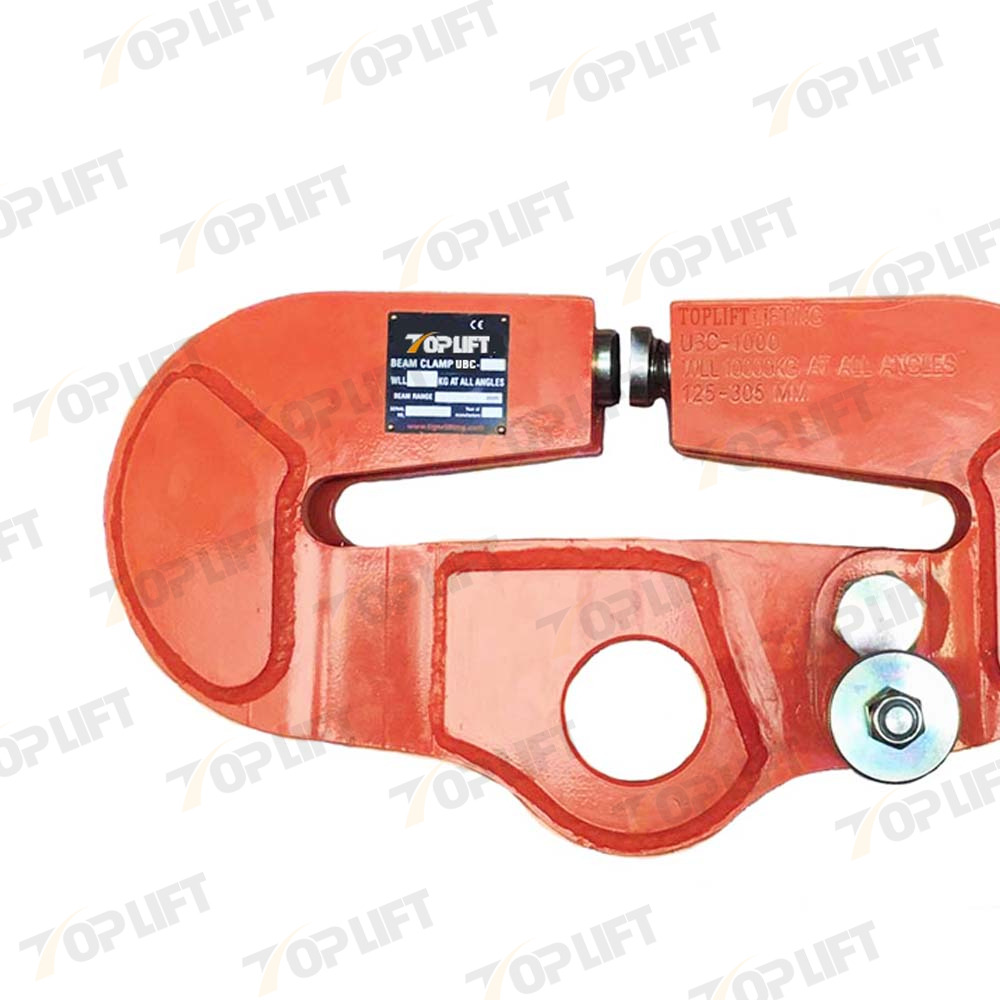

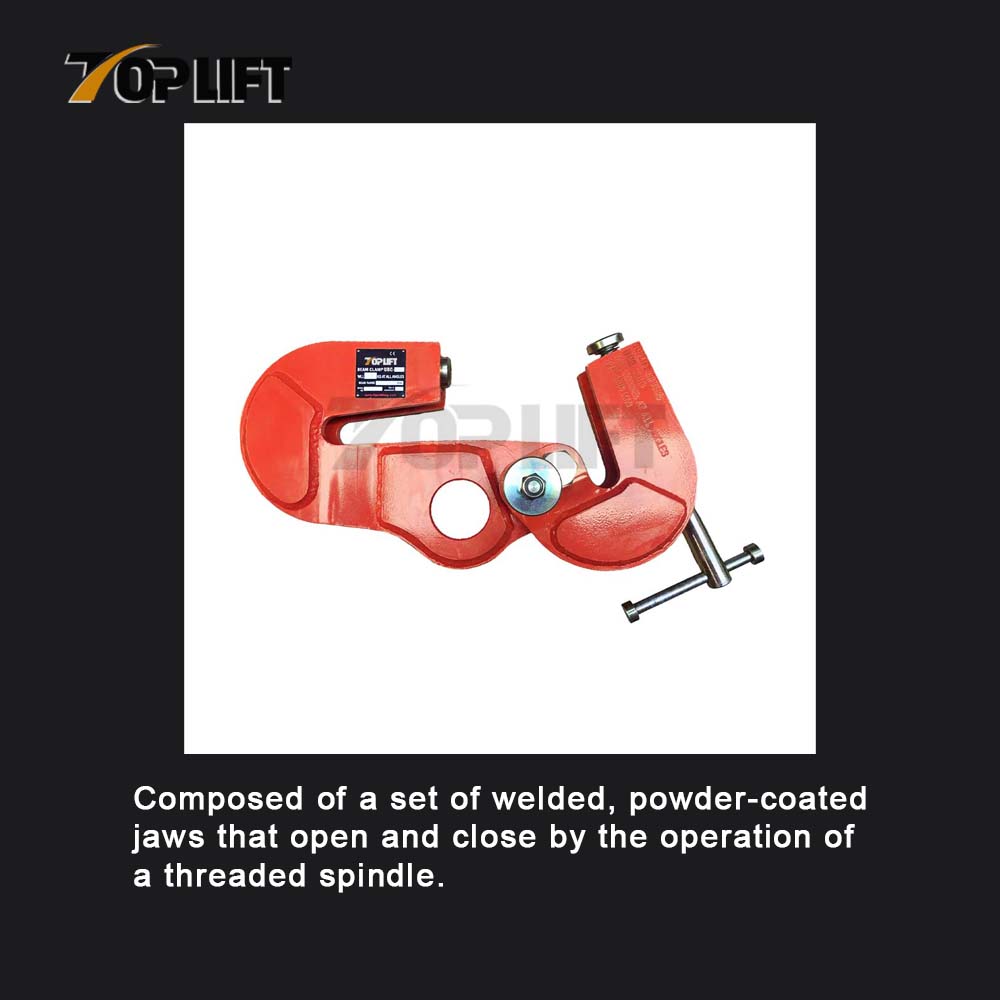

These jaws are designed to have a wide range of I-beam size compatibility. Once tightened to the beam, the integrated suspension bar allows for installation of various fittings, is a popular feature for low-headroom applications.
Application
TP-UBC clamp can be applied in these situations, such as warehouse storage, construction operation, port wharf, steel plate transportation and so on.
