DIN580
| Quantity: | |
|---|---|

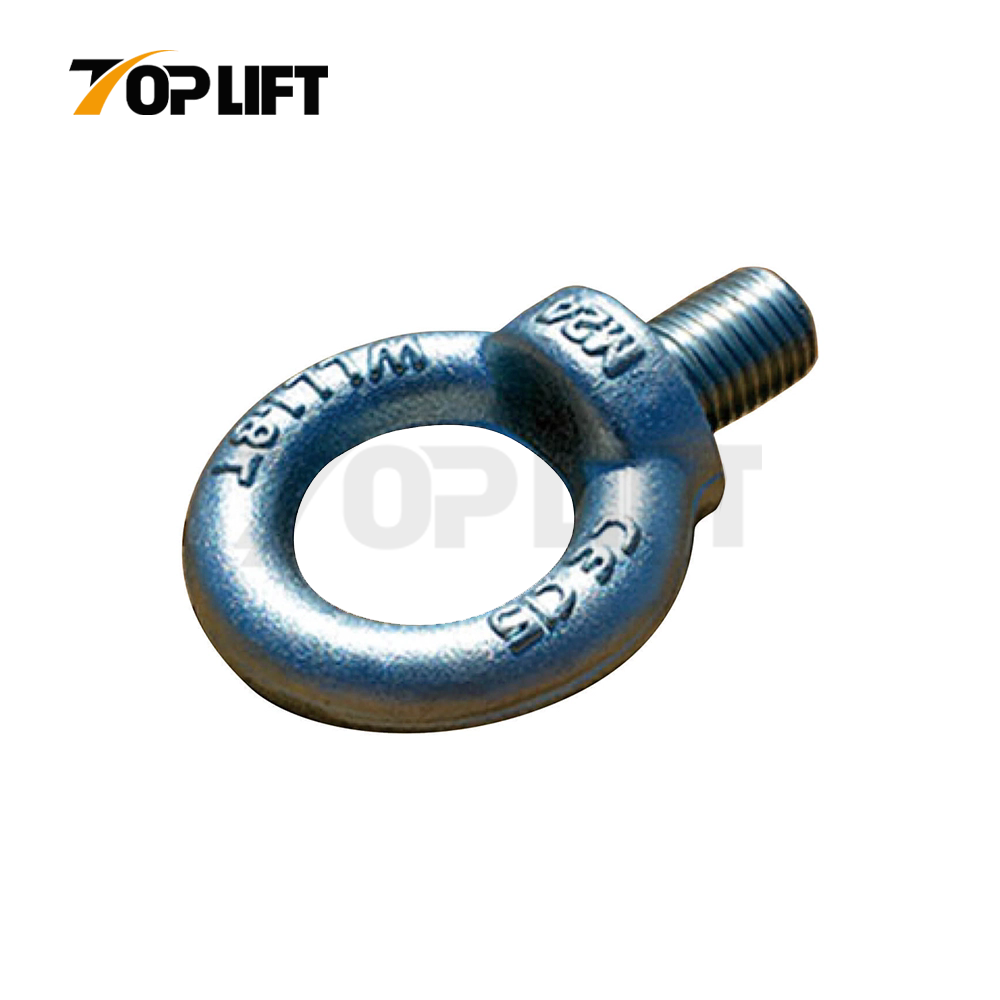

Tp-Lifting Din580 Anchor Lifting Eye Bolt Carbon Steel Forged Rigging Eye Bolt
WLL:0.14 - 16 Ton
Basic Info.
Model No. | TP-EB | Function | Lifting, Sling, Hoist | |
Transport Package | Carton with Pallet | Specification | 0.14 -16T | |
Traemark | TOPLIFT or OEM | Origin | China | |
HS Code | 73269090 |
Features
uAvailable in various shapes and sicknesses.
uProvided with a loop and thread on one end.
uGained wide appreciation for resistance to corrosion and long functionality.
uAvailable in both standard and customized dimensions as required by our clients.
uPacked with good quality material to avoid damage.
uWARNING: Never to be used for overhead lifting.
For overhead lifting, please choose G80 liftings.
Specification

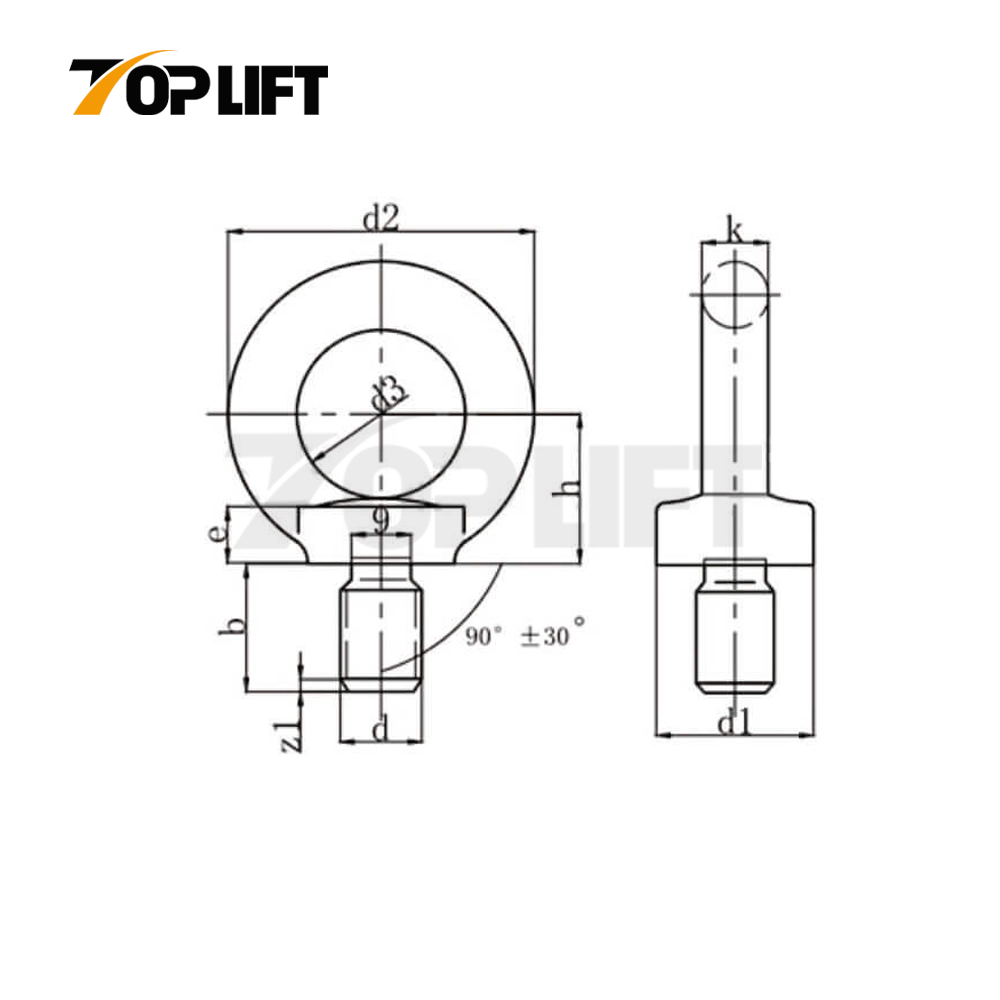

Model | W.L.L | Dimension (mm) | Weight (kg/pc) | ||||||
d1 | d2 | d3 | b | e | h | k | |||
TP-EB-M6 | 0.14T | 17 | 28 | 16 | 13 | 6 | 17 | 6 | 11 |
TP-EB-M8 | 0.14T | 20 | 36 | 20 | 15 | 6 | 18 | 8 | 13 |
TP-EB-M10 | 0.23T | 25 | 45 | 25 | 18 | 8 | 22 | 10 | 24 |
TP-EB-M12 | 0.34T | 30 | 54 | 30 | 22 | 10 | 26 | 12 | 40 |
TP-EB-M14 | 0.49T | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 63 |
TP-EB-M16 | 0.7T | 35 | 63 | 35 | 28 | 12 | 30 | 14 | 62 |
TP-EB-M20 | 1.2T | 40 | 72 | 40 | 30 | 12 | 35 | 16 | 99 |
TP-EB-M22 | 1.5T | 45 | 81 | 45 | 35 | 14 | 40 | 18 | 148 |
TP-EB-M24 | 1.8T | 50 | 90 | 50 | 38 | 16 | 45 | 20 | 192 |
TP-EB-M27 | 2.5T | 50 | 90 | 50 | 38 | 18 | 45 | 20 | 194 |
TP-EB-M30 | 3.6T | 65 | 108 | 60 | 45 | 18 | 55 | 24 | 366 |
TP-EB-M33 | 4.3T | 65 | 108 | 60 | 45 | 22 | 55 | 24 | 380 |
TP-EB-M36 | 5.1T | 75 | 126 | 70 | 55 | 22 | 65 | 28 | 585 |
TP-EB-M39 | 6.1T | 75 | 126 | 70 | 55 | 26 | 65 | 28 | 618 |
TP-EB-M42 | 7T | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 889 |
TP-EB-M45 | 8T | 85 | 144 | 80 | 65 | 30 | 75 | 32 | 938 |
TP-EB-M48 | 8.6T | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 1,408 |
TP-EB-M52 | 9.9T | 100 | 166 | 90 | 70 | 35 | 85 | 38 | 1,456 |
TP-EB-M56 | 11.5T | 110 | 184 | 100 | 80 | 38 | 95 | 42 | 1,942 |
TP-EB-M64 | 16T | 120 | 206 | 110 | 90 | 42 | 100 | 48 | 2,736 |

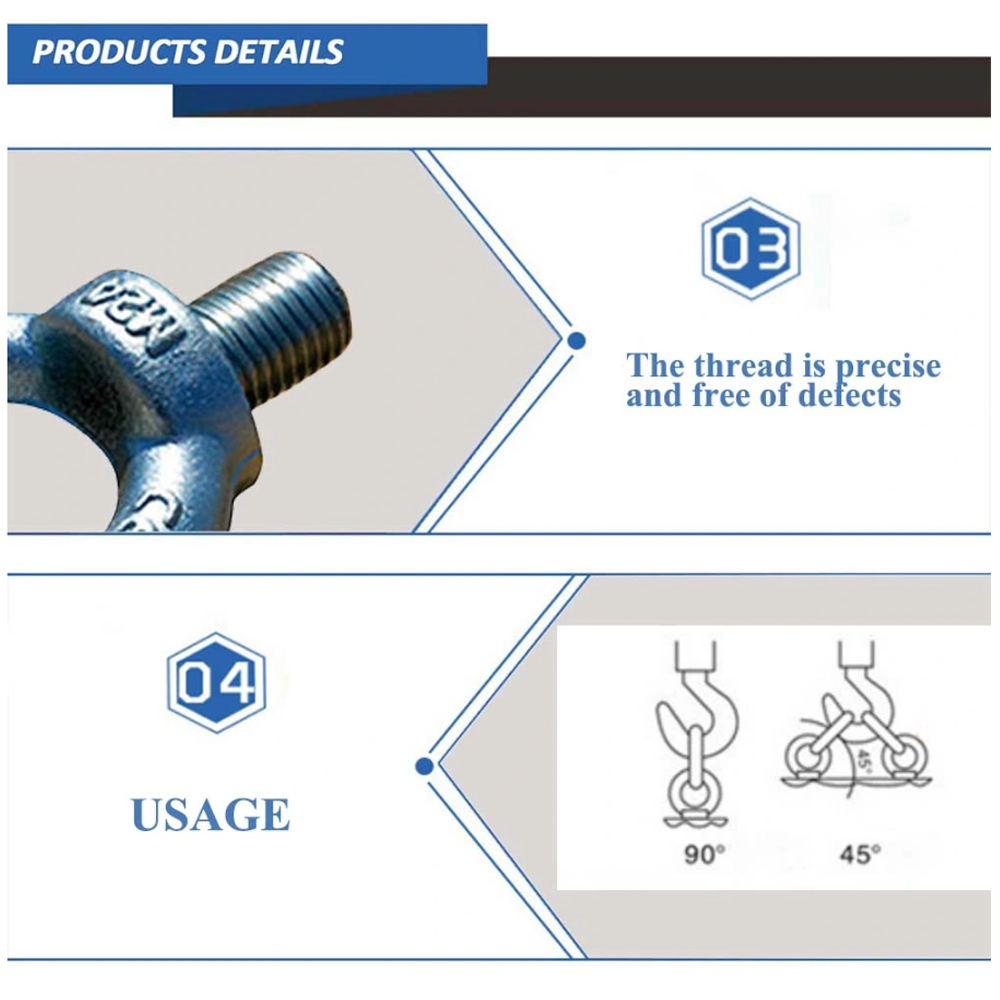

Product Details
APPLICATION
The Eye Bolt DIN 580can be used:
lElectric power operation lMetallurgy operation lPetrochemical industry lMechanical operation lRailway construction lOther lifting industries
Production
Packing
Our Advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
