TP-032
TOPLIFT
| Quantity: | |
|---|---|

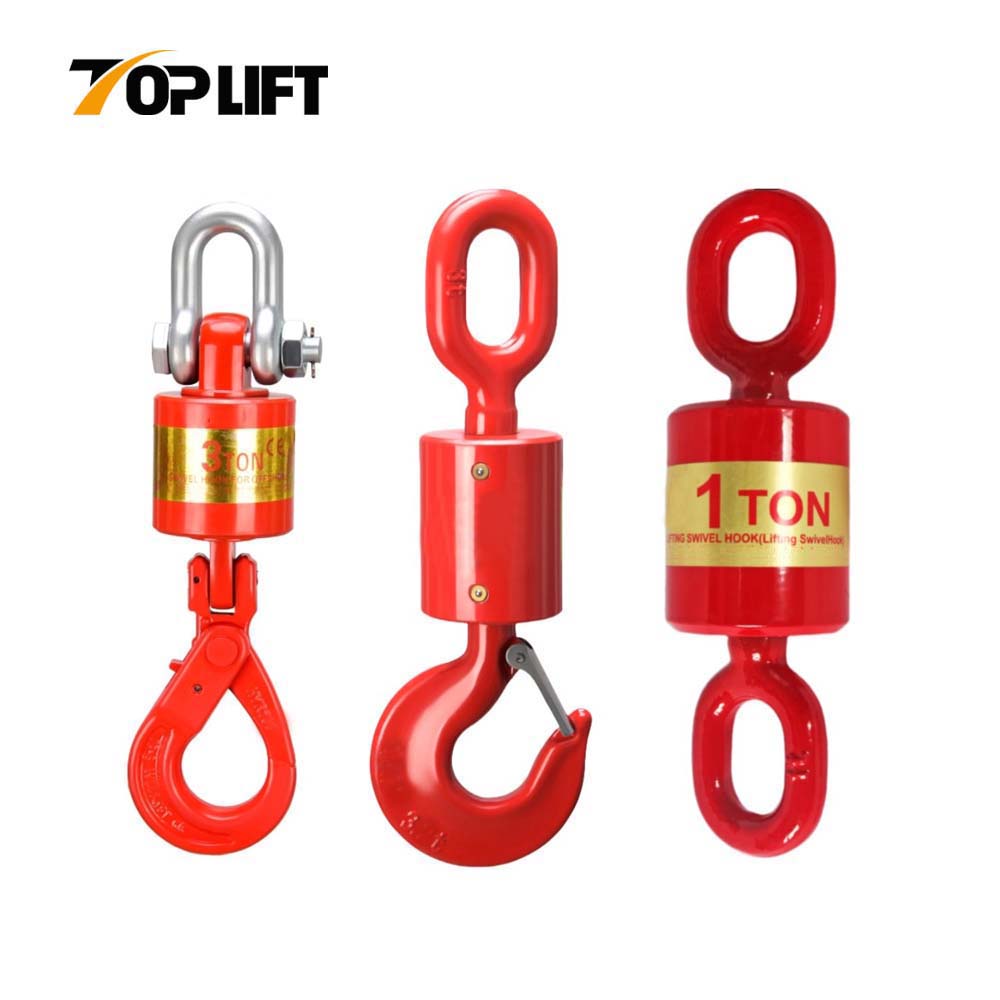

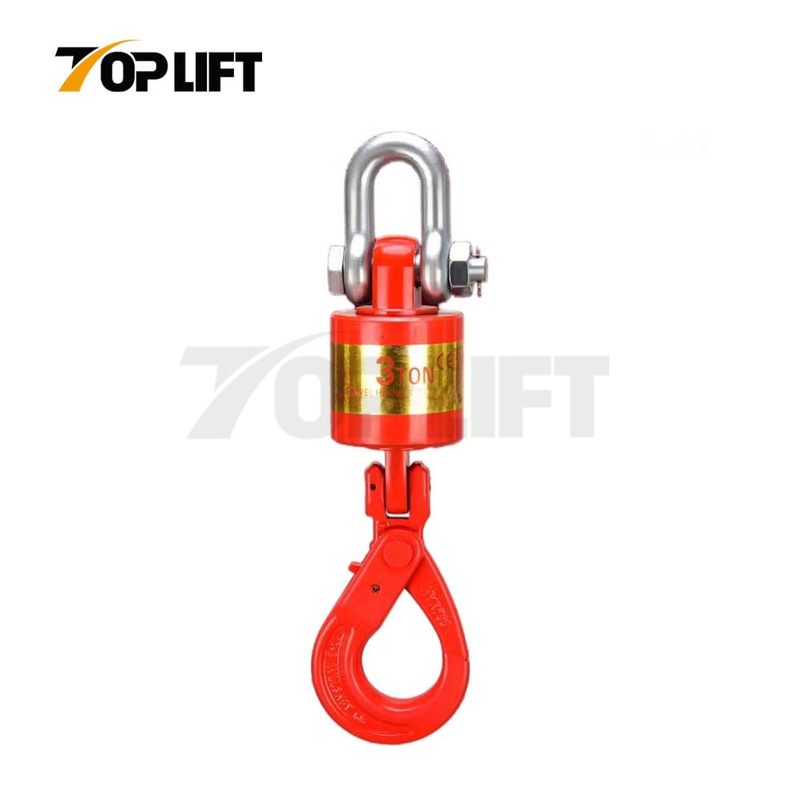

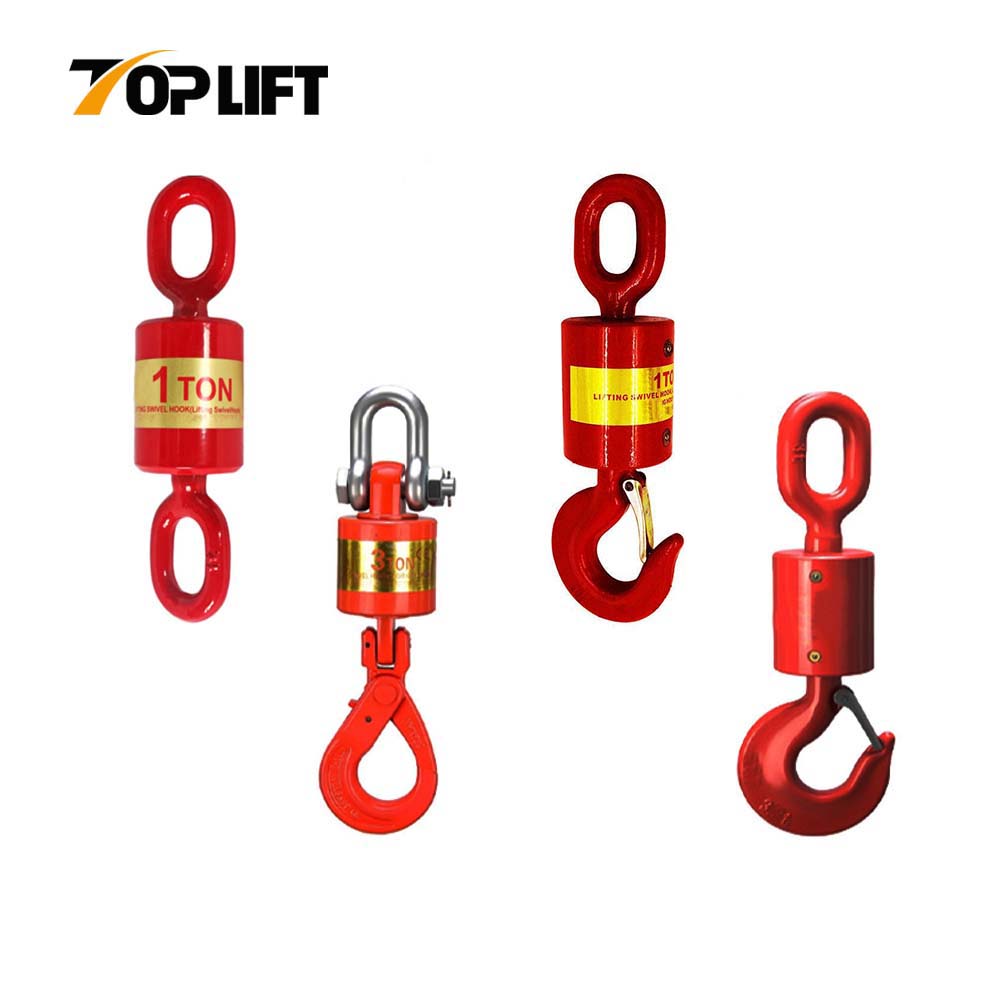

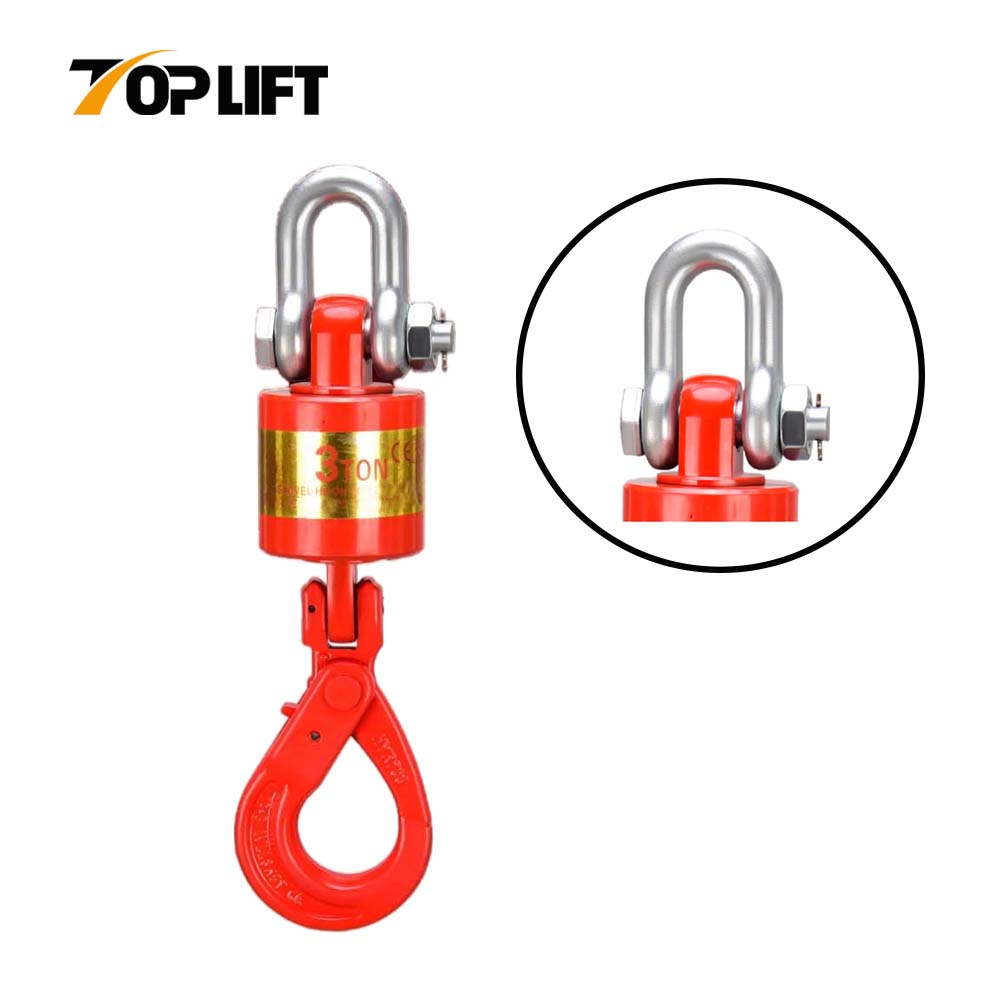

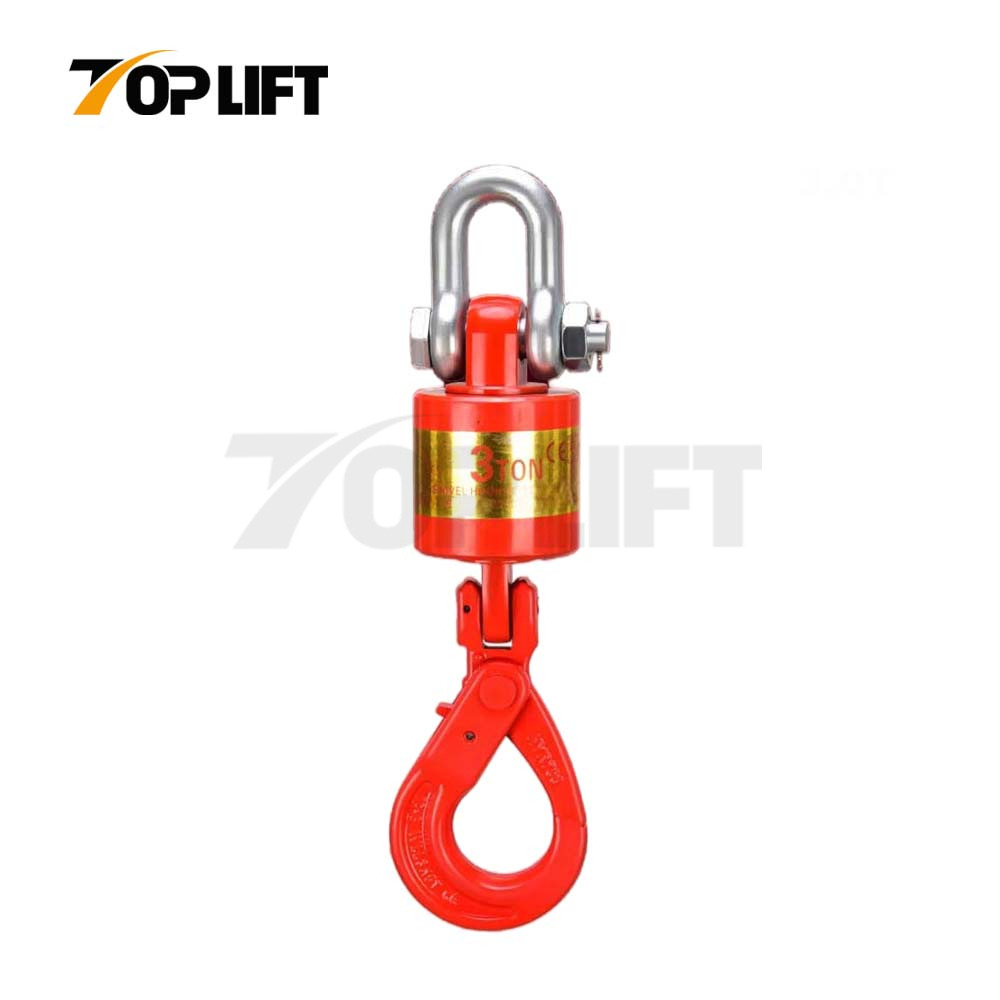

The G80 Oilfield Swivel Hook is engineered for heavy-duty lifting and rotation applications in oilfield, rigging, and industrial environments. Key load-bearing components—including shackles, rings, hooks, and rotary adapters—are die-forged from high-strength alloy steel to ensure outstanding toughness and long service life.
The main body is precision-machined from round bar steel and fitted with a national-standard thrust bearing, allowing smooth 360° rotation under full rated load without twisting or binding. Every hook is strictly tested at 2.5 times the rated capacity, with 20,000 fatigue cycles conducted at 1.5 times the working load limit. All units undergo 100% magnetic particle crack detection.
With a minimum breaking strength of 4 times the rated load, the G80 Oilfield Swivel Hook delivers superior safety margin, stable rotation, and reliable performance in high-risk lifting operations.
Shackles, rings, hooks, and adapters (oilfield rotary hooks) are die-forged from high-strength alloy steel.
Main body is precision-machined from round bar steel.
National standard pressure bearing ensures smooth 360° rotation under full load.
Proof load tested at 2.5 times the rated capacity; 20,000 cyclic fatigue tests conducted at 1.5 times the rated capacity.
100% magnaflux crack detection.
Minimum breaking load is 4 times the rated capacity.
Specification

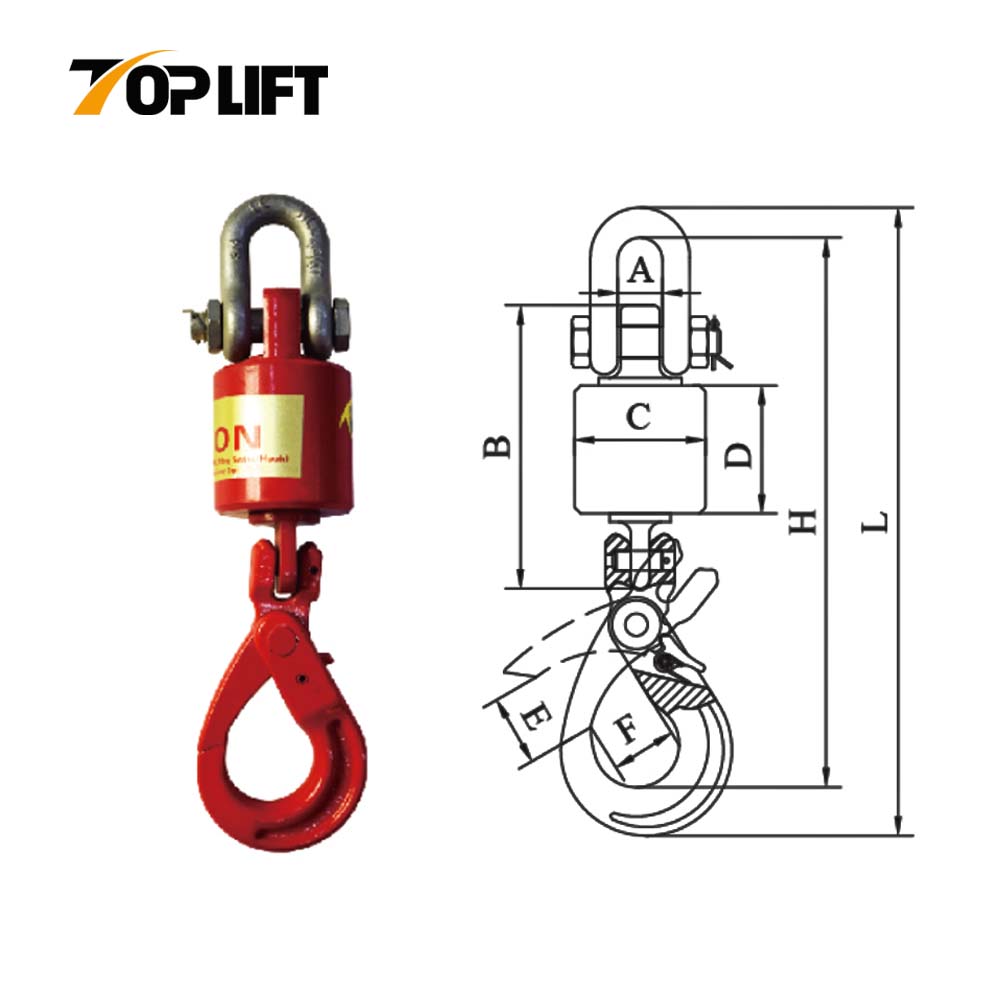

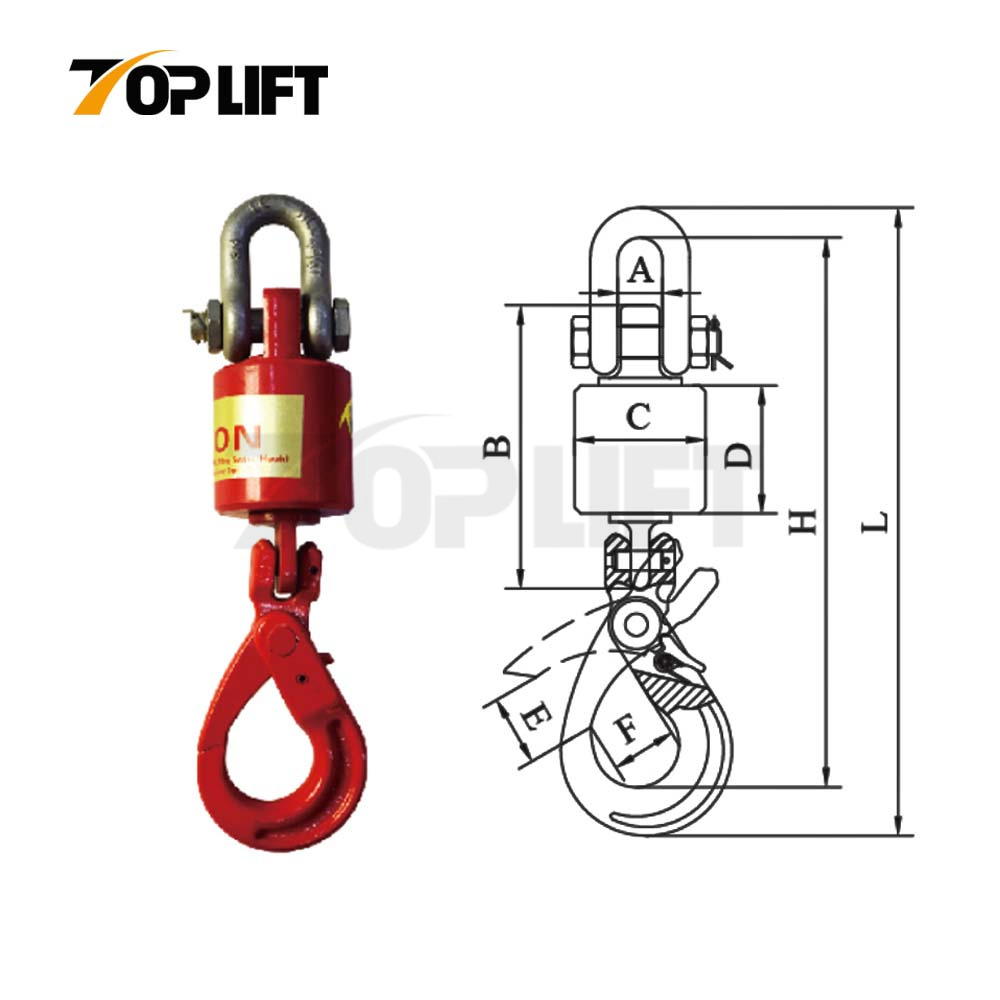

| G80 OILFIELD SWIVEL HOOK | ||||||||||||
| ITEM NO. | WLL /T | MAJOR DIMENSIONS/MM | WLL OF SHACKLE | WLL OF HOOK | WEIGHT /KG | |||||||
| A | B | C | D | E | F | H | L | |||||

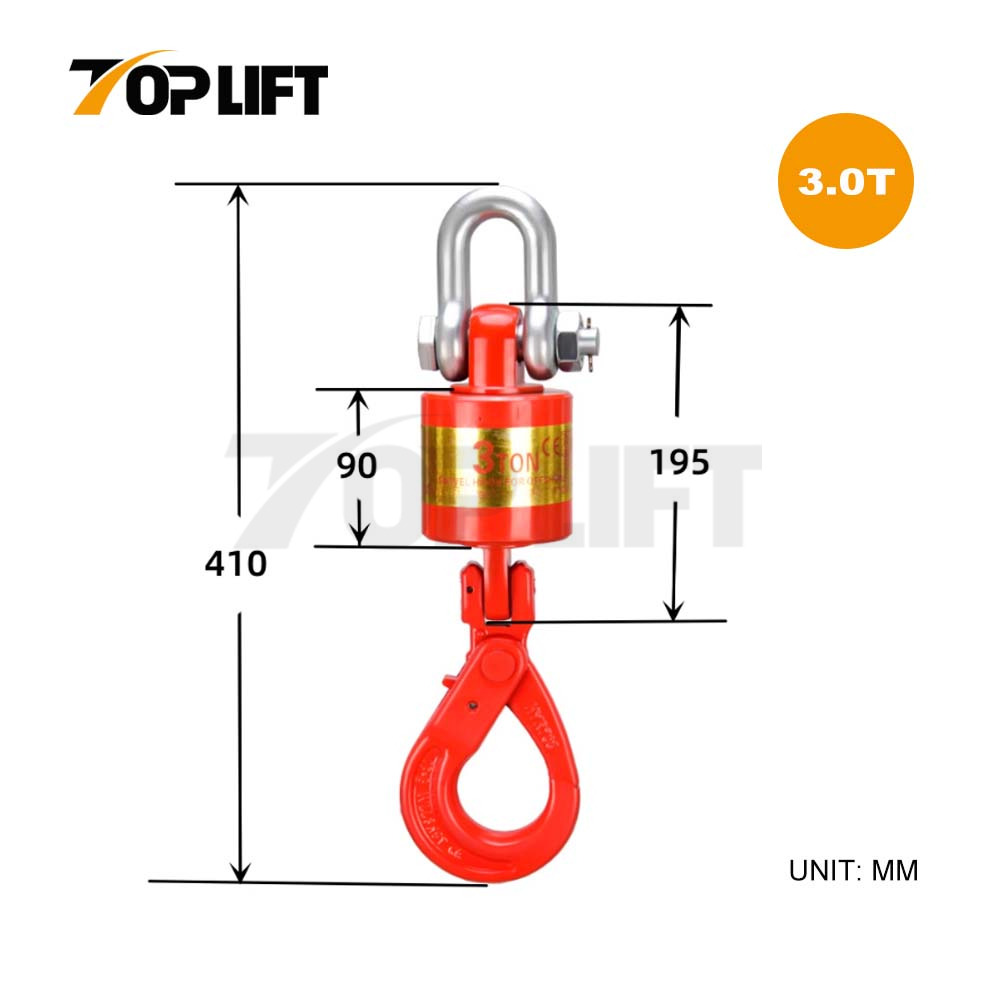

| TP-032-3 | 3 | 33 | 195 | 88 | 90 | 50 | 45 | 360 | 410 | 4.75T | 3.15T | 6.8 |
| TP-032-5 | 5 | 36 | 232 | 107 | 105 | 58 | 54 | 450 | 514 | 6.5T | 5.3T | 13 |

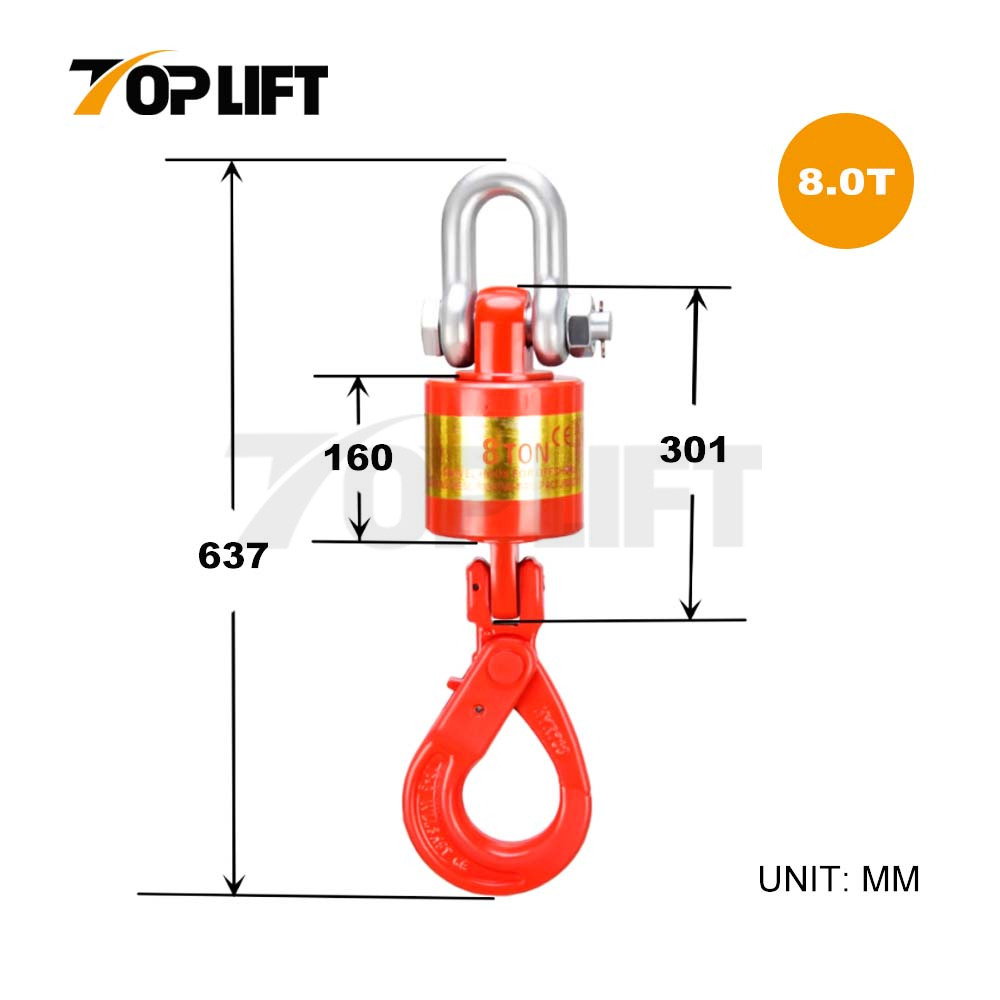

| TP-032-8 | 8 | 43 | 301 | 127 | 160 | 70 | 67 | 563 | 637 | 8.5T | 8T | 24 |

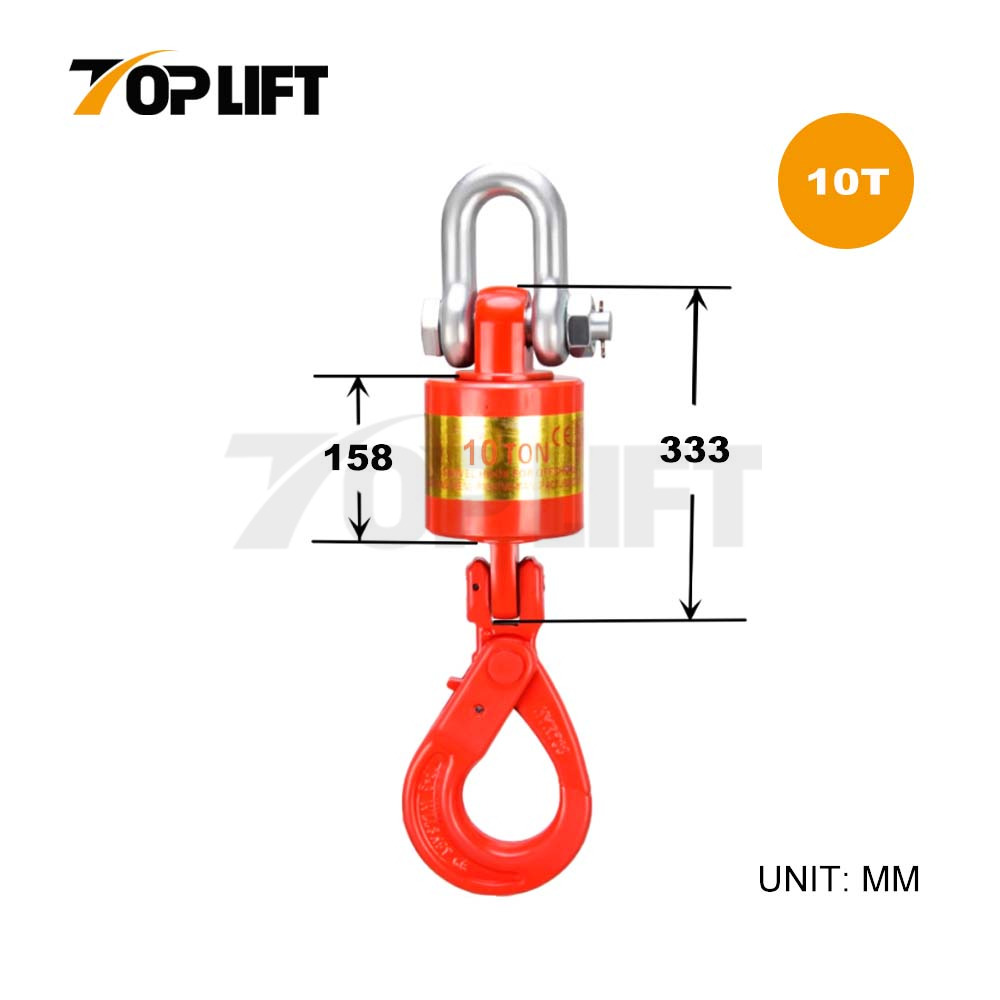

| TP-032-10 | 10 | 52 | 333 | 127 | 158 | 00 | 00 | 00 | 00 | 12T | 12.5T | 28 |
| Warning: Never Exceed the WLL! | ||||||||||||
Details
Our Products
FAQ
Q: Why choose us?
A: Professional technical guidance
B: Years of production experience
C: Support for customization and design
D: Fast delivery time!
F: Special technology on print.
Q: Can the product be customized?
Yes, products can be customized according to customer requirements.
Q: Can I have samples for testing?
Yes, samples are available before bulk order.
Q: How long can I get the products?
A: For the existing sample order, 3-7 working days after payment.
B: For the customized sample order, 7-15 working days after the payment.
C: For bulk, it depends on your order quantity.
