TP-034
TOPLIFT
| Quantity: | |
|---|---|

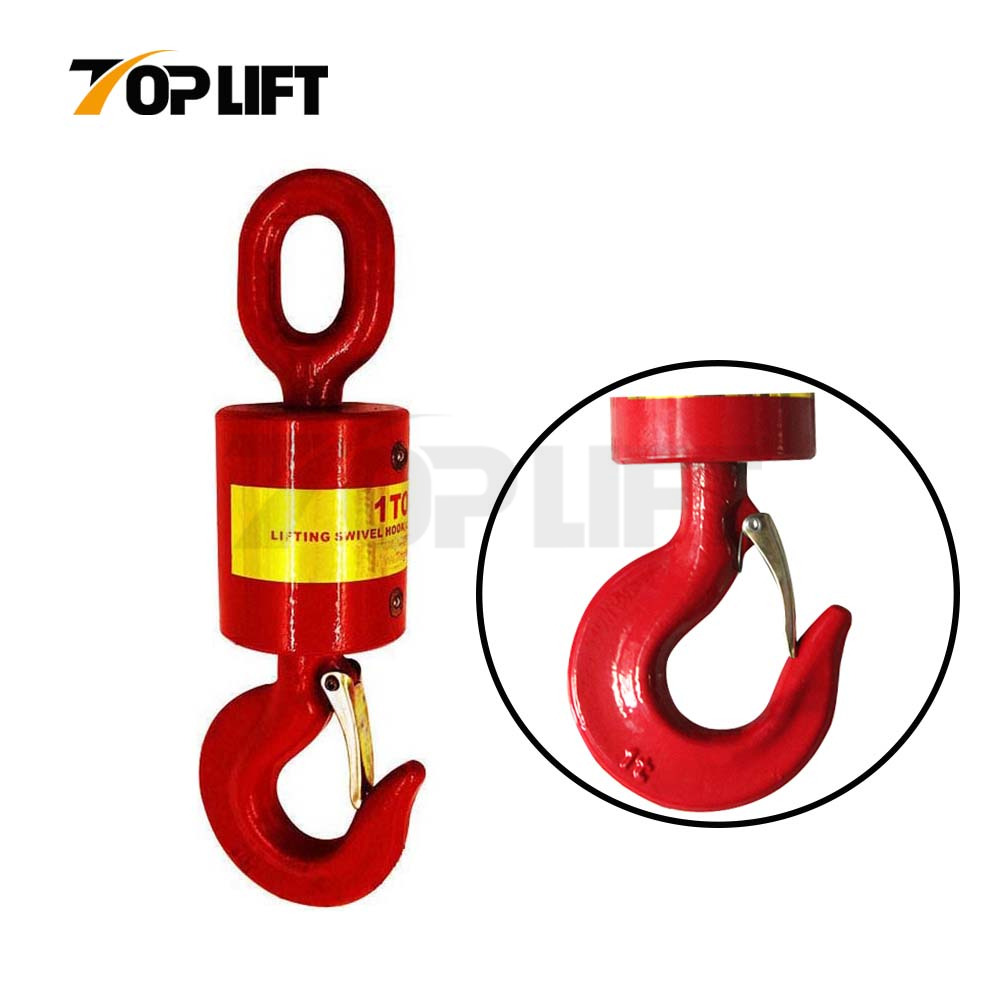

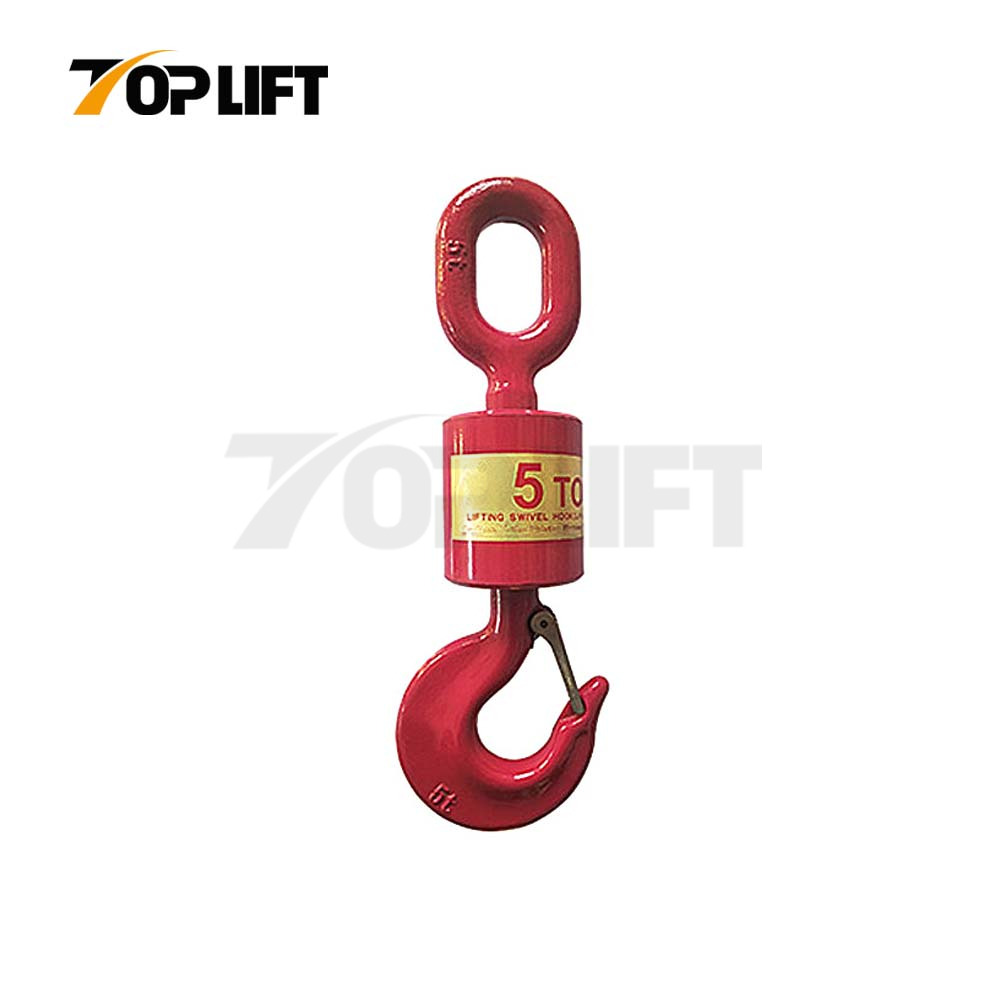

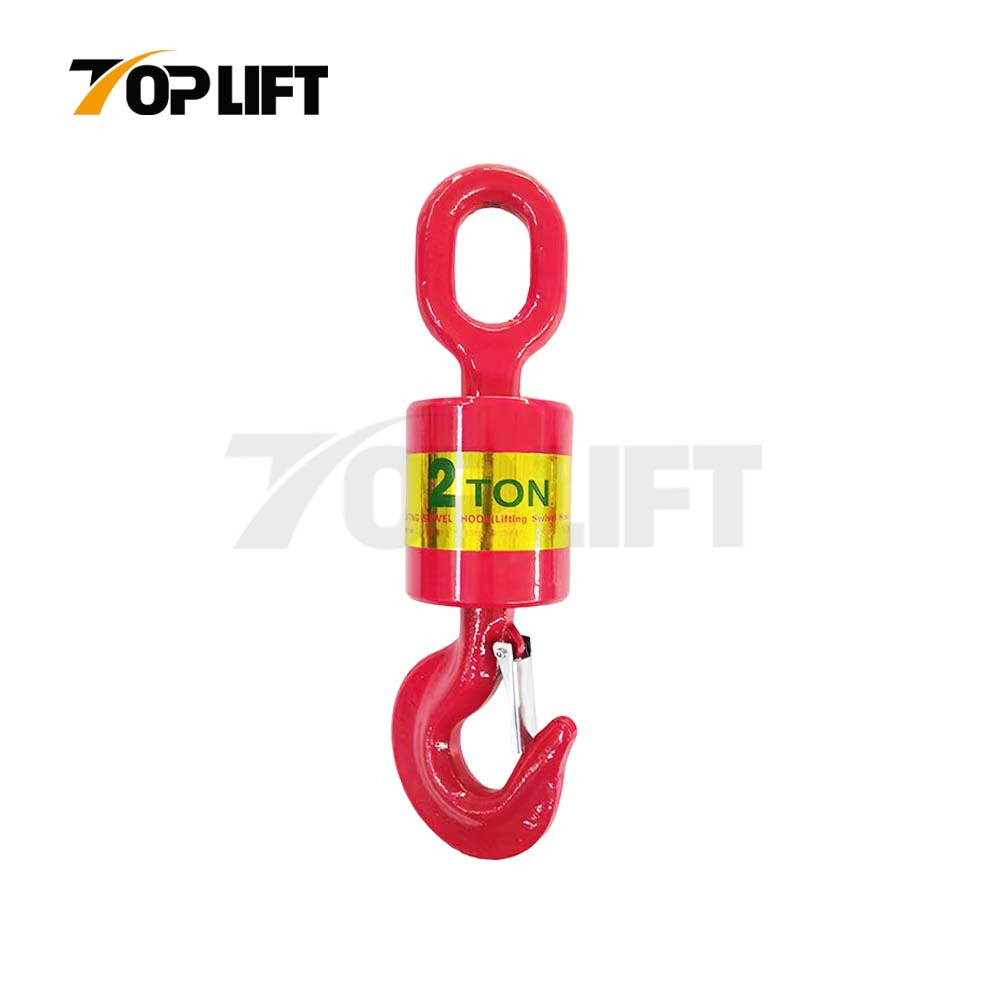

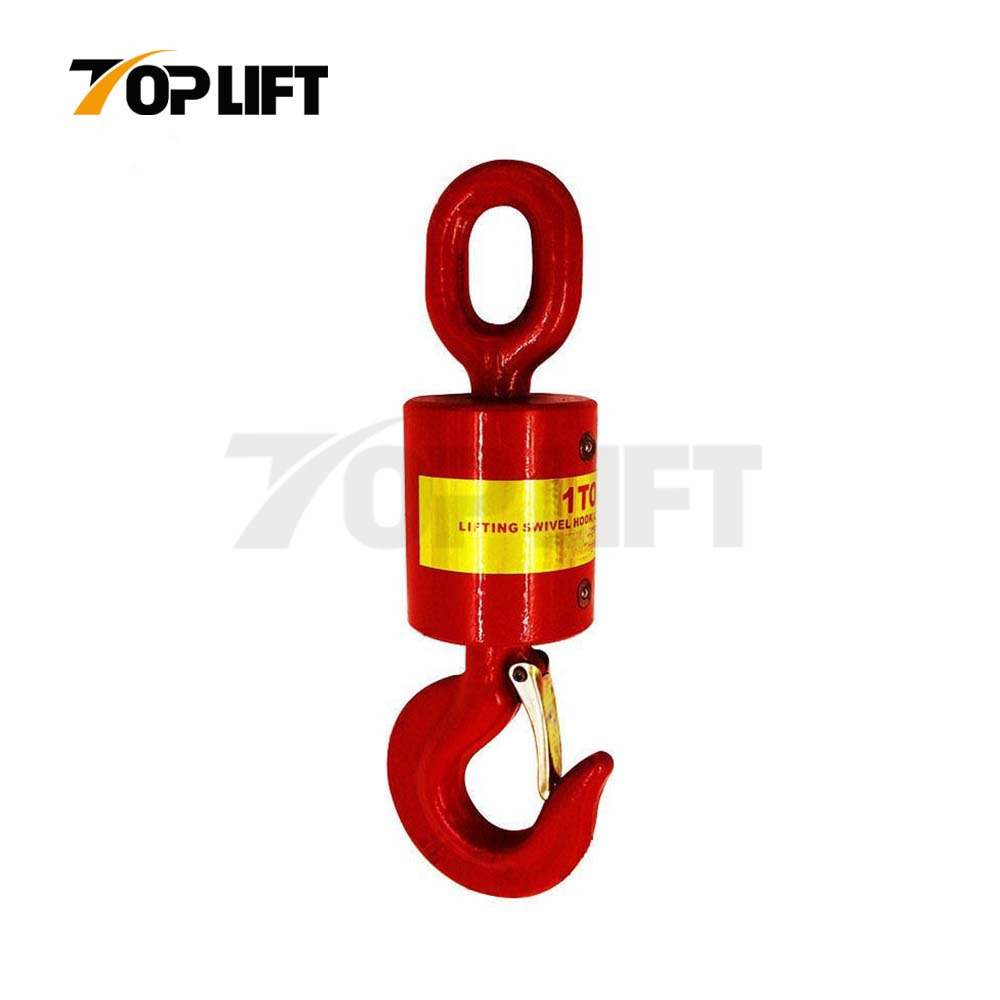

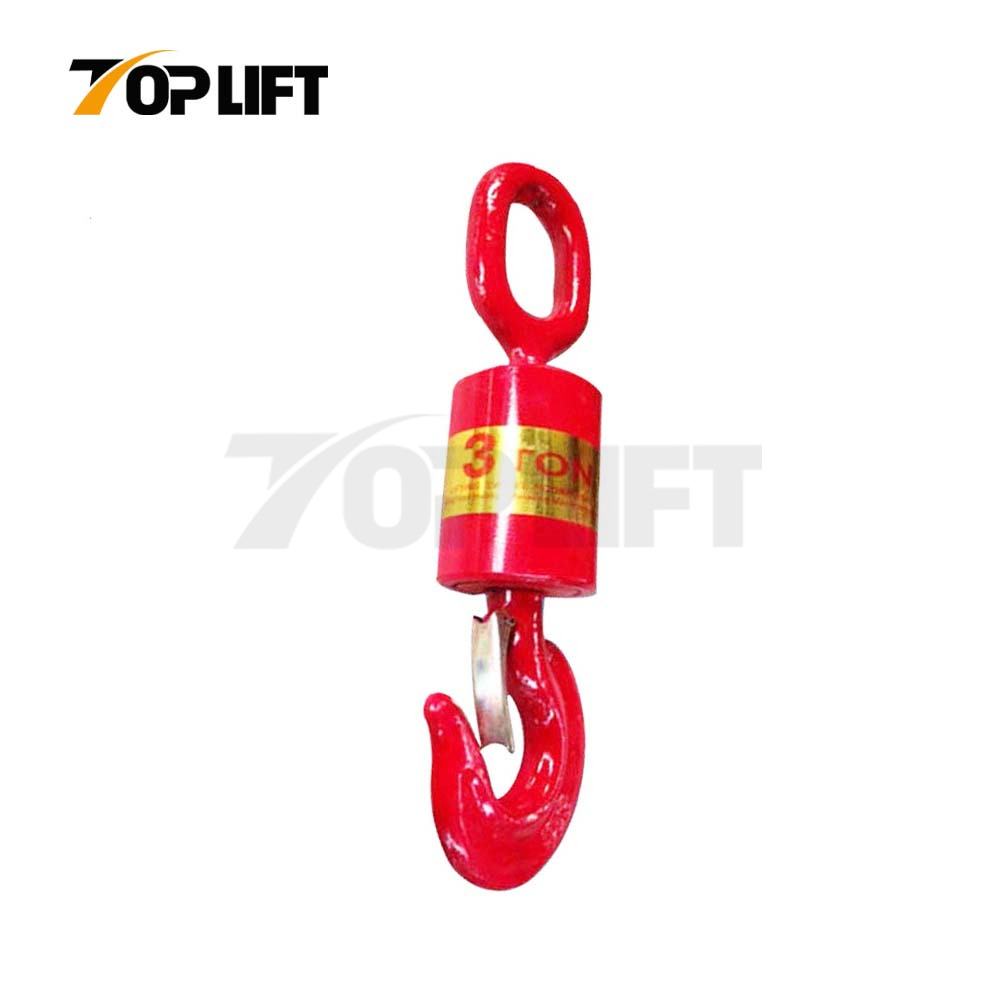

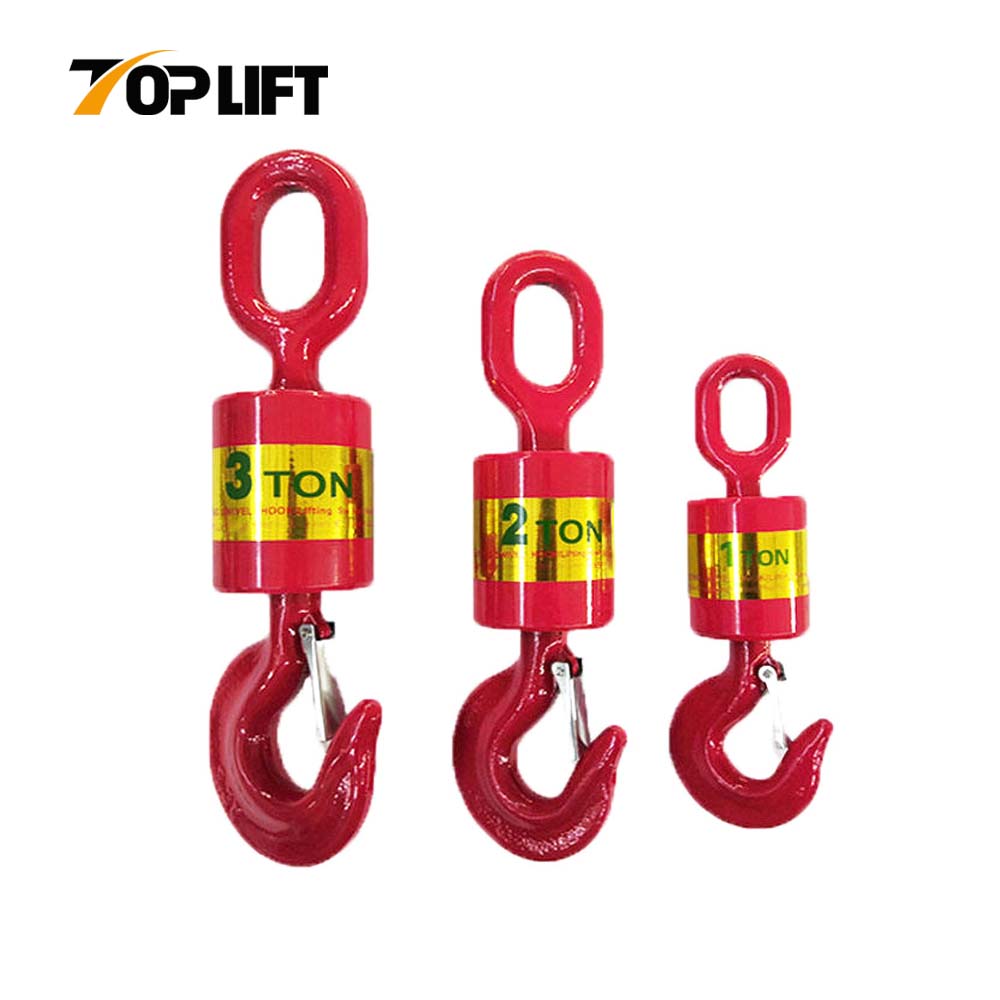

The Swivel Lifting Hook (One Hook One Ring) is a high-strength lifting component widely used for various hoisting and rigging operations.
It is forged from premium alloy steel, ensuring excellent strength, durability, and reliability.
The structure consists of an eye (ring) on the top and a hook on the bottom, connected by a 360° swivel mechanism, which effectively prevents twisting or tangling of lifting slings during operation — improving both safety and efficiency.
Shackles, rings, hooks, and adapters (oilfield rotary hooks) are die-forged from high-strength alloy steel.
Main body is precision-machined from round bar steel.
National standard pressure bearing ensures smooth 360° rotation under full load.
Proof load tested at 2.5 times the rated capacity; 20,000 cyclic fatigue tests conducted at 1.5 times the rated capacity.
100% magnaflux crack detection.
Minimum breaking load is 4 times the rated capacity.
The Swivel Lifting Hook (Eye Hook Type / One Hook One Ring) is designed for various lifting, hoisting, and material-handling operations across multiple industries.
Its 360° swivel design makes it especially suitable for applications requiring smooth rotation and anti-twist performance.
General lifting and rigging operations — ideal for connecting with wire ropes, chain slings, or webbing slings for safe and efficient load handling.
Construction sites — used for hoisting steel structures, prefabricated components, and building materials.
Shipbuilding and marine operations — suitable for loading/unloading cargo, anchoring, and deck lifting where rotation flexibility is required.
Ports and logistics — applied in cranes, forklifts, and hoisting equipment for container or cargo handling.
Mining and heavy industry — used for lifting machinery parts, tools, and bulk materials under tough working conditions.
Manufacturing and machinery workshops — supports the installation and maintenance of large mechanical assemblies.
Offshore and oilfield applications — works with shackles, lifting beams, and rotary hooks in environments where anti-twist and reliability are essential.
Rescue, maintenance, and utility work — for operations that demand reliable, smooth rotation under load.
The swivel lifting hook ensures safety, efficiency, and versatility, making it an indispensable component in professional lifting systems where controlled load orientation is important.
Safety Notes
Inspect hook and components before each use.
Do not exceed the rated working load limit.
Ensure swivel movement is smooth and not jammed.
Apply lubrication regularly to maintain free rotation and prolong service life.

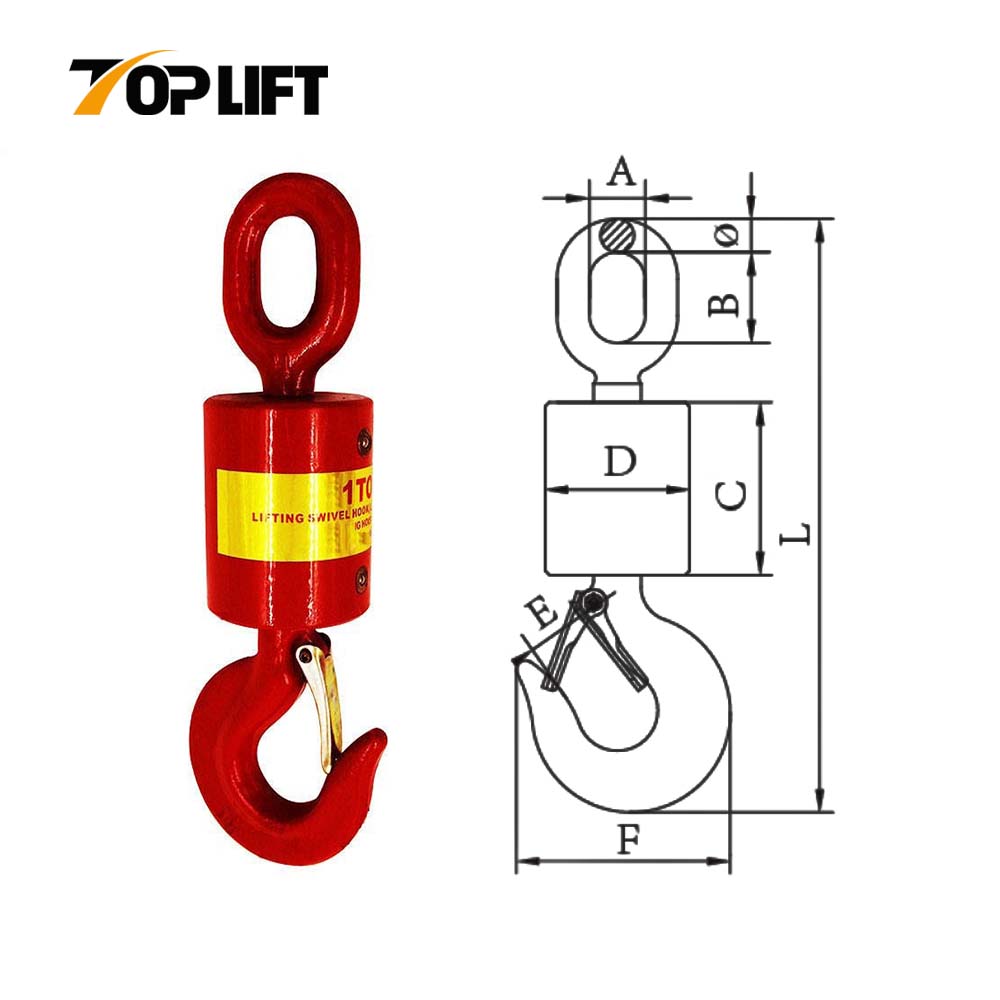

Specification
| UNIVERSAL VERTICAL (EYE & HOOK) | ||||||||||
| ITEM NO. | WLL /T | MAJOR DIMENSIONS/MM | WEIGHT /KG | |||||||
| A | B | φ | C | D | E | F | L | |||
| TP-034-1 | 1 | 26 | 42 | 15.5 | 80 | 67 | 31 | 99 | 275 | 2.7 |
| TP-034-2 | 2 | 37 | 56 | 19 | 100 | 77 | 35 | 121.5 | 355 | 4.8 |
| TP-034-3 | 3 | 38 | 69 | 25 | 110 | 87 | 40 | 138 | 415 | 7.32 |
| TP-034-5 | 5 | 50 | 88 | 31 | 120 | 107 | 48 | 165.5 | 499 | 12.7 |
| TP-034-8 | 8 | 65 | 112 | 112 | 200 | 127 | 60 | 210 | 650 | 27.1 |
| TP-034-10 | 10 | 71 | 117 | 117 | 203 | 147 | 66 | 237 | 740 | 40.1 |
| Warning: Never Exceed the WLL! | ||||||||||
Details
Our Products
FAQ
Q: Why choose us?
A: Professional technical guidance
B: Years of production experience
C: Support for customization and design
D: Fast delivery time!
F: Special technology on print.
Q: Can the product be customized?
Yes, products can be customized according to customer requirements.
Q: Can I have samples for testing?
Yes, samples are available before bulk order.
Q: How long can I get the products?
A: For the existing sample order, 3-7 working days after payment.
B: For the customized sample order, 7-15 working days after the payment.
C: For bulk, it depends on your order quantity.
