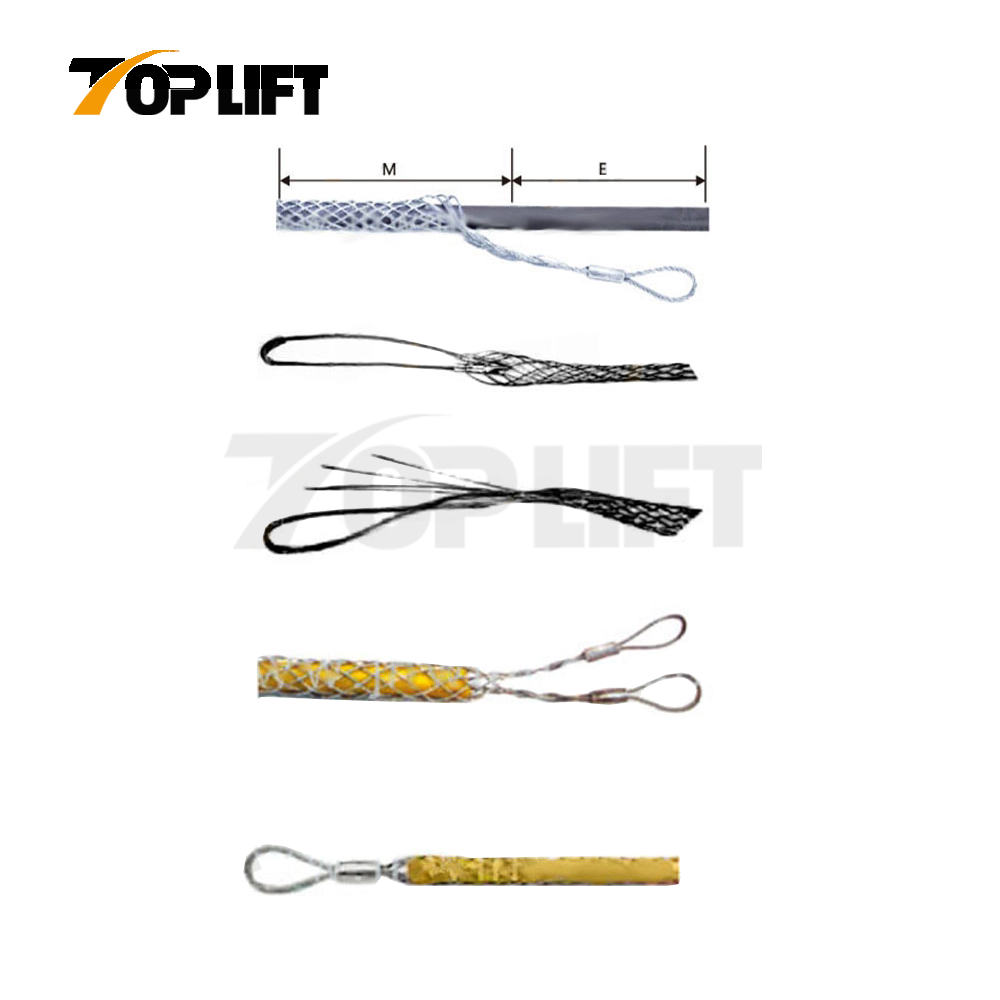

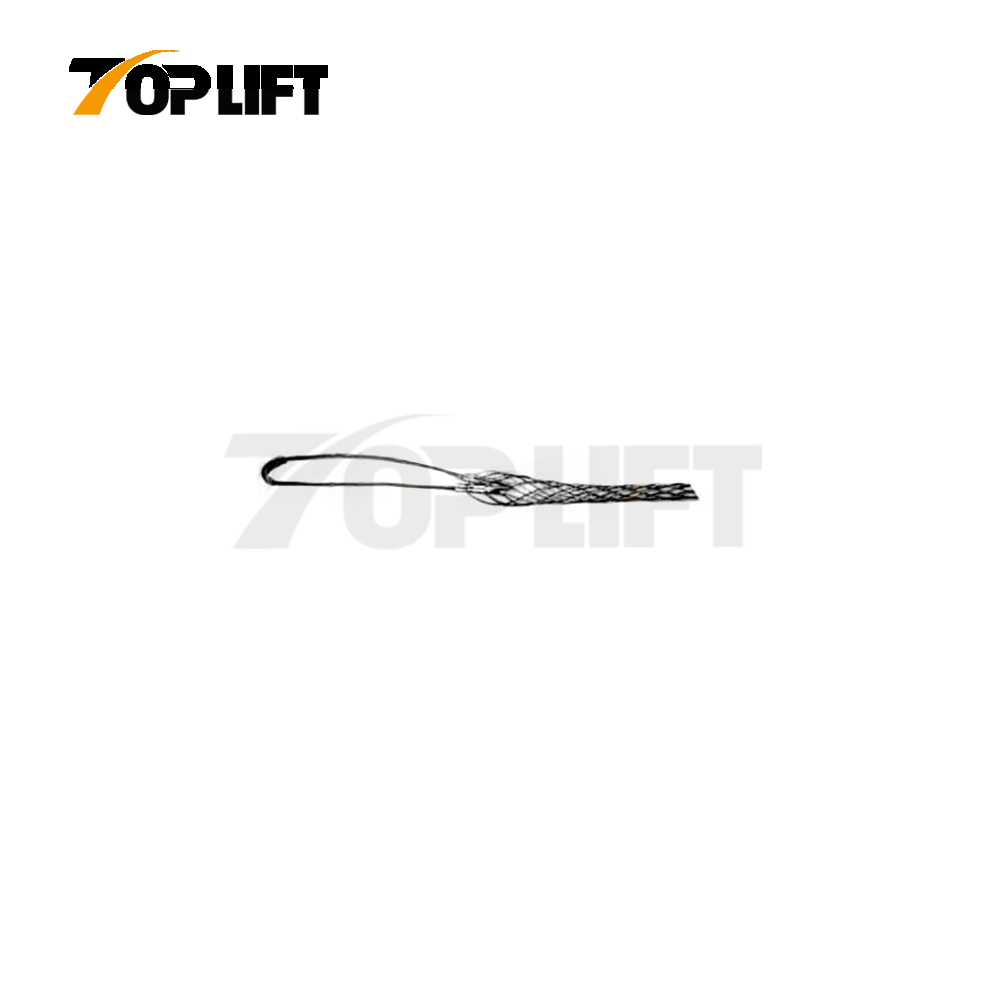

Single Eye Single Weave Closed Mesh
Specification
| ITEM No | Cabled diameter range(inch) | Approx breaking strength(Ibs.)(Ibs.) | Mesh length(inch) | Net Weight(kg) |
| TP-711501000 | 0.15-0.24 | 350 | 3.5 | 0.02 |
| TP-711502000 | 0.25-0.29 | 550 | 3.5 | 0.02 |
| TP-711503000 | 0.30-0.39 | 900 | 5.1 | 0.02 |
| TP-711504000 | 0.40-0.49 | 900 | 5.1 | 0.04 |
| TP-711505000 | 0.50-0.62 | 900 | 7.0 | 0.04 |
| TP-711506000 | 0.63-0.74 | 1750 | 9.7 | 0.11 |
| TP-711507000 | 0.75-0.99 | 2100 | 10.2 | 0.22 |
| TP-711508000 | 1.00-1.24 | 3050 | 13.0 | 0.33 |
| TP-711509000 | 1.25-1.49 | 3050 | 13.0 | 0.40 |
| TP-711510000 | 1.50-1.74 | 3050 | 14.6 | 0.44 |
| TP-711511000 | 1.75-1.99 | 4050 | 14.6 | 0.55 |
| TP-711512000 | 2.00-2.49 | 5700 | 19.2 | 1.00 |
| TP-711513000 | 2.50-2.99 | 5700 | 19.2 | 1.00 |
| TP-711514000 | 3.00-3.49 | 14250 | 19.2 | 1.10 |
| TP-711515000 | 3.50-3.99 | 14250 | 20.0 | 1.30 |
Our Advantages
1.Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2.Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3.Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4.Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5.Competitive price
We provide best price among same quality products.
6.One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7.OEM service.
8.Customization Supported：
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9.Numerous Patents in Rigging Hardware.
