TP-UU086
TOPLIFT
| Quantity: | |
|---|---|

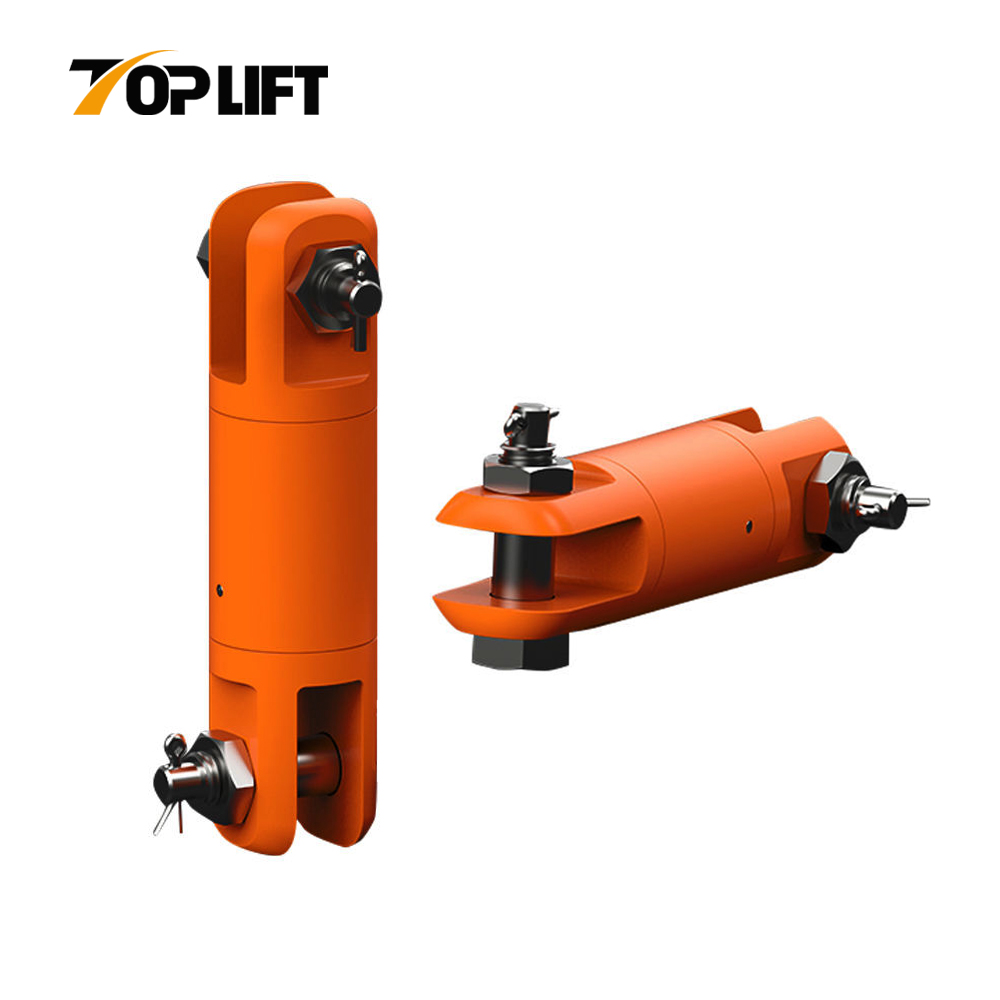

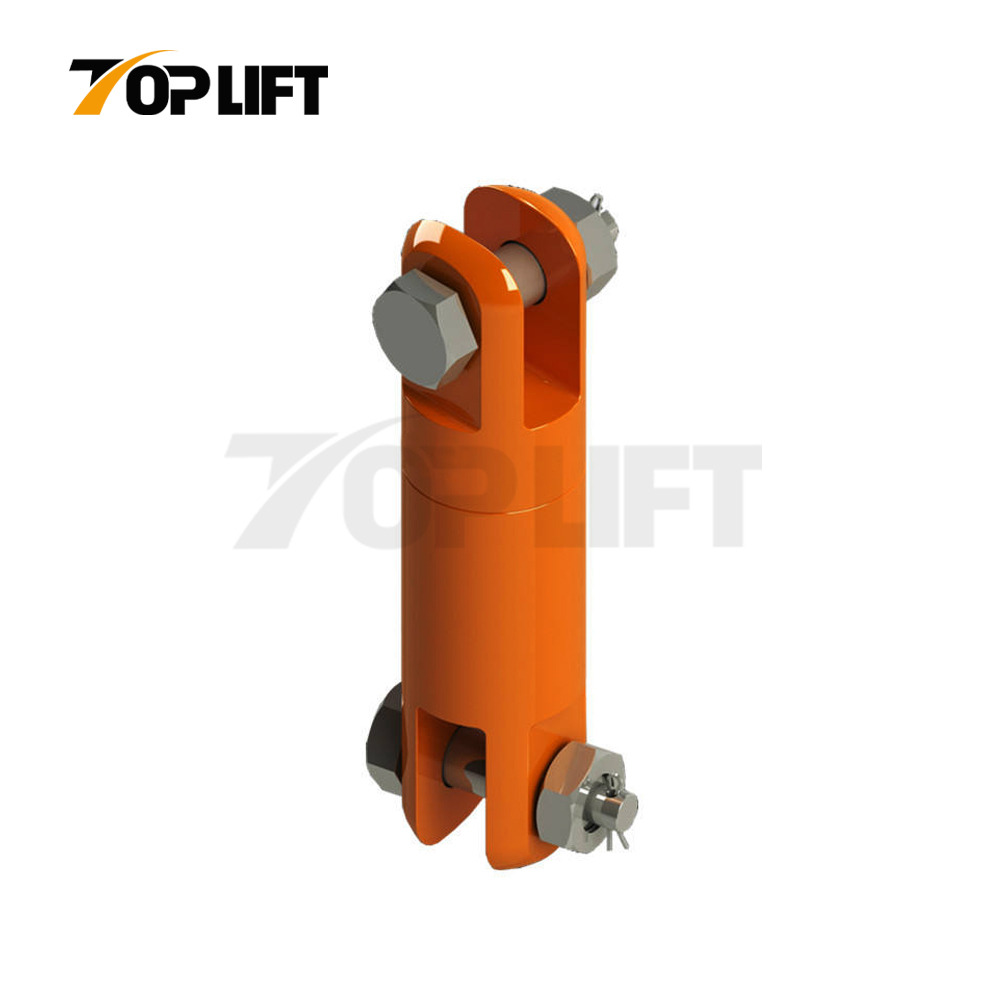

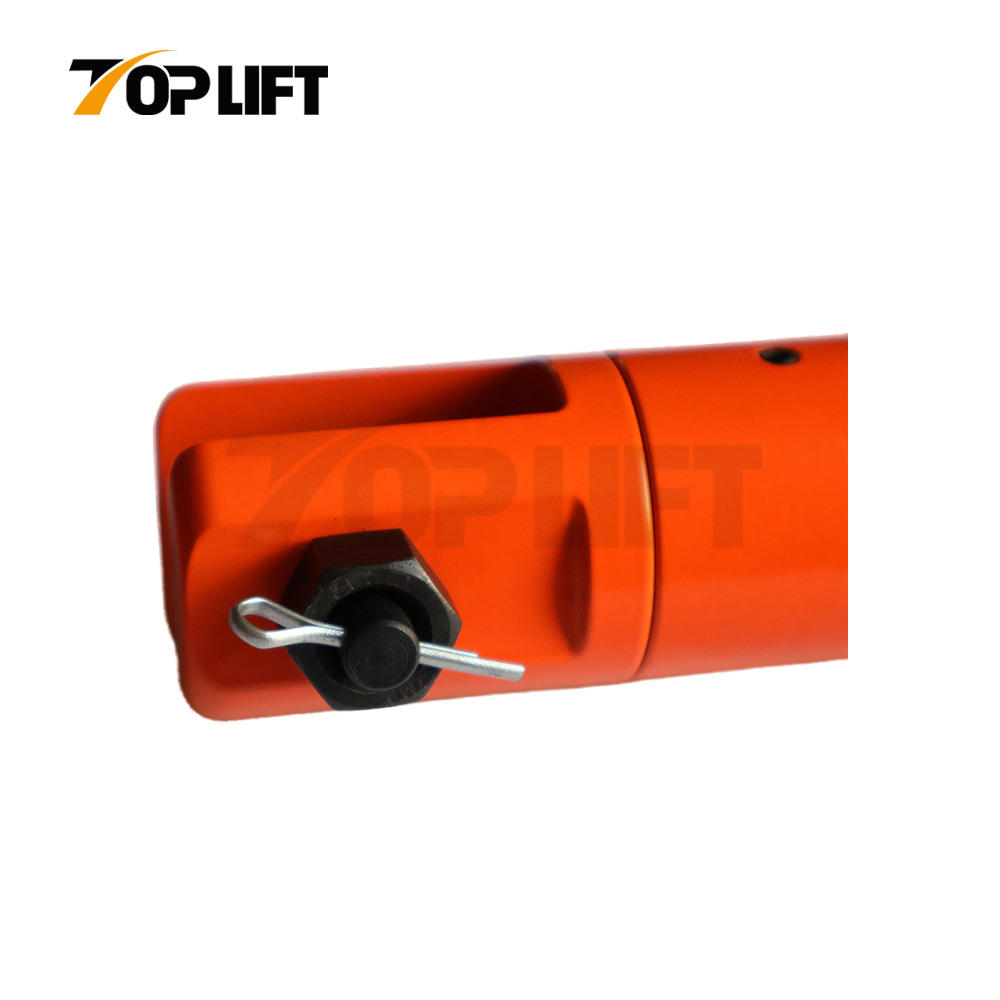

The Angular Contact bearing Swivels-UU Type
Introduction

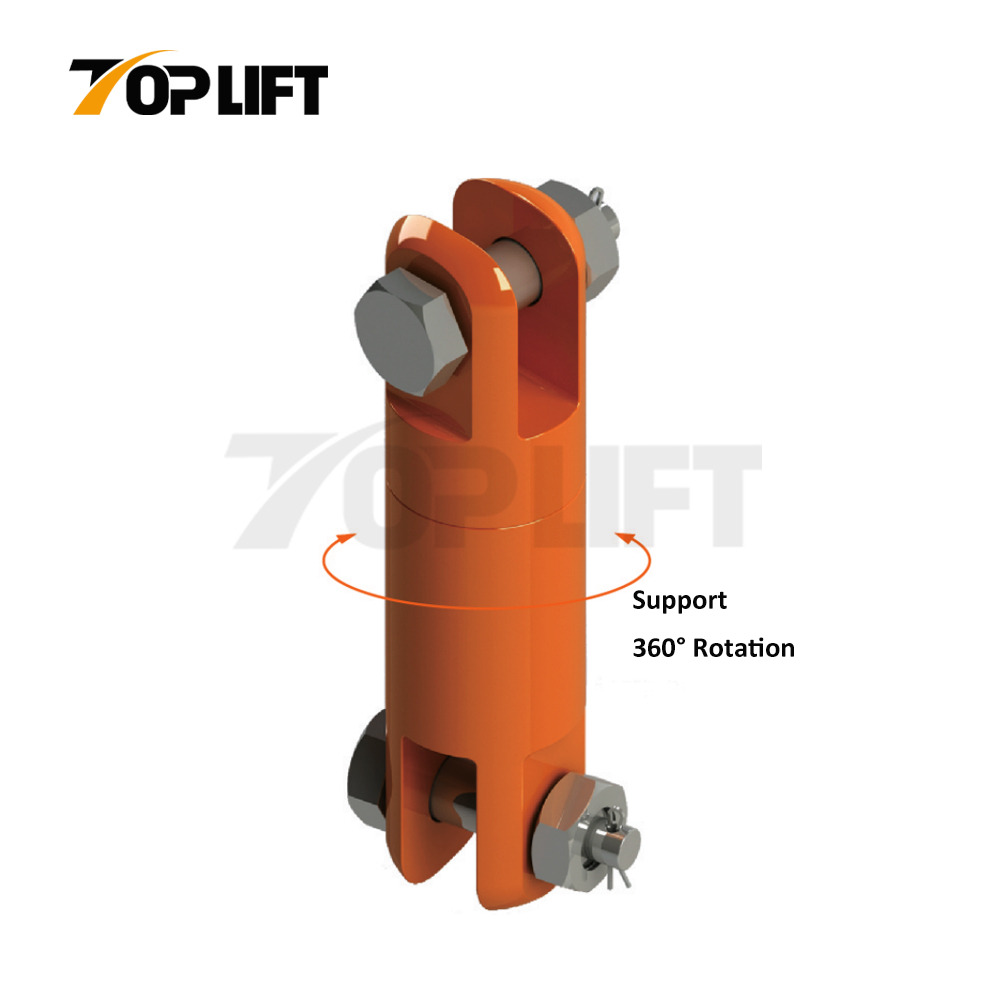

The Angular Contact bearing Swivel is forged from high-strength alloy steel and precisely heat-treated to ensure excellent load capacity and durability under heavy-duty conditions. It support 360° rotation to prevent load twisting, ensuring greater safety and flexibility during lifting operations. With galvanized or Plastic coating surface treatment, it offers enhanced corrosion resistance and extended service life. Ideal for machinery manufacturing, metallurgy, mold handling, construction machinery, and heavy equipment lifting applications.
Features
Forged from special alloy steel of high strength and high toughness, quenched and tempered for superior strength.
Designed with a safety factor of 4:1
The surface of the swivel is galvanized or coated, providing enhanced corrosion resistance and extended service life.

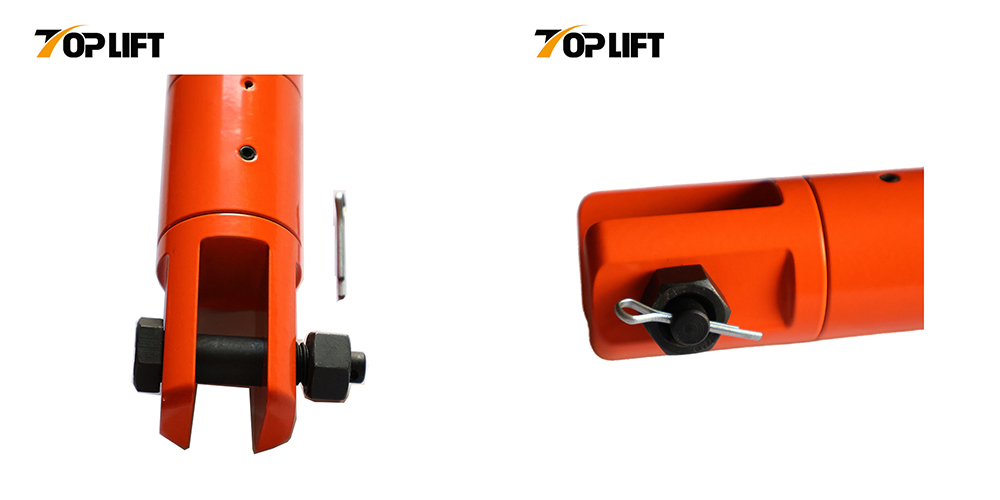

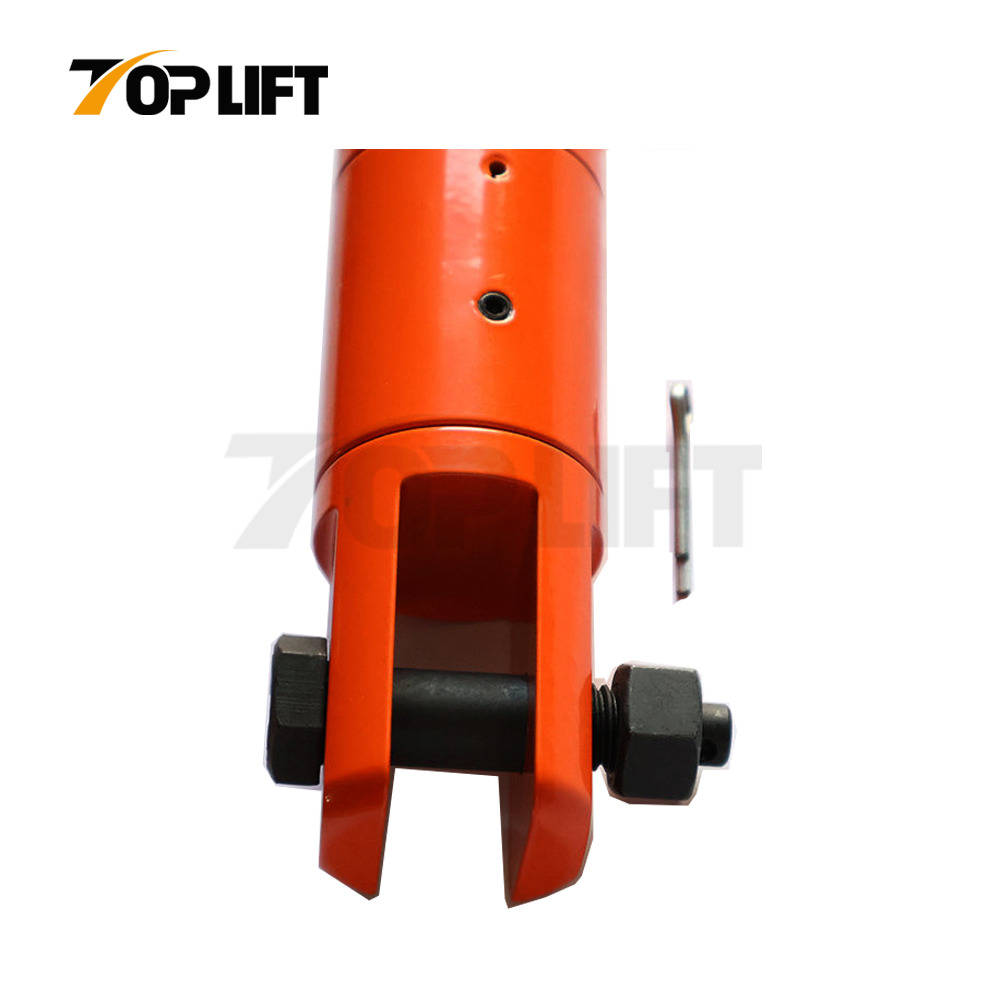

Equipped with pressure lube fittings for easy maintenance and longer service life.
Specification

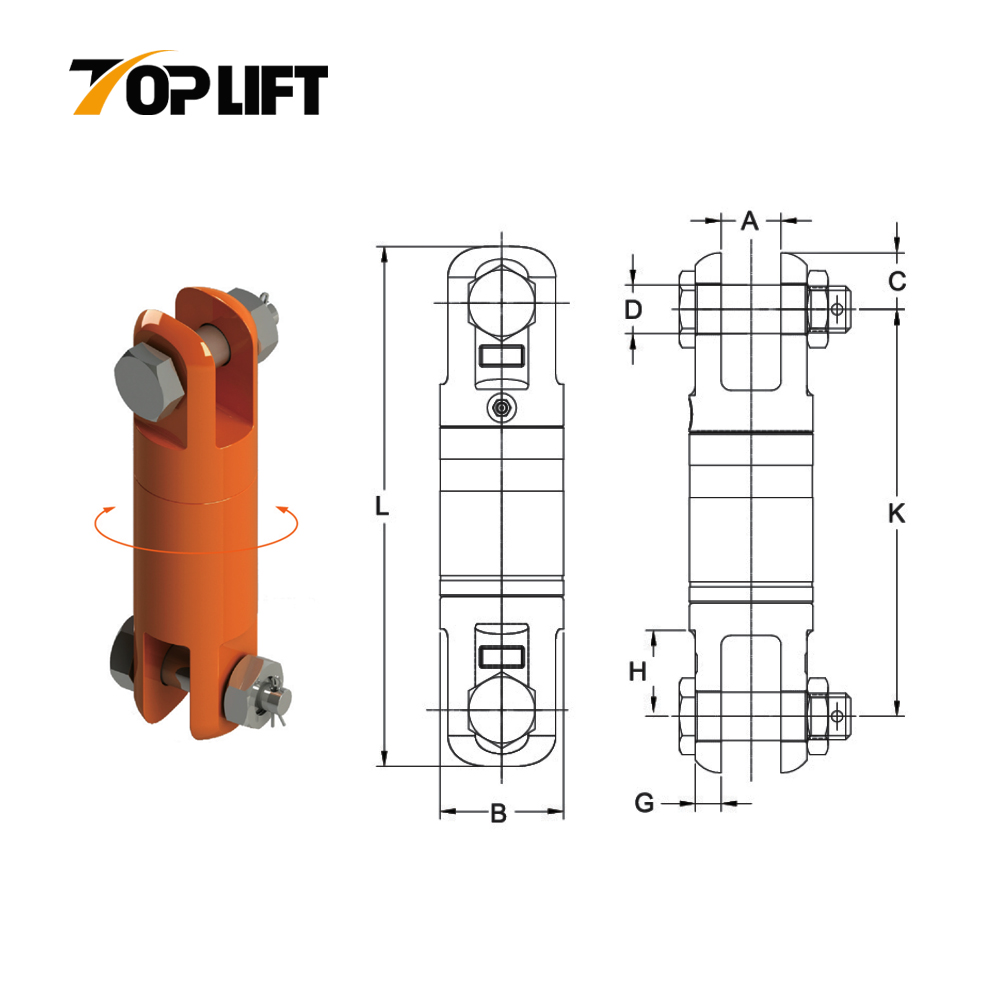

| ITEM NO. | SIZE | WLL/T | SPECIFICATION/MM | WEIGHT /KG | |||||||
| B | K | L | C | A | D | G | H | ||||
| UU086-007 | 0.75 | 0.75 | 34 | 107 | 133 | 13 | 15 | 10 | 6 | 22 | 0.5 |
| UU086-015 | 1.5 | 1.5 | 40 | 119 | 159 | 20 | 18 | 13 | 8 | 26 | 0.9 |
| UU086-030 | 3 | 3 | 53 | 160 | 210 | 25 | 23 | 19 | 10 | 32 | 2.3 |
| UU086-050 | 5 | 5 | 67 | 203 | 267 | 32 | 32 | 22 | 14 | 37 | 4.4 |
| UU086-085 | 8.5 | 8.5 | 78 | 250 | 326 | 38 | 40 | 30 | 14 | 54 | 7.6 |
| UU086-100 | 10 | 10 | 106 | 310 | 410 | 50 | 42 | 38 | 25 | 54 | 19.5 |
| UU086-150 | 15 | 15 | 119 | 320 | 440 | 60 | 48 | 38 | 25 | 57 | 21.7 |
| UU086-250 | 25 | 25 | 137 | 405 | 535 | 65 | 62 | 50 | 30 | 70 | 39.5 |
| UU086-350 | 35 | 35 | 154 | 415 | 545 | 65 | 62 | 50 | 33 | 70 | 46.2 |
| UU086-600 | 60 | 60 | 270 | 670 | 890 | 110 | 100 | 80 | 75 | 120 | 352 |
| ★ Designed with Safety Factor 4:1, the independent proof-test should be 2 times the WLL. | |||||||||||
| Warning: Do not use this product beyond the rated working load limit. | |||||||||||
Details
Forged from high-strength, high-toughness special alloy steel, the swivel lifting ring undergoes precision quenching and tempering heat treatment to refine the grain structure, relieve internal stress, and enhance mechanical properties. This process ensures superior tensile strength, improved toughness, and outstanding fatigue resistance, providing reliable performance under heavy-duty and dynamic lifting conditions.
