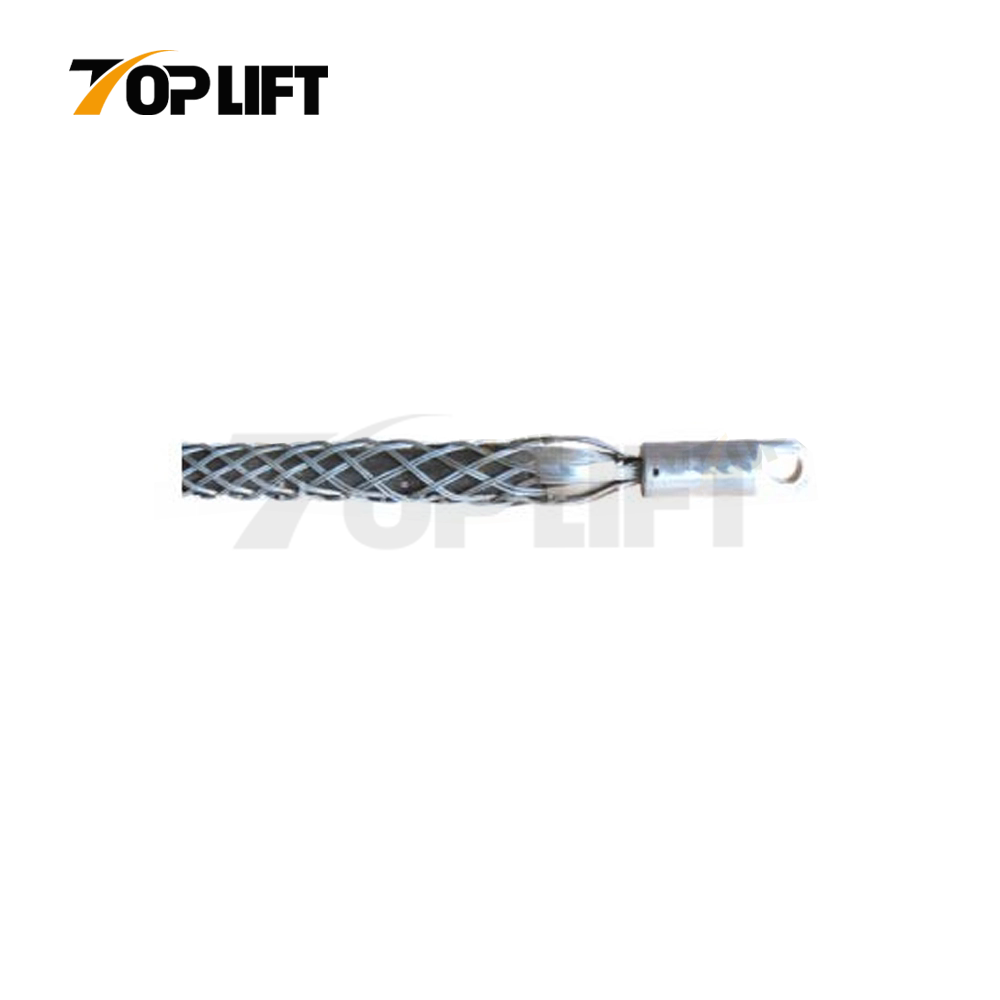

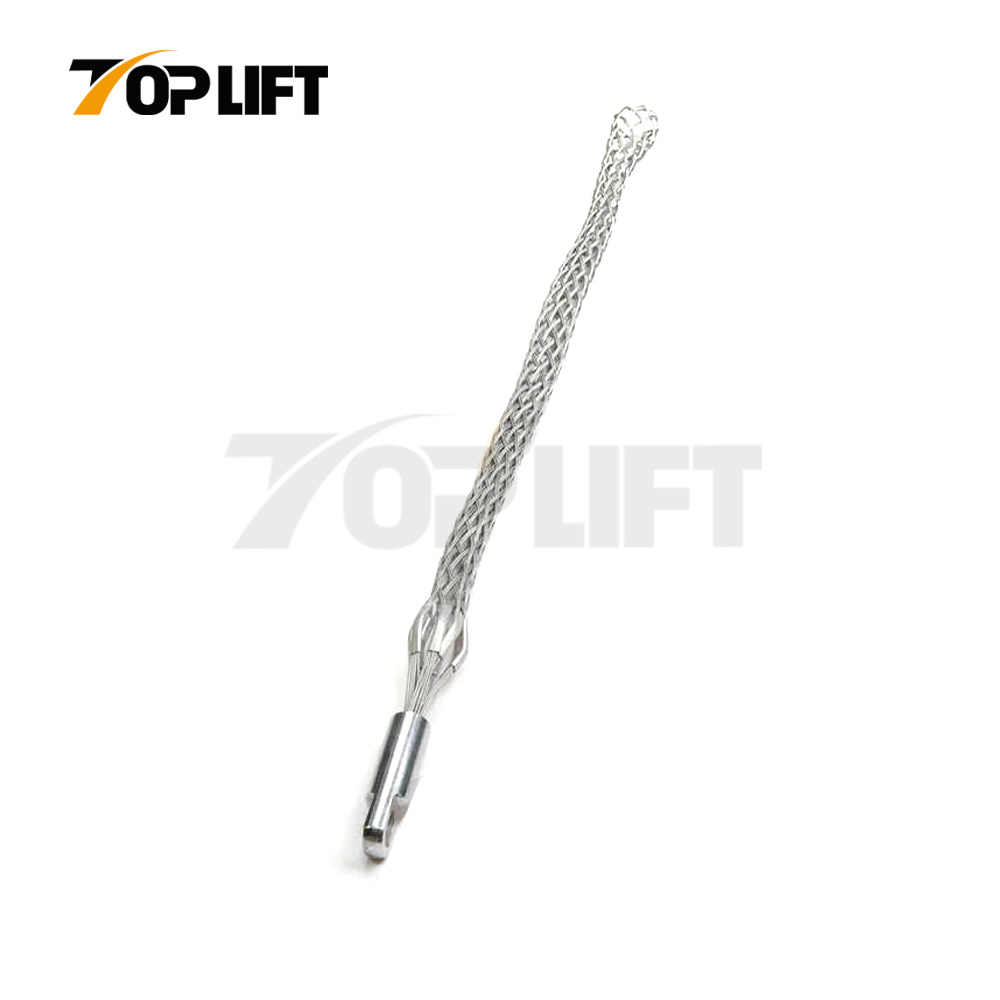

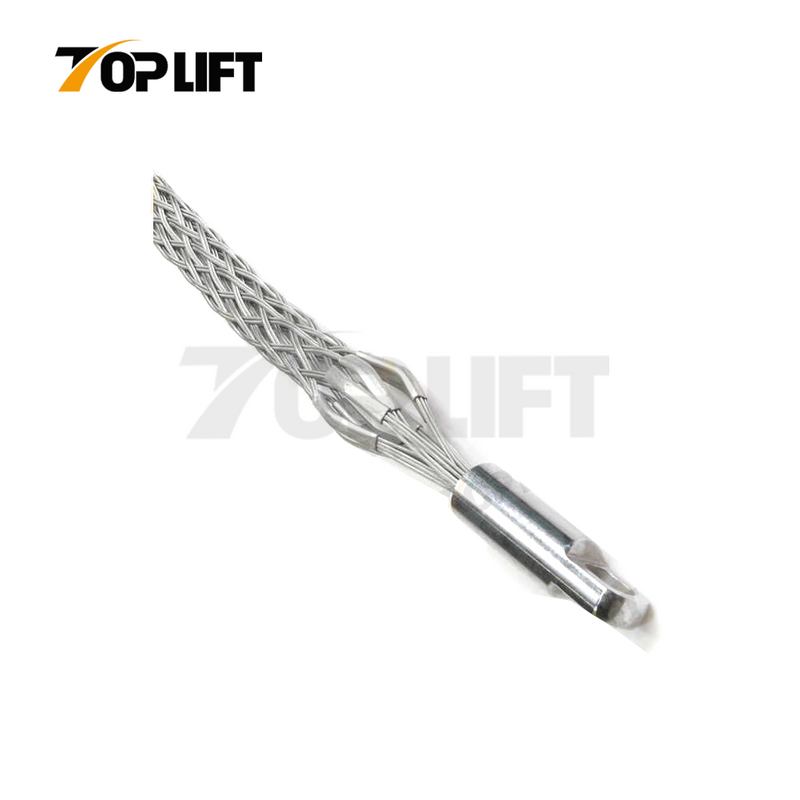

K Type Pulling Grip

K Type Pulling Grip

Specification

ITEM NO	Cable diameter range (mm)	E	M	Approx breaking strength (Ibs.)
short
TP-WKG-050A	12-15	127	279	5600
TP-WKG-062A	15-18	127	279	6800
TP-WKG-075A	18-25	152	508	6800
TP-WKG-100M	25-37	178	508	12800
TP-WKG-150M	37-50	178	635	16400
TP-WKG-200M	50-63	203	660	27200
TP-WKG-225M	63-75	254	711	33000
TP-WKG-300M	75-88	254	762	41000
TP-WKG-350M	88-101	254	813	48000
TP-WKG-400M	101-114	254	864	50000
TP-WKG-450M	114-127	254	914	52000
TP-WKG-500M	127-152	254	965	54000
TP-WKG-600M	152-177	254	1016	56000
Standar
TP-WKG-050M	12-15	127	406	5600
TP-WKG-062M	15-18	127	406	6800
TP-WKG-075P	18-25	152	813	9600
TP-WKG-100P	25-37	178	838	16400
TP-WKG-150P	37-50	178	864	16400
TP-WKG-200P	50-63	229	914	27200
TP-WKG-250P	63-75	254	965	33000
TP-WKG-300P	75-88	254	990	41000
TP-WKG-350P	88-101	254	1041	48000
TP-WKG-400P	101-114	254	1067	48000
TP-WKG-450L	114-127	254	1473	48000
TP-WKG-500L	127-152	254	1524	48000
TP-WKG-600L	152-177	254	1676	48000
