TP-BLT087
TOPLIFT
| Quantity: | |
|---|---|

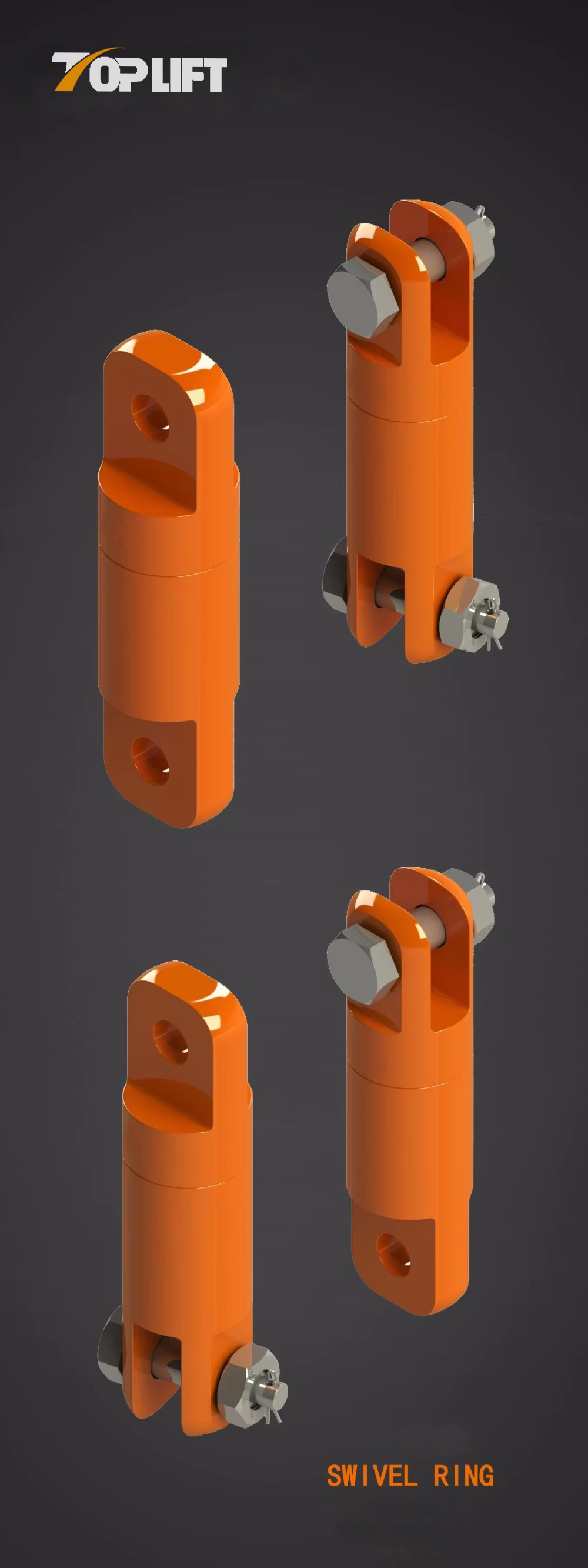

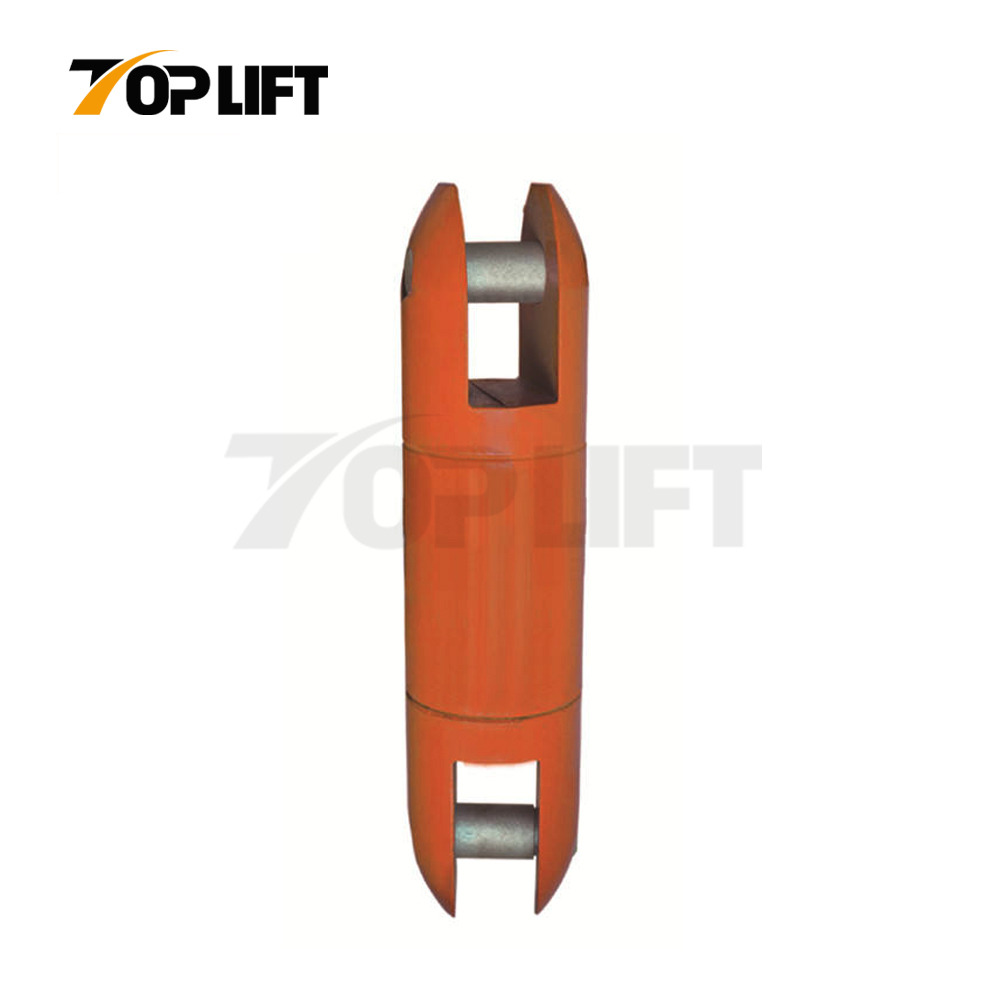

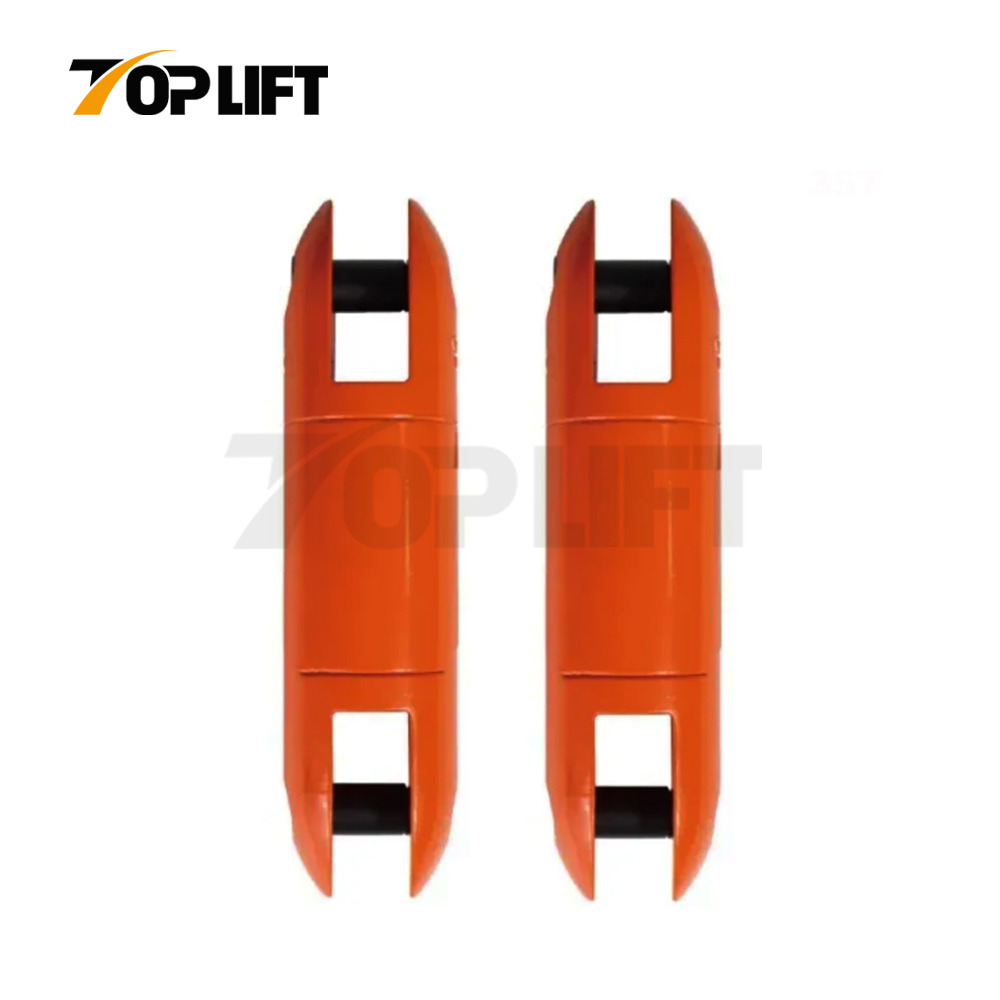

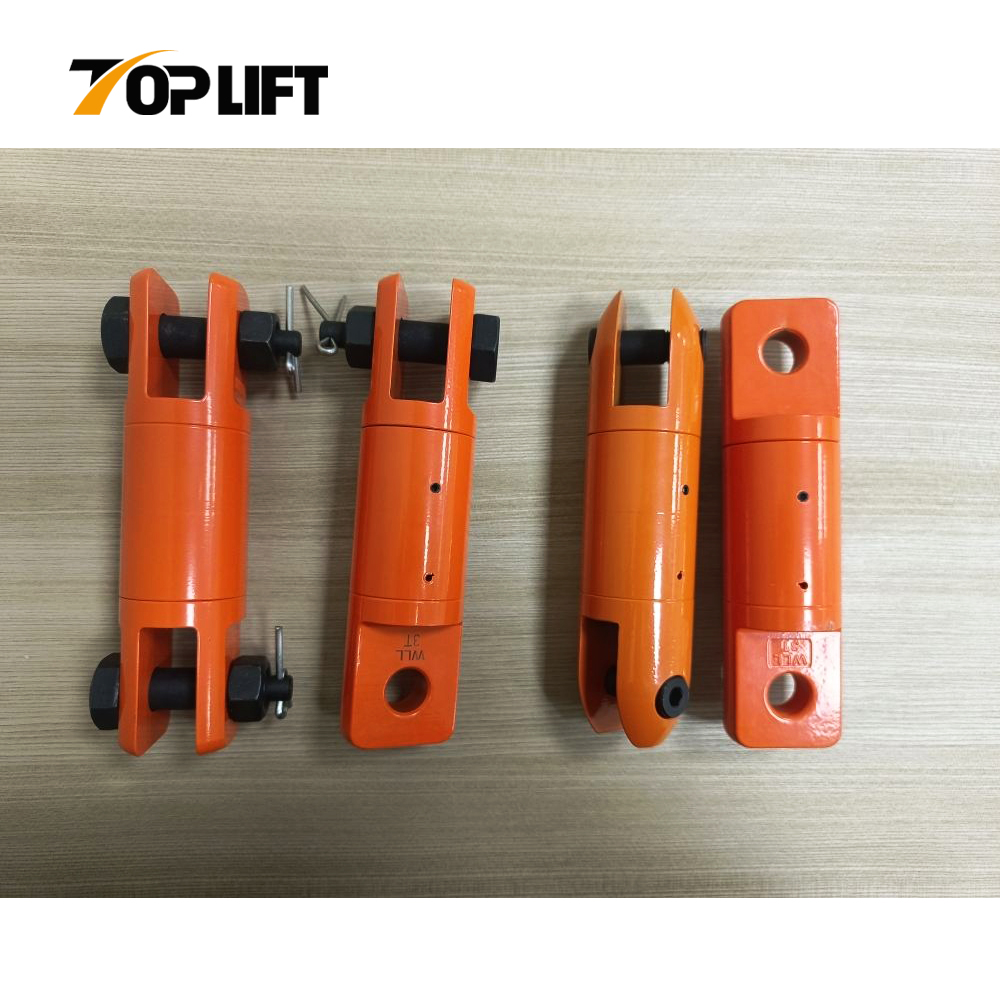

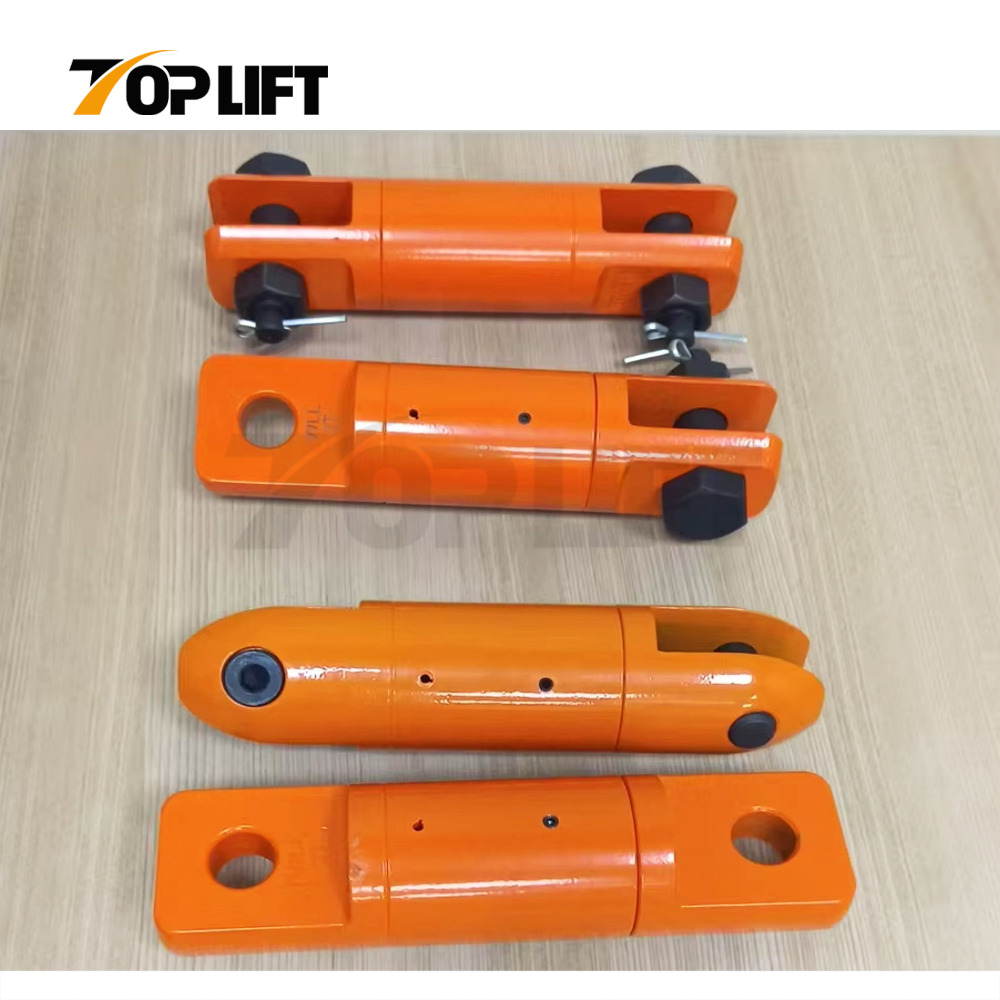

The Angular Contact Bearing Swivels - Bullet Type
Introduction
Crafted from high-strength alloy steel, our Angular Contact Bearing Swivel is precision-engineered and heat-treated to deliver unmatched load capacity and durability, even in the most demanding conditions. Featuring 360° rotation, this innovative design prevents load twisting, ensuring seamless safety and adaptability for any lifting task. The choice of galvanized or plastic-coated surface treatment provides superior resistance to corrosion, significantly prolonging the product's lifespan. Perfectly suited for diverse industries such as machinery manufacturing, metallurgy, mold handling, construction machinery, and heavy equipment lifting, this swivel is a versatile solution for all your lifting needs.
Features
Constructed from a specially formulated alloy steel, our swivel is both high-strength and high-toughness. The quenching and tempering process significantly enhances its robustness, ensuring it stands up to the most rigorous demands.
Engineered with an impressive safety factor of 4:1, this swivel guarantees reliability and peace of mind during operations.
The swivel's surface is expertly galvanized or coated, offering outstanding resistance to corrosion and a significantly extended lifespan.
Fitted with convenient pressure lube fittings, this swivel allows for straightforward maintenance, prolonging its service life and enhancing operational efficiency.

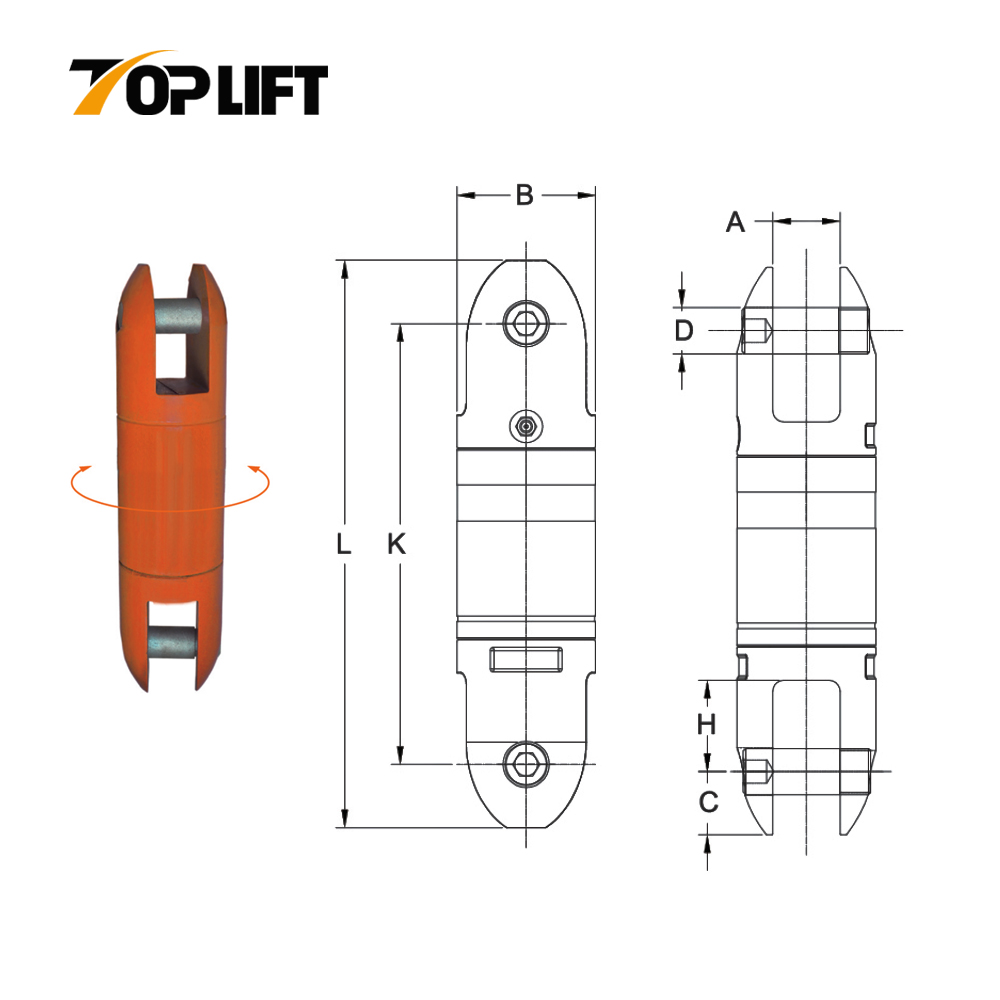

Specification
| ITEM NO. | SIZE | WLL/T | SPECIFICATION/MM | WEIGHT /KG | ||||||
| B | K | L | C | A | D | H | ||||
| BLT087-007 | 0.75 | 0.75 | 34 | 107 | 131 | 12 | 15 | 10 | 22 | 0.5 |
| BLT087-015 | 1.5 | 1.5 | 40 | 119 | 131 | 16 | 18 | 12 | 26 | 0.8 |
| BLT087-030 | 3 | 3 | 53 | 160 | 210 | 25 | 23 | 16 | 32 | 2 |
| BLT087-050 | 5 | 5 | 67 | 205 | 267 | 31 | 32 | 22 | 37 | 3.9 |
| BLT087-085 | 8.5 | 8.5 | 78 | 246 | 316 | 35 | 37 | 24 | 50 | 6.7 |
| BLT087-100 | 10 | 10 | 106 | 316 | 408 | 46 | 42 | 38 | 53 | 18.6 |
| BLT087-150 | 15 | 15 | 119 | 330 | 426 | 48 | 48 | 38 | 56 | 19.9 |
| BLT087-250 | 25 | 25 | 137 | 403 | 525 | 61 | 62 | 50 | 69 | 36.5 |
| BLT087-350 | 35 | 35 | 154 | 423 | 545 | 61 | 62 | 50 | 69 | 47.6 |
| ★Designed with Safety Factor 4:1, the independent proof-test should be 2 times the WLL. | ||||||||||
| Warning: Do not use this product beyond the rated working load limit. | ||||||||||
Details
Our swivel lifting ring, meticulously forged from high-strength, high-toughness special alloy steel, undergoes advanced quenching and tempering heat treatment. This state-of-the-art process optimizes the grain structure, alleviates internal stresses, and boosts mechanical properties. The result is a product with exceptional tensile strength, enhanced toughness, and remarkable fatigue resistance, ensuring steadfast performance even under heavy-duty and dynamic lifting scenarios.
