TP-035
TOPLIFT
| Quantity: | |
|---|---|

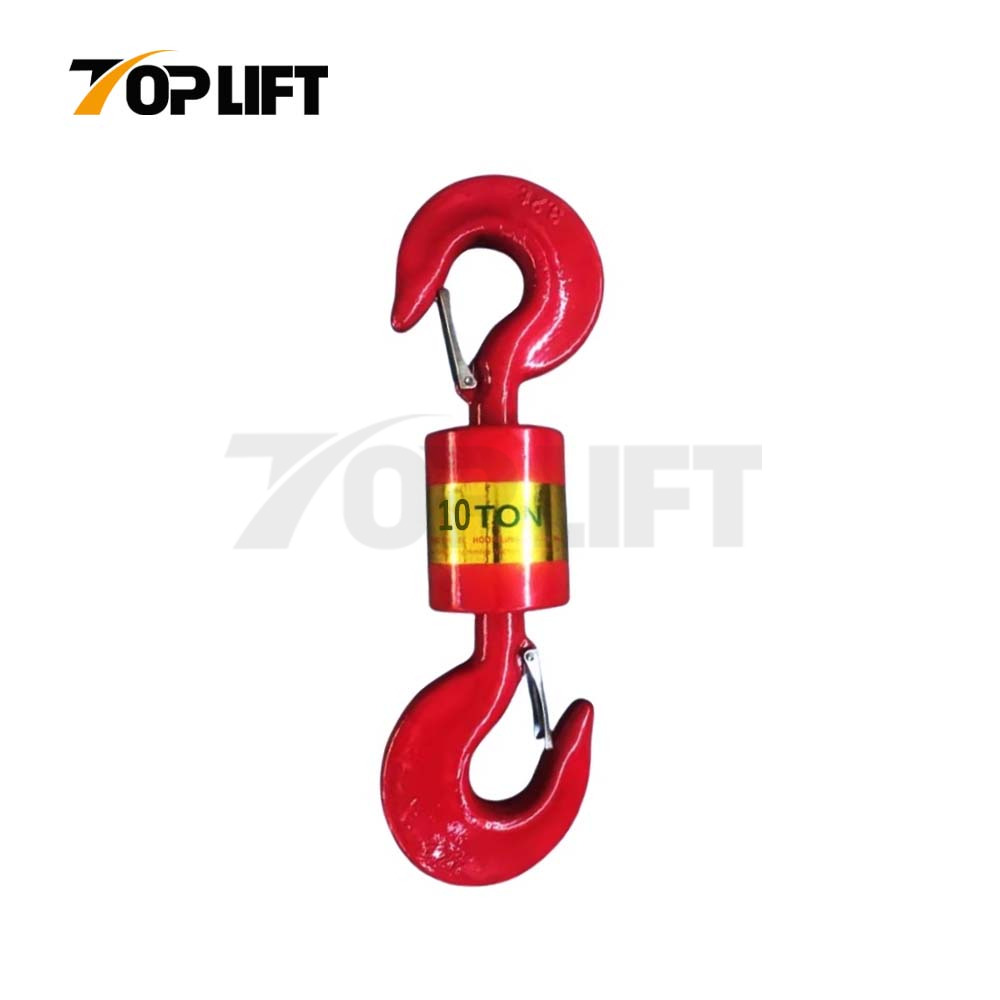

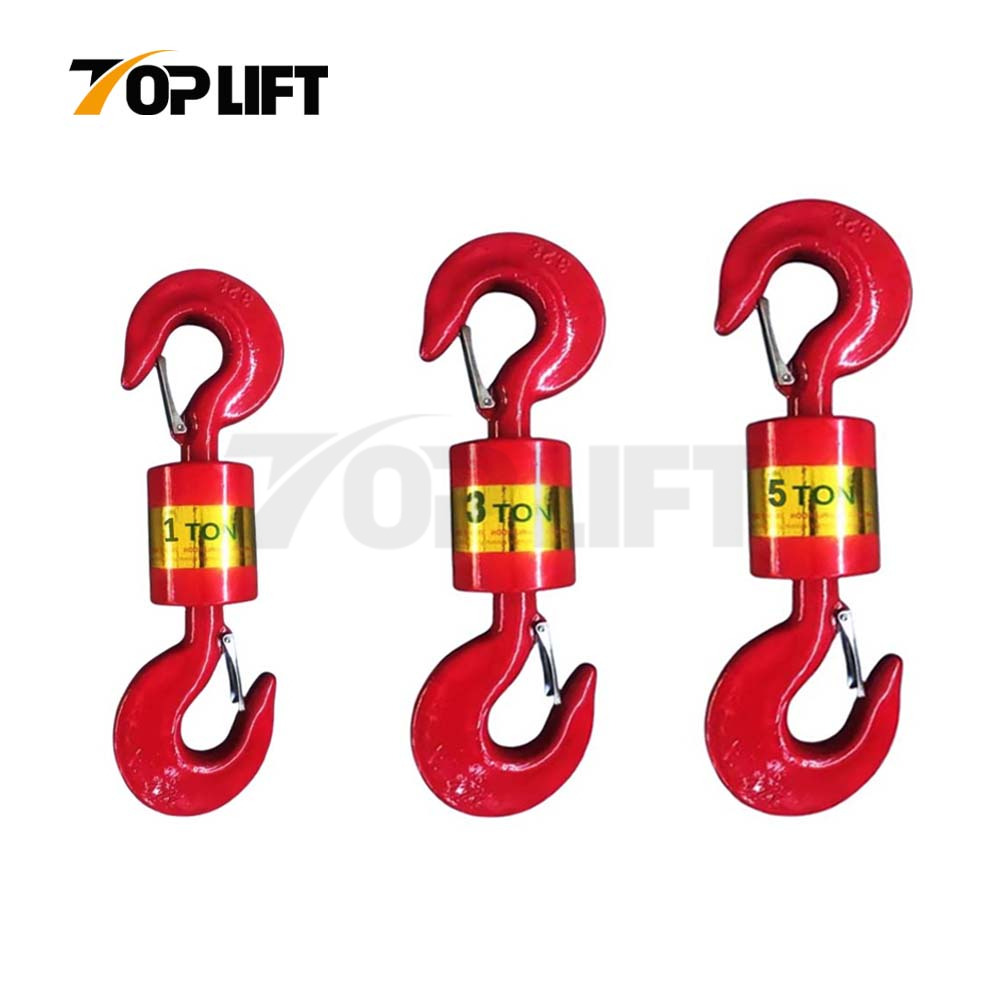

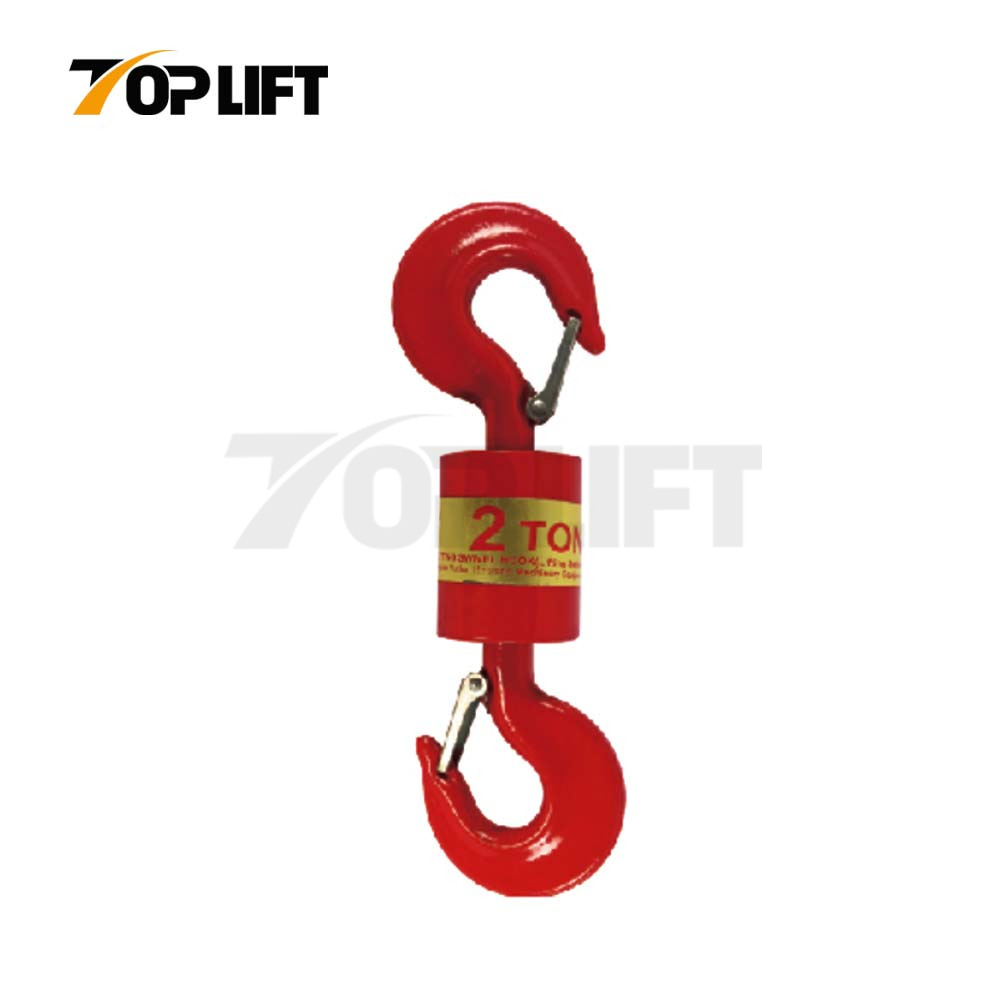

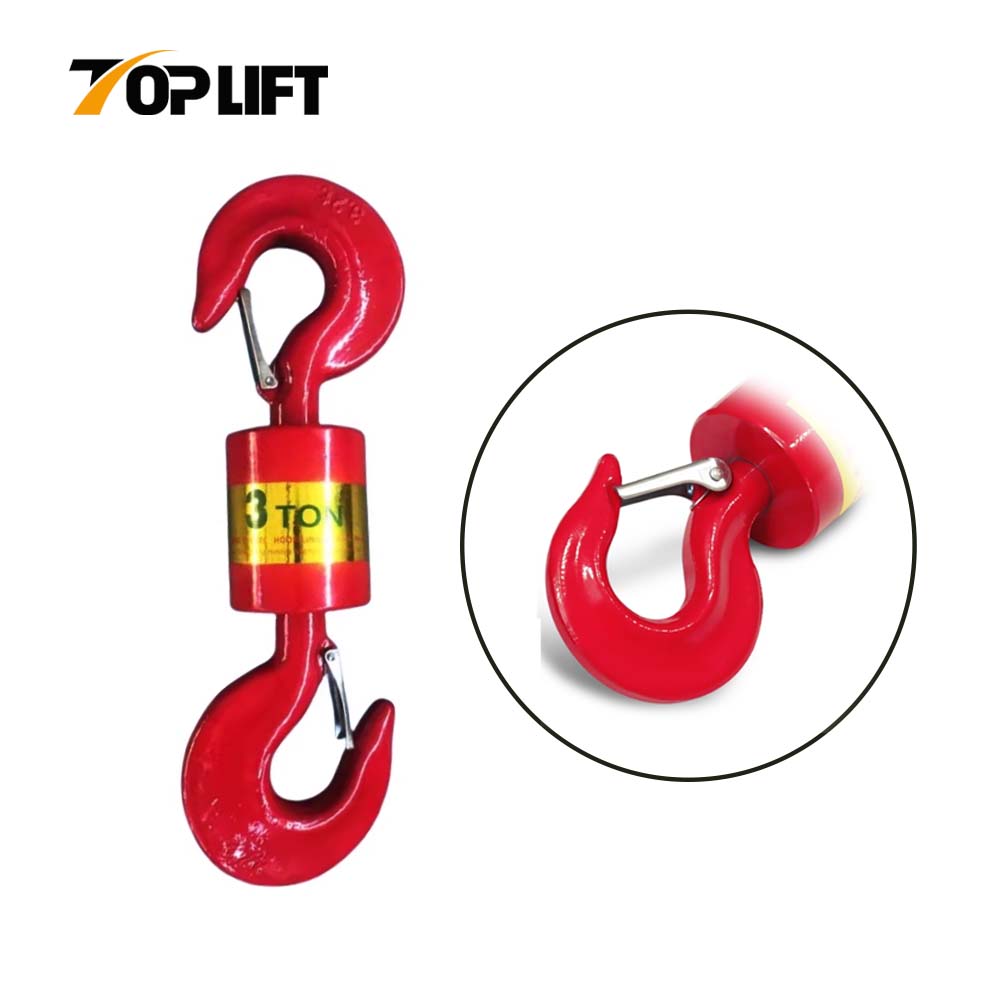

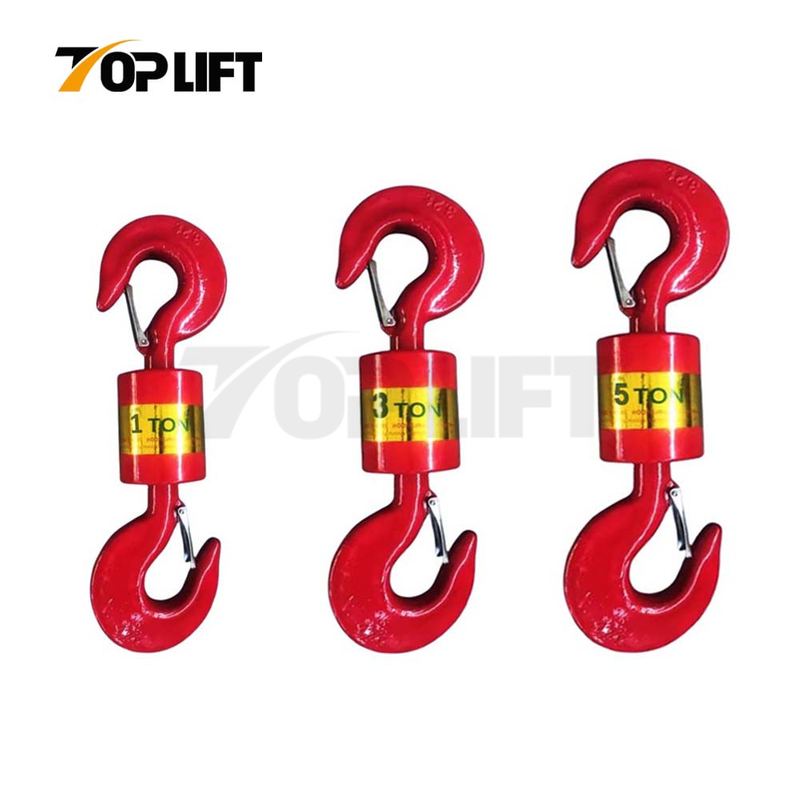

The Swivel Lifting Hook (Double Hook) is a high-strength lifting component designed for heavy-duty hoisting and rigging operations. Manufactured from premium alloy steel and precision-forged for superior durability, it features a 360° rotatable structure that ensures smooth movement under full load and prevents chain or sling twisting during lifting. It is widely used for various hoisting and rigging operations.
Shackles, rings, hooks, and adapters (oilfield rotary hooks) are die-forged from high-strength alloy steel.
Main body is precision-machined from round bar steel.
National standard pressure bearing ensures smooth 360° rotation under full load.
Proof load tested at 2.5 times the rated capacity; 20,000 cyclic fatigue tests conducted at 1.5 times the rated capacity.
100% magnaflux crack detection.
Minimum breaking load is 4 times the rated capacity.
The Swivel Lifting Hook (Double Hook Type) is designed for various lifting, hoisting, and material-handling operations across multiple industries.
Its 360° swivel design makes it especially suitable for applications requiring smooth rotation and anti-twist performance. This swivel lifting hook is widely used in:
Oilfield drilling rigs and equipment lifting
Construction sites and building material handling
Machinery manufacturing and assembly lines
Marine engineering, shipyards, ports, and dock operations
Mining, transportation, and other heavy-lifting environments
Its robust design and reliable performance make it ideal for situations requiring continuous rotation, precise positioning, and high safety standards.
Safety Notes
Inspect hook and components before each use.
Do not exceed the rated working load limit.
Ensure swivel movement is smooth and not jammed.
Apply lubrication regularly to maintain free rotation and prolong service life.

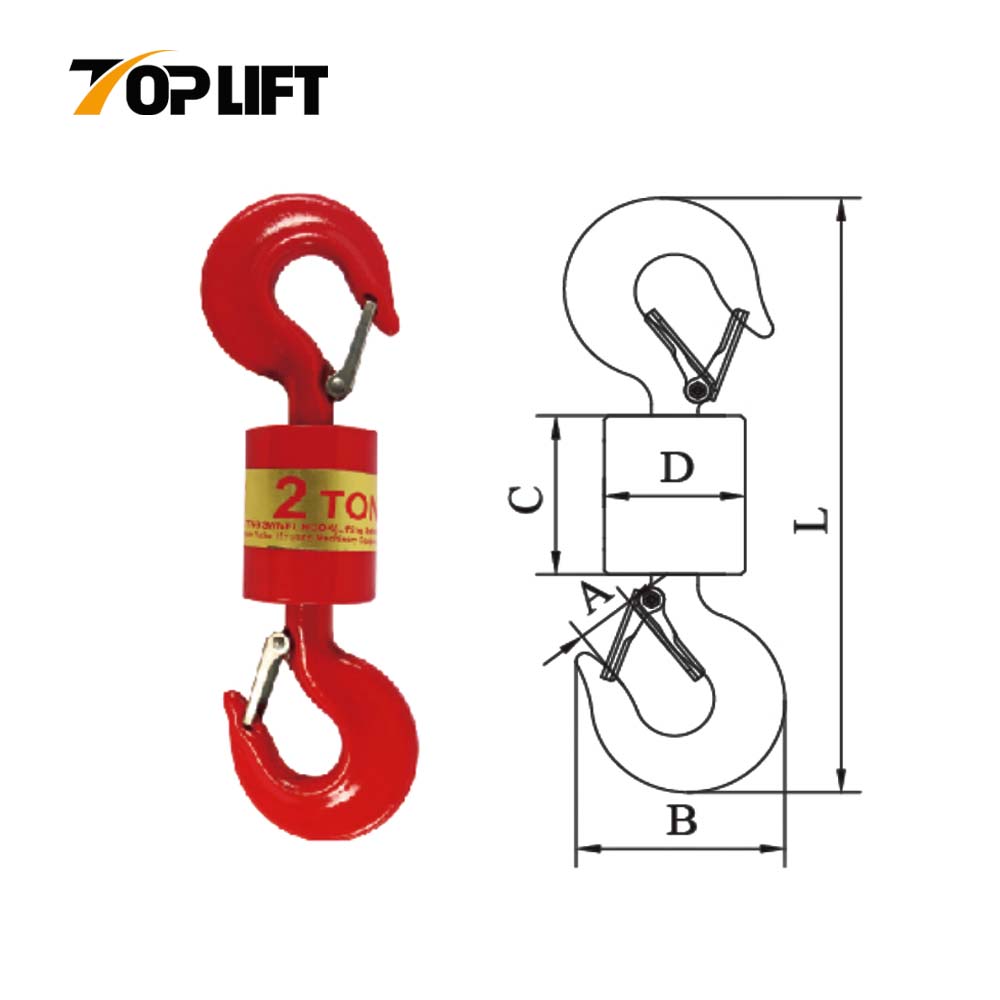

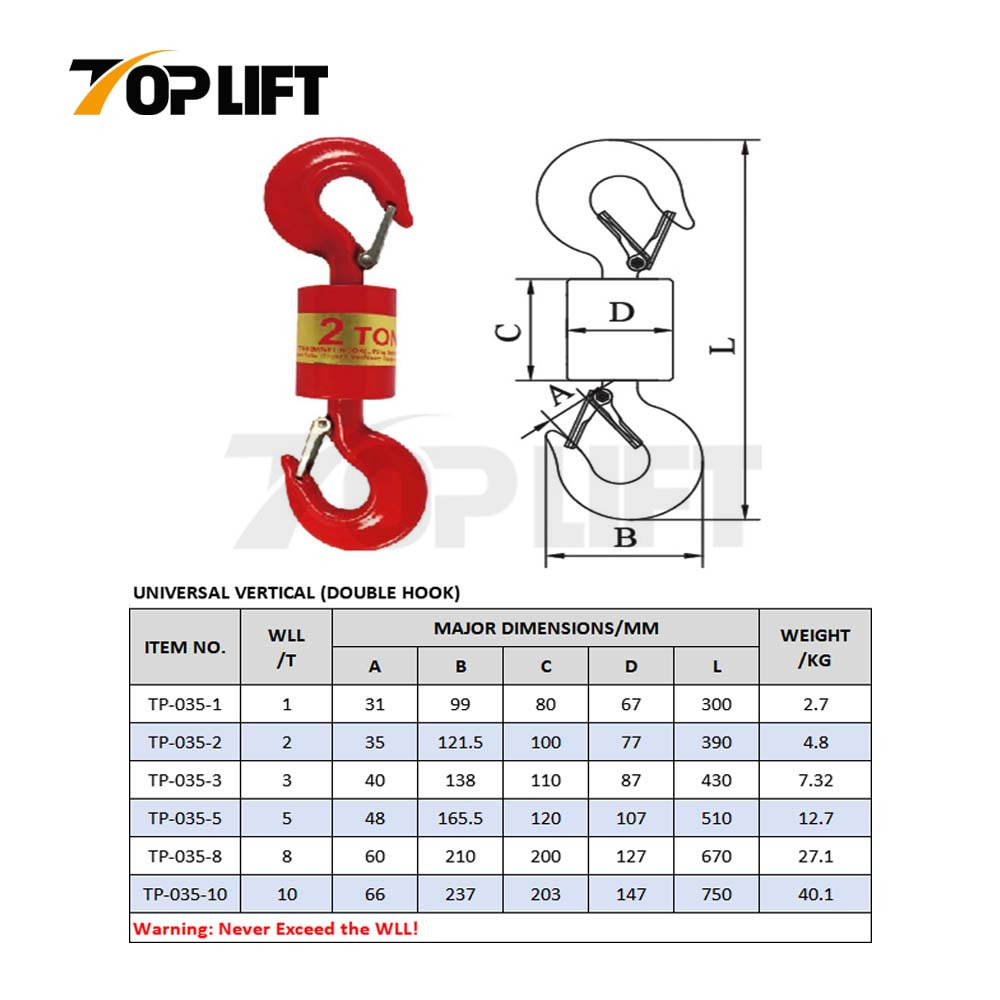

Specification
| UNIVERSAL VERTICAL (DOUBLE HOOK) | |||||||
| ITEM NO. | WLL /T | MAJOR DIMENSIONS/MM | WEIGHT /KG | ||||
| A | B | C | D | L | |||
| TP-035-1 | 1 | 31 | 99 | 80 | 67 | 300 | 2.7 |
| TP-035-2 | 2 | 35 | 121.5 | 100 | 77 | 390 | 4.8 |
| TP-035-3 | 3 | 40 | 138 | 110 | 87 | 430 | 7.32 |
| TP-035-5 | 5 | 48 | 165.5 | 120 | 107 | 510 | 12.7 |
| TP-035-8 | 8 | 60 | 210 | 200 | 127 | 670 | 27.1 |
| TP-035-10 | 10 | 66 | 237 | 203 | 147 | 750 | 40.1 |
| Warning: Never Exceed the WLL! | |||||||
Details
Our Products
FAQ
Q: Why choose us?
A: Professional technical guidance
B: Years of production experience
C: Support for customization and design
D: Fast delivery time!
F: Special technology on print.
Q: Can the product be customized?
Yes, products can be customized according to customer requirements.
Q: Can I have samples for testing?
Yes, samples are available before bulk order.
Q: How long can I get the products?
A: For the existing sample order, 3-7 working days after payment.
B: For the customized sample order, 7-15 working days after the payment.
C: For bulk, it depends on your order quantity.
