TP-DIN582
| Quantity: | |
|---|---|

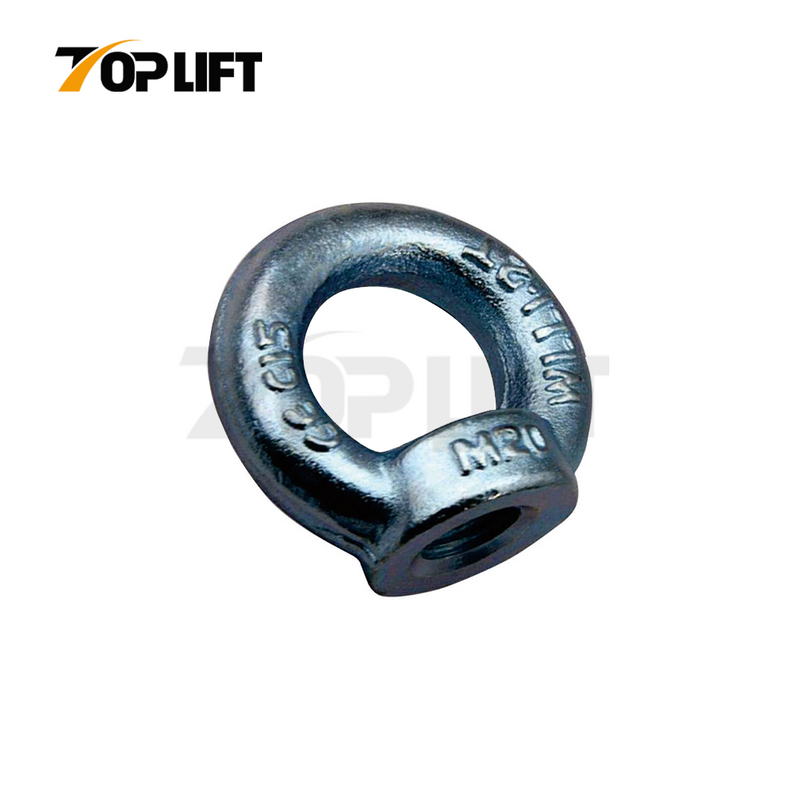

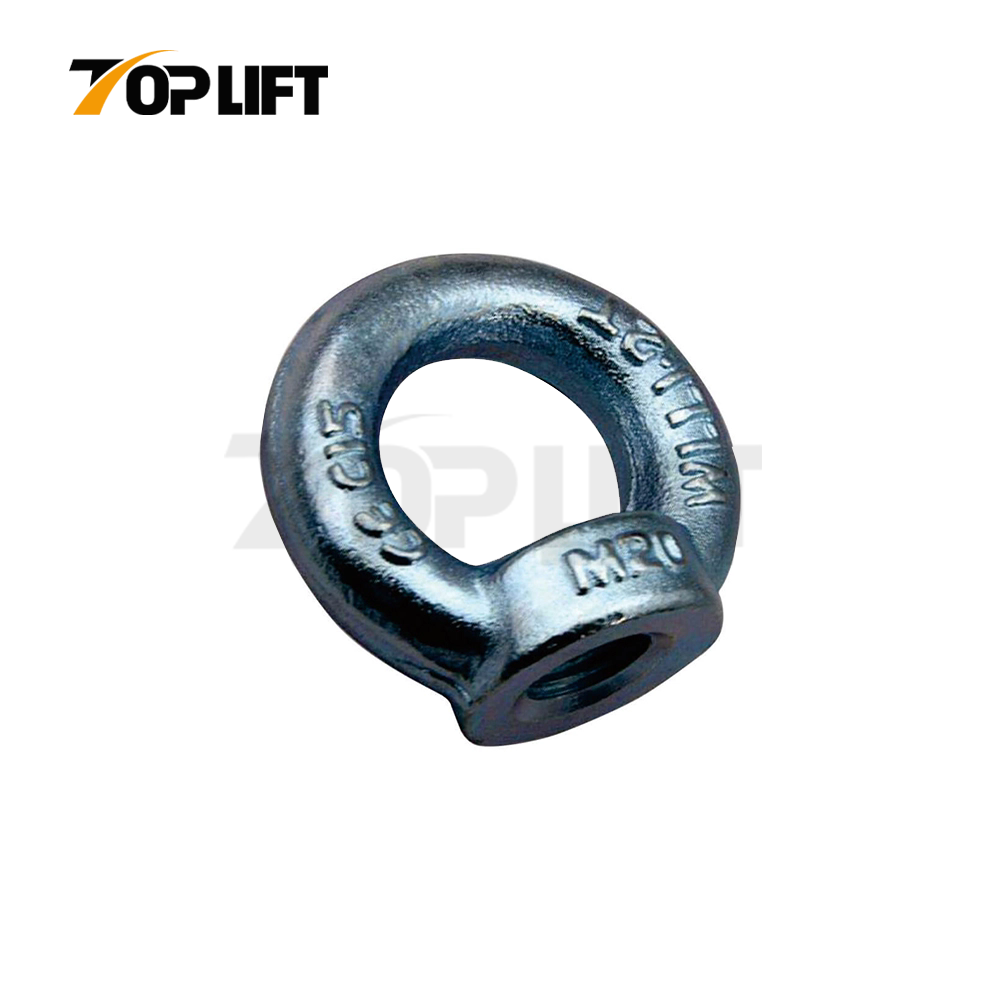

TOPLIFT Marine Rigging Hardware Eye Nut for Lifting Anchoring and Load Safety
High-strength steel construction ensures durability and reliable performance in heavy-duty lifting tasks.
Secure load attachment design provides safety and stability in demanding rigging operations.
Corrosion-resistant coating makes it ideal for both indoor and outdoor rigging applications.
Versatile design suitable for various industries, including marine, construction, and manufacturing.
0.16-16T load capacity offers a wide range of anchoring and lifting solutions for diverse applications.
Basic Info.
Model No. | TP-EN | Function | Lifting,Sling,Hoist | |
Transport Package | Carton with Pallet | Specification | 0.14 -16T | |
Trademark | TOPLIFT or OEM | Origin | China | |
HS Code | 73269090 |
Specification

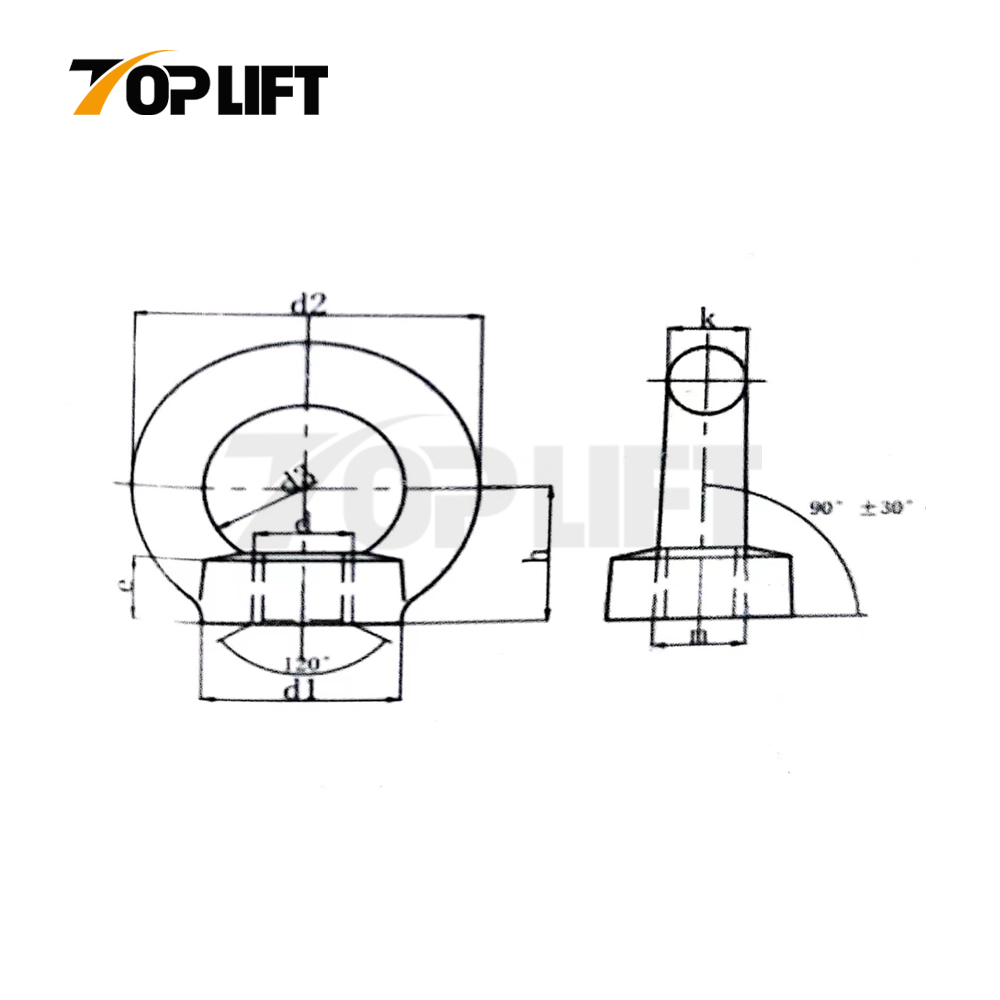

Model | W.L.L | Dimension (mm) | Weight (lbs/ 100 pc) | |||||
d1 | d2 | d3 | e | h | k | |||
TP-EN-M6 | 0.14T | 20 | 36 | 20 | 8.5 | 18 | 8 | 11 |
TP-EN-M8 | 0.14T | 20 | 36 | 20 | 8.5 | 18 | 8 | 11 |
TP-EN-M10 | 0.23T | 25 | 45 | 25 | 10 | 22 | 10 | 20 |
TP-EN-M12 | 0.34T | 30 | 54 | 30 | 11 | 26 | 12 | 35 |
TP-EN-M16 | 0.7T | 35 | 63 | 35 | 13 | 30 | 14 | 53 |
TP-EN-M20 | 1.2T | 40 | 72 | 40 | 16 | 35 | 16 | 79 |
TP-EN-M22 | 1.5T | 45 | 81 | 45 | 18 | 40 | 18 | 128 |
TP-EN-M24 | 1.8T | 50 | 90 | 50 | 20 | 45 | 20 | 159 |
TP-EN-M27 | 2.5T | 50 | 90 | 50 | 20 | 45 | 20 | 154 |
TP-EN-M30 | 3.6T | 65 | 108 | 60 | 25 | 55 | 24 | 291 |
TP-EN-M33 | 4.3T | 65 | 108 | 60 | 25 | 55 | 24 | 287 |
TP-EN-M36 | 5.1T | 75 | 126 | 70 | 30 | 65 | 28 | 459 |
TP-EN-M39 | 6.1T | 75 | 126 | 70 | 30 | 65 | 28 | 446 |
TP-EN-M42 | 7T | 85 | 144 | 80 | 35 | 75 | 32 | 686 |
TP-EN-M45 | 8T | 85 | 144 | 80 | 35 | 75 | 32 | 671 |
TP-EN-M48 | 8.6T | 100 | 166 | 90 | 40 | 85 | 38 | 1,108 |
TP-EN-M52 | 9.9T | 100 | 166 | 90 | 40 | 85 | 38 | 1,092 |
TP-EN-M56 | 11.5T | 110 | 184 | 100 | 45 | 95 | 42 | 1,476 |
TP-EN-M64 | 16T | 120 | 206 | 110 | 50 | 105 | 48 | 2,052 |
Production
Our advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
