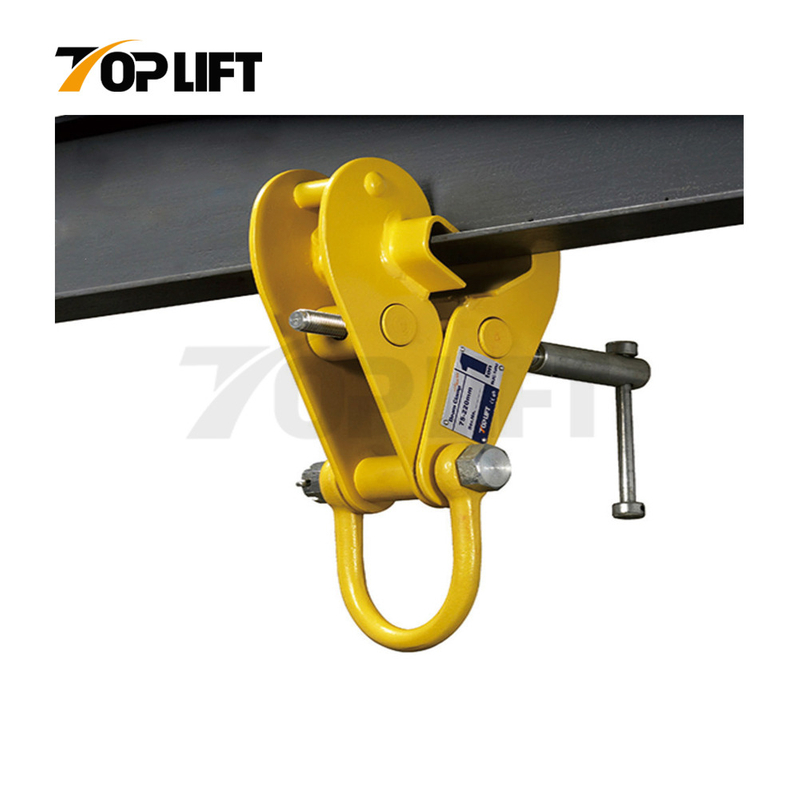

TP-WJC
| Quantity: | |
|---|---|
TP-WJC clamp is designed for attachment to the lower flanges of structural steel beams to provide a semi-permanent lifting point and can fit flanges of most structural beams.
Features:
1. It has shackle suspension point.
2. Up to 45°side loading and15°cross loading.
3. Suitable for pulling and lifting at angles across beam.
4. With safe and secure grip on the beam
5. Wide beam flange adjustment range
6. Even-distribution of load is achieved through maximum jaw surface area
7. The capacity is from 1t-10t.
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.

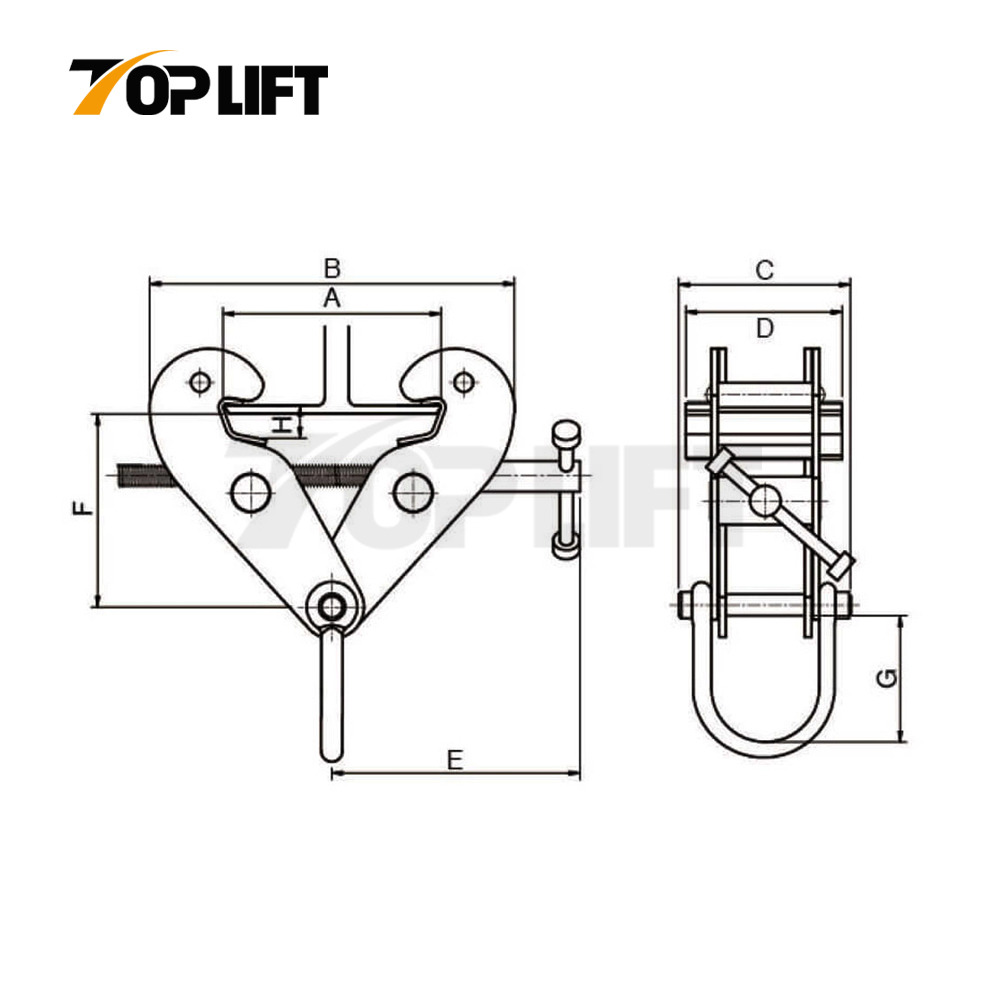

Specification
Model | Capacity load (Ton) | Test Load (Ton) | I-Beam Width Range (MM) | A (Max) | B | C | D | E | F | G | H | Weight(Kg) | ||
Min | Max | Min | Max | |||||||||||
WJC-1.0T | 1 | 1.5 | 75-220 | 260 | 180 | 330 | 138 | 122 | 220 | 132 | 155 | 88 | 22 | 5.5 |
WJC-2.0T | 2 | 3 | 75-220 | 260 | 180 | 330 | 156 | 122 | 220 | 132 | 155 | 91 | 22 | 6.6 |
WJC-3.0T | 3 | 4.5 | 80-320 | 390 | 265 | 466 | 195 | 150 | 262 | 178 | 228 | 108 | 35 | 12.5 |
WJC-5.0T | 5 | 7.5 | 80-320 | 390 | 265 | 466 | 237 | 150 | 262 | 178 | 228 | 108 | 35 | 17.5 |
WJC-10.0T | 10 | 15 | 80-350 | 390 | 285 | 520 | 310 | 200 | 300 | 186 | 236 | 176 | 35 | 23 |
Details
The spinder can be secured against loosening.
The clamp is forged integrally, which is strong and durable

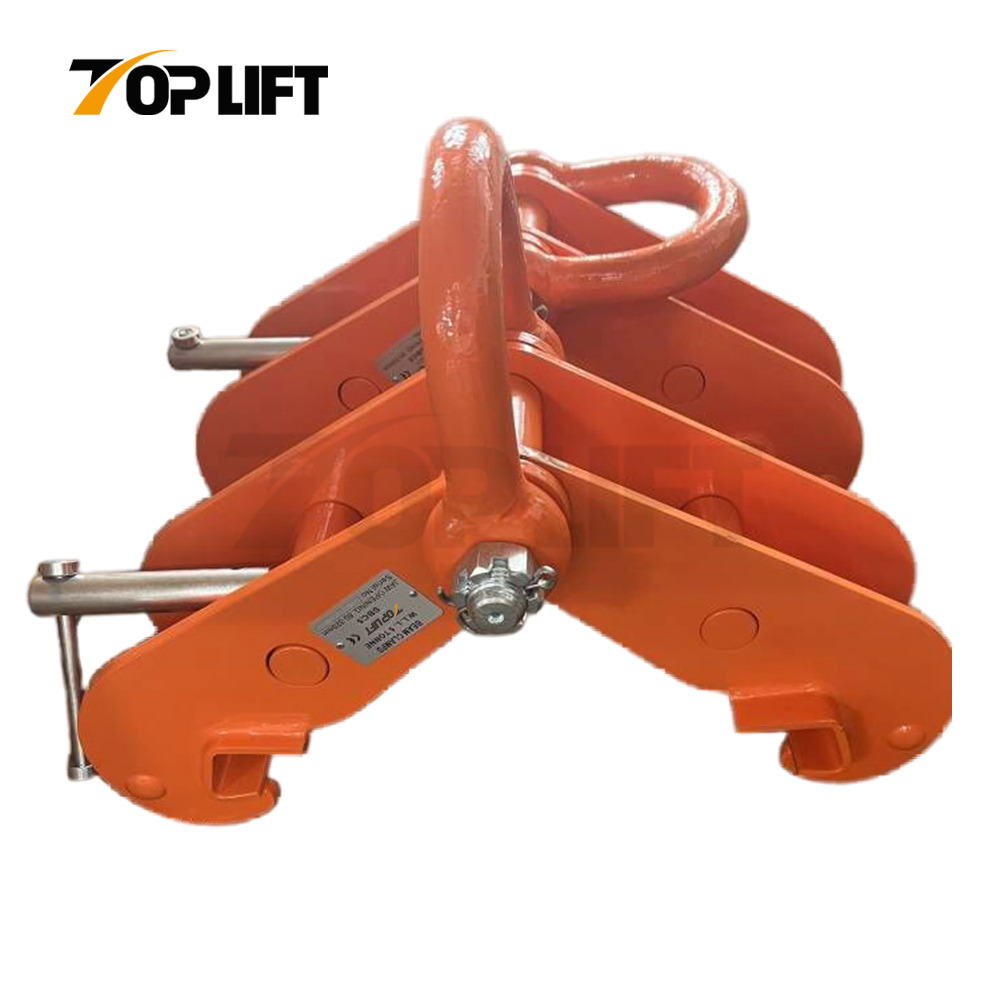

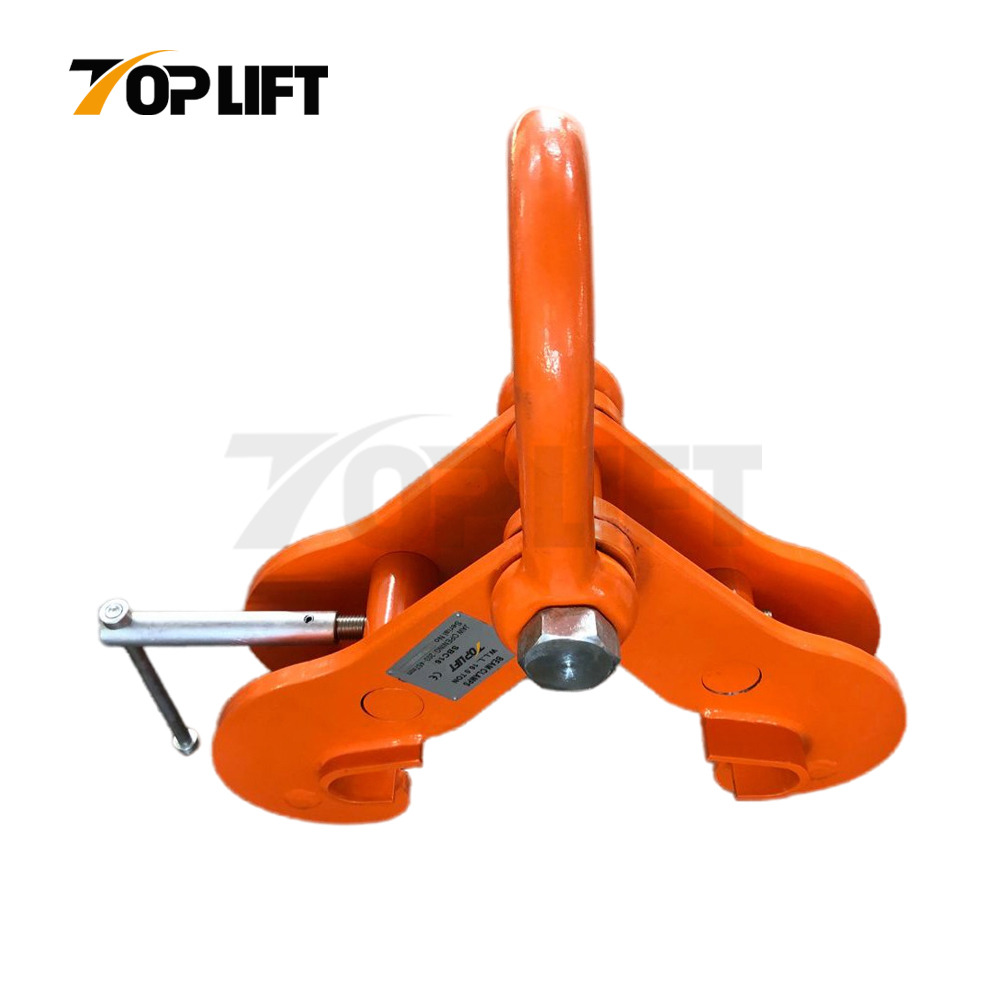

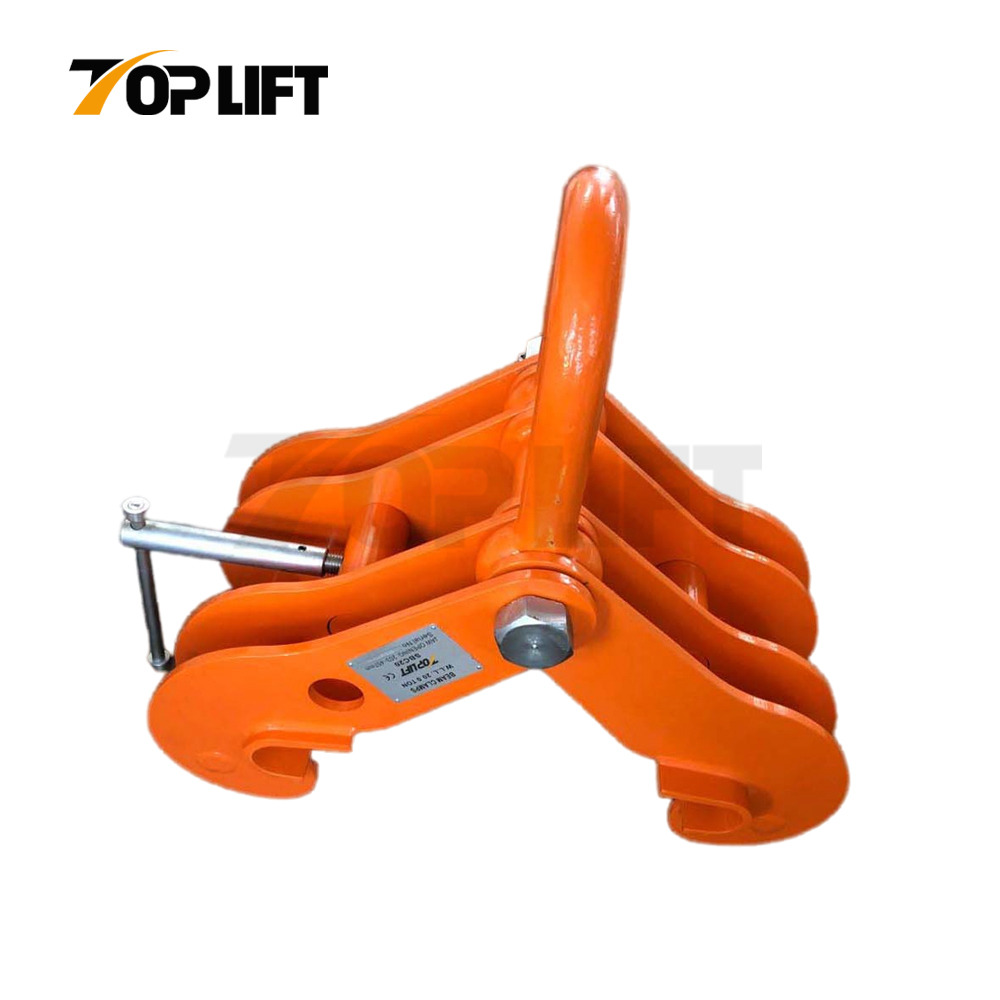

Real shoot of product
Our beam clamp is high quality and with beautiful appearance.

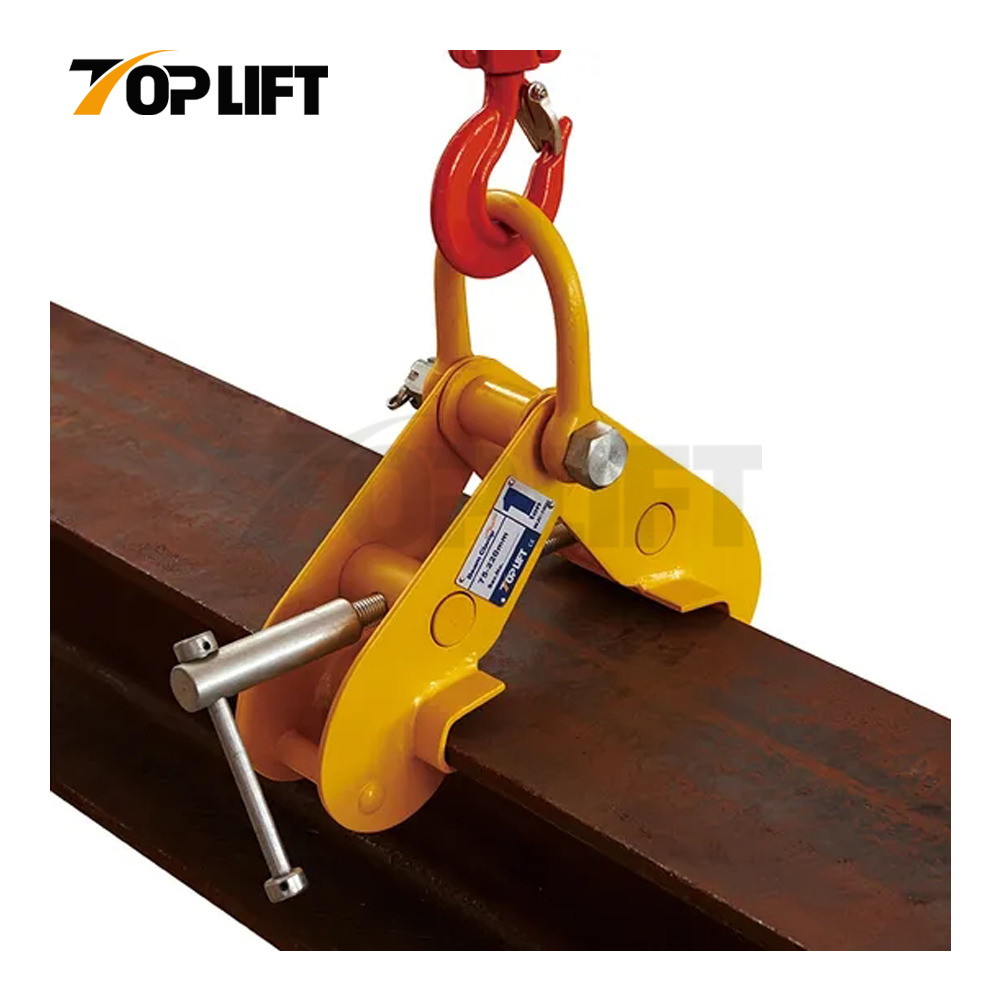

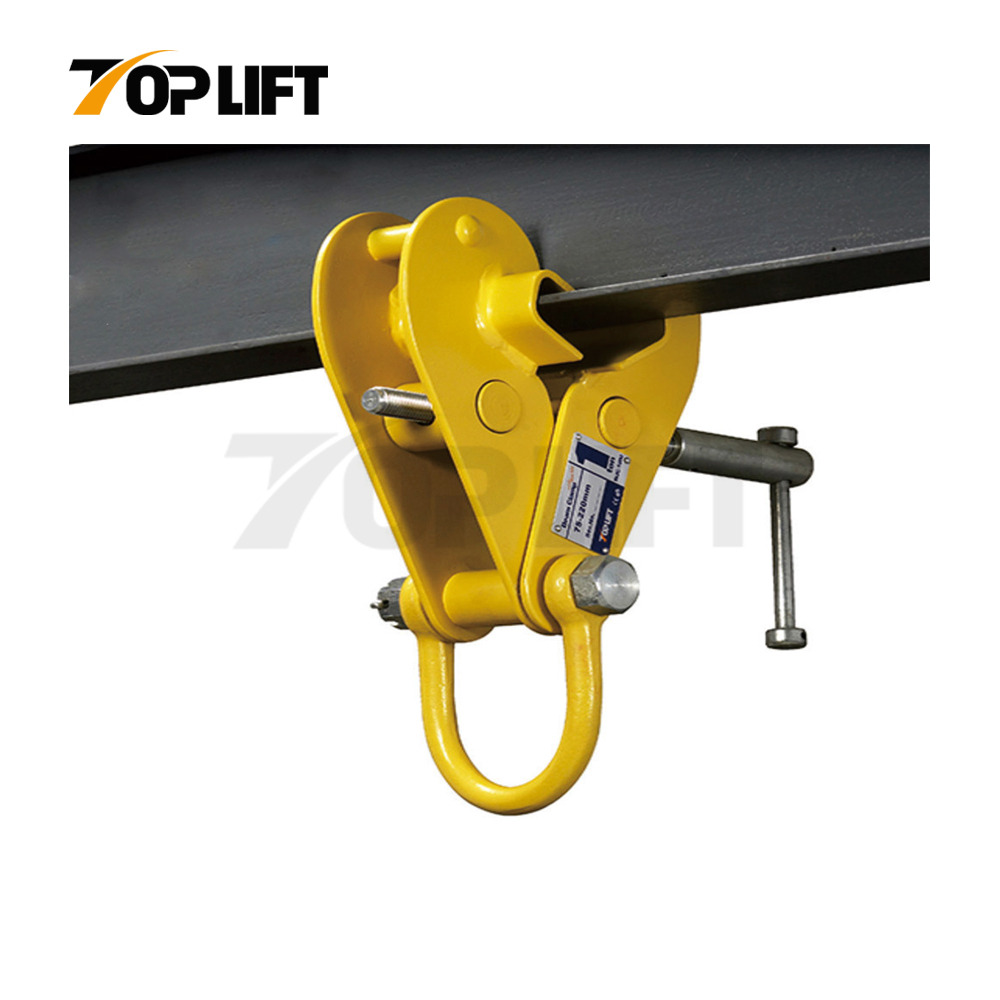

Application
The beam clamp can be used in these situation.
The beam clamp can be used in warehouse storage, construction operations, port wharf, steel plate transportation and so on.
FAQ:
1. Do you provide OEM service?
Yes, of course. We have professional designers to help you design the brand.
2. How to get samples to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
3. How to guarantee your quality?
We have different kinds of products that can meet different quality standard.
Our QC department will test products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
4. How long is the delivery time?
The delivery time is depend on the products and the quantity. But generally speaking, the delivery time for one container is about one month.
