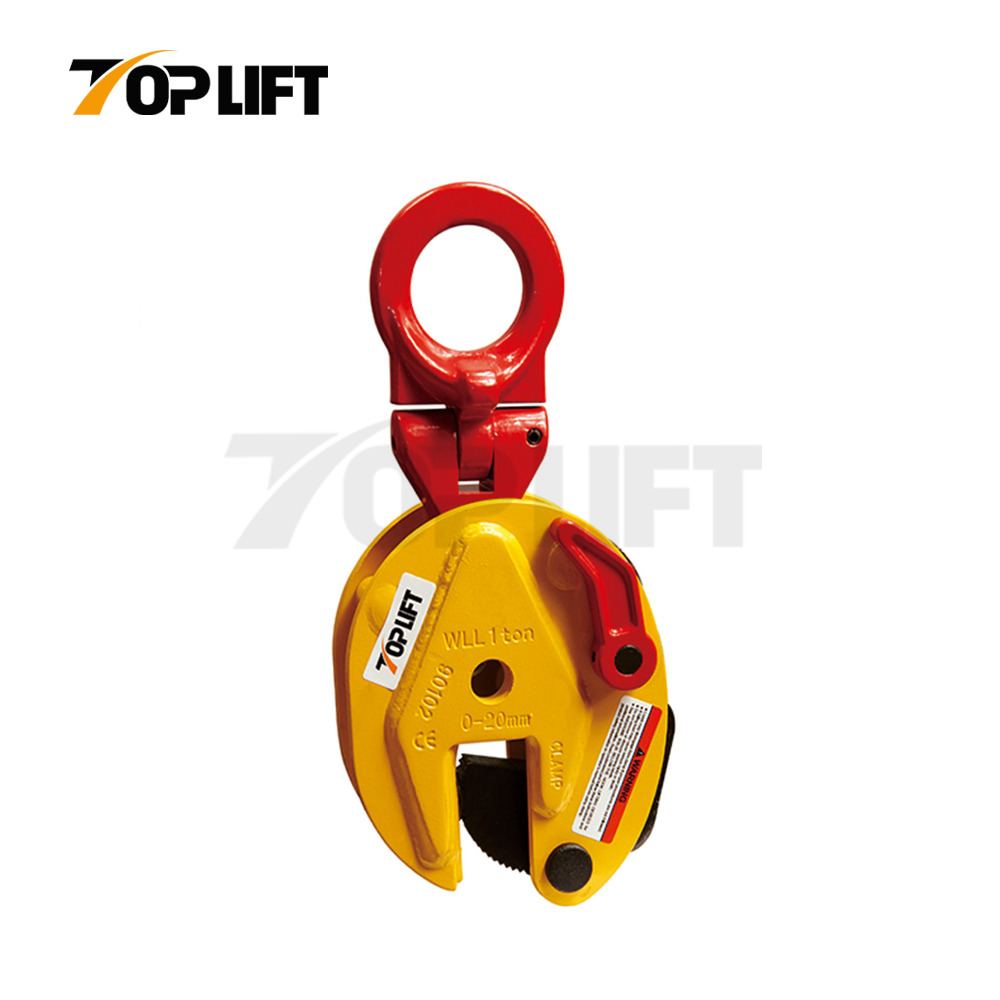

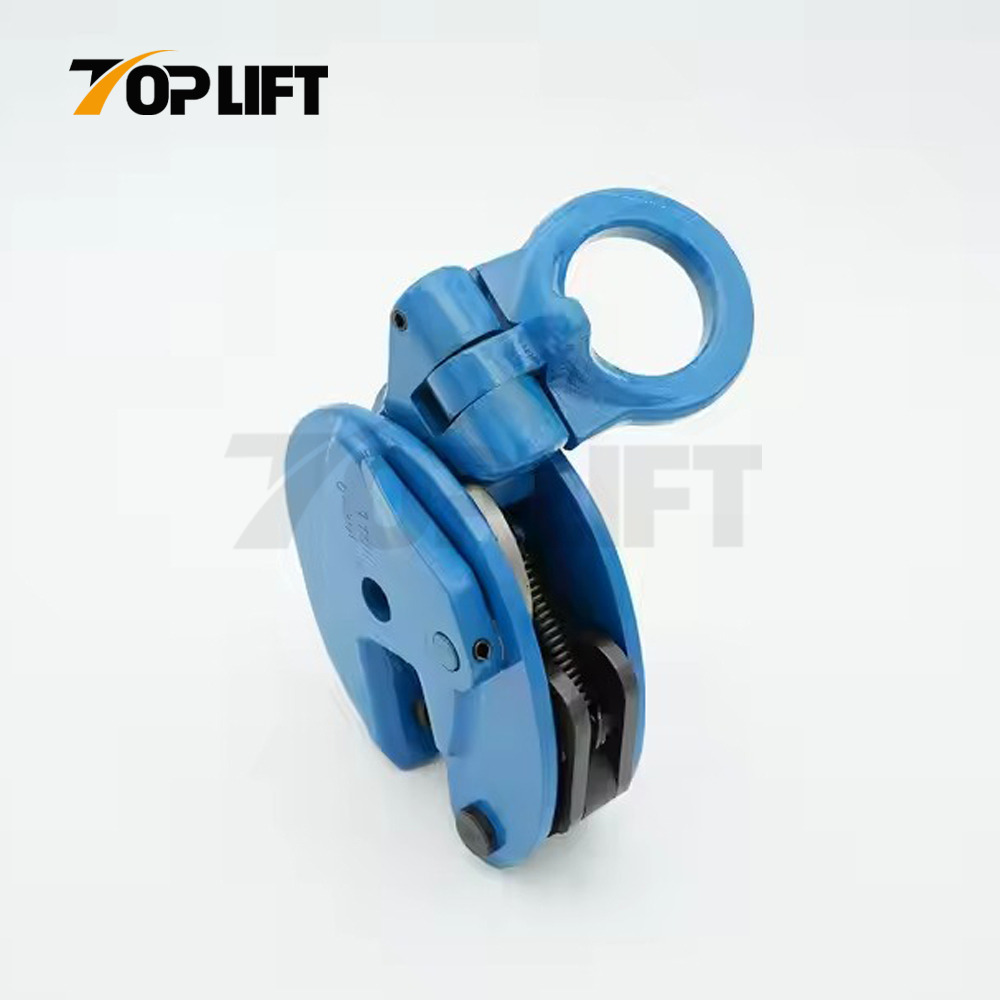

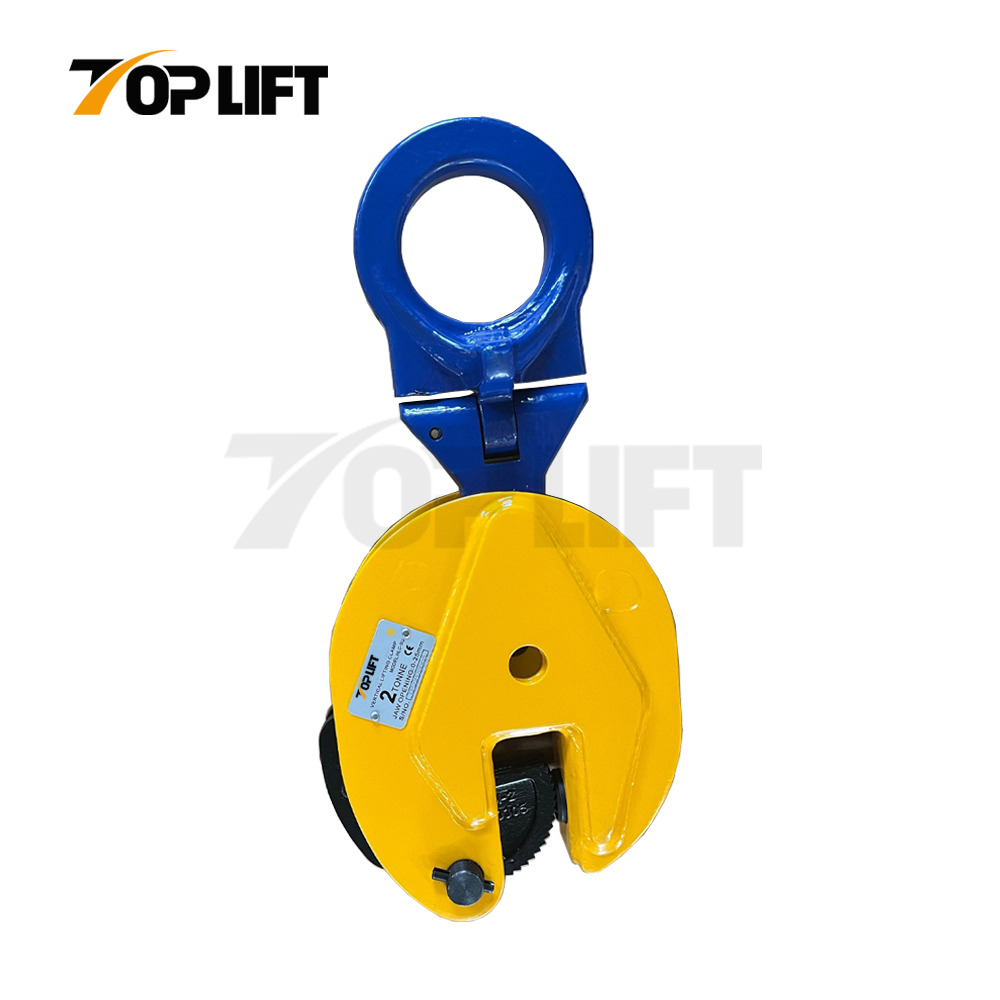

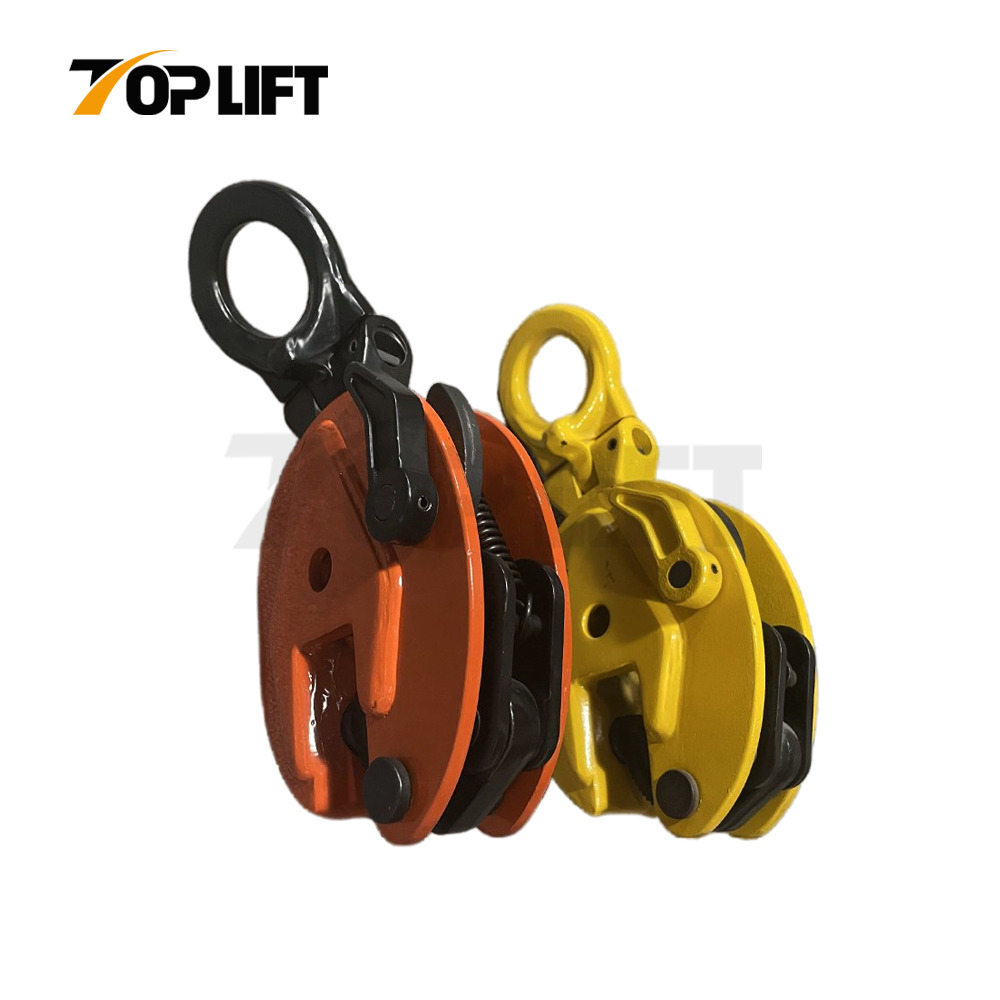

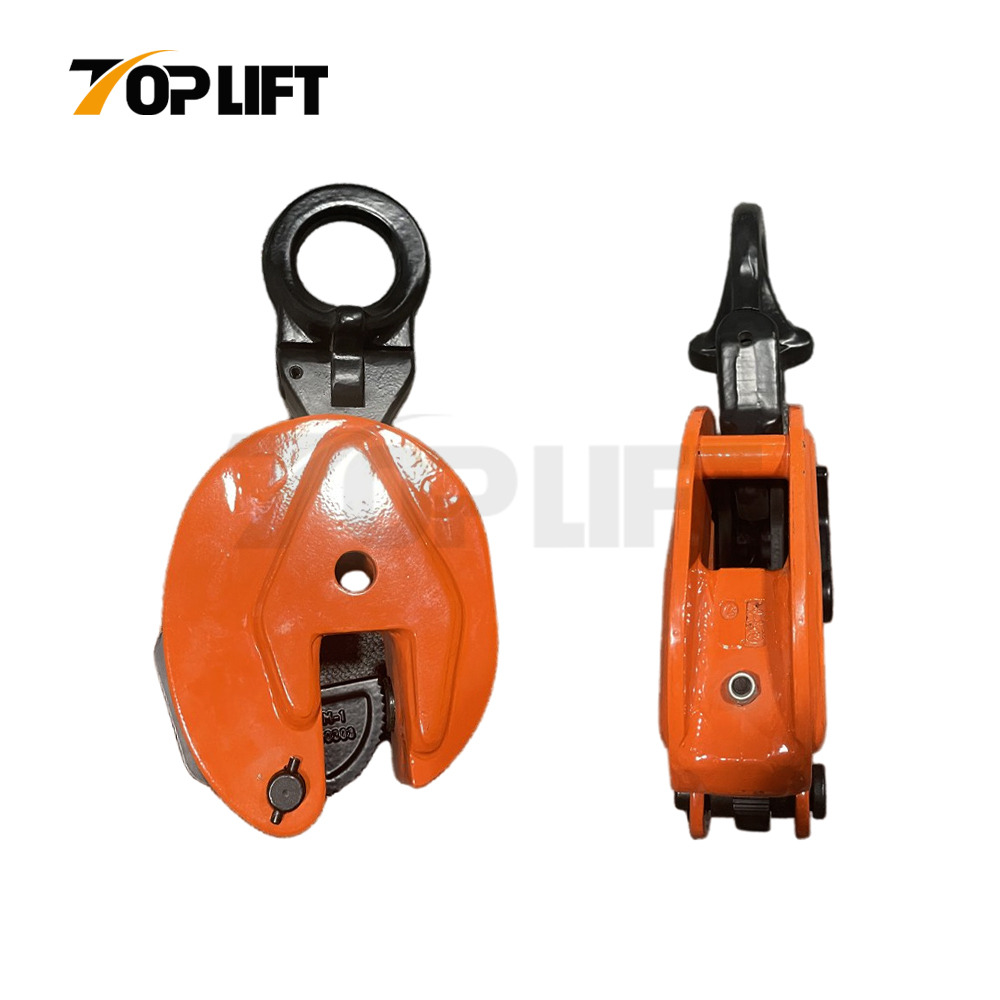

CD Universal Plate Clamp
WLL: 500-30000KGS
Features

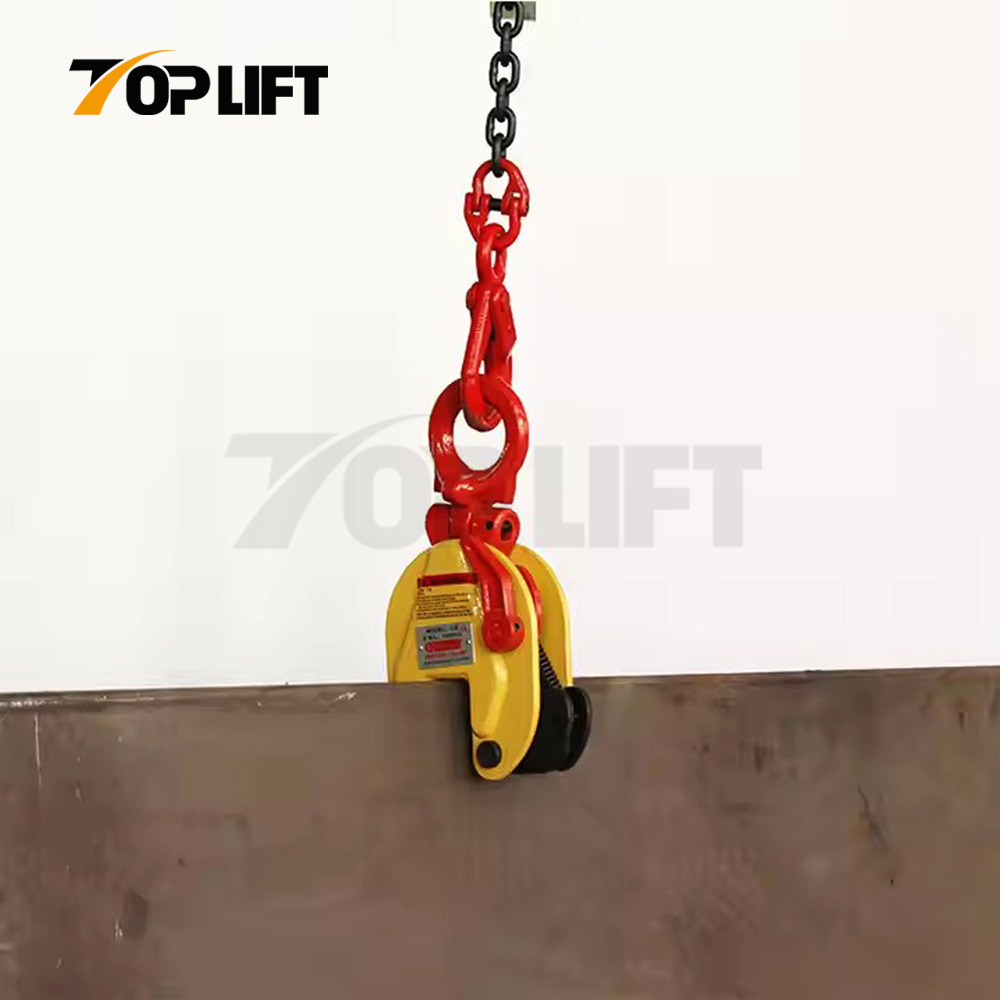

uFor lifting and transporting steel plates and structures from all positions(horizontal, vertical and sidelong).
uArticulated lifting shackle.
uCD lifting clamps are equipped with a pre-tension mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
uThe clamp is locked in closed as well as in open position.
uMinimum W.L.L is 10% of the maximum W.L.L.
NB: The plate surface of the material must have a hardness lever below HRC30/Brinell 300
Inspection, Care & Use
* Do not lift loads less than 10% of working load limit of clamp.
* Do not lift plate with a temperature greater than 100℃.
* Do not use to lift stainless steel, lead or copper.

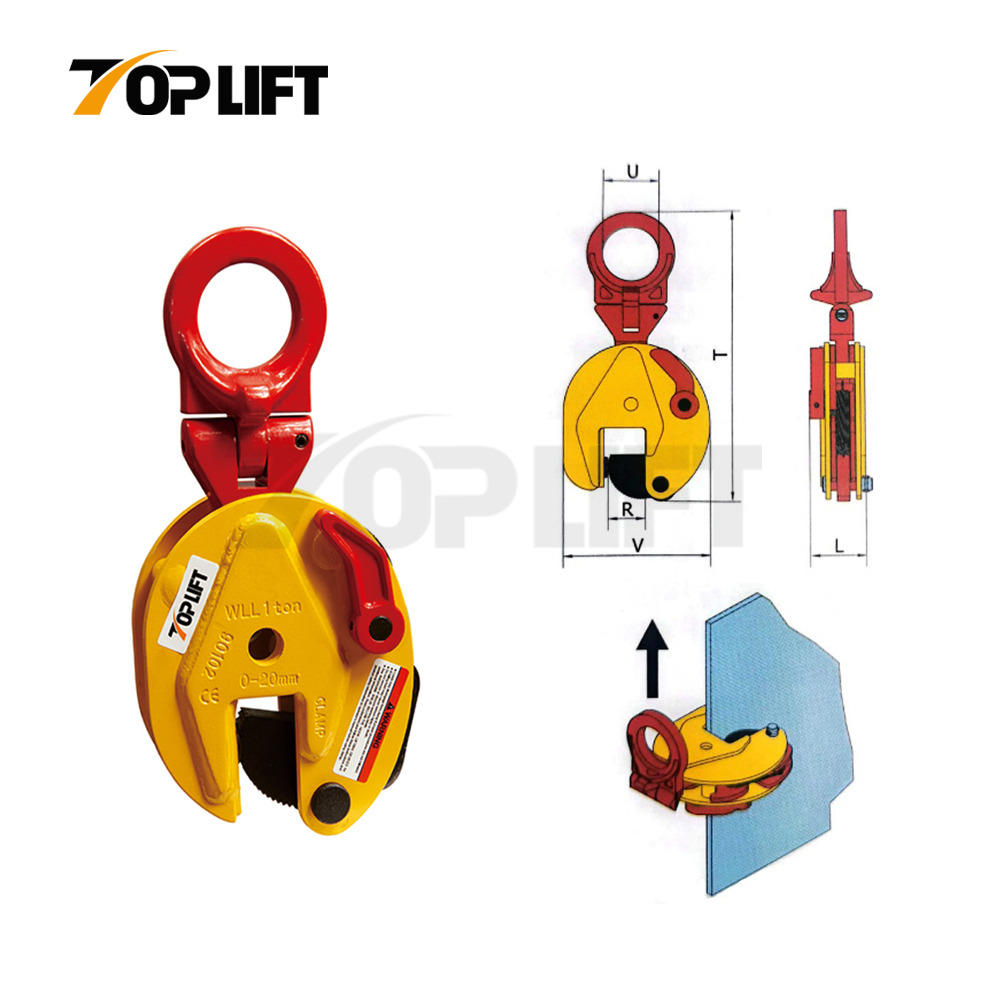

Specification
Model | Jaw Opening (mm) | Load Capacity (kg) | T (mm) | U (mm) | V (mm) | L (mm) | Net Weight (kg) |
CD-0.5T | 0-15 | 500 | 205 | 30 | 105 | 48 | 2 |
CD-1T | 0-20 | 1000 | 300 | 50 | 145 | 66 | 5 |
CD-2T | 0-25 | 2000 | 385 | 68 | 175 | 75 | 8 |
CD-3.2T | 0-30 | 3200 | 430 | 75 | 215 | 102 | 15 |
CD-5T | 0-50 | 5000 | 500 | 68 | 232 | 112 | 23 |
CD-8T | 0-45 | 8000 | 600 | 88 | 290 | 125 | 37 |
CD-12T | 50-90 | 12000 | 700 | 90 | 420 | 128 | 50 |
CD-16T | 60-100 | 16000 | 710 | 100 | 445 | 128 | 65 |
CD-20T | 0-80 | 20000 | 948 | 100 | 563 | 140 | 160 |
CD-30T | 10-90 | 30000 | 944 | 100 | 568 | 142 | 167 |
Product Details
1. With thickened tongue forceps
2. With firm Spring firmware,high-strength lifting ring and reliable Alloy Steel Block
Our Advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service
8. Customization Supported
9. Available in standard specification, also special specifications and marks can be made according to customers requirements.
10. Numerous Patents in Rigging Hardware
