TP-EHA
TOPLIFT OR OEM
| Quantity: | |
|---|---|

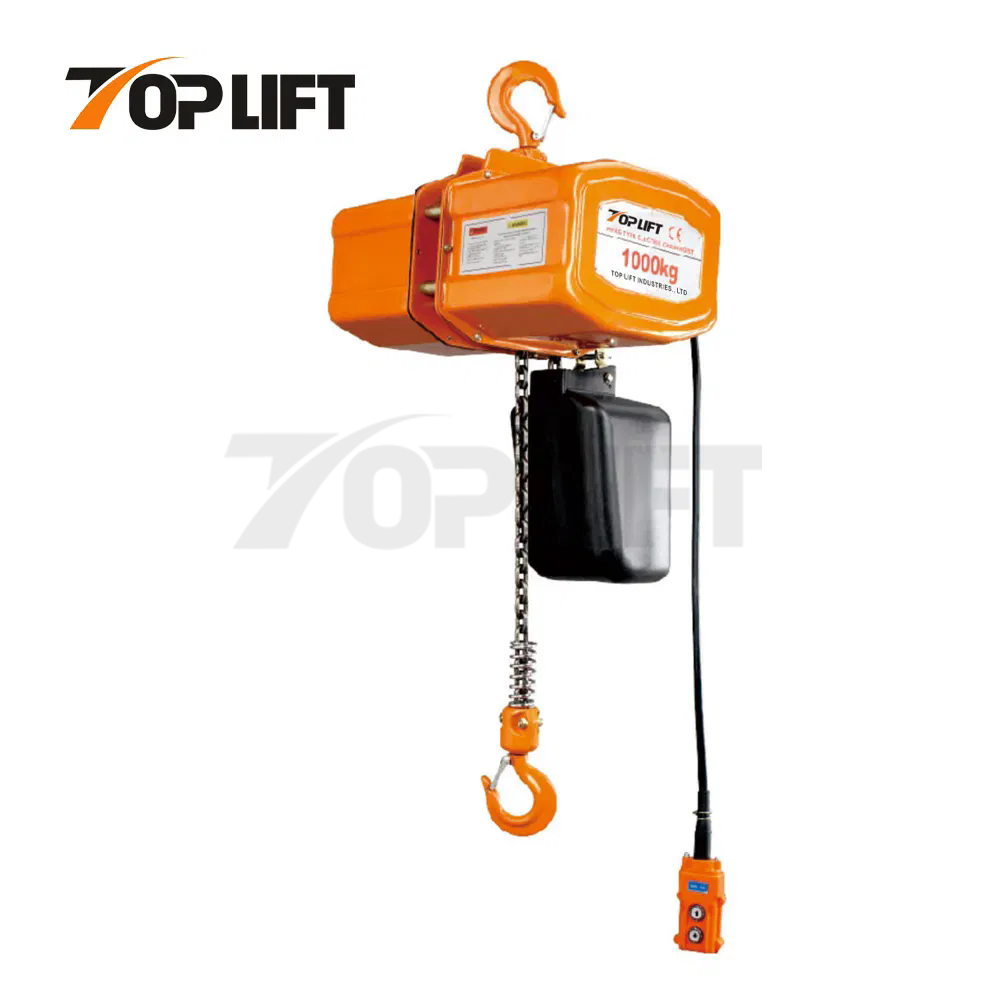

Single/Double Speed Suspended Type Heavy Duty Lifting Electric Chain Block
Model TP-EHA is electric chain block designed for heavy duty industrial applications and significantly reduce downtime and operation cost. The hoist can easily handle large loads and require little maintenance.
Features:
1. Capacity from 500kg to 5000kg
2. Quality chain is supplied by FEC JAPAN
3. Most tensile safety hooks without break
4. Compact and high efficient motor with heat protection device.
5. Push button is with 24v voltage to guarantee safety.
6. Limit switch.
7. Limit load device are fitted.
8. Both single phase and three phase are available.
9. With CE certificate.
10. IP54 protection on electric hoist for dust and water proof protection.
Advantages
1. High efficiency and energy saving: Electric chain block are driven by electric motors, which are more efficient and energy saving than manual or pneumatic cranes, especially suitable for environments where long working hours are required.
2. Easy to operate: The operator can easily control the lifting and lowering of the electric block by push button or remote control, which reduces manpower input and improves work efficiency.
3. Wide range of application: Suitable for a variety of different operating occasions, especially in sites with limited space, electric chain blocks can be more flexible lifting operations.
Specification
TP-EHA-1 Suspended Type Single Phase Electric Chain Hoist
Model | Rated load(Ton) | Lift(m) | Lifting speed(m/min) | Hoist Motor 1-phase | Dynamical test(KN) | Load Chain | Min.Headroom MaxG(mm) | Net Weight(kg) | Major Dimensions(approx)(mm) | ||||||||||
Output(kw) | Ins Class | %ED | Dia.(mm) | No. of falls | A | B | C | D | E | F | H | ||||||||
TP-EHA-105 | 0.5 | 3 | 5.2 | 0.8 | F | 40 | 5.5 | 7.1 | 1 | 545 | 64 | 249 | 249 | 168 | 146 | 25 | 640 | 197 | |
TP-EHA-110 | 1 | 3 | 5.2 | 1.2 | F | 40 | 11 | 7.1 | 1 | 580 | 65 | 249 | 249 | 168 | 146 | 32 | 640 | 197 | |
TP-EHA-120 | 2 | 3 | 2.6 | 1.2 | F | 40 | 22 | 7.1 | 2 | 740 | 72 | 249 | 249 | 134 | 180 | 38 | 675 | 231 | |
TP-EHA-130 | 3 | 3 | 1.7 | 1.2 | F | 40 | 33 | 7.1 | 3 | 790 | 80 | 249 | 249 | 100 | 214 | 41 | 658 | 265 | |
TP-EHA-2 Suspended Type Three Phase Electric Chain Hoist
Model | Rated load (Ton) | Lift (m) | Lifting speed (m/min) | Hoist Motor 1-phase | Dynamical test(KN) | Load Chain | Min.Headroom MaxG (mm) | Net Weight (kg) | Major Dimensions(approx)(mm) | |||||||||
Output (kw) | Ins Class | %ED | Dia.(mm) | No. of falls | A | B | C | D | E | F | H | |||||||
TP-EHA-205 | 0.5 | 3 | 6.3 | 0.8 | F | 40 | 5.5 | 7.1 | 1 | 545 | 64 | 249 | 249 | 168 | 146 | 25 | 640 | 197 |
TP-EHA-210 | 1 | 3 | 6.3 | 1.6 | F | 40 | 11 | 7.1 | 1 | 580 | 65 | 249 | 249 | 168 | 146 | 32 | 640 | 197 |
TP-EHA-220 | 2 | 3 | 3.2 | 1.6 | F | 40 | 22 | 7.1 | 2 | 740 | 72 | 249 | 249 | 134 | 180 | 38 | 675 | 231 |
TP-EHA-230 | 3 | 3 | 2.1 | 1.6 | F | 40 | 33 | 7.1 | 3 | 790 | 80 | 249 | 249 | 100 | 214 | 41 | 658 | 265 |
TP-EHA-250 | 5 | 3 | 1.3 | 1.6 | F | 40 | 55 | 7.1 | 5 | 950 | 135 | 249 | 249 | 190 | 309 | 48 | 703 | 360 |
TP-EHA-3 Double Speed Suspended Type Three Phase Electric Chain Hoist
Model | Rated load (Ton) | Lift (m) | Lifting speed (m/min) | Hoist Motor 1-phase | Dynamical test (KN) | Load Chain | Min.Headroom MaxG (mm) | Net Weight (kg) | Major Dimensions(approx)(mm) | |||||||||
Output(kw) | Ins Class | %ED | Dia.(mm) | No. of falls | A | B | C | D | E | F | H | |||||||
TP-EHA-305D | 0.5 | 3 | 5.2/1.7 | 0.8/0.25 | F | 40 | 5.5 | 7.1 | 1 | 545 | 64 | 249 | 249 | 168 | 146 | 25 | 640 | 197 |
TP-EHA-310D | 1 | 3 | 5.2/1.7 | 1.2/0.4 | F | 40 | 11 | 7.1 | 1 | 580 | 65 | 249 | 249 | 168 | 146 | 32 | 640 | 197 |
TP-EHA-320D | 2 | 3 | 2.6/0.85 | 1.2/0.4 | F | 40 | 22 | 7.1 | 2 | 740 | 72 | 249 | 249 | 134 | 180 | 38 | 675 | 231 |
TP-EHA-330D | 3 | 3 | 1.7/0.58 | 1.2/0.4 | F | 40 | 33 | 7.1 | 3 | 790 | 80 | 249 | 249 | 100 | 214 | 41 | 658 | 265 |
TP-EHA-350D | 5 | 3 | 1/0.35 | 1.2/0.4 | F | 40 | 55 | 7.1 | 5 | 950 | 135 | 249 | 249 | 190 | 309 | 48 | 703 | 360 |
Product Details
FAQ
Q1: Can provide customized products? OEM products or ODM products?
A1: Yes,we can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q2: Can we print the LOGO on products?
A2: Yes, the OEM is available with the permission of our customers.
Q3: How do you control your quality?
A3: 1. We only select high-quality steel material from famous steel group.
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security.
Q4: What are your advantages compared to the others?
A4: 1.Unique products, with customized service.
2.Timely production and delivery, time is money.
3.Market protection service, long term business strategy.
