0.5-5T LX Type
| Quantity: | |
|---|---|

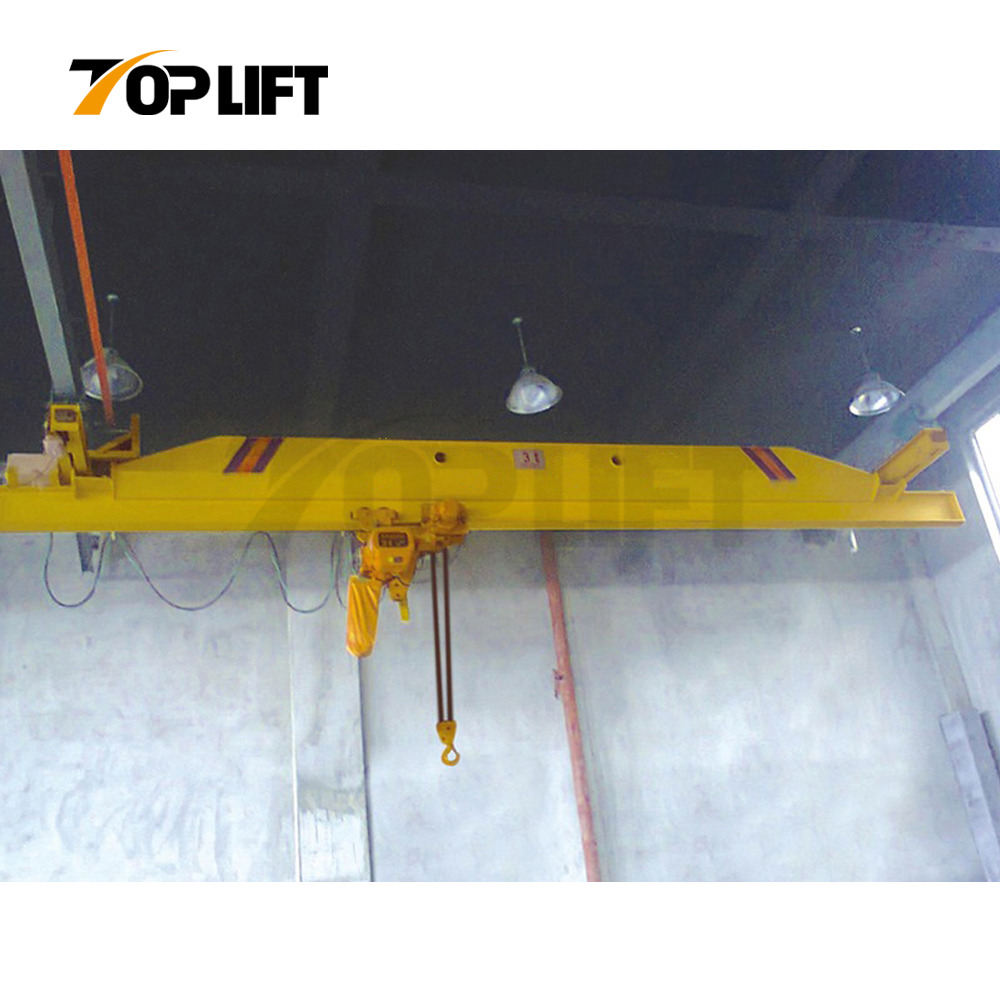

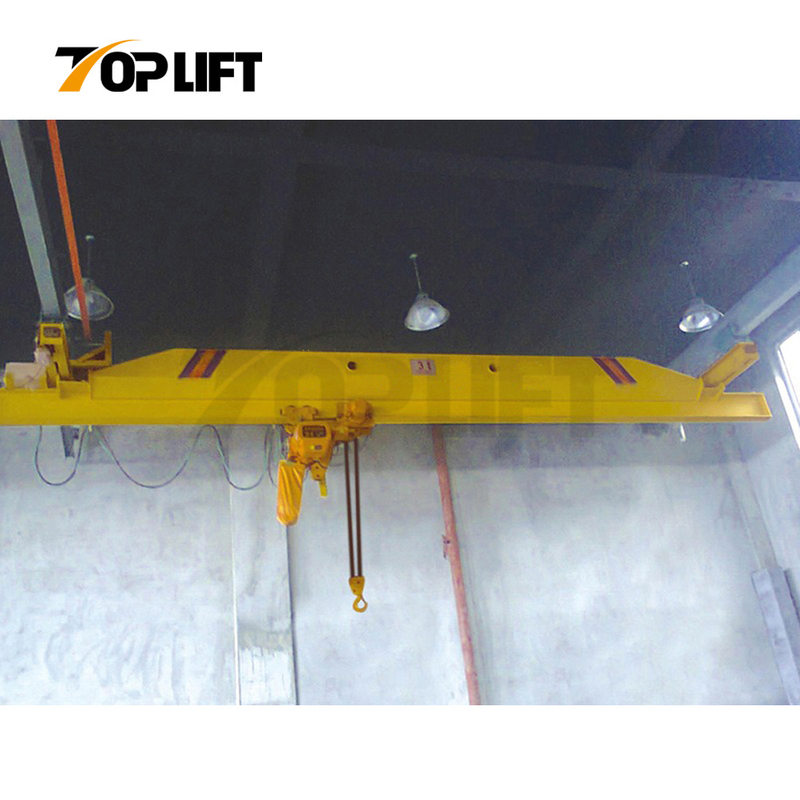

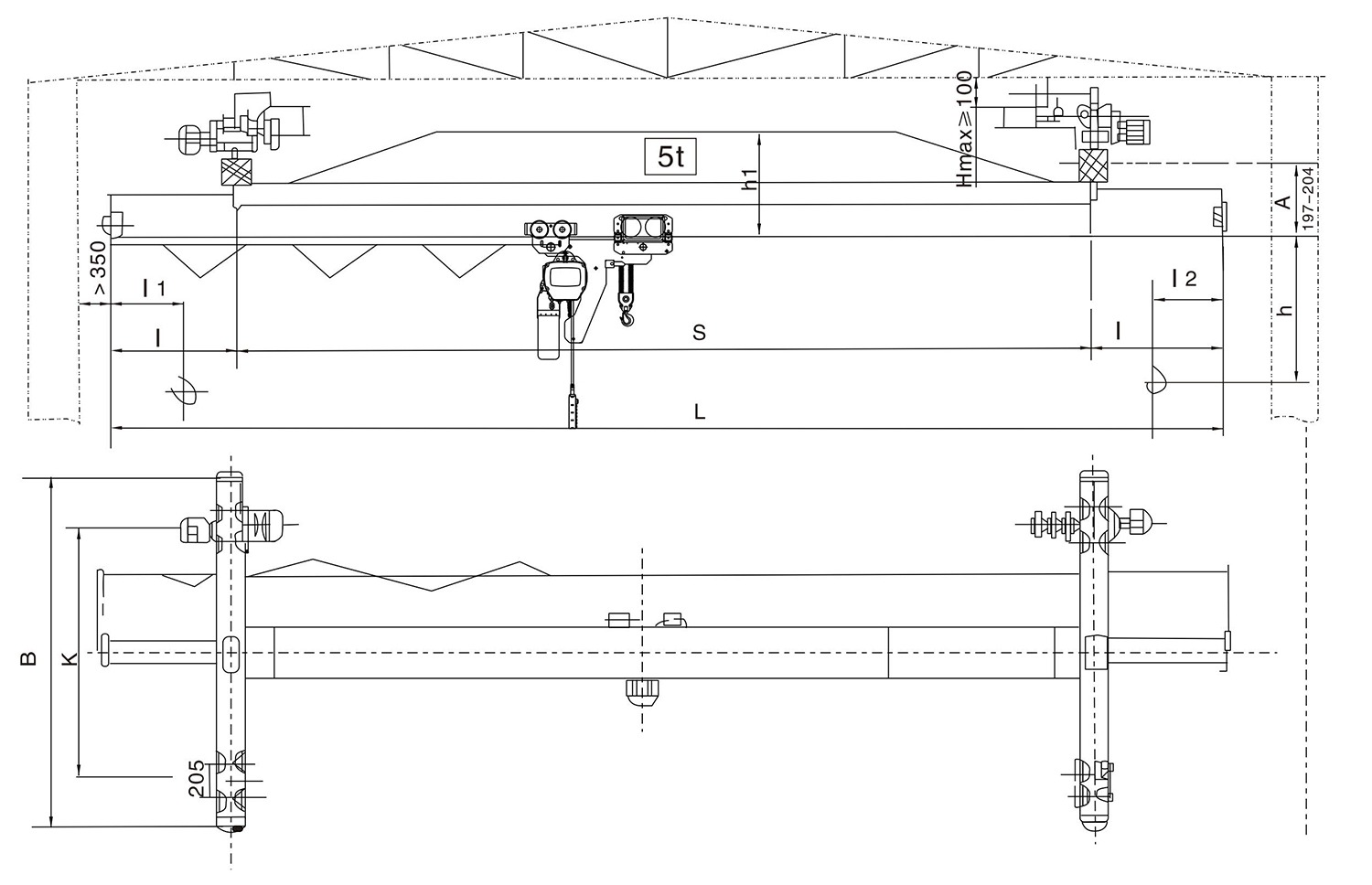

The LX Type Electric Single-Girder Suspension Crane is a lightweight, efficient, and reliable lifting solution designed for handling loads ranging from 0.5 to 5 tons. It features a single-girder design suspended from the ceiling or overhead structure, making it ideal for workshops, warehouses, and production facilities with limited floor space.
Equipped with a CD/MD model wire rope electric hoist, the crane offers smooth and precise lifting and lowering operations. Its compact structure, low headroom design, and simple installation make it highly suitable for environments where space and efficiency are critical.
Capacity: 0.5T to 5T

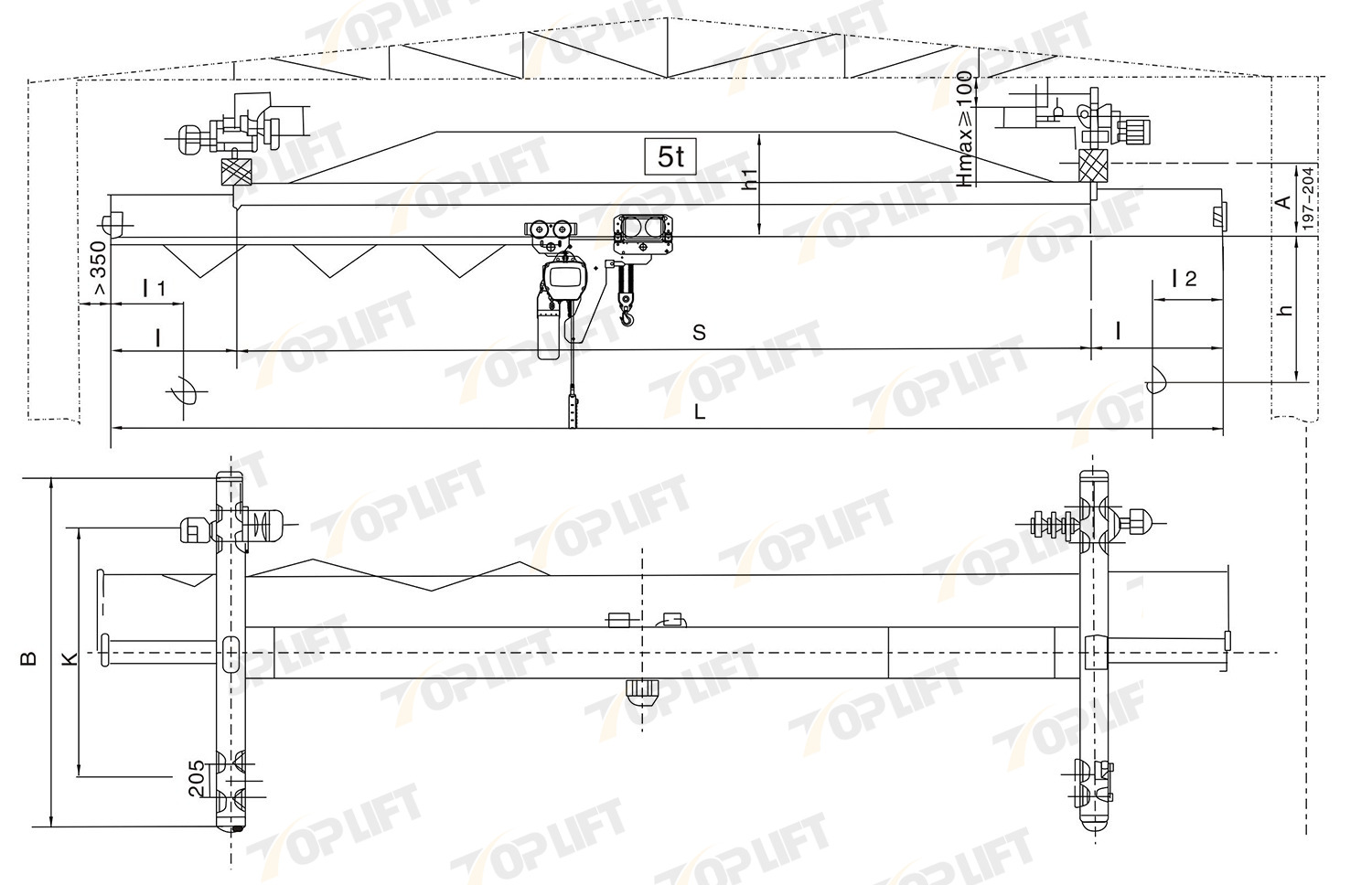

Suspended structure — runs on the lower flange of I-beam tracks
Lightweight design for easy installation and minimal building load
Electric wire rope hoist (CD/MD type) ensures reliable performance
Smooth operation with low noise and high safety standards

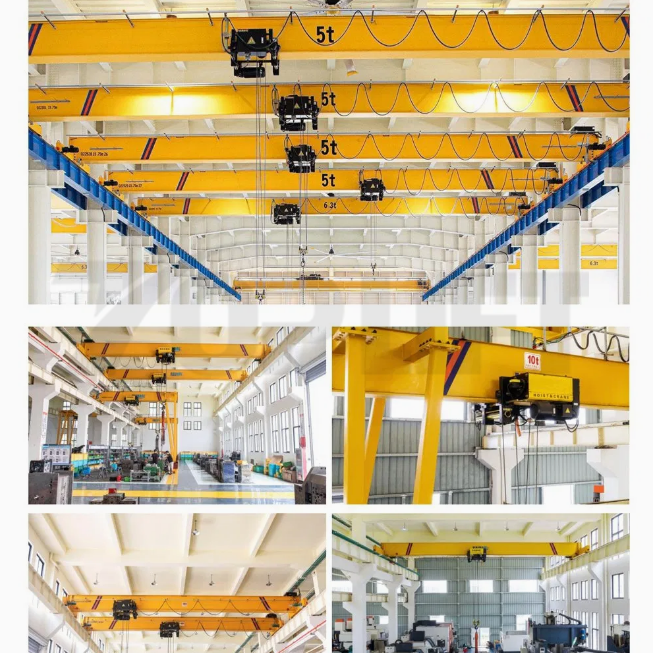

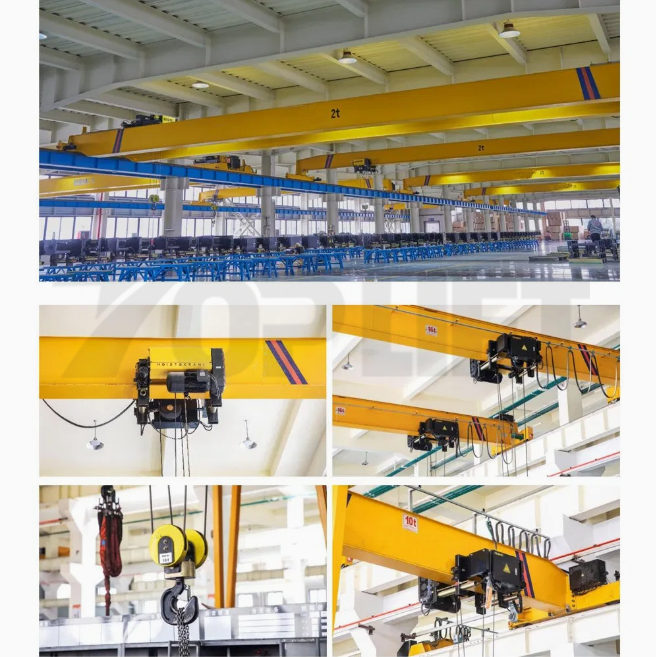

Applicable to workshops, assembly lines, maintenance areas, and warehouses
Product Details：
| 0.5-5T LX Type Electric Single-Girder Suspension Crane | |||||||||||||
| Lifting Capacity T | 0.5T | 1T | 2T | 3T | 5T | ||||||||
| Control Method | Ground Contral | Ground Contral | Ground Contral | Ground Contral | Ground Contral | ||||||||
| Crane Traveling Mechanism | Running Speed | m/min | 20;30 | 20;30 | 20;30 | 20;30 | 20;30 | ||||||
| Reduction Ratio | 28.2;20 | 28.2;20 | 28.2;20 | 28.2;20 | 28.2;20 | ||||||||
| Electric Motor | Model | ZDY12-4 | ZDY12-4 | ZDY12-4 | ZDY12-4 | ZDY12-4 | |||||||
| Power | kw | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | |||||||
| Rotate Speed | r/min | 1380 | 1380 | 1380 | 1380 | 1380 | |||||||
| Hoist Mechanism | Electric Hoist Model | HKDL00501 | HKDL00501 | HKDL0101 | HKDL0101 | HKDL0201 | HKDL0201 | HKDL0301 | HKDL0301 | HKDL0502 | HKDL0502 | ||
| Lifting Speed | m/min | 6.8 | 6.9/2.3 | 6.6 | 6.9/2.3 | 6.6 | 6.9/2.3 | 5.4 | 5.4/1.8 | 2.7 | 2.7/0.9 | ||
| Lifting Height | m | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 | 6,9,12 | |||||||
| Running Speed | m/min | 11/21 | 11/21 | 11/21 | 11/21 | 11/21 | |||||||
| Motor Type | YEP | YEP | YEP | YEP | YEP | ||||||||
| Working Level | A3 | A3 | A3 | A3 | A3 | ||||||||
| Power Supply | 3 Phase 50Hz 380V | 3 Phase 50Hz 380V | 3 Phase 50Hz 380V | 3 Phase 50Hz 380V | 3 Phase 50Hz 380V | ||||||||
| The Recommended Track | 120a-145c | 120a-145c | 120a-145c | 120a-145c | 120a-145c | ||||||||
