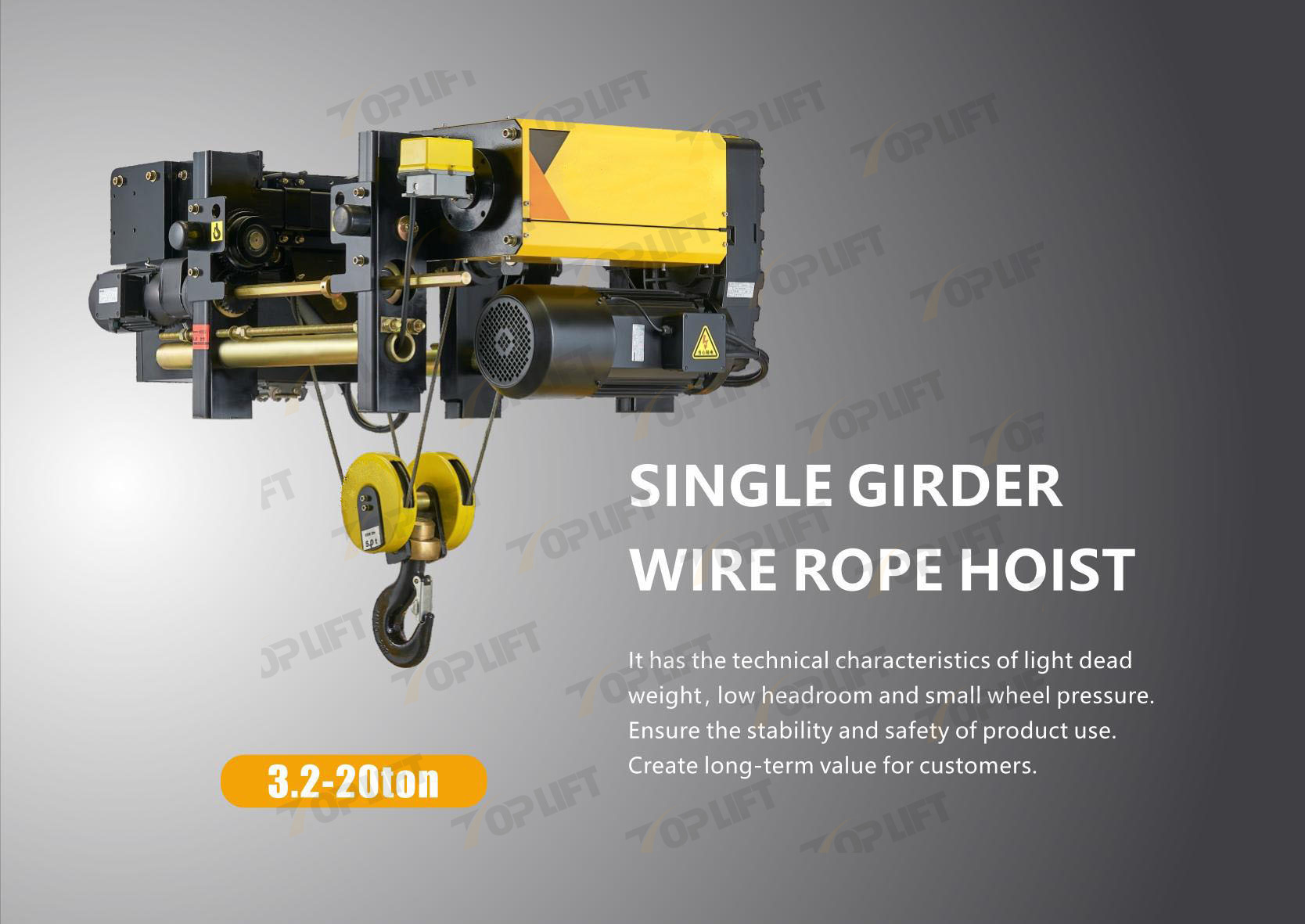

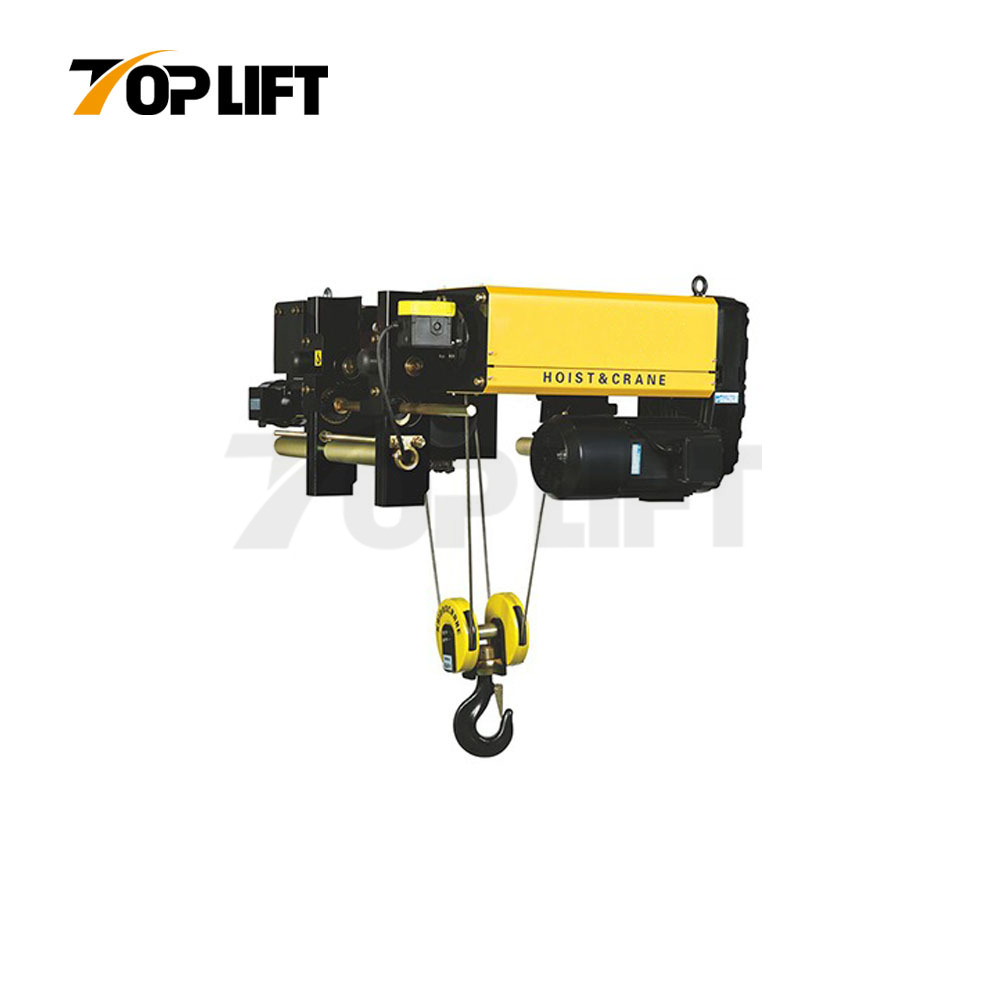

Heavy Duty Single Grider Electric Wire Rope Hoist & Trolley

Model:
Single Grider Electric Wire Rope Hoist

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT CONFIGURATION:

TROLLEY WITH FREQUENCY CONVERSION MOTOR

DOUBLESPEED/FREQUENCY CONVERSION MOTOR

PROTECTION GRADEIP54 INSULATION GRADE F

ELECTROMAGNETICDISC BRAKE,MAINTENANCE-FREE

CONTROLVOLTAGE24V/36V/48V/110V

220-460V/3Ph/50Hz(60Hz)

E LIFTING LIMIT SWITCH

HOOK WITH SAFETY LATCH

OVERLOAD LIMITER

AMBIENT TEMPERATURE:-20°C~+40°C

MOTOR OVEAR TEMPERATURE PROTECTION

Product Advantages:

Module combination ,Compact Structure

Precise Positioning,Fast Handling

Quiet Operation,Energy Saving

Classic and Durable,Safe and Reliable

单梁式钢丝绳电动葫芦

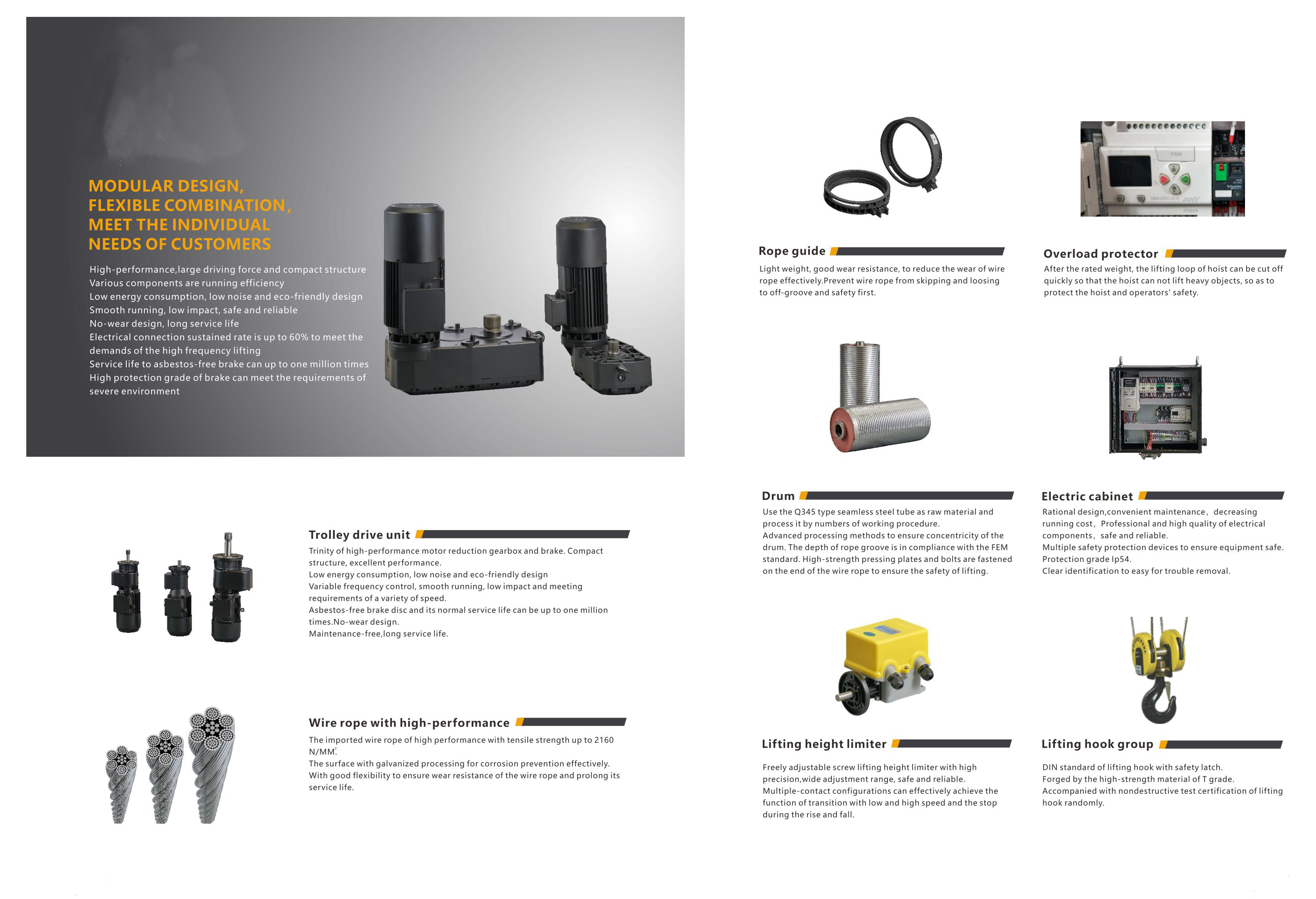

（O）ELECTRIC WIRE ROPE HOIST2024.03V_04

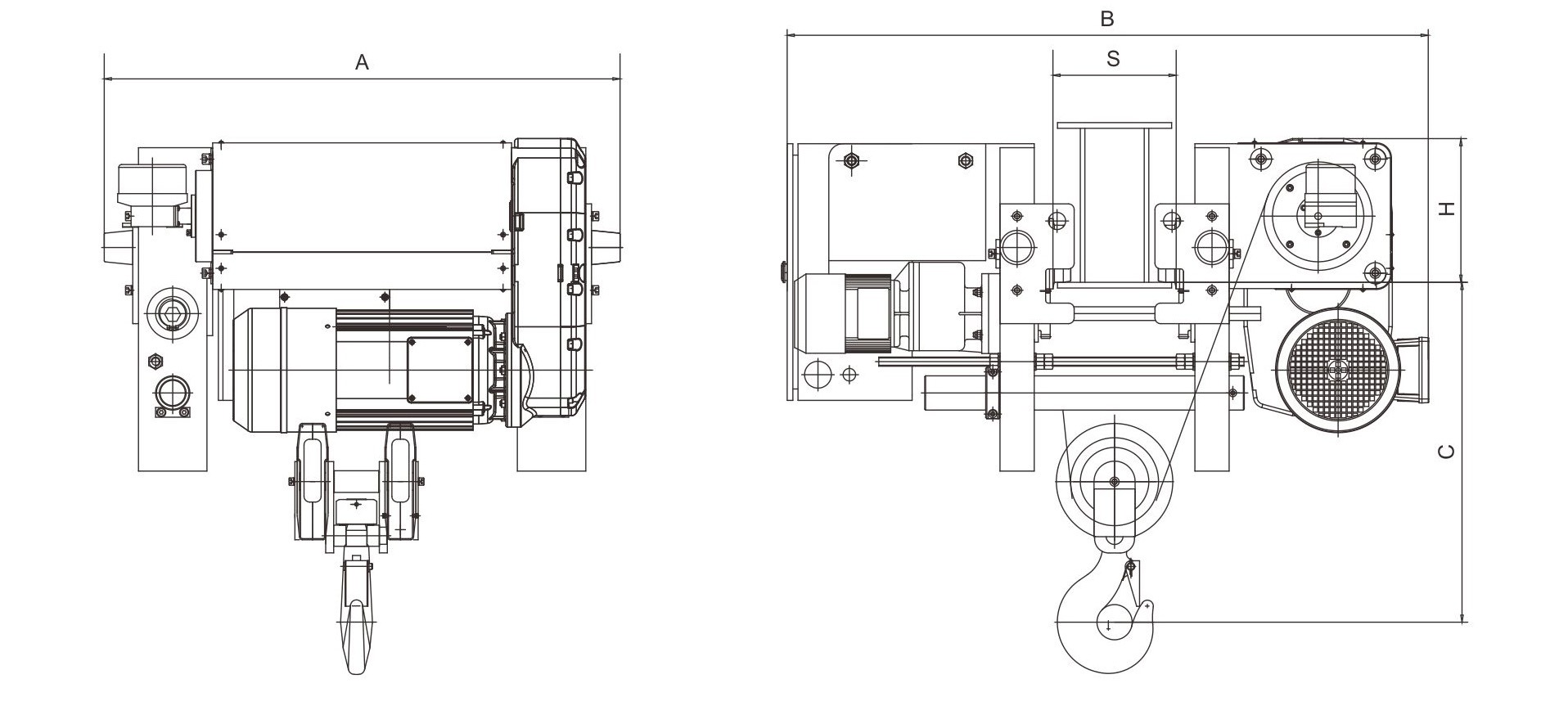

单梁式钢丝绳电动葫芦 (2)

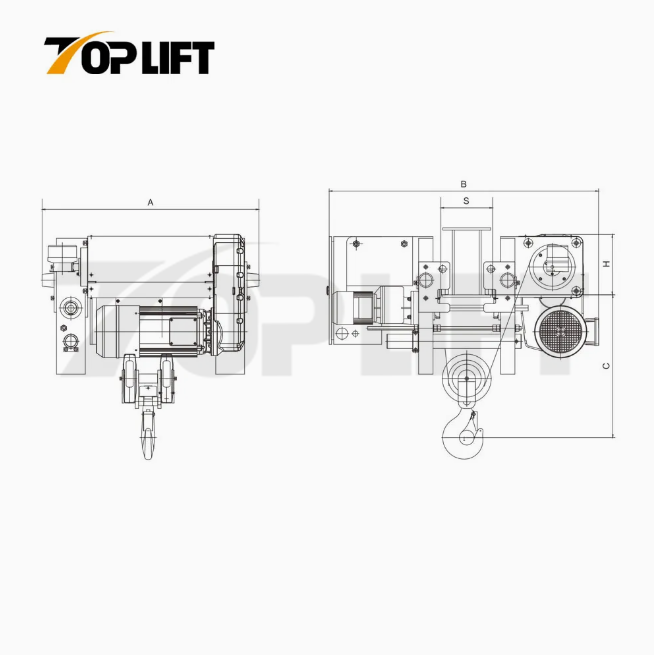

Type	Capacity (t)	Lifting height (m)	Work level FEM/ISO	Lifting speed m/min	Lifting power kW	Travelling speed m/min	Travelling power kW	Size H (mm)	Size C (mm)	Size A (mm)	Size B (mm)	Size S (mm)
TP-3.2	3.2	6	2m/M5	5/0.8	3.2/0.45	5-20	0.37	244	385	932	1087~1587	200-500
TP-3.2	3.2	9	2m/M5	5/0.8	3.2/0.45	5-20	0.37	245	385	1082	1087~1587	200-500
TP-3.2	3.2	12	2m/M5	5/0.8	3.2/0.45	5-20	0.37	245	385	1282	1087~1587	200-500
TP-3.2	3.2	15	2m/M5	5/0.8	3.2/0.45	5-20	0.37	245	385	1482	1087~1587	200-500
TP-3.2	3.2	18	2m/M5	5/0.8	3.2/0.45	5-20	0.37	245	385	1682	1087~1587	200-500
TP-5.0	5.0	6	2m/M5	5/0.8	6.1/1	5-20	0.5	266	495	940	1095~1395	200-500
TP-5.0	5.0	9	2m/M5	5/0.8	6.1/1	5-20	0.5	266	495	1090	1095~1395	200-500
TP-5.0	5.0	12	2m/M5	5/0.8	6.1/1	5-20	0.5	266	495	1290	1095~1395	200-500
TP-5.0	5.0	15	2m/M5	5/0.8	6.1/1	5-20	0.5	266	495	1490	1095~1395	200-500
TP-5.0	5.0	18	2m/M5	5/0.8	6.1/1	5-20	0.5	266	495	1690	1095~1395	200-500
TP-10.0	10.0	6	2m/M5	5/0.8	9.5/1.5	5-20	0.75	296	792	940	1282~1582	200-500
TP-10.0	10.0	9	2m/M5	5/0.8	9.5/1.5	5-20	0.75	296	792	1090	1282~1583	200-500
TP-10.0	10.0	12	2m/M5	5/0.8	9.5/1.5	5-20	0.75	296	792	1290	1282~1584	200-500
TP-10.0	10.0	15	2m/M5	5/0.8	9.5/1.5	5-20	0.75	296	792	1490	1282~1585	200-500
TP-10.0	10.0	18	2m/M5	5/0.8	9.5/1.5	5-20	0.75	296	792	1690	1282~1586	200-500
TP-12.5	12.5	6	1AM/M4	5/0.8	12.5/2	5-20	0.75	296	792	940	1282~1587	200-500
TP-12.5	12.5	9	1AM/M4	5/0.8	12.5/2	5-20	0.75	296	792	1090	1282~1588	200-500
TP-12.5	12.5	12	1AM/M4	5/0.8	12.5/2	5-20	0.75	296	792	1290	1282~1589	200-500
TP-12.5	12.5	15	1AM/M4	5/0.8	12.5/2	5-20	0.75	296	792	1490	1282~1590	200-500
TP-12.5	12.5	18	1AM/M4	5/0.8	12.5/2	5-20	0.75	296	792	1690	1282~1591	200-500
TP-16.0	16.0	6	2m/M5	4/0.6	16/2.6	5-20	0.75x2	300	900	1690	1282~1591	200-500
TP-16.0	16.0	9	2m/M5	4/0.6	16/2.6	5-20	0.75×2	300	900	1690	1282~1591	200-500
TP-16.0	16.0	12	2m/M5	4/0.6	16/2.6	5-20	0.75x2	300	900	1690	1282~1591	200-500
TP-16.0	16.0	15	2m/M5	4/0.6	16/2.6	5-20	0.75x2	300	900	1690	1282~1591	200-500
TP-16.0	16.0	18	2m/M5	4/0.6	16/2.6	5-20	0.75x2	300	900	1690	1282~1591	200-500
TP-20.0	20.0	6	1AM/M4	4/0.6	16/2.6	5-20	0.75×2	300	900	1690	1282~1591	200-500
TP-20.0	20.0	9	1AM/M4	4/0.6	16/2.6	5-20	0.75×2	300	900	1690	1282~1591	200-500
TP-20.0	20.0	12	1AM/M4	4/0.6	16/2.6	5-20	0.75x2	300	900	1690	1282~1591	200-500
TP-20.0	20.0	15	1AM/M4	4/0.6	16/2.6	5-20	0.75×2	300	900	1690	1282~1591	200-500
TP-20.0	20.0	18	1AM/M4	4/0.6	16/2.6	5-20	0.75x2	300	900	1690	1282~1591	200-500

certificate1

certificate2

gongsijianjie

Trade show

FAQ

Q:Do you offer OEM service?
A: OEM accepted and offer confidentiality agreement business secret contract for your design safe.
Q:Can we just customize the goods?
A:Yes,you can.Just give us your size and we will give you a quotation.
Q:Can I order products that aren't shown on your website?

A:If you're looking for a product that don't currently show on website, please contact us and we'll respond you in a positive and efficient style.
Q:Lowest price in China?
A:Definitely we offer very competitive price for single product, further more, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expecting.
Q:What makes you different with others?
A: 1) Our Excellent Service
For a quick, no hassle quote just send email to us.We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within as we promised signed the contract. we can ensure the delivery time according to the formal contract.
Q:May I know the status of my order?
A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
