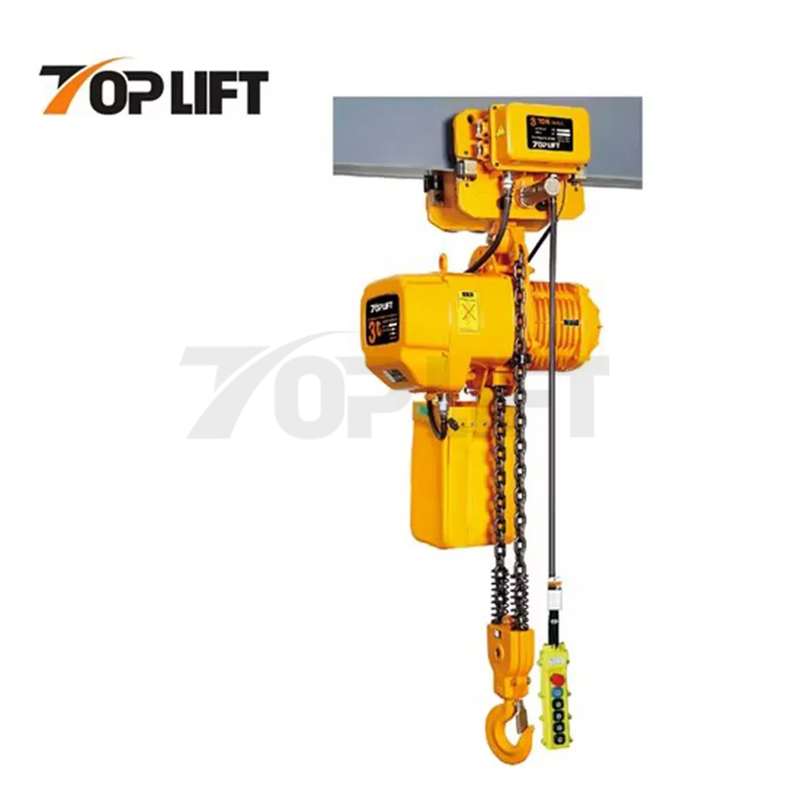

0.5T to 5T CE Certified Hook Suspension Type Electric Chain Hoist with Electric Trolley

Model:
TP-00501SDT

Availability:

Quantity:



Inquire Add to Basket

Product Description

0.5T to 5T Electric Chain Hoist with Electric Trolley

Shell:Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible workenvironment with a high heat dissipation rate and all tightness design.

Inverse phase sequence protecting device:It is the special electrical installation which control the circuit notto work in case of wiring error in the power supply.

Limit switch:The limit switch device is installed where the weight is lifted on and off to make the motor to stopautomatically so as to prohibit the chains from exceeding for safety.

24V&36V device:it is used to prohibit the emergencies from occurring in case of the leakage

in the switch.Side magnetic braking device:This device shallrealize the instant brake in case of the power dump.Chain bag:It shall be light,handsome and durable.

Chain:The chain shalladopt the Japan FEC80 ultra heat-treatable steel alloy chain.

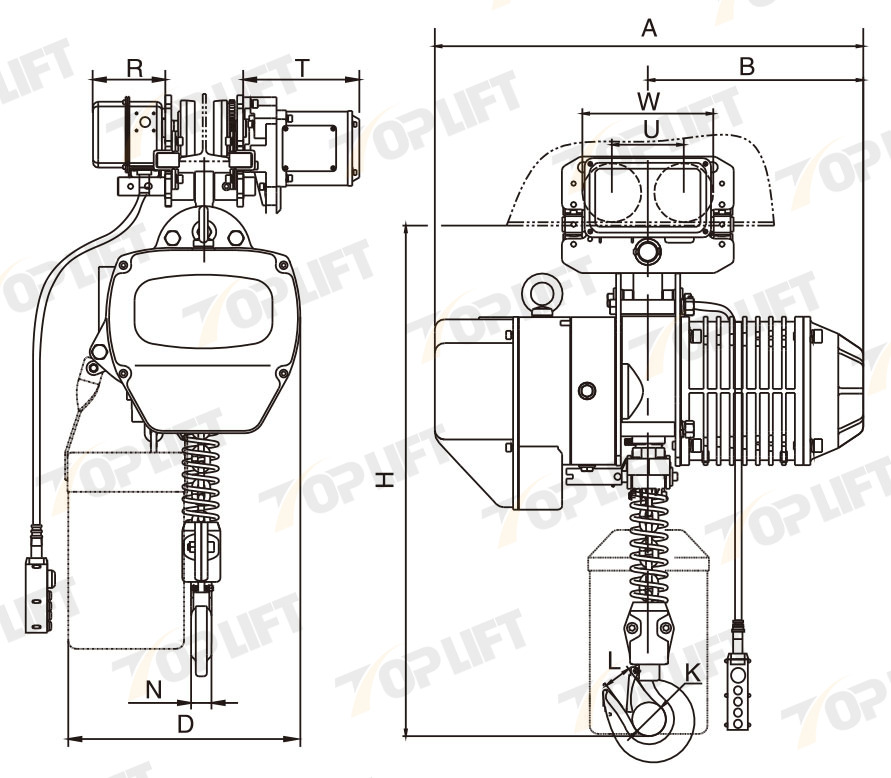

Size Specification（Dual speeds）

Type	Capacity (Ton)	Unit(mm)
Type	Capacity (Ton)	H	A	B	D	E	1	K	L	N	W	U	R	T	Chain
TP-00501SD	0.5	610	545	260	285	165	φ31	φ34	25	17	206	111	142	276	φ6.3
TP-0101SD	1	650	582	280	300	176	φ31	φ42	32	24	206	111	142	276	φ7.1
TP-0102SD	1	665	545	260	285	165	φ31	φ42	32	24	206	111	142	276	φ6.3
TP01501SD	1.5	770	670	320	430	265	φ36	φ49	40	28	237	127	142	276	φ10.0
TP-0201SD	2	770	670	320	430	265	φ36	φ49	40	28	237	127	142	276	φ10.0
TP-0202SD	2	815	582	280	300	236	φ36	φ49	40	28	237	127	142	276	φ7.1
TP-02501SD	2.5	830	670	320	430	265	φ43	φ59	48	34	265	140	142	315	φ11.2
TP-0301SD	3	830	670	320	430	265	φ43	φ59	48	34	265	140	142	315	φ11.2
TP-0302SD	3	930	670	320	430	320	φ43	φ59	48	34	265	140	142	315	φ10.0
TP-0303SD	3	940	582	280	350	205	φ43	φ59	48	34	265	140	142	315	φ7.1
TP-0502SD	5	1015	670	320	430	325	φ54	φ60	48	42	296	156	142	315	φ11.2

Technical Parameters（Dual speeds）

Type	Capacity (Ton)	Unit(mm)
Type	Capacity (Ton)	H	A	B	D	E	1	K	L	N	W	U	R	T	Chain
TP-00501SD	0.5	610	545	260	285	165	φ31	φ34	25	17	206	111	142	276	φ6.3
TP-0101SD	1	650	582	280	300	176	φ31	φ42	32	24	206	111	142	276	φ7.1
TP-0102SD	1	665	545	260	285	165	φ31	φ42	32	24	206	111	142	276	φ6.3
TP01501SD	1.5	770	670	320	430	265	φ36	φ49	40	28	237	127	142	276	φ10.0
TP-0201SD	2	770	670	320	430	265	φ36	φ49	40	28	237	127	142	276	φ10.0
TP-0202SD	2	815	582	280	300	236	φ36	φ49	40	28	237	127	142	276	φ7.1
TP-02501SD	2.5	830	670	320	430	265	φ43	φ59	48	34	265	140	142	315	φ11.2
TP-0301SD	3	830	670	320	430	265	φ43	φ59	48	34	265	140	142	315	φ11.2
TP-0302SD	3	930	670	320	430	320	φ43	φ59	48	34	265	140	142	315	φ10.0
TP-0303SD	3	940	582	280	350	205	φ43	φ59	48	34	265	140	142	315	φ7.1
TP-0502SD	5	1015	670	320	430	325	φ54	φ60	48	42	296	156	142	315	φ11.2

Size Specification（Single Speed）

Type	Capacity (Ton)	Unit(mm)
Type	Capacity (Ton)	H	A	B	D	E	I	K	L	N	W	U	R	T	Chain
TP-00501S	0.5	610	455	240	285	165	φ31	φ34	25	17	206	111	142	231	φ6.3
TP-0101S	1	650	520	260	300	176	φ31	φ42	32	24	206	111	142	231	φ7.1
TP-0102S	1	665	455	240	285	165	φ31	φ42	32	24	206	111	142	231	φ6.3
TP-01501S	1.5	770	615	300	430	265	φ36	φ49	40	28	237	127	142	231	φ10.0
TP-0201S	2	770	615	300	430	265	φ36	φ49	40	28	237	127	142	231	φ10.0
TP-0202S	2	815	520	260	300	236	φ36	φ49	40	28	237	127	142	231	φ7.1
TP-02501S	2.5	830	615	300	430	265	φ43	φ59	48	34	265	140	142	231	φ11.2
TP-0301S	3	830	615	300	430	265	φ43	φ59	48	34	265	140	142	231	φ11.2
TP-0302S	3	930	615	300	430	320	φ43	φ59	48	34	265	140	142	231	φ10.0
TP-0303S	3	940	520	260	350	205	φ43	φ59	48	34	265	140	142	231	φ7.1
TP-0502S	5	1015	615	300	430	325	φ54	φ60	48	42	296	156	142	231	φ11.2

Technical Parameters（Single Speeds）

Type	Capacity (Ton)	Standard Lifting Height (m)	Liting Speed (m/min)	Lifting Motor					Trolley Motor			I-Beam (mm)
Type	Capacity (Ton)	Standard Lifting Height (m)	Liting Speed (m/min)	Power (Kw)	Rotation Speed (r/min)	Phases	Voltage (V)	Frequency Hz/s)	Power (Kw)	Rotation Speed (r/min)	Trolley Speed (m/min)	I-Beam (mm)
TP-00501S	0.5	3	6.8	0.75	1440	3	200-600	50	0.4	1440	11&21	58-153
TP-0101S	1	3	6.6	1.5	1440	3	200-600	50	0.4	1440	11&21	58-153
TP-0102S	1	3	3.4	0.75	1440	3	200-600	50	0.4	1440	11&21	58-153
TP-01501S	1.5	3	8.8	3.0	1440	3	200-600	50	0.4	1440	11&21	82-178
TP-0201S	2	3	6.6	3.0	1440	3	200-600	50	0.4	1440	11&21	82-178
TP-0202S	2	3	3.3	1.5	1440	3	200-600	50	0.4	1440	11&21	82-178
TP-02501S	2.5	3	5.4	3.0	1440	3	200-600	50	0.75	1440	11&21	100-178
TP-0301S	3	3	5.4	3.0	1440	3	200-600	50	0.75	1440	11&21	100-178
TP-0302S	3	3	4.4	3.0	1440	3	200-600	50	0.75	1440	11&21	100-178
TP-0303S	3	3	2.2	1.5	1440	3	200-600	50	0.75	1440	11&21	100-178
TP-0502S	5	3	2.7	3.0	1440	3	200-600	50	0.75	1440	11&21	100-178

巨扬五金--详情页_09

巨扬五金--详情页_10

FAQ

Q:Do you offer OEM service?

A: OEM accepted and offer confidentiality agreement business secret contract for your design safe.

Q:Can we just customize the goods?

A:Yes,you can. Just give us your size and we will give you a quotation.

Q:Can I order products that aren't shown on your website?

A:If you're looking for a product that don't currently show on website, please contact us and we'll respond you in a positive and efficient style.

Q:Lowest price in China?

A:Definitely we offer very competitive price for single product, further more, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expecting.

Q:What makes you different with others?

A: 1) Our Excellent Service

For a quick, no hassle quote just send email to us. We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office we will answer your questions immediately.

2) Our Quick Manufacturing Time

For normal orders, we will promise to produce within as we promised signed the contract. we can ensure the delivery time according to the formal contract.

Q:May I know the status of my order?

A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
