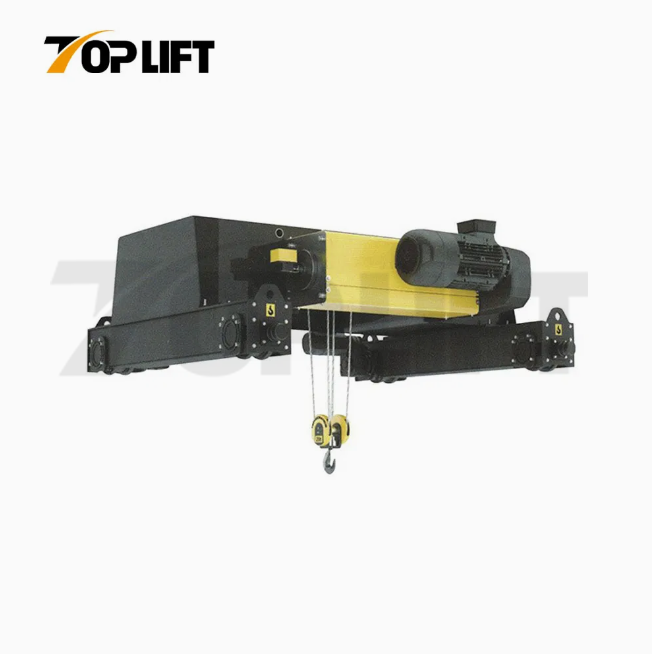

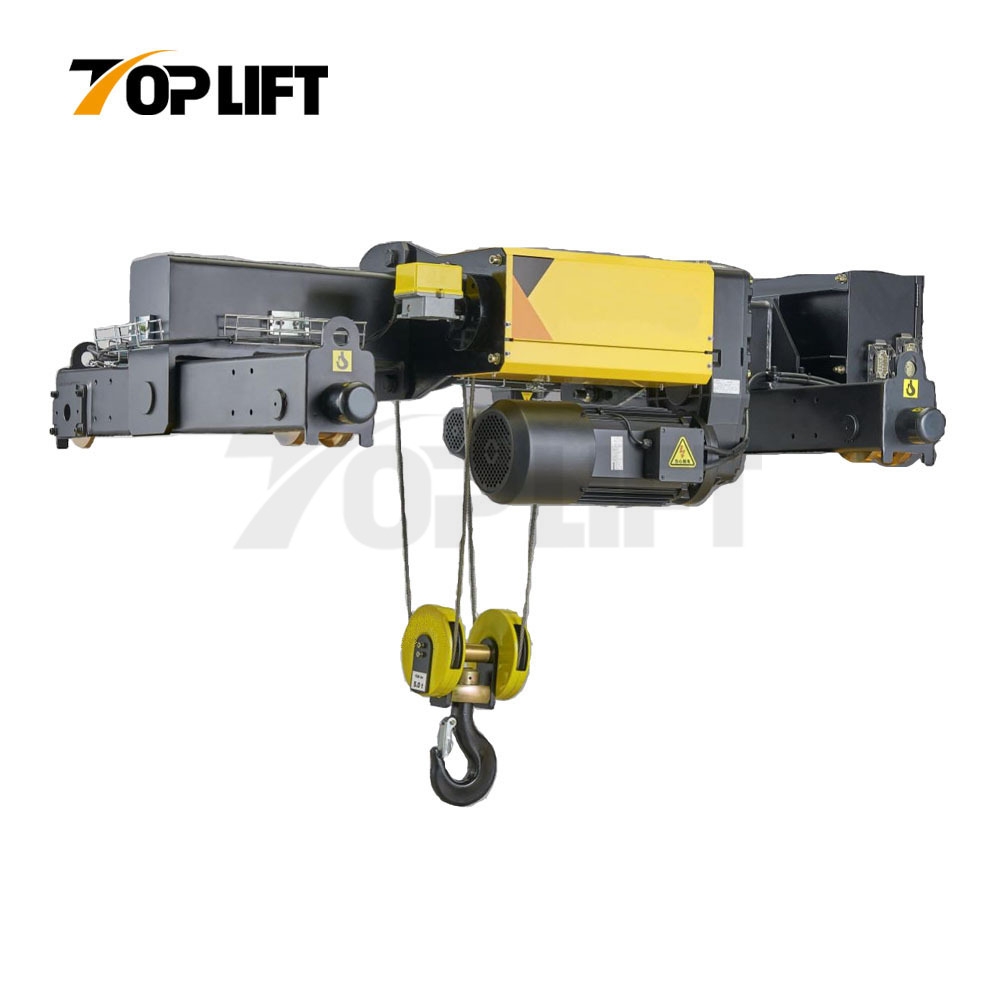

Heavy Duty Lifting Trolley Double Grider Electric Wire Rope Hoist

Model:
Double Grider Electric Wire Rope Hoist

Availability:

Quantity:



Inquire Add to Basket

Product Description

PRODUCT CONFIGURATION:

TROLLEY WITH FREQUENCY CONVERSION MOTOR

DOUBLESPEED/FREQUENCY CONVERSION MOTOR

PROTECTION GRADEIP54 INSULATION GRADE F

ELECTROMAGNETICDISC BRAKE,MAINTENANCE-FREE

CONTROLVOLTAGE24V/36V/48V/110V

220-460V/3Ph/50Hz(60Hz)

E LIFTING LIMIT SWITCH

HOOK WITH SAFETY LATCH

OVERLOAD LIMITER

AMBIENT TEMPERATURE:-20°C~+40°C

MOTOR OVEAR TEMPERATURE PROTECTION

Product Advantages:

Module combination ,Compact Structure

Precise Positioning,Fast Handling

Quiet Operation,Energy Saving

Classic and Durable,Safe and Reliable

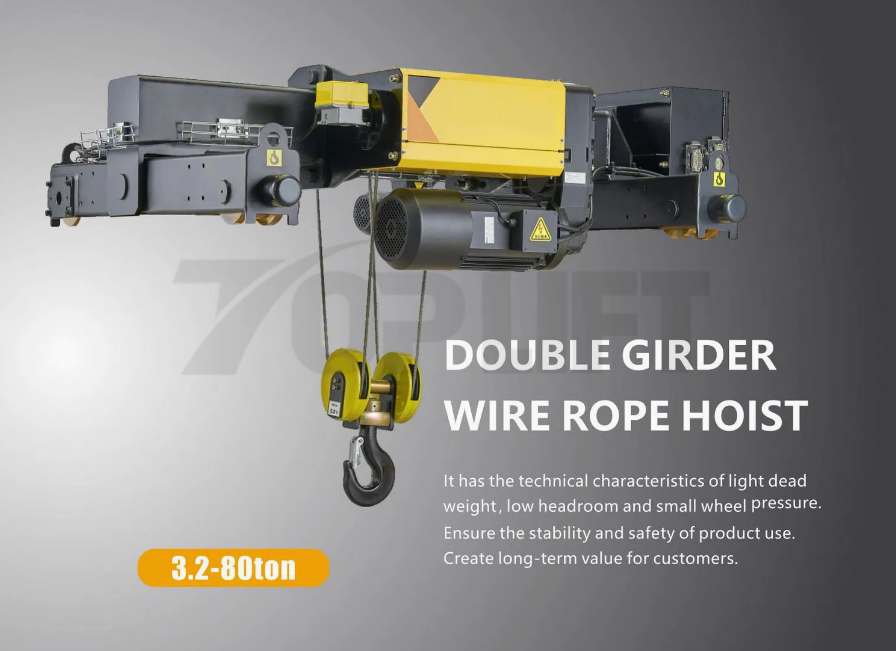

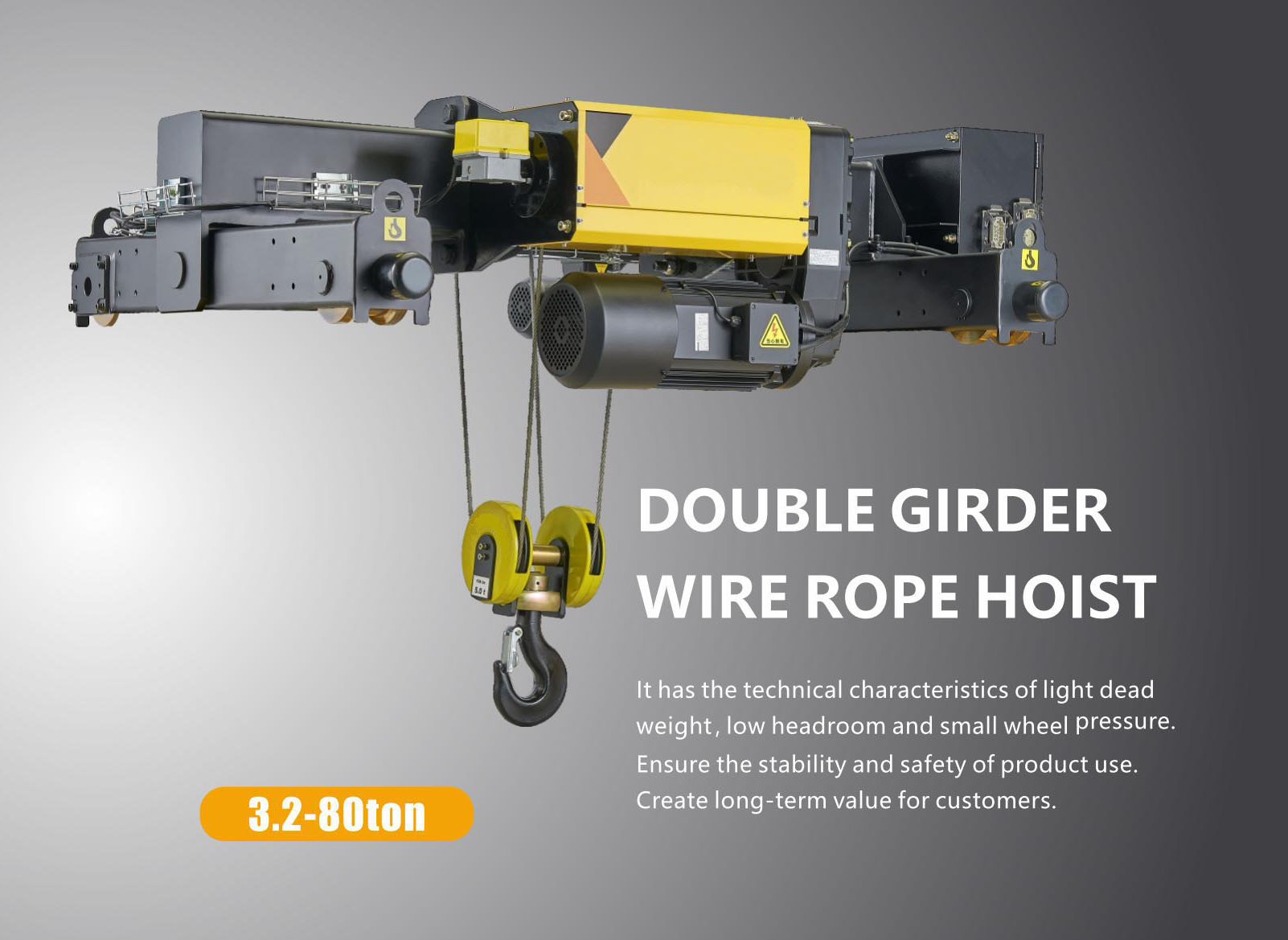

双梁式钢丝绳电动葫芦

（O）ELECTRIC WIRE ROPE HOIST2024.03V_04

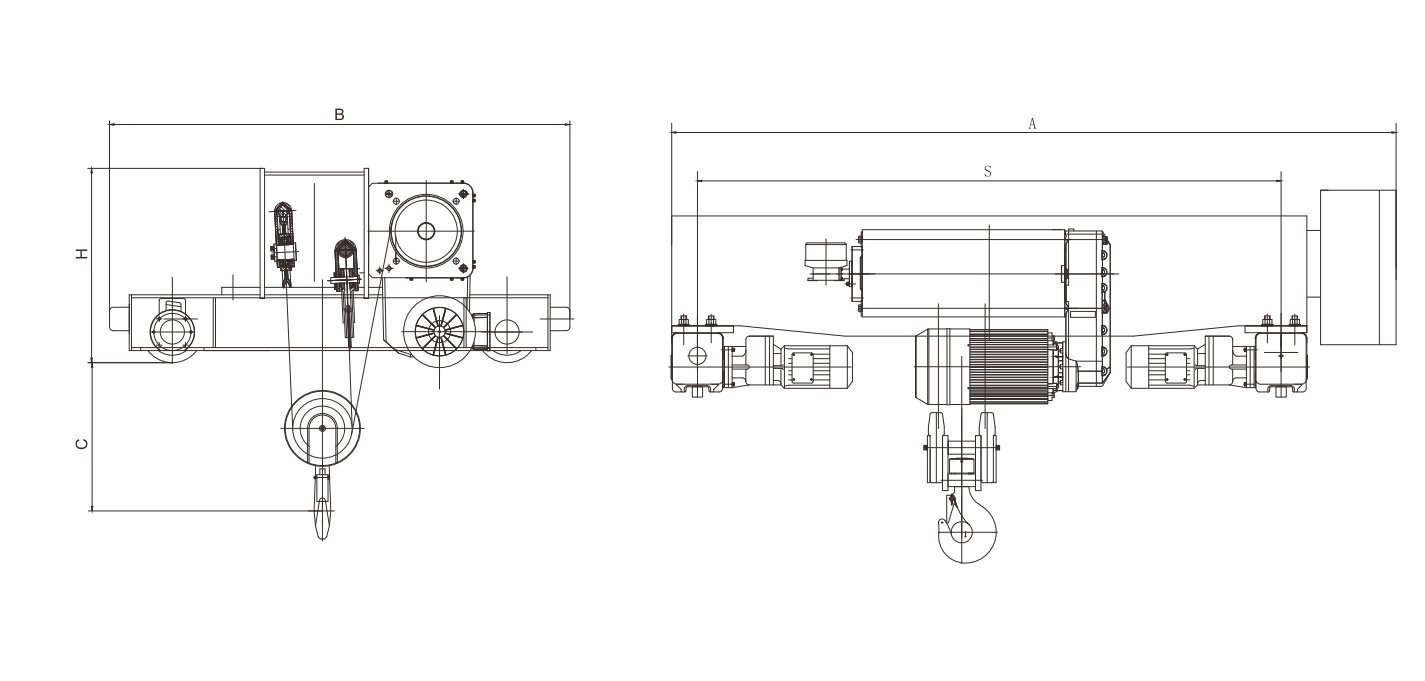

双梁钢丝绳电动葫芦

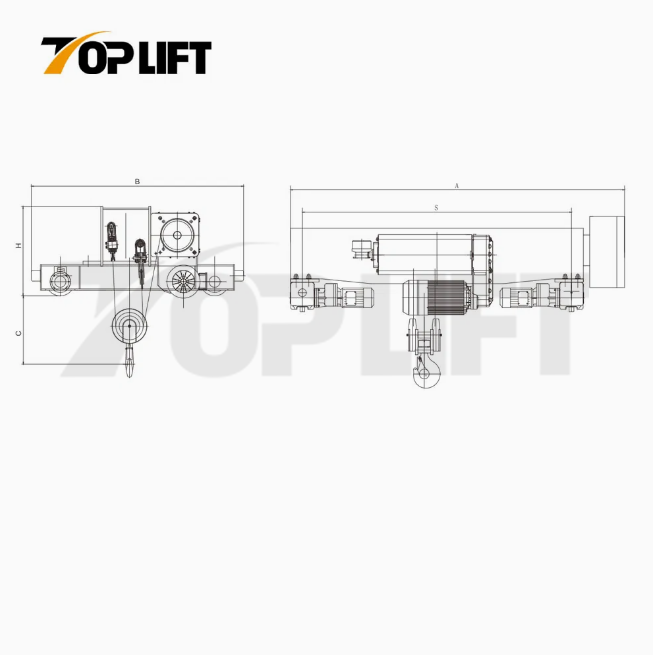

Type	Capacity (t)	Lifting height (m)	Work level FEM/ISO	Lifting speed m/min	Lifting power (kW)	Travelling speed m/min	Travelling power(kW)	Size H (mm)	Size C (mm)	Size A (mm)	Size B (mm)	Size S (mm)
TP-16.0	16.0	6	2m/M5	4/0.6	16/2.6	5-20	0.55*2	640	480	2150	1610	1700
TP-16.0	16.0	9	2m/M5	4/0.6	16/2.6	5-20	0.55*2	640	480	2450	1610	2000
TP-16.0	16.0	12	2m/M5	4/0.6	16/2.6	5-20	0.55*2	640	480	2850	1610	2400
TP-16.0	16.0	15	2m/M5	4/0.6	16/2.6	5-20	0.55*2	640	480	3150	1610	2700
TP-16.0	16.0	18	2m/M5	4/0.6	16/2.6	5-20	0.55*2	640	480	3550	1610	3100
TP-20.0	20.0	6	1AM/M4	4/0.6	16/2.6	5-20	0.55*2	640	480	2150	1610	1700
TP-20.0	20.0	9	1AM/M4	4/0.6	16/2.6	5-20	0.55*2	640	480	2450	1610	2000
TP-20.0	20.0	12	1AM/M4	4/0.6	16/2.6	5-20	0.55*2	640	480	2850	1610	2400
TP-20.0	20.0	15	1AM/M4	4/0.6	16/2.6	5-20	0.55*2	640	480	3150	1610	2700
TP-20.0	20.0	18	1AM/M4	4/0.6	16/2.6	5-20	0.55*2	640	480	3550	1610	3100
TP-25.0	25.0	6	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	2450	1850	2000
TP-25.0	25.0	9	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	2850	1850	2400
TP-25.0	25.0	12	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	3550	1850	3100
TP-25.0	25.0	15	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	3550	1850	3100
TP-25.0	25.0	18	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	3850	1850	3400
TP-32.0	32.0	6	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	2450	1850	2000
TP-32.0	32.0	9	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	2850	1850	2400
TP-32.0	32.0	12	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	3550	1850	3100
TP-32.0	32.0	15	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	3550	1850	3100
TP-32.0	32.0	18	2m/M5	3.3/0.8	20/5	5-20	1.1*2	790	620	3850	1850	3400
TP-40.0	40.0	6	1AM/M4	0-4.9	38	5-20	1.5*2	895	980	2650	2140	2000
TP-40.0	40.0	9	1AM/M4	0-4.9	38	5-20	1.5*2	895	980	2650	2140	2000
TP-40.0	40.0	12	1AM/M4	0-4.9	38	5-20	1.5*2	895	980	3050	2140	2400
TP-40.0	40.0	15	1AM/M4	0-4.9	38	5-20	1.5*2	895	980	3350	2140	2700
TP-40.0	40.0	18	1AM/M4	0-4.9	38	5-20	1.5*2	895	980	3750	2140	3100
TP-50.0	50.0	6	2m/M5	0-3.2	38	5-20	1.5*2	895	980	2650	2100	2000
TP-50.0	50.0	9	2m/M5	0-3.2	38	5-20	1.5*2	895	980	3050	2100	2400
TP-50.0	50.0	12	2m/M5	0-3.2	38	5-20	1.5*2	895	980	3750	2100	3100
TP-50.0	50.0	15	2m/M5	0-3.2	38	5-20	1.5*2	895	980	4450	2100	3800
TP-50.0	50.0	18	2m/M5	0-3.2	38	5-20	1.5*2	895	980	4850	2100	4200
TP-63.0	63.0	6	1AM/M4	0-3.2	38	5-20	2.2*2	975	1110	2700	2220	2000
TP-63.0	63.0	9	1AM/M4	0-3.2	38	5-20	2.2*2	975	1110	3100	2220	2400
TP-63.0	63.0	12	1AM/M4	0-3.2	38	5-20	2.2*2	975	1110	3800	2220	3100
TP-63.0	63.0	15	1AM/M4	0-3.2	38	5-20	2.2*2	975	1110	4500	2220	3800
TP-63.0	63.0	18	1AM/M4	0-3.2	38	5-20	2.2*2	975	1110	4900	2220	4200
TP-80.0	80.0	6	1AM/M4	0~2.4	38	5-20	2.2*2	975	1110	3100	2220	2400
TP-80.0	80.0	9	1AM/M4	0~2.4	38	5-20	2.2*2	975	1110	3800	2220	3100
TP-80.0	80.0	12	1AM/M4	0~2.4	38	5-20	2.2*2	975	1110	4500	2220	3800
TP-80.0	80.0	15	1AM/M4	0~2.4	38	5-20	2.2*2	975	1110	4900	2220	4200
TP-80.0	80.0	18	1AM/M4	0~2.4	38	5-20	2.2*2	975	1110	5500	2220	4800

certificate1

certificate2

gongsijianjie

Trade show

FAQ

Q:Do you offer OEM service?
A: OEM accepted and offer confidentiality agreement business secret contract for your design safe.
Q:Can we just customize the goods?
A:Yes,you can.Just give us your size and we will give you a quotation.
Q:Can I order products that aren't shown on your website?

A:If you're looking for a product that don't currently show on website, please contact us and we'll respond you in a positive and efficient style.
Q:Lowest price in China?
A:Definitely we offer very competitive price for single product, further more, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expecting.
Q:What makes you different with others?
A: 1) Our Excellent Service
For a quick, no hassle quote just send email to us.We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within as we promised signed the contract. we can ensure the delivery time according to the formal contract.
Q:May I know the status of my order?
A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
