1-16T LD Type
| Quantity: | |
|---|---|

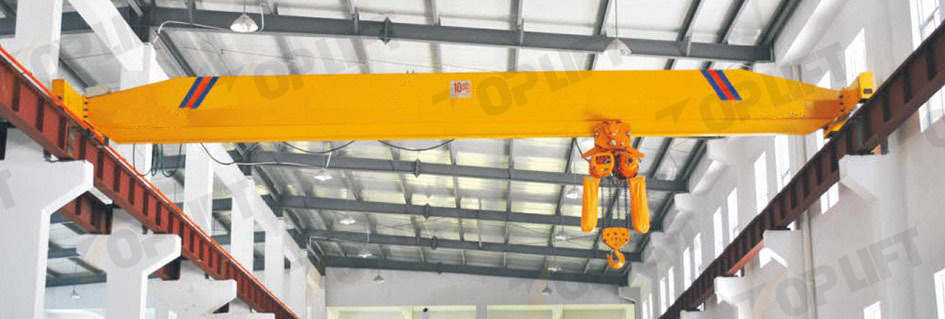

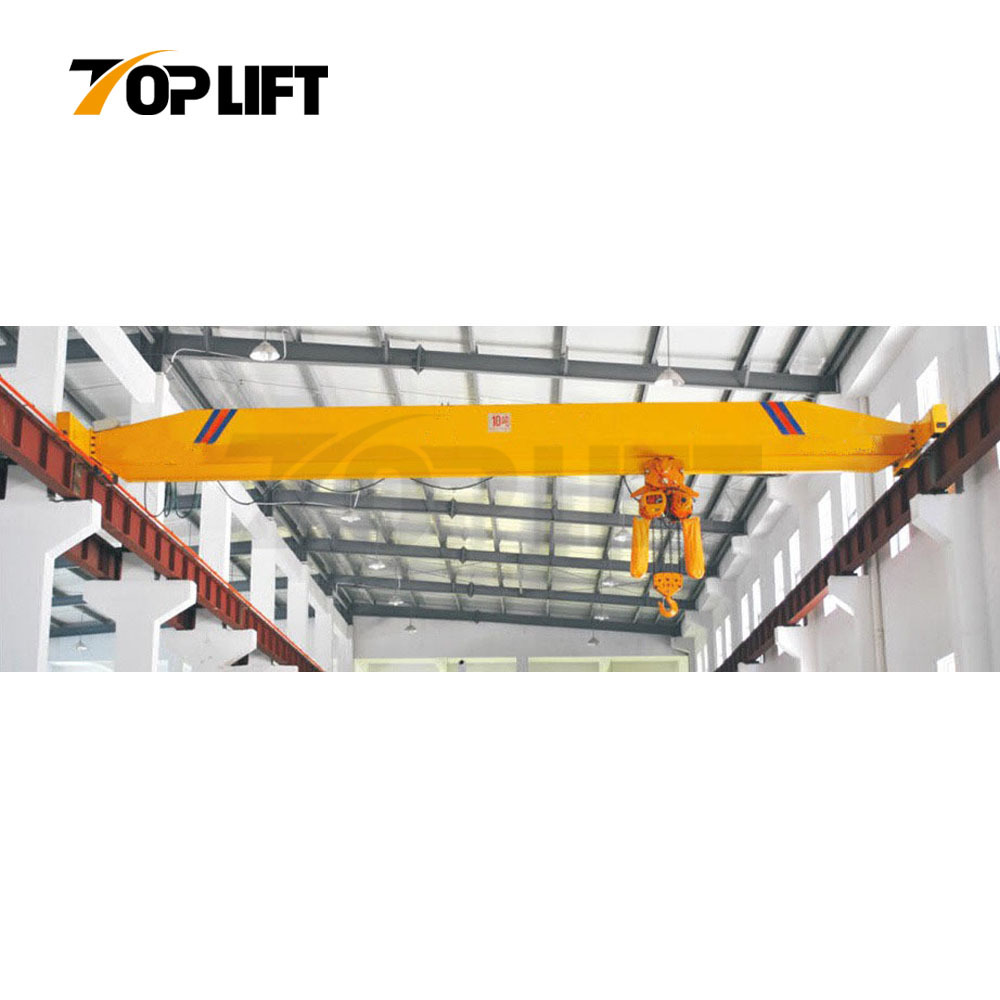

The LD Type Electric Single-Girder Suspension Crane is a highly versatile and cost-effective overhead lifting solution, designed for capacities ranging from 1 ton to 16 tons. Suspended from the roof structure or runway beams, this crane travels along the lower flange of I-beams, freeing up valuable floor space and enabling efficient material handling across a wide range of industrial applications.
Paired with a CD/MD electric wire rope hoist, the LD crane delivers stable, safe, and precise lifting performance. Its compact structure, light self-weight, and high lifting height make it ideal for use in workshops, warehouses, assembly lines, and maintenance stations with medium-duty lifting requirements.
Lifting Capacity: 1–16 tons
Structure Type: Single-girder suspension design (underslung)
Working Class: A3–A5 (based on duty cycle)
Lifting Mechanism: CD/MD wire rope electric hoist
Lightweight and compact design, reducing building structure load
Flexible layout – easily integrates with existing workshop structures
Smooth, low-noise operation with stable braking and precise positioning
Product Details:
| 1-16T LD Type Electric Single-Girder Suspension Crane | |||||||||||||
| Load Capacity (T) | Control Method | Crane Traveling Mechanism | Hoisting Mechanism Wire Rope Hoist | Hoisting Mechanism Electri Chain Hoist | |||||||||
| Running Speed (m/min) | Electri Motor | Electric Hoist Type | Lifting Speed (m/min) | Running Speed (m/min) | Motor Type | Electri Chain Hoist Type | Lifting Speed (m/min) | Running Speed (m/min) | Motor Type | ||||
| TYPE | Power (Kw) | Rotate Speed (r/min) | |||||||||||
| 1 | Groud Remote Control | 20;30 | KD-100C KD-150C | 0.8/1.5 | 980/1380 | CD1 | 8 | 20 | Conical Rotor Squirrel Cage Motor | HKDL0101 | 6.6 | 21/11 | YEP Type |
| MD1 | 8/0.8 | HKDL0101 | 6.9/2.3 | ||||||||||
| 2 | CD1 | 8 | HKDL0201 | 6.6 | |||||||||
| MD1 | 8/0.8 | HKDL0201 | 6.9/2.3 | ||||||||||
| 3 | CD1 | 8 | HKDL0301 | 5.4 | |||||||||
| MD1 | 8/0.8 | HKDL0301 | 5.4/1.8 | ||||||||||
| 5 | CD1 | 8 | HKDL0502 | 2.7 | |||||||||
| MD1 | 8/0.8 | HKDL0502 | 2.7/0.9 | ||||||||||
| 10 | CD1 | 7 | HKD1004 | 2.7 | |||||||||
| MD1 | 7/0.7 | HKD1004 | 2.7/0.9 | ||||||||||
| 16 | CD1 | 3.5 | HKD1606 | 1.8 | |||||||||
| MD1 | 3.5/0.35 | HKD1606 | 1.8/0.6 | ||||||||||
