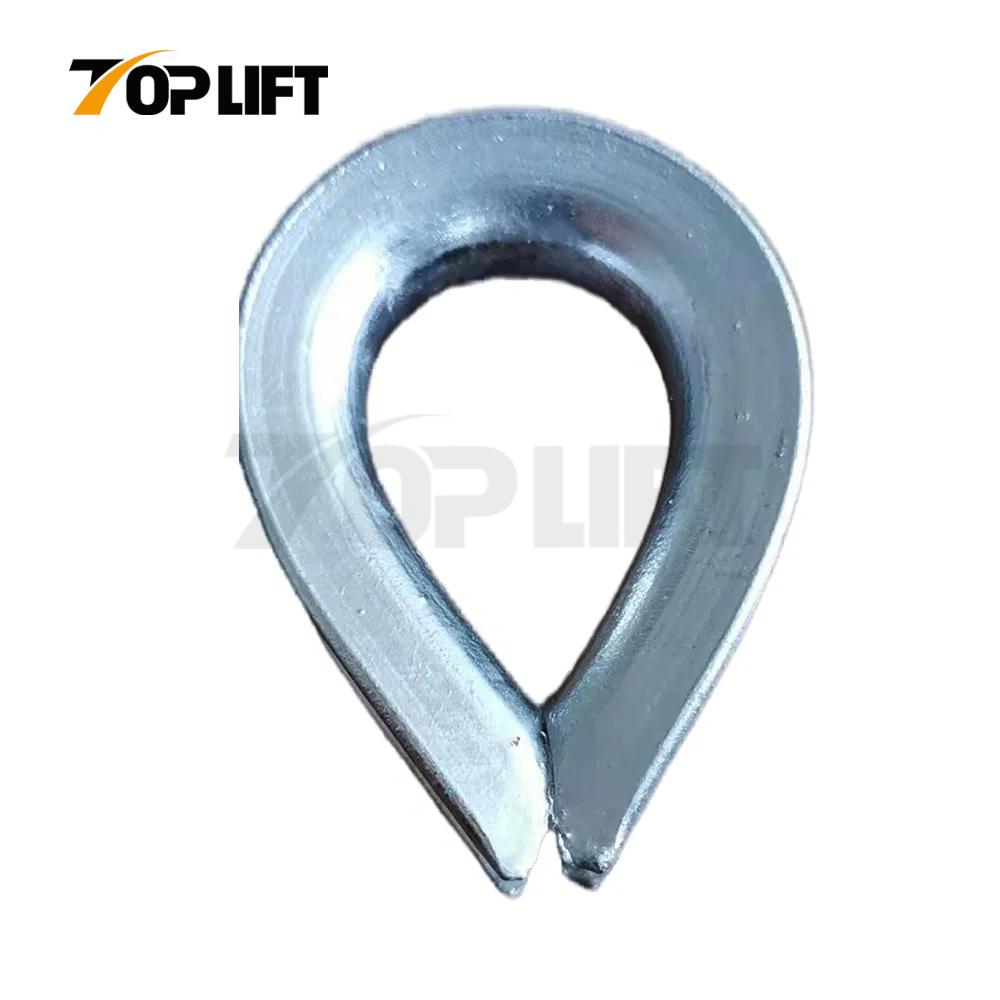

TP-LIFTING Ordinary Thimbles BS464-1958
Basic Info.
Wire rope thimbles are just one of the many types of wire rope fittings (ferrules,shackles,terminals, etc.) Thimbles are perfect for wire ropes terminating in a loop and are one of the most commonly used end fittings for steel cable.They are used to help protect the steel wire-rope which forms the eye,and therefore will greatly extend the working life of the rope,they also add extra rigidity to a soft loop making it stronger and much easier to attach wherever it is needed.
Model No. | TP-464 | Function | Lifting, Sling, Hoist | |
Surface Treatment | Hot DIP Galvanized | Transport Package | Carton/Pallet | |
Specification | 8-64 mm | Trademark | TOPLIFT or OEM | |
Origin | China | HS Code | 73269090 |
Specification

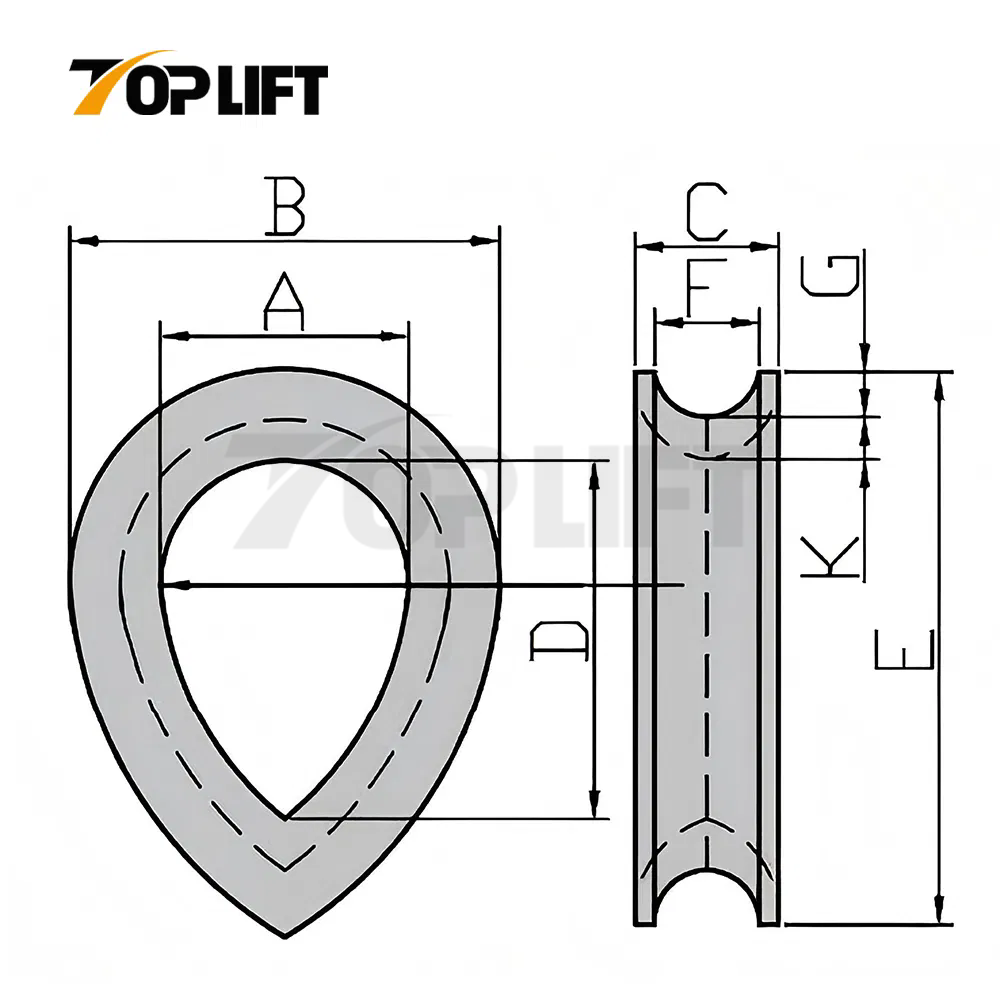

Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | K (mm) |
TP-464-8mm(5/16'') | 22.2 | 38 | 12.7 | 33.4 | 52 | 7.9 | 4 | 4 |
TP-464-9mm(3/8'') | 25.4 | 47.6 | 14.3 | 38 | 64 | 10.3 | 6.3 | 4 |
TP-464-11mm(7/16'') | 28.6 | 52 | 17.5 | 41.3 | 73 | 12.7 | 7.9 | 4.5 |
TP-464-13mm(1/2'') | 31.7 | 58.8 | 20.6 | 44.5 | 79.4 | 14.3 | 7.9 | 5.5 |
TP-464-14mm(9/16'') | 38 | 64 | 20.6 | 56 | 88 | 15.4 | 7.9 | 5.5 |
TP-464-16mm(5/8'') | 41.3 | 74.5 | 22.2 | 58.8 | 95.8 | 15.9 | 8.7 | 7.5 |
TP-464-17mm(11/16'') | 44.5 | 79.4 | 28.6 | 66.6 | 108 | 19 | 9.5 | 7.5 |
TP-464-19mm(3/4'') | 50.8 | 92 | 28.6 | 73 | 124 | 20.6 | 11.1 | 8.5 |
TP-464-21mm(13/16'') | 50.8 | 92 | 28.6 | 73 | 121 | 20.6 | 11.1 | 9.5 |
TP-464-22mm(7/8") | 56 | 102 | 31.7 | 82.5 | 131 | 22.2 | 12.7 | 10 |
TP-464-24mm(15/16") | 64 | 110 | 33.4 | 92 | 146 | 25.4 | 12.7 | 10 |
TP-464-25mm(1") | 69.8 | 119 | 35 | 108 | 162 | 27 | 14.3 | 10 |
TP-464-29mm(1-1/8") | 76.2 | 133 | 38 | 112 | 178 | 28.6 | 15.9 | 10 |
TP-464-32mm(1-1/4") | 95 | 152 | 41.3 | 133 | 197 | 33.4 | 15.9 | 10 |
TP-464-35mm(1-3/8") | 105 | 175 | 47.6 | 152 | 228 | 38 | 19 | 13.5 |
TP-464-38mm(1-1/2") | 114 | 197 | 52 | 165 | 254 | 41.3 | 23.8 | 13.5 |
TP-464-41mm(1-5/8) | 120 | 205 | 57 | 188 | 280 | 47 | 24 | 16 |
TP-464-44mm(1-3/4") | 127 | 228 | 57 | 178 | 286 | 50.8 | 25.4 | 19 |
TP-464-48mm(1-7/8") | 133 | 248 | 66.6 | 190 | 317 | 60.4 | 28.6 | 20 |
TP-464-51mm(2") | 140 | 257 | 69.8 | 203 | 330 | 64 | 30.1 | 20 |
TP-464-54mm(2-1/8") | 140 | 257 | 69.8 | 203 | 330 | 64 | 30.1 | 20 |
TP-464-57mm(2-1/4") | 160 | 296 | 76.2 | 246 | 356 | 66.6 | 31.7 | 26 |
TP-464-64mm(2-1/2'') | 170 | 300 | 93 | 255 | 420 | 75 | 43 | 26 |
Our Advantages
1. Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2. Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3. Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4. Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5. Competitive price
We provide best price among same quality products.
6. One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7. OEM service.
8. Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9. Numerous Patents in Rigging Hardware.
