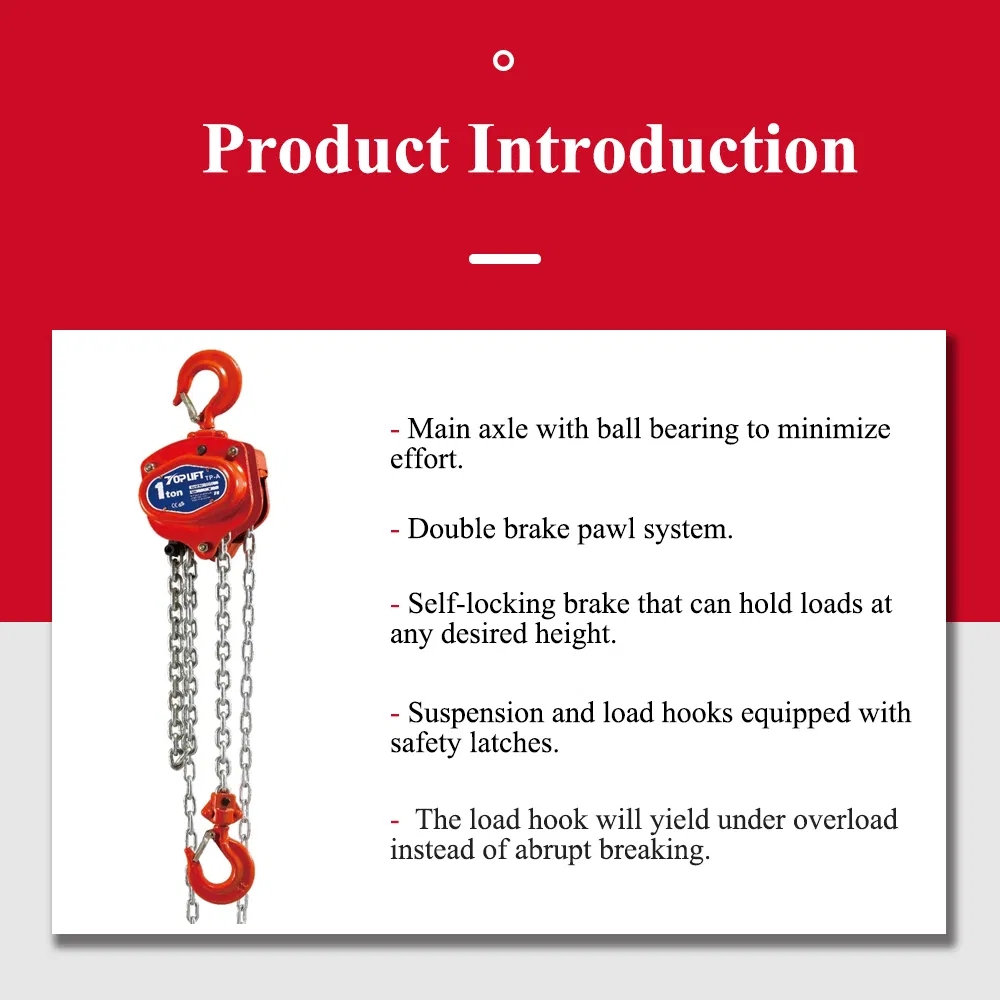

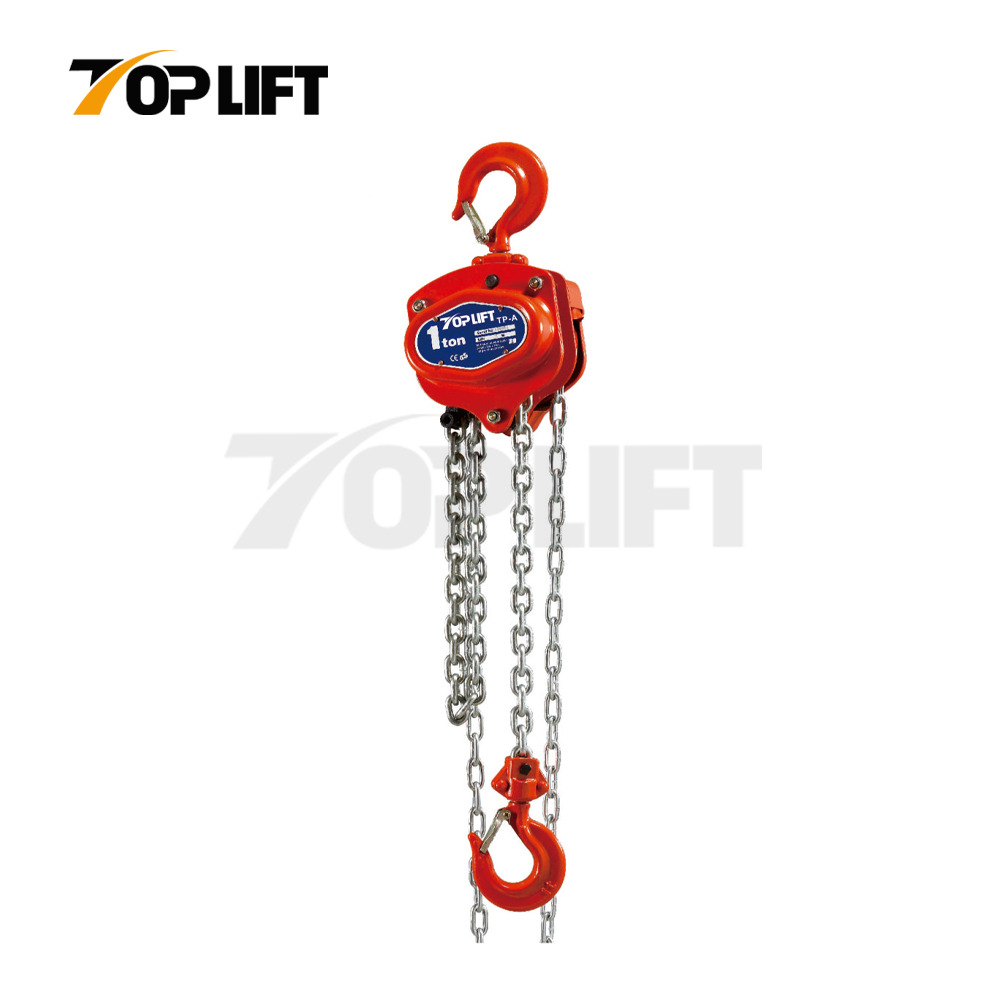

Model TP-A is a robust hand chain hoist designed for heavy and increase loads, bearing safety, ergonomics and low operating effort in mind. Chain block is widely used in factories, miners, docks, warehouses, construction sites, agriculture and other fields, to lift goods and lifting equipment, especially in conditions with no power supply or narrow , demonstrate superiority.
Features:
1. With double brake pawl system.
2. Suspension and load hooks are equipped with safety latches that are flexible, easily handled and to prevent frombeing out of loads.
3. Load chain links for long life.
4. Self-locking brake can hold loads at any desired height.
5. The capacity is from 0.5 to 30Ton
6.The load hook will bend under overload without breaking suddenly.
7. Thickened gear enhance strength, that can effectively protect the internal structure.
8. Upper and lower hooks are embedded designed to ensure that the safety latch is more flexible, easily to operate, and more importantly, to prevent from being out of loads
9. Hand wheel cover with special curl edge ensures the chain working smoothly without block during hand chains inclined or horizontally pulled.
Our advantages
1. Provide OEM service.
2. We have our own brand of chain hoist: POLYTEX
3. The same quality product with the best price.
4. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification
| Model | Rated load (Ton) | Standard Lift (m) | Test Load (Ton) | Efforts Required at Capacity (N) | Dia. of Load Chain (mm) | No. of Load Chains | Major Dimensions(approx)(mm) | Net Weight (kg) | Extra Weight/ Mtr of Extra Lift(kg) | |||||||
| A | B | C | D | S | T | U | V | |||||||||
| TP-50A | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 135 | 124 | 288 | 20 | 35 | 17 | 22 | 73 | 7 | 1.5 |
| TP-100A | 1 | 2.5 | 1.5 | 304 | 6 | 1 | 160 | 137 | 334 | 25 | 40 | 21 | 28 | 89 | 10.5 | 1.8 |
| TP-150A | 1.5 | 2.5 | 2.25 | 395 | 8 | 1 | 195 | 143 | 415 | 35 | 45 | 25 | 34 | 100 | 15.5 | 2 |
| TP-200A | 2 | 2.5 | 3 | 330 | 6 | 2 | 160 | 137 | 459 | 35 | 51 | 29 | 36 | 115 | 17 | 2.7 |
| TP-300A | 3 | 3 | 4.5 | 402 | 8 | 2 | 195 | 143 | 536 | 36 | 55 | 32 | 47 | 135 | 23 | 3.2 |
| TP-500A | 5 | 3 | 7.5 | 415 | 10 | 2 | 255 | 173 | 660 | 46 | 65 | 42 | 57 | 158 | 39 | 5.3 |
| TP-1000A | 10 | 3 | 12.5 | 428 | 10 | 4 | 395 | 173 | 738 | 55 | 80 | 40 | 61 | 215 | 69 | 9.8 |
| TP-2000A | 20 | 3 | 25 | 428x2 | 10 | 8 | 650 | 195 | 1002 | 80 | 105 | 60 | 92 | 285 | 162 | 19.8 |
| TP-3000A | 30 | 3 | 37.5 | 442x2 | 10 | 12 | 710 | 398 | 1050 | 82 | 105 | 65 | 98 | 285 | 237 | 23.9 |
Special Features of TOPLIFT Chain Block TP-A
High Standard for Details
The chain block with high quality parts, includes double brakes, precise gear, G80 chain and high quality hook.
Real Shoot of Parts
The picture shows the real shoot of parts: forged shell, high-strength gear and other precise parts.
Packaging
The chain block is packed with carton box, wooden case or customized package.
Product Test Equipment
Before the product leaves the factory, it will pass strict testing.
Factory Environment
We strictly control every step in order to bring the best products to our customers.
FAQ
1.How about after-sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing, our chain block will be sent to inspection center for checking. And we take detailed pictures for each hoist before packing. You can offer our serial Number and then know the details.
3.How about the spare parts?
We manufactures 60% spare parts in our own factory to ensure high quality, and the other 40% spare parts from our long term supplier. Before stocking in warehouse, we have strict inspection for each part.
4.If it is warranty?
We can provide parts replacement service. 1 years service for electric parts, and 2 years for mechanical parts.
