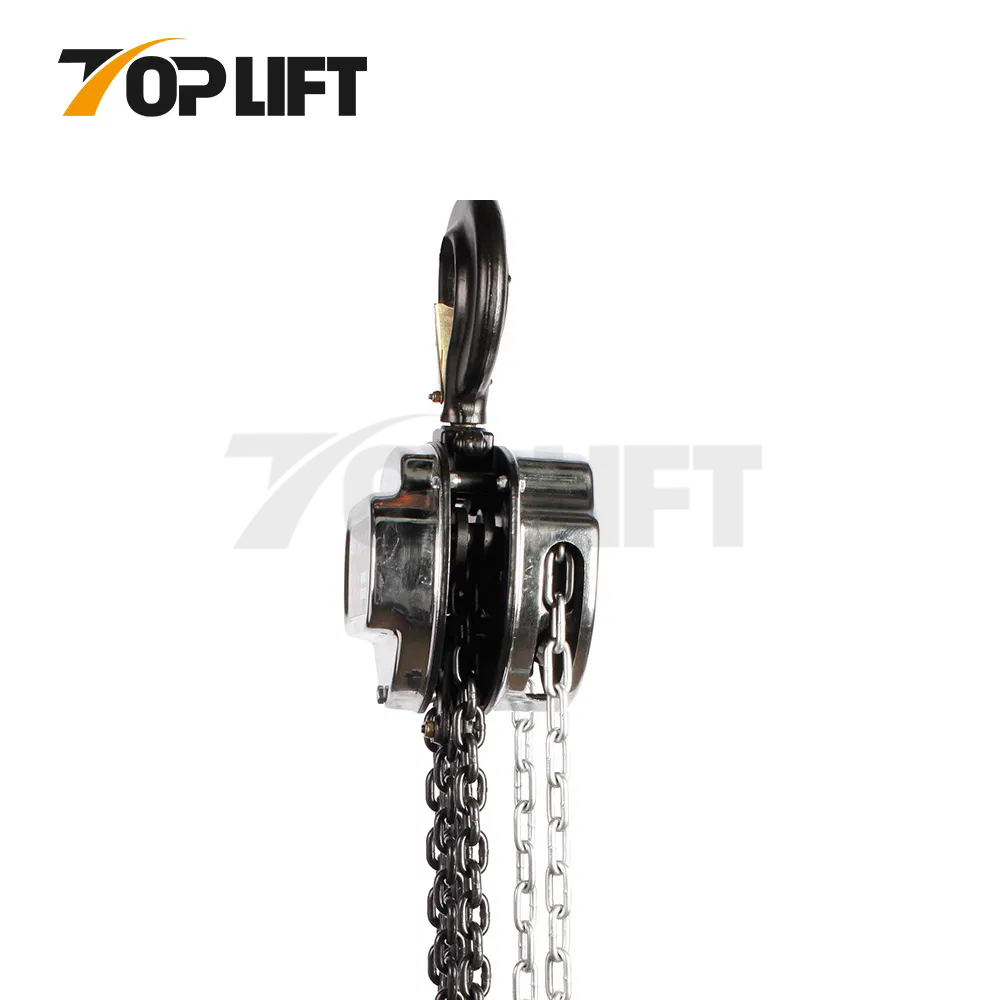

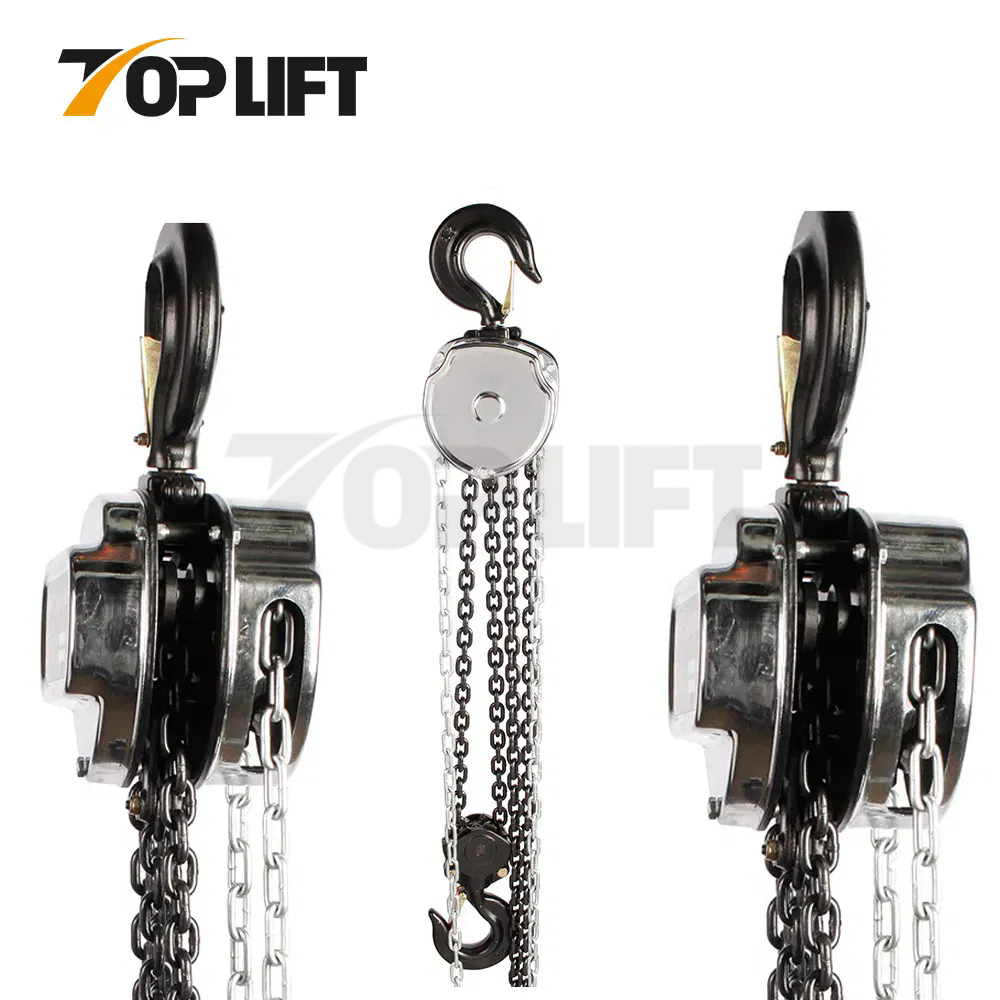

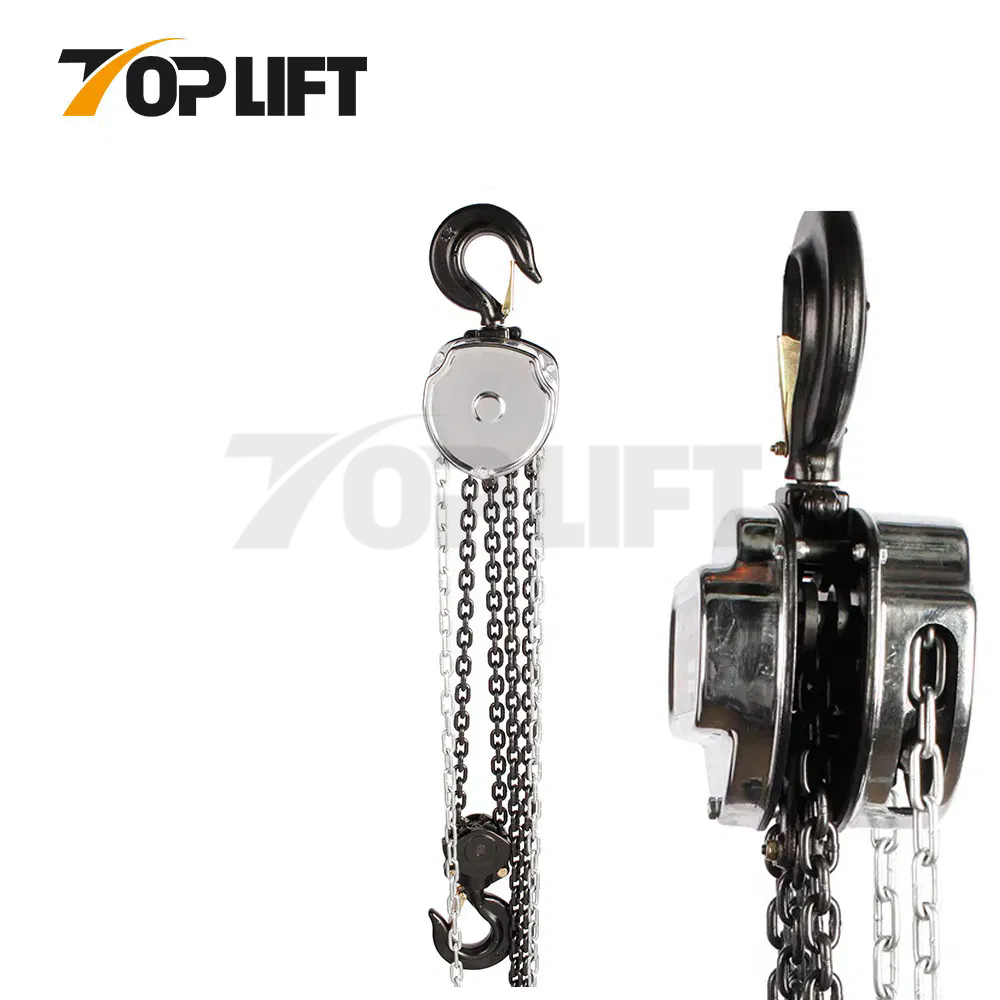

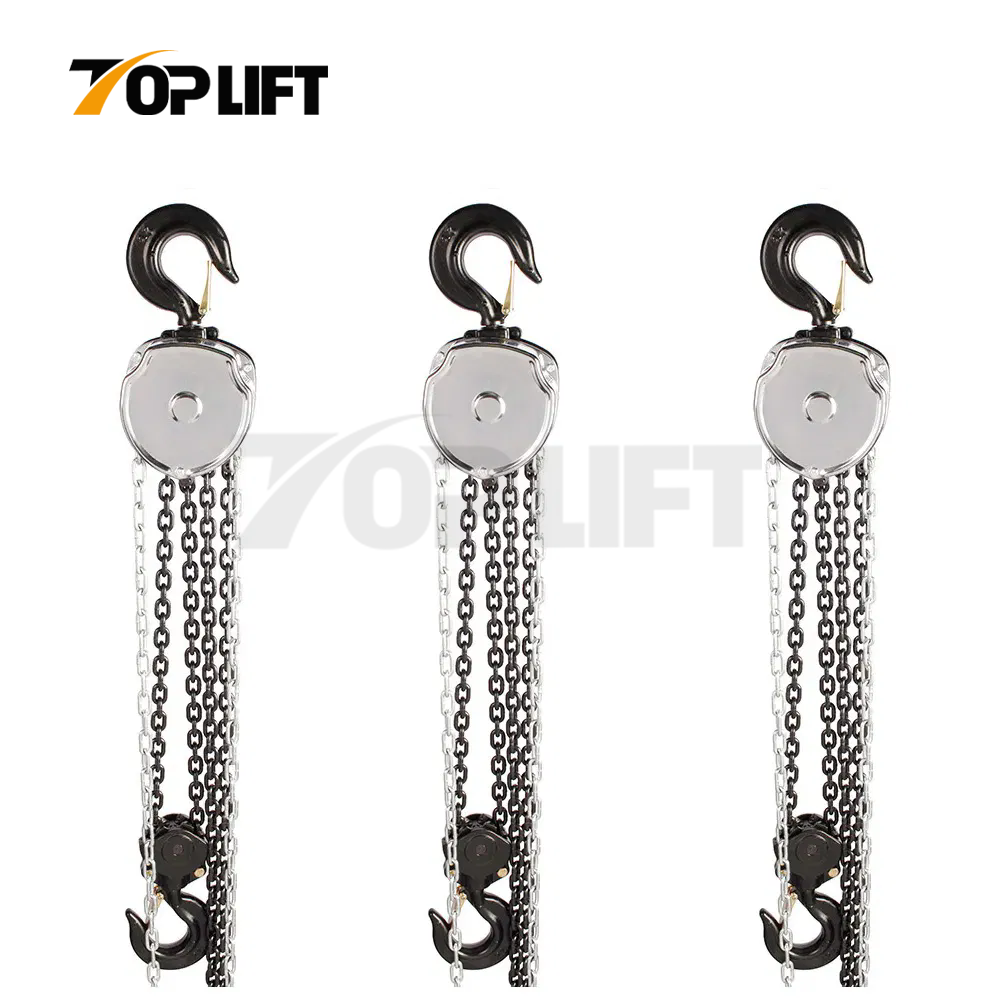

TP-HSZ-J Mechanical Hand Lift Movement Chain Block with G80 Load Chain
Features
apacity: Lifting capacity ranges from 0.5T to 30T, suitable for various lifting needs.
Efficiency: Efficient gear assembly ensures smooth operation and reduced effort.
Safety: Drop-forged hooks and holders guarantee top-notch safety and durability.
Durability: Lightweight steel body with a durable powder coat for long-lasting performance.
Strength: G80 load chain made of heat-treated alloy steel offers exceptional strength
Our advantages
1. Provide OEM service.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification
| Model | Rated Load (Ton) | Standard Lift (m) | Test Load (Ton) | Efforts Requiredat Capacity (N) | Diameter of Load Chain (mm) | No. of Load Chains | Major Dimensions(approx) (mm) | Net Weight (kg) | Extra Weight Per Meter of extra Lift (kg) | |||
| A | B | C | D | |||||||||
| HSZ-0.5J | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 125 | 111 | 260 | 28 | 8 | 1.5 |
| HSZ-1J | 1 | 2.5 | 1.5 | 314 | 6 | 1 | 147 | 126 | 275 | 32 | 11 | 1.7 |
| HSZ-1.5J | 1.5 | 2.5 | 2.25 | 343 | 8 | 1 | 183 | 141 | 345 | 38 | 16 | 2.4 |
| HSZ-2J | 2 | 2.5 | 3 | 318 | 6 | 2 | 147 | 126 | 396 | 40 | 16 | 2.5 |
| HSZ-3J | 3 | 3 | 4.5 | 347 | 8 | 2 | 183 | 141 | 486 | 44 | 25 | 3.7 |
| HSZ-5J | 5 | 3 | 7.5 | 382 | 10 | 2 | 215 | 163 | 616 | 50 | 35 | 5.3 |
| HSZ-10J | 10 | 3 | 12.5 | 390 | 10 | 4 | 365 | 163 | 700 | 64 | 69 | 9.7 |
| HSZ-20J | 20 | 3 | 25 | 390 | 10 | 8 | 595 | 191 | 1000 | 82 | 155 | 19.4 |
| HSZ-30J | 30 | 3 | 37.5 | 394 | 10 | 10 | 700 | 394 | 1050 | 82 | 233 | 23.9 |
Packaging
The chain block is packed with carton box, wooden case or customized package.
Product Test Equipment
Before the product leaves the factory, it will pass strict testing.
Factory Environment
We strictly control every step in order to bring the best products to our customers.
FAQ
1.How about after-sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing, our chain block will be sent to inspection center for checking. And we take detailed pictures for each hoist before packing. You can offer our serial Number and then know the details.
3.How about the spare parts?
We manufactures 60% spare parts in our own factory to ensure high quality, and the other 40% spare parts from our long term supplier. Before stocking in warehouse, we have strict inspection for each part.
4.If it is warranty?
We can provide parts replacement service. 1 years service for electric parts, and 2 years for mechanical parts.
