TP-HSZ-VD
TOPLIFT
| Quantity: | |
|---|---|

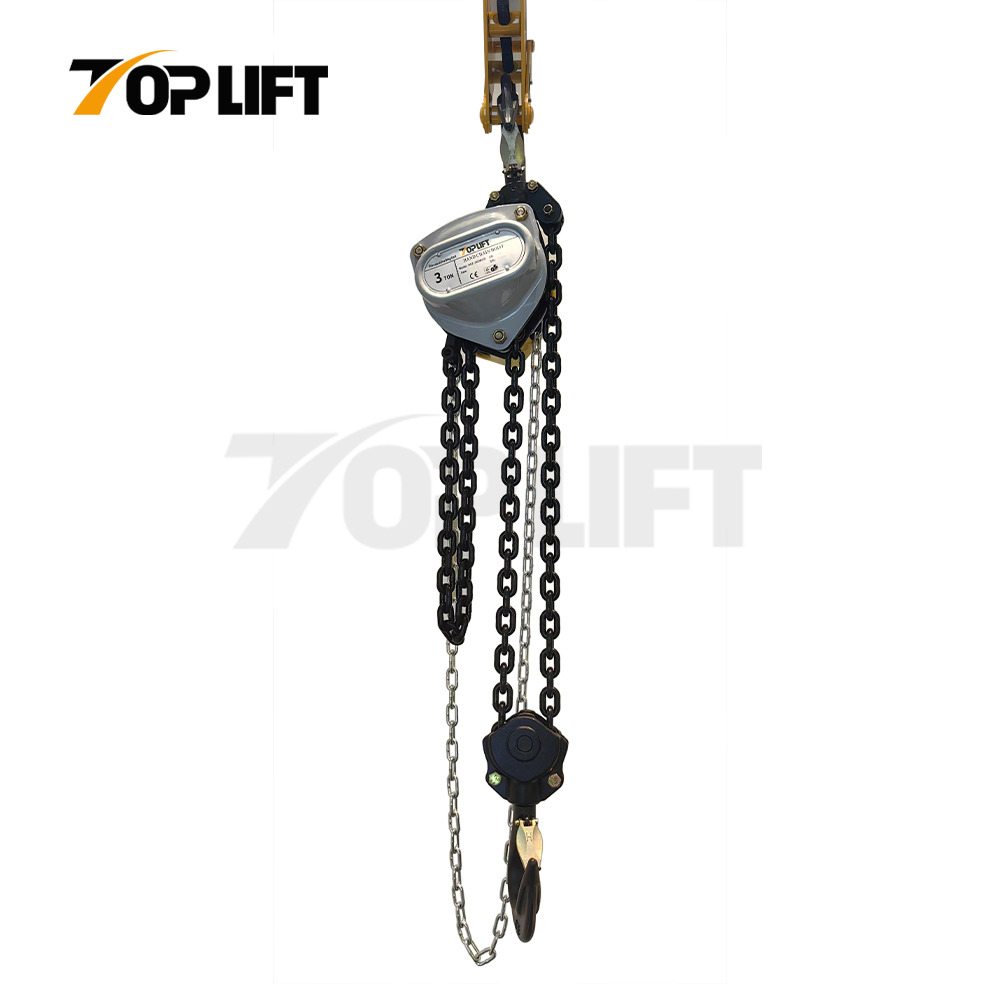

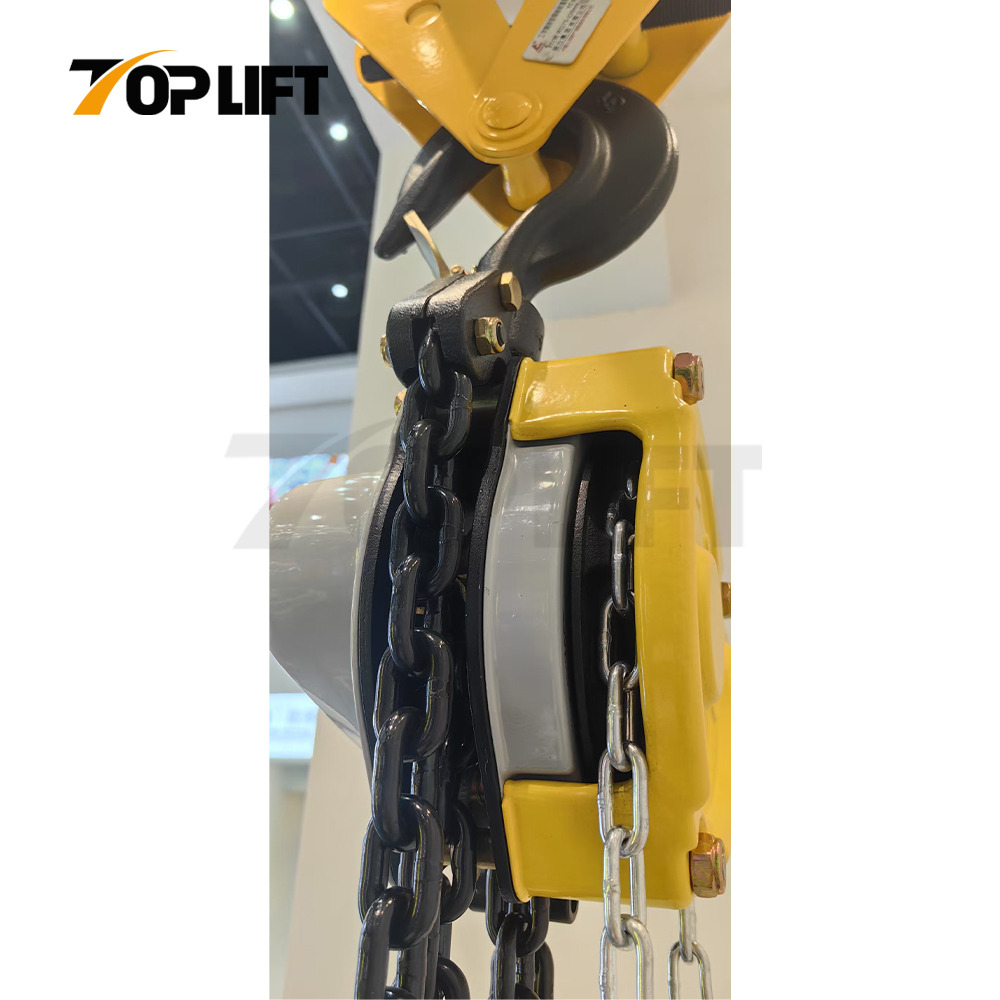

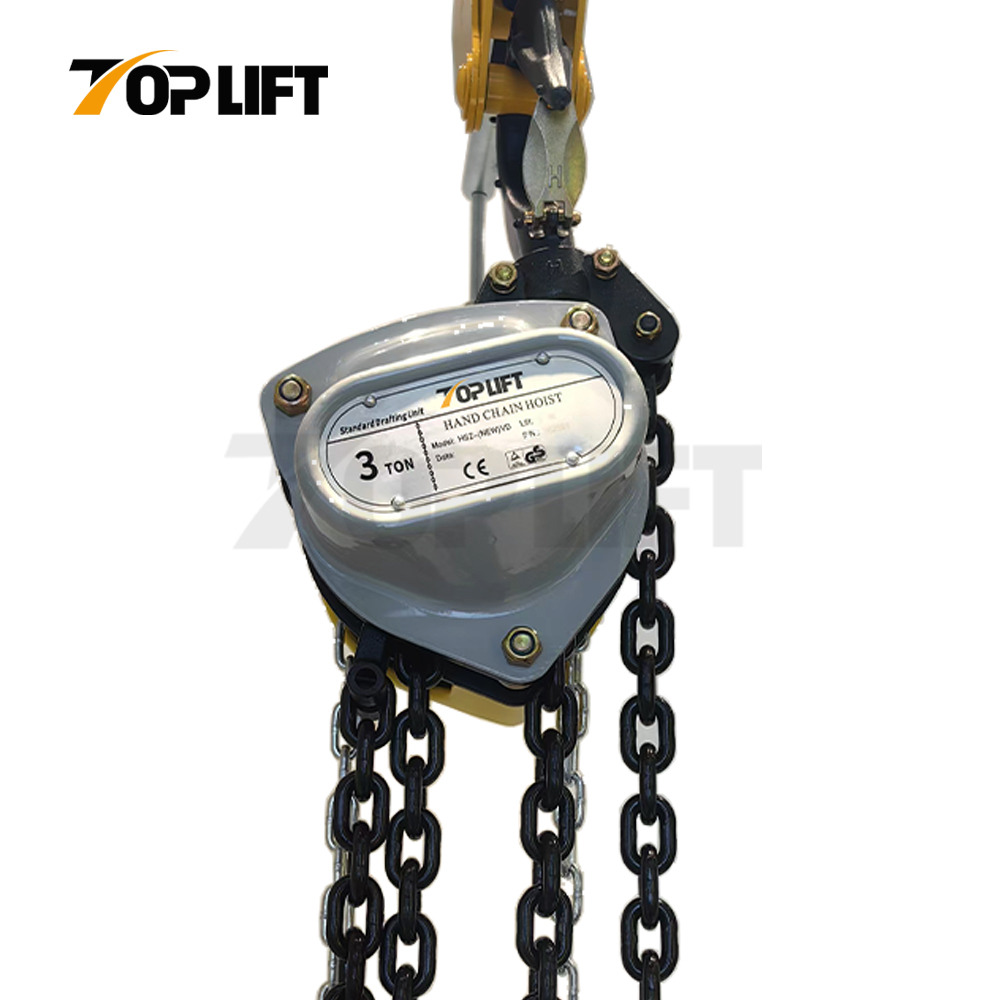

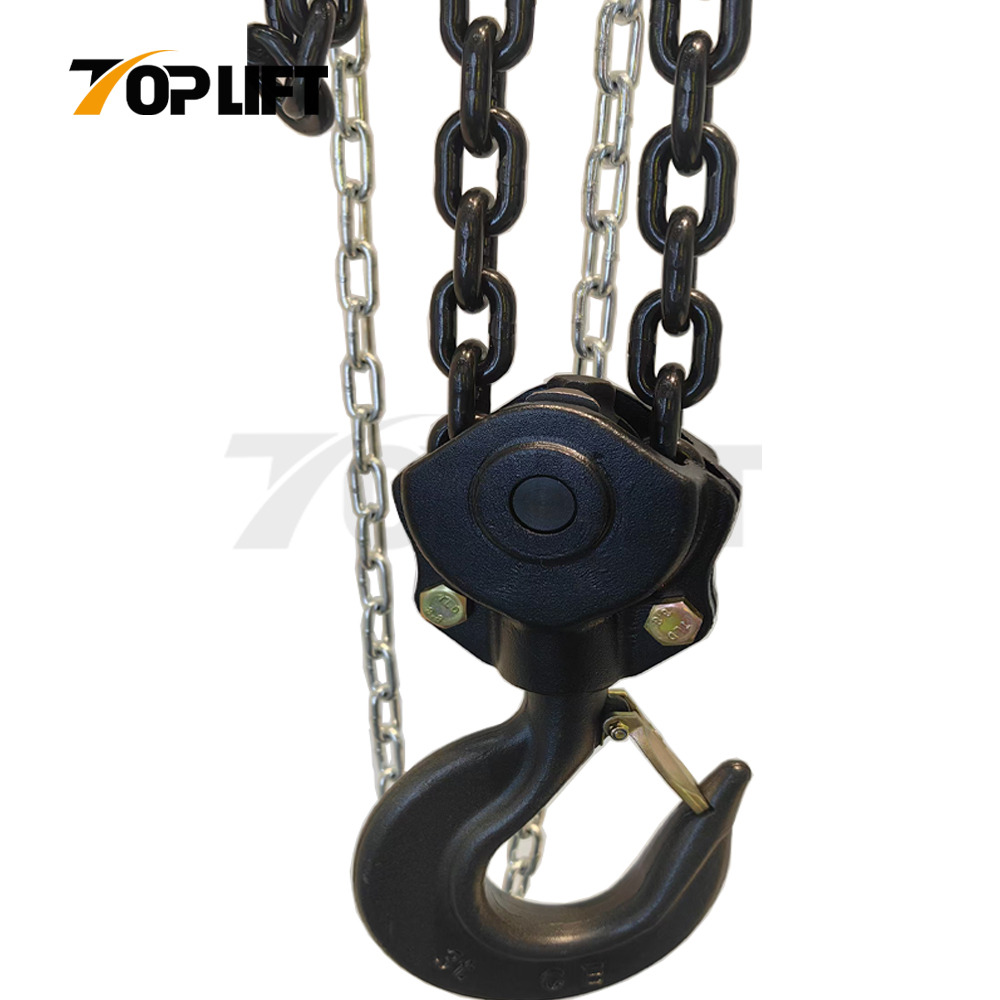

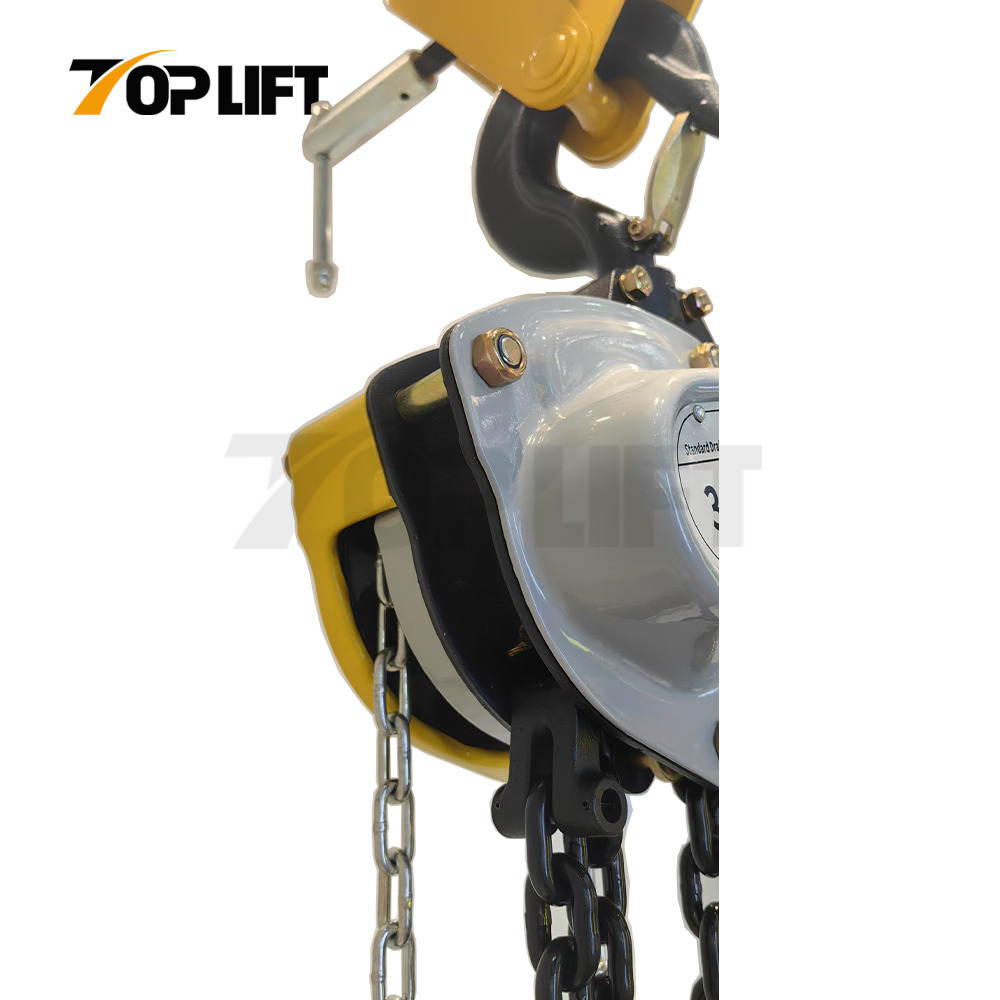

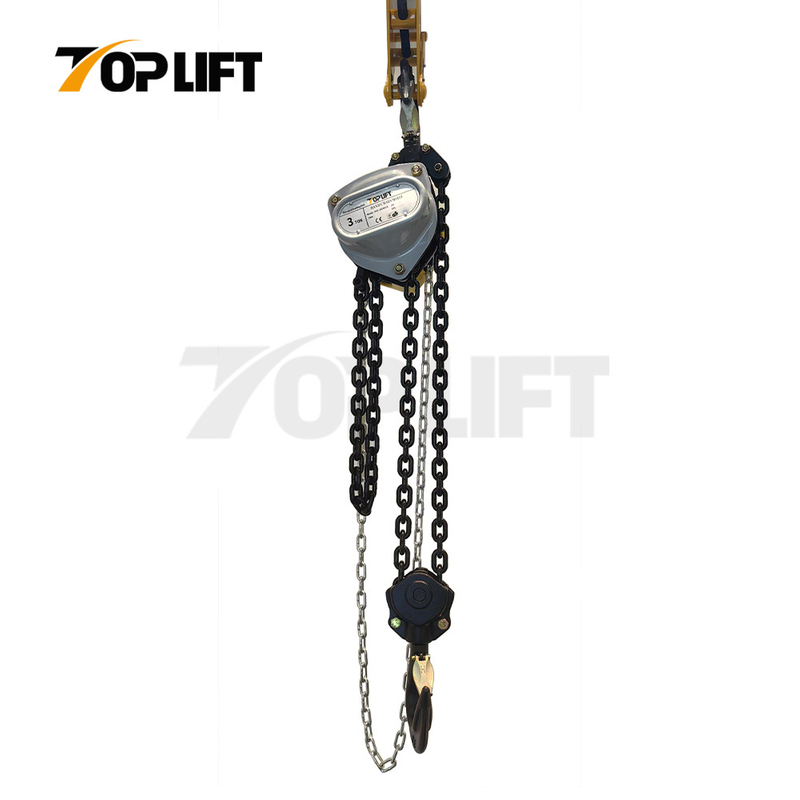

HSZ New VD Type Manual Chain Hoist
The upgraded VD-type triangle manual hoist is engineered with exceptional lifting power and performance complemented by exquisite and meticulous craftsmanship, ensuring unparalleled durability and reliability in the most challenging applications.
Key Features:

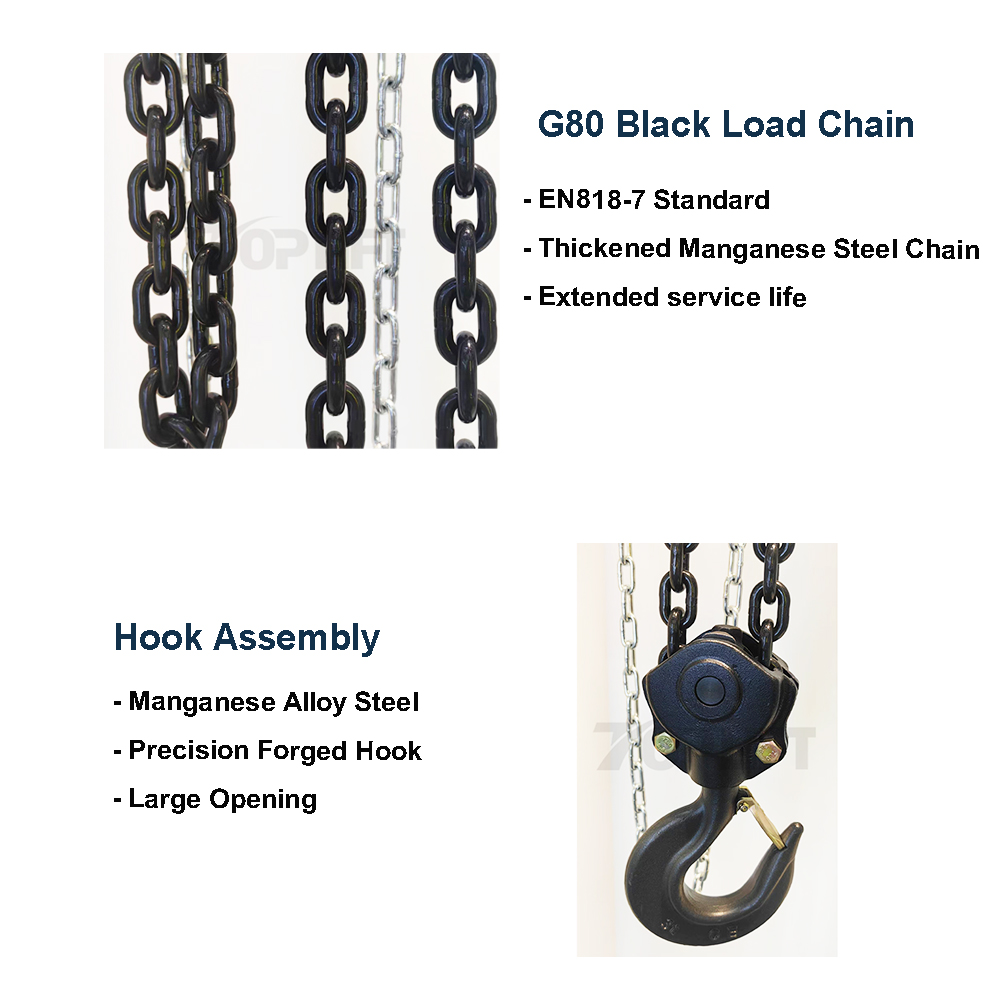

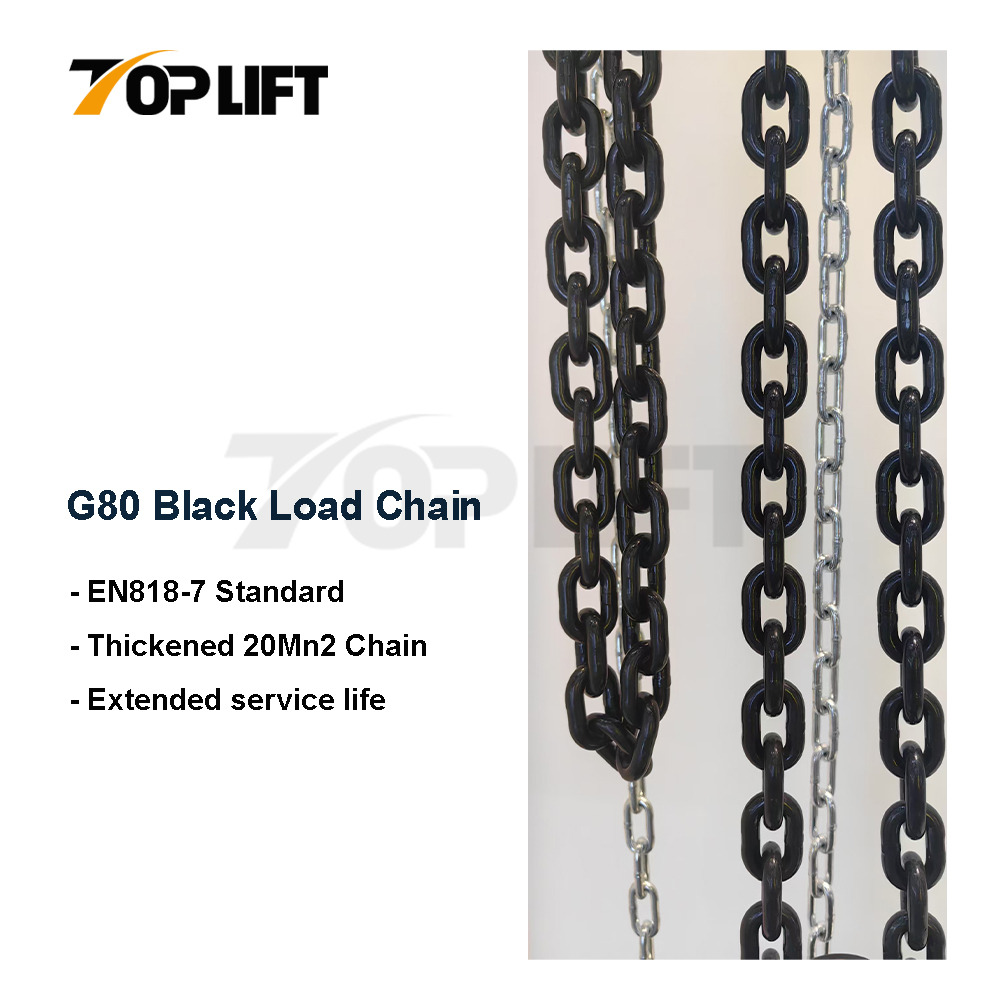

Expertly equipped with a national standard G80 manganese steel thickened chain, providing outstanding wear resistance and an excellent high load-bearing capacity.
Boasts a robust double ratchet brake system that ensures precise and secure braking for optimal safety.

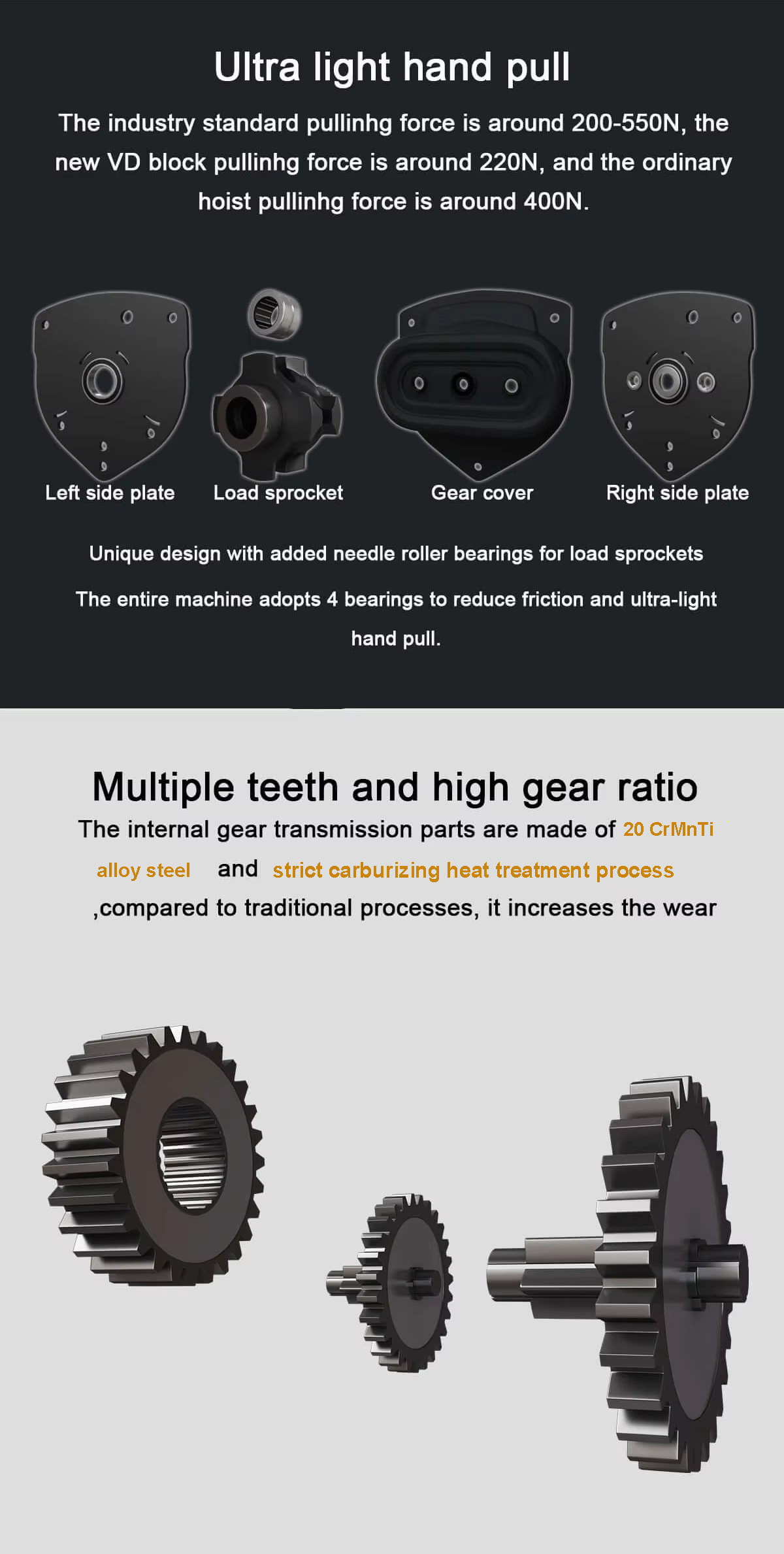

Thoughtfully designed with a needle bearing chain wheel, guaranteeing smooth chain movement without the risk of jamming for improved efficiency.
Perfectly suited for industrial lifting tasks, this hoist offers unrivaled strength, superior safety, and enduring performance.
| Brand | TOPLIFT |
| Model | HSZ-NEW VD Chain Block |
| Bearing | 0.25T-50T |
| Chain Length | 3M/6M/9M/12M |
| Shell Material | Alloy Steel Pressing |
| Hook Materrial | Allloy Steel Hook |
| Package | Carton/Wooden Box |
TECHNICAL PARAMETER:
Capacity /T | Standard Lift /M | Running Test Load /KN | Effort Required to Lift Rated Load /N | Strands of Load Chain | Dia of Load Chain /MM | Net Weight /KG | Extra Weight per meter of Extra Lift/KG |
| 0.25 | 2.5 | 3.1 | 190 | 1 | 4 | 4.2 | 1 |
| 0.5 | 2.5 | 6.3 | 262 | 1 | 6 | 9.2 | 1.7 |
| 1 | 2.5 | 12.5 | 265 | 1 | 6 | 11.3 | 1.7 |
| 1.5 | 2.5 | 18.8 | 265 | 1 | 7.1 | 15.6 | 2 |
| 2 | 3 | 25 | 272 | 1 | 8 | 19 | 2.3 |
| 3 | 3 | 37.5 | 320 | 1 | 10 | 28 | 3.1 |
| 3 | 3 | 37.5 | 280 | 2 | 7.1 | 23.4 | 3.1 |
| 5 | 3 | 62.5 | 358 | 2 | 10 | 43.2 | 5.3 |
| 10 | 3 | 125 | 370 | 4 | 10 | 76.8 | 9.8 |
| 20 | 3 | 250 | 370*2 | 8 | 10 | 160 | 19.6 |
| 30 | 3 | 375 | 370*2 | 12 | 10 | 230 | 28.3 |
| 50 | 3 | 625 | 370*2 | 22 | 10 | 1085 | 50 |
Attention: The diamensions are measured manually. For more details, please consult our customer service.
Details
Our Company
FAQ
Q: Why choose us?
A: Professional technical guidance
B: Years of production experience
C: Support for customization and design
D: Fast delivery time!
F: Special technology on print.
Q: How long can I get the products?
A: For the existing sample order, 3-7 working days after payment.
B: For the customized sample order, 7-15 working days after the payment.
C: For bulk, it depends on your order quantity.
Q: Can you help me make my own design?
YES,we can. OEM and ODM are welcomed. You can tell me idea or provide us the drawing draft. We will develop for you.
