TP-500
TOPLIFT
| Quantity: | |
|---|---|

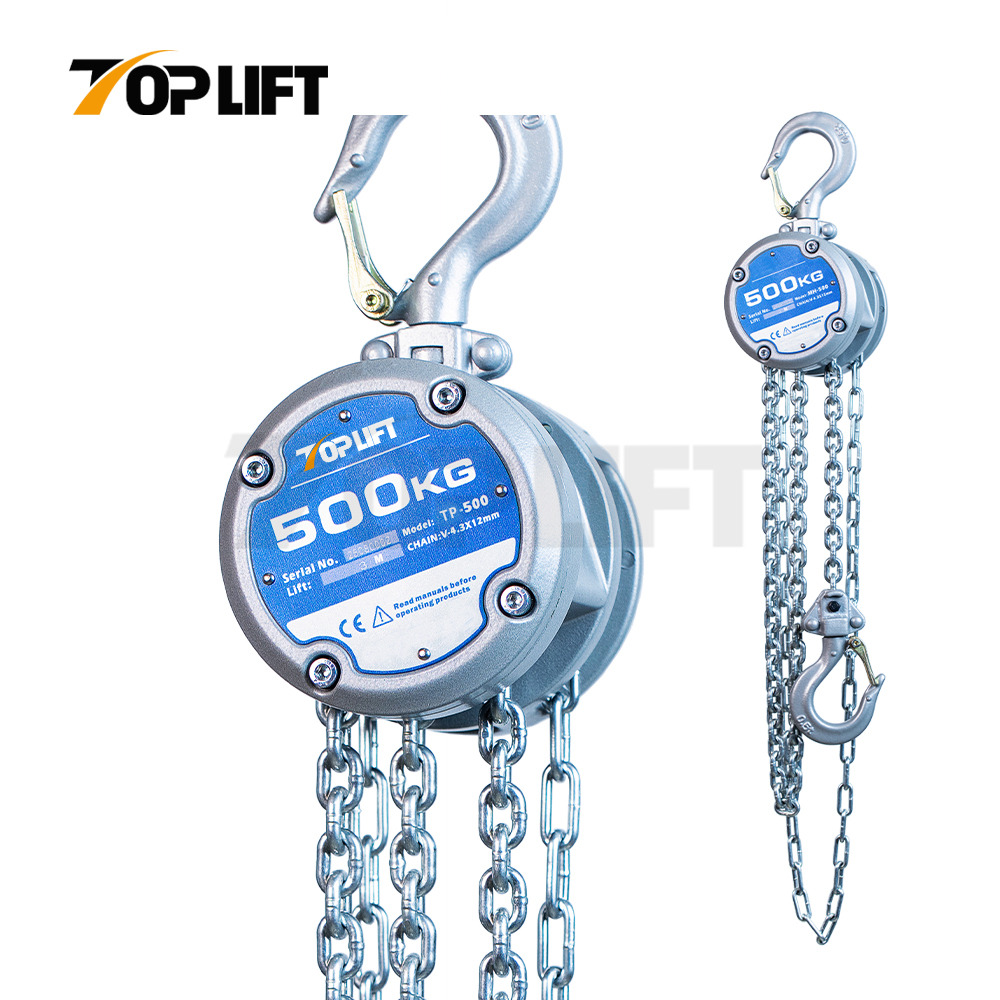

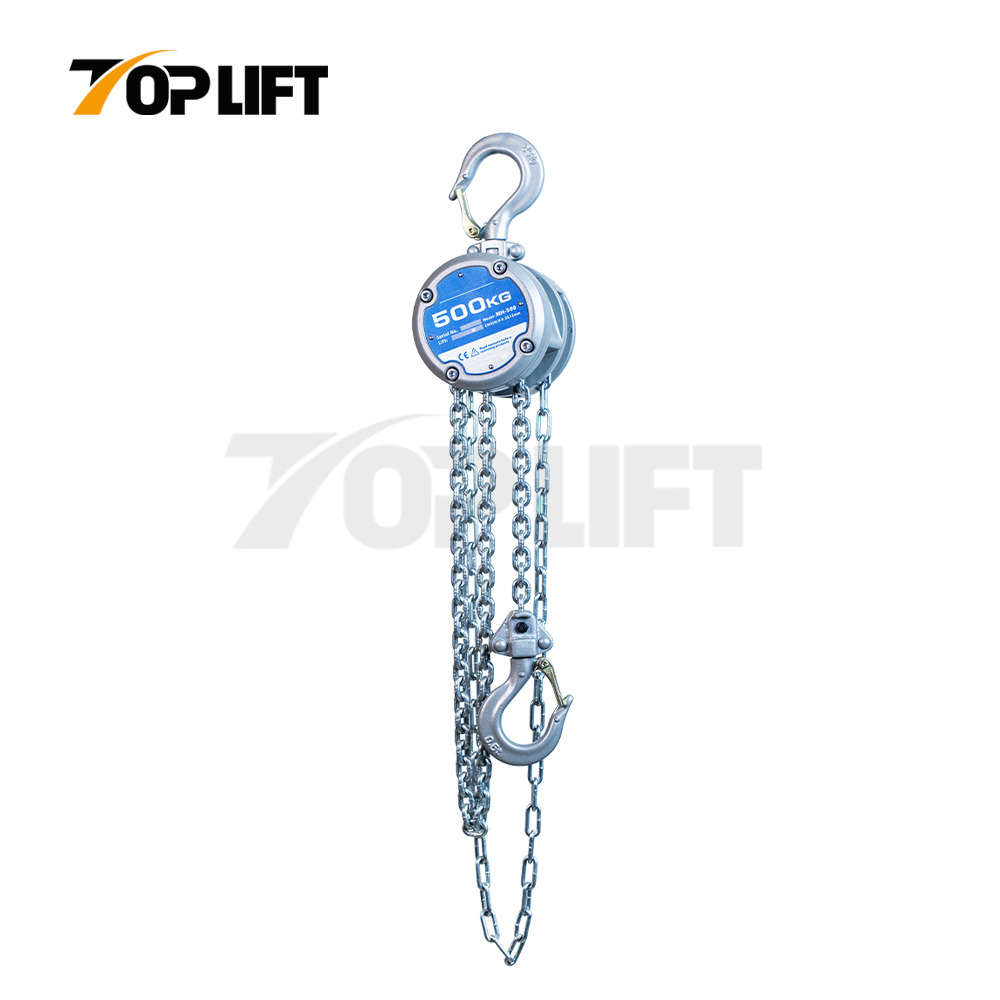

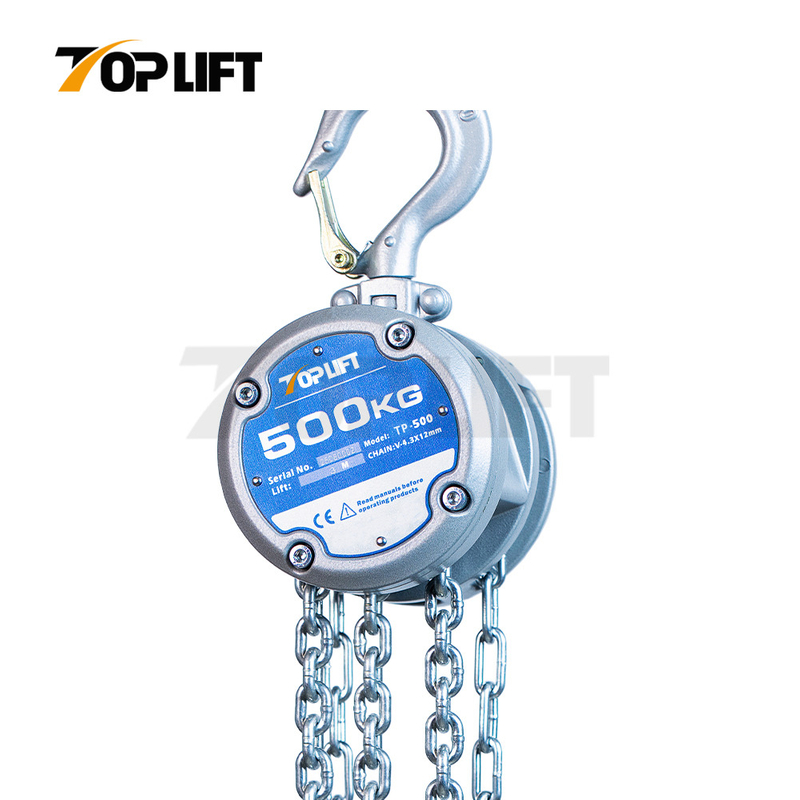

Model TP-500 Compact Chain Block

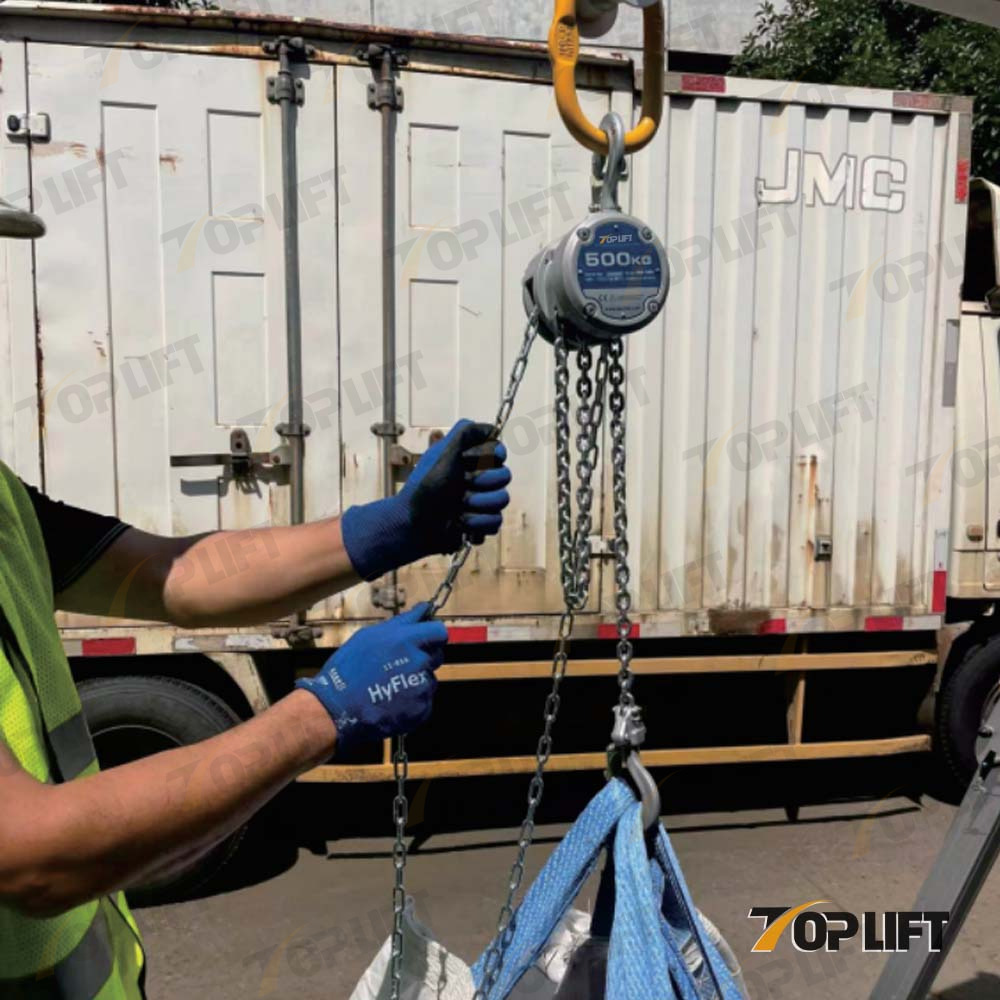

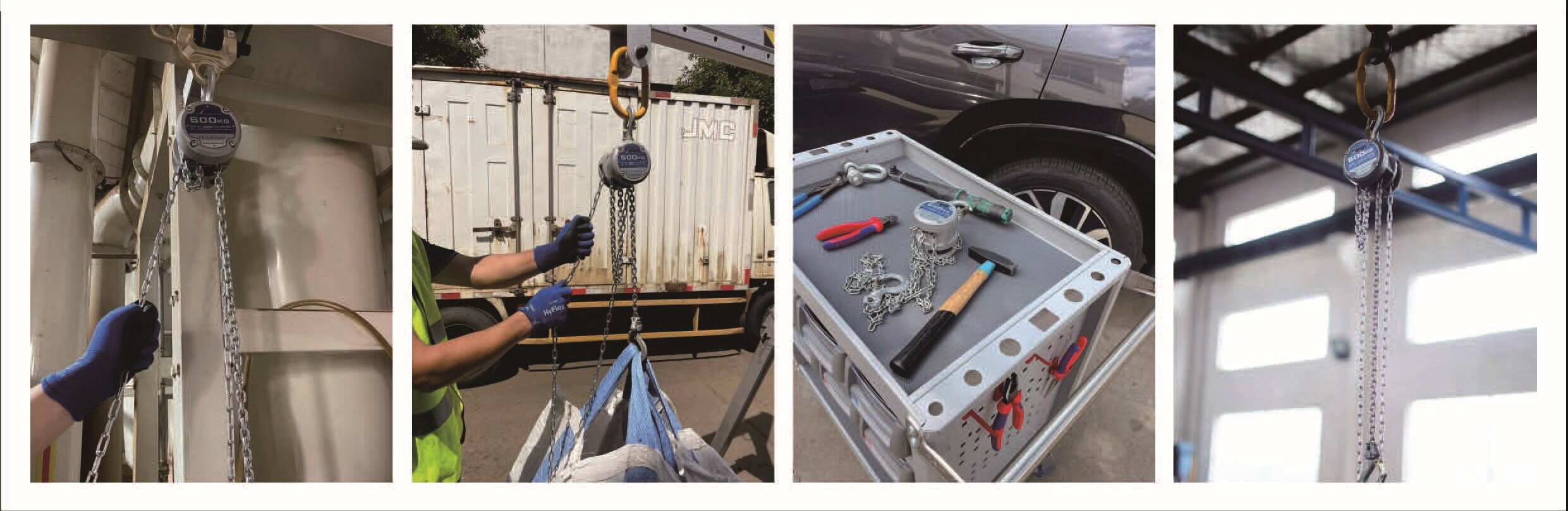

The TP-500 is a lightweight, compact, and user-friendly chain block engineered for safely handling heavy loads. Designed with efficiency and portability in mind, it is widely used across factories, mining operations, docks, warehouses, construction sites, and agriculture for lifting goods and equipment. Its compact design makes it ideal for slinging, hoisting, and lowering tasks in tight spaces.
Features:

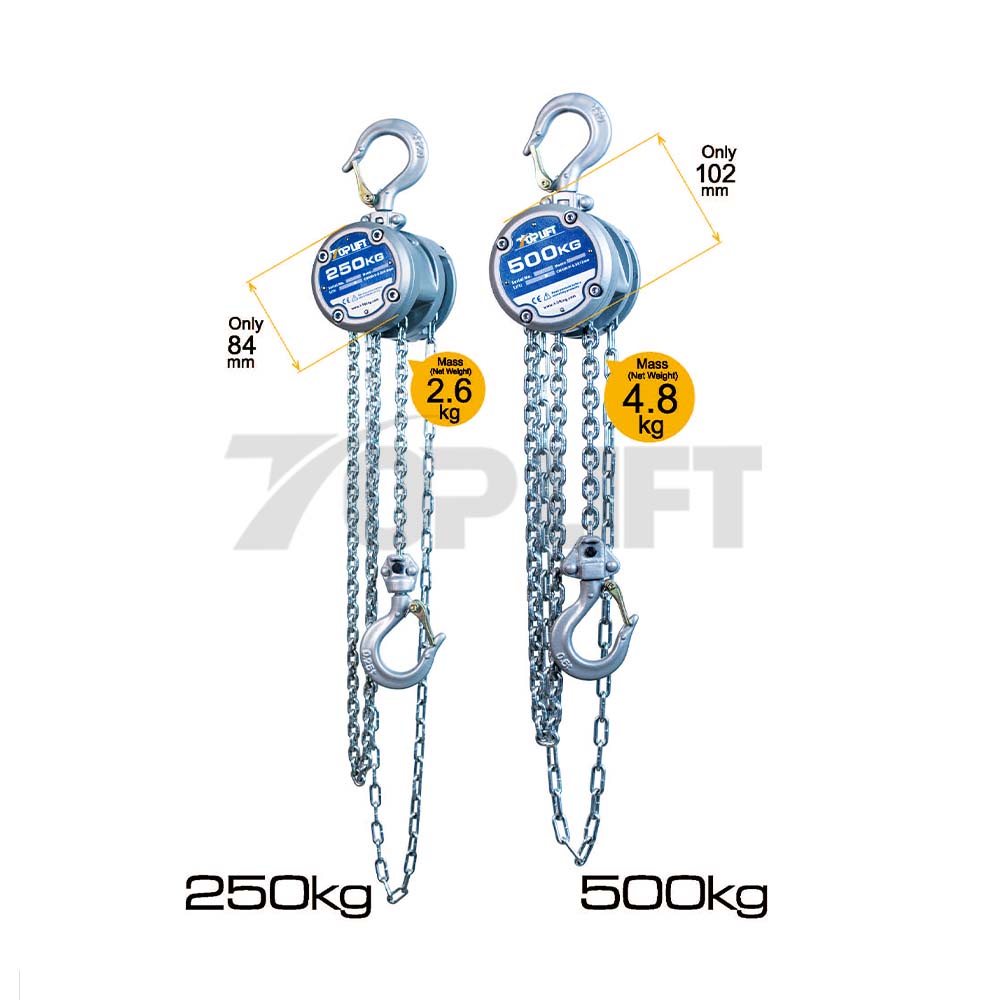

Available in two rated capacities: 250 kg (TP-250) and 500 kg (TP-500).
Highly portable – easy to carry and use anywhere.
Smooth and effortless operation with minimal hand force.
Extra-wide hook openings for greater versatility and easier attachment.
Our advantages
Simplified installation at elevated positions, thanks to wide hook openings for easier connections.
Durable and ergonomic aluminum body that's comfortable to hold and smooth to the touch.
Ultra-compact and lightweight design, ideal for tight workspaces and on-the-go tasks.
Specications
Specification and Dimensions | |||
Type | TP-250 | TP-500 | |
Load Capacity | (kg) | 250 | 500 |
Standard Lifting Height | (m) | 2.5 | 3.0 |
Hand Chain Lengths(Folded) | (m) | 2.5 | 3.0 |
Hand Force Full Load | (daN) | 14.7 | 18.7 |
Pulled Chain for 1m Lift | (m) | 33.8 | 42.8 |
Load Chain Diameter | (mm) | 3.2x9.0 | 4.3x12.0 |
Chain Falls | 1 | 1 | |
Weight | (kg) | 2.6 | 4.8 |
Weight For Additional 1m Lift | (kg) | 0.4 | 0.9 |

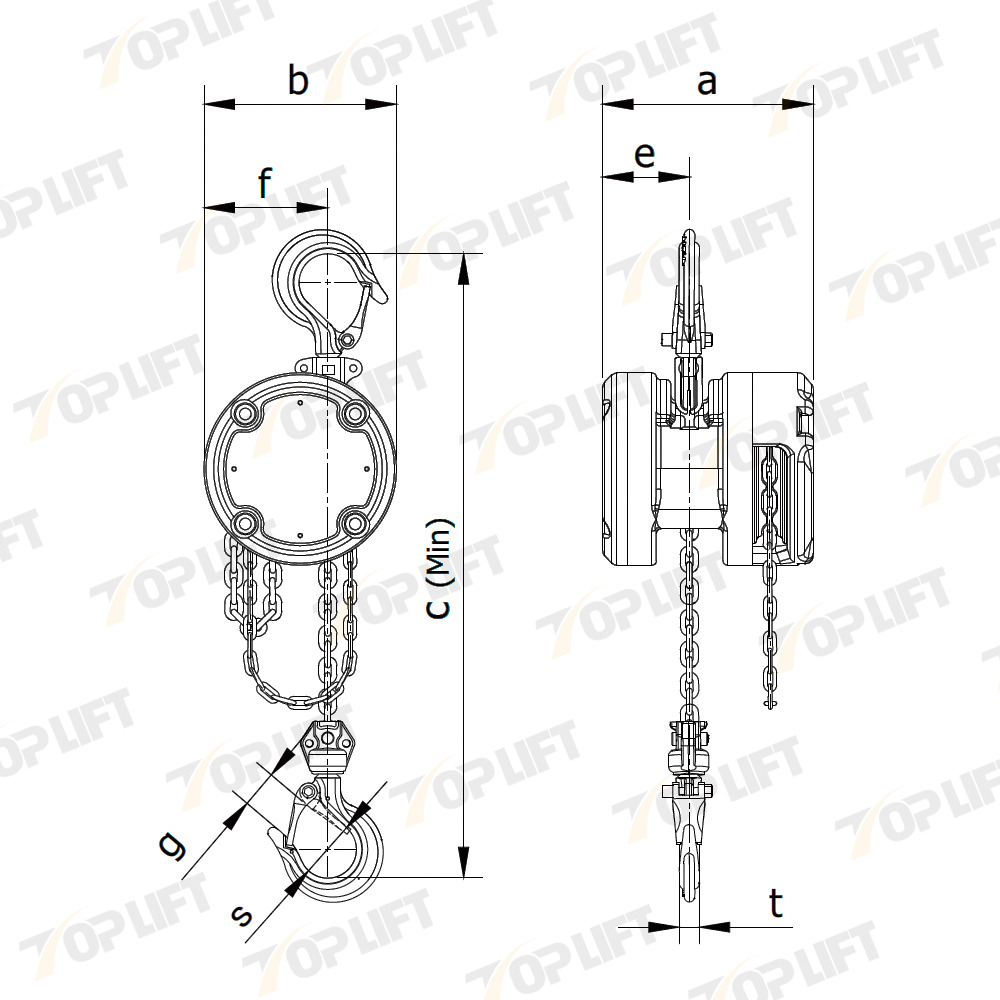

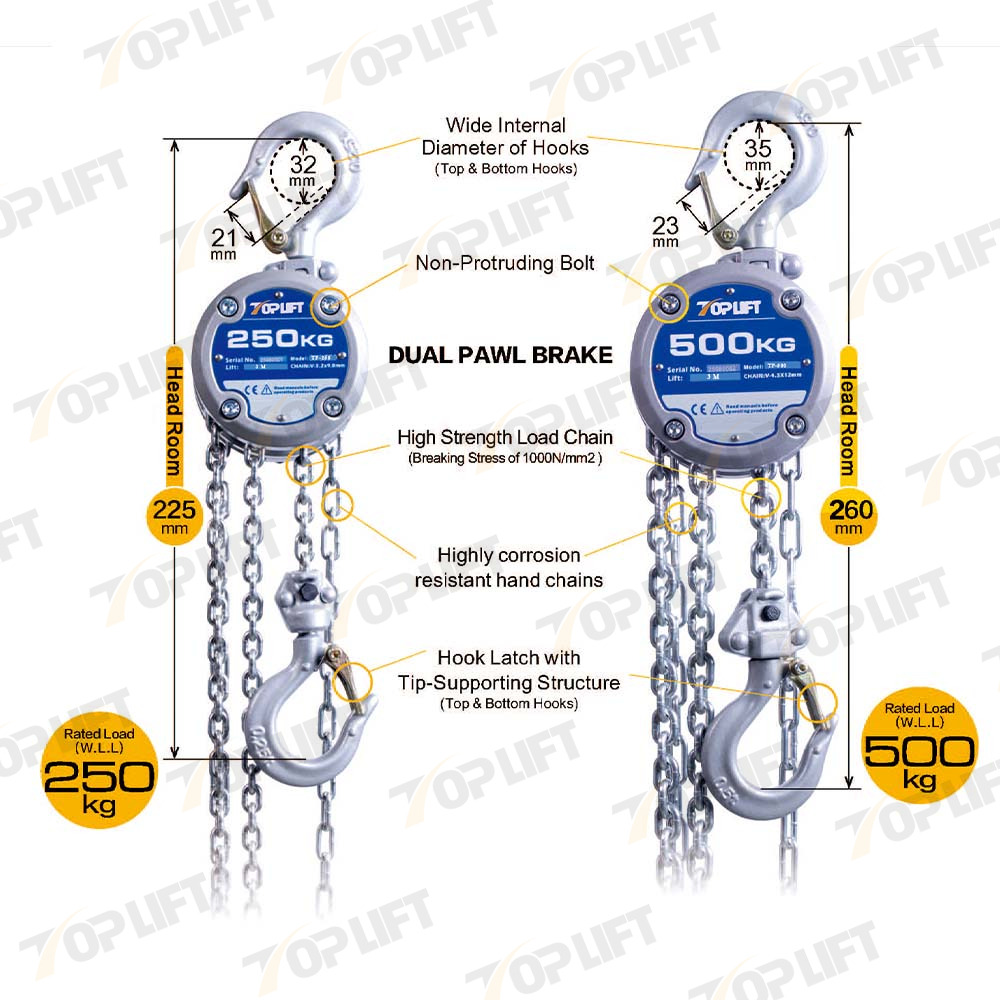

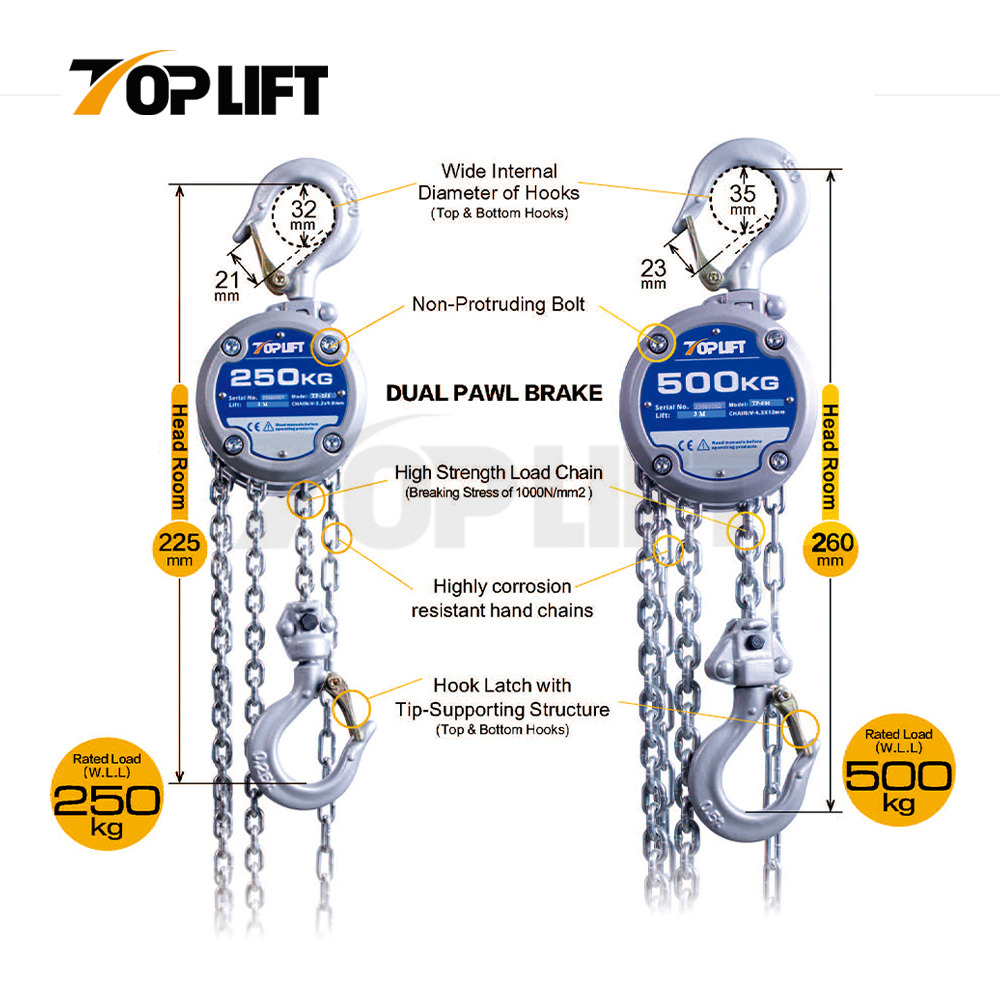

Dimensions (mm) | a | 92 | 106 |
b | 84 | 102 | |
c | 225 | 260 | |
e | 38 | 44 | |
f | 53 | 66 | |
g | 21 | 23 | |
s | 32 | 35 | |
t | 11 | 12.5 | |
Operating Environmental Conditions | |
Operating Temperature Range: | between -40°C and 60°C |
Operating humidity Range: | Use the hoist at under 100%RH. This products can not be used in water. |
Materials: | Standard materials are used. |
Special material such as sparkless materials and asbestos are not used. | |
With regard to the environmental lacal substances, 6 substances defined in the RoHS directives are not contained in this product. | |
Details

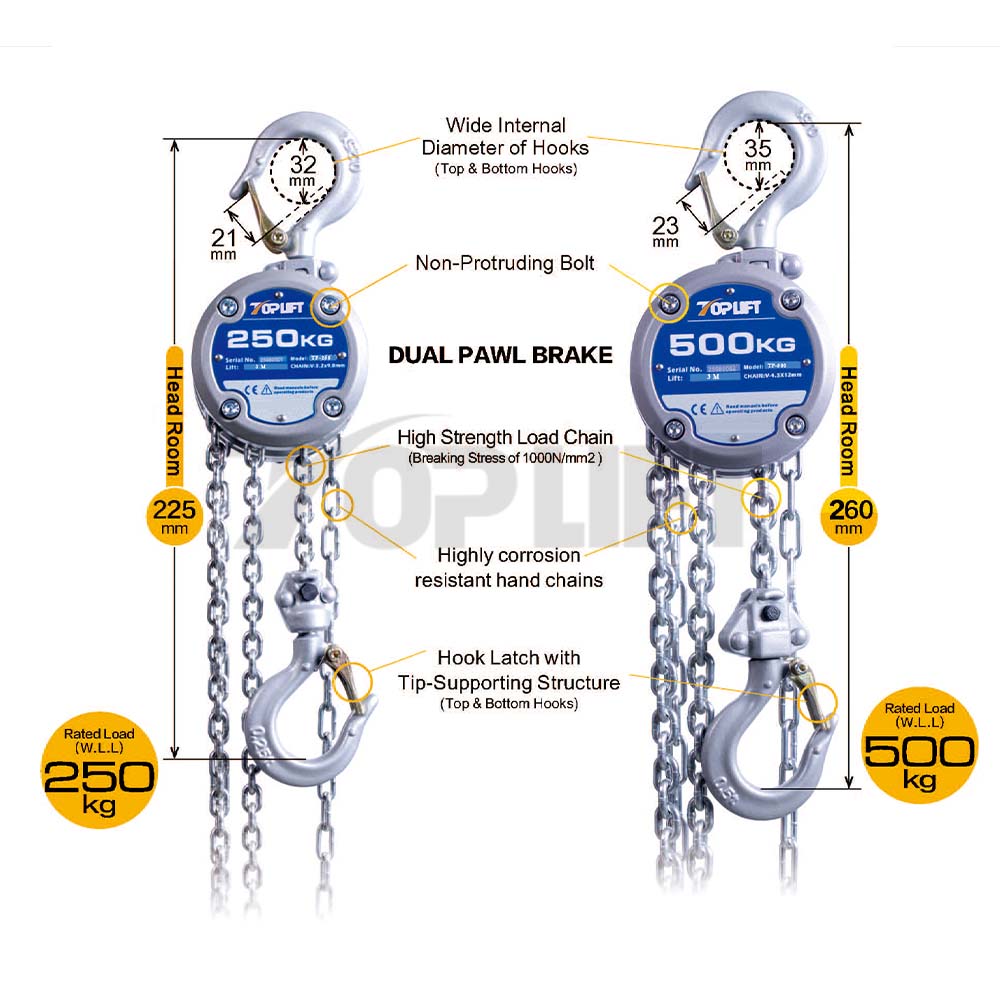

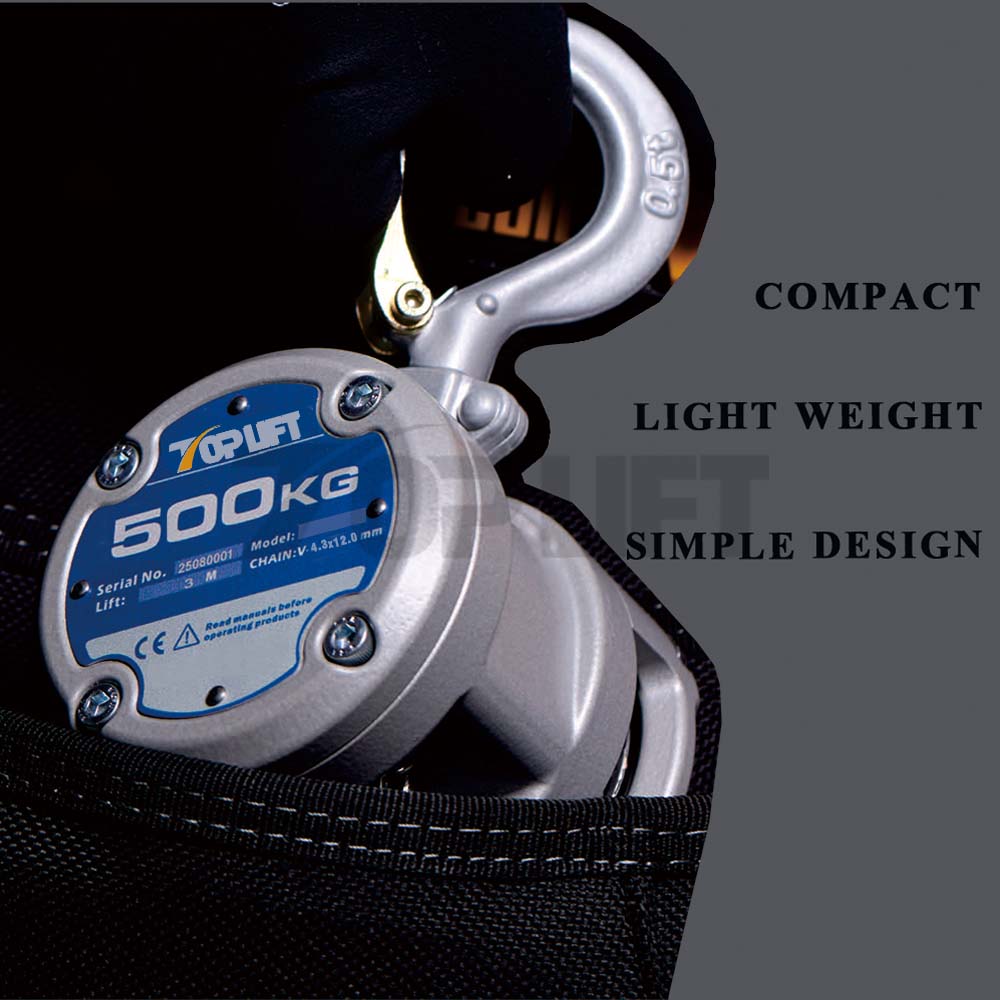

Compact, Light weight and Simple design!
SMALLER AND LIGHTER HOIST
Heavy material just got easier. This Series is 20% lighter, 20% thinner, and offers the smallest head room compared to the closest competitor on the market.
Extremely compact design, perfect for efficient slinging, lifting, and lowering in confined spaces.
Simple to install even at elevated heights, with wide hook openings for quick and secure attachment.
Ergonomically designed aluminum housing—lightweight, smooth, and comfortable to handle.
Packaging
The chain block is packed with carton box, wooden case or customized package.
FAQ
1.How about after-sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?

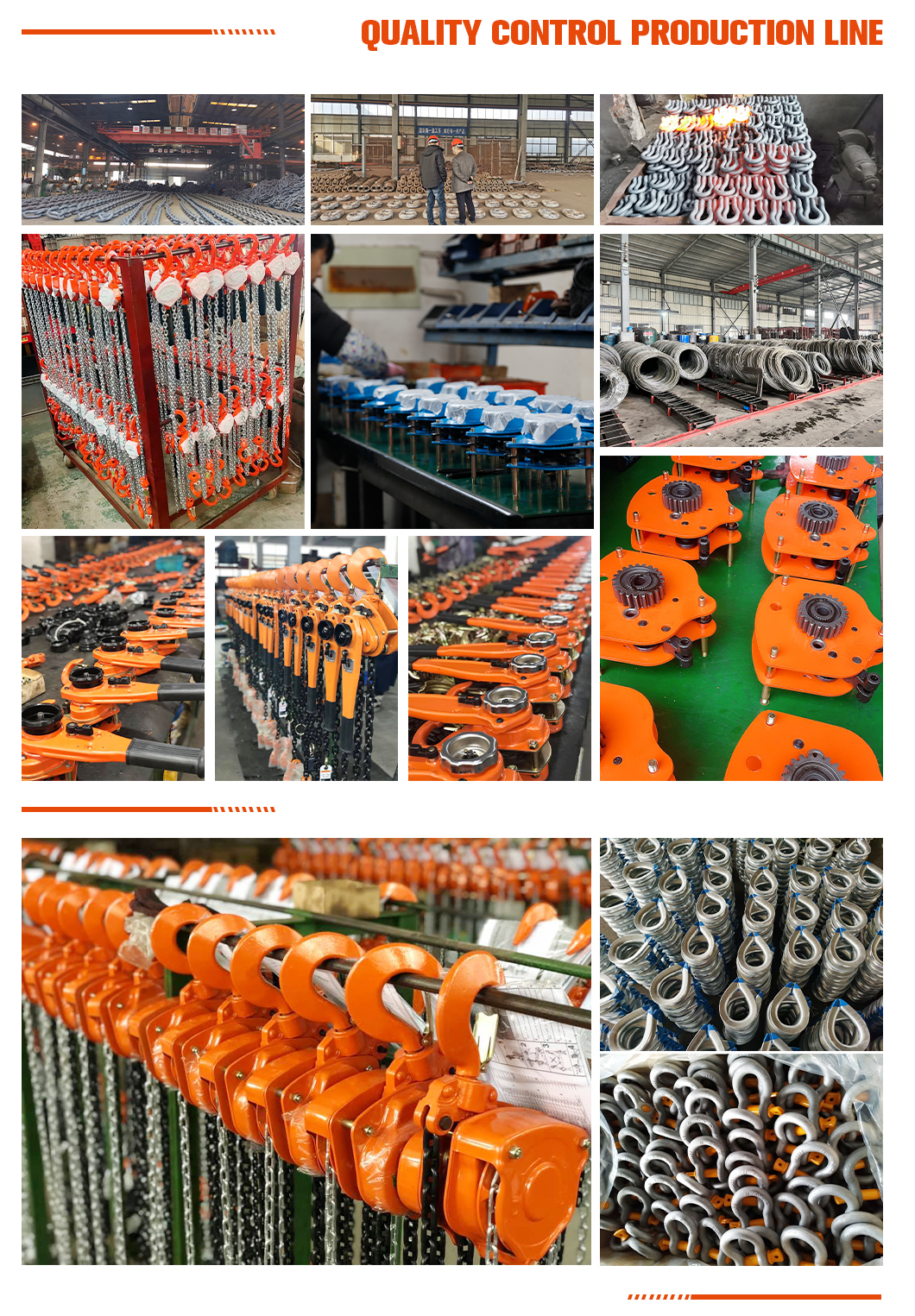

Before packing, our chain block will be sent to inspection center for checking. And we take detailed pictures for each hoist before packing. You can offer our serial Number and then know the details.
3.How about the spare parts?
We manufactures 60% spare parts in our own factory to ensure high quality, and the other 40% spare parts from our long term supplier. Before stocking in warehouse, we have strict inspection for each part.
