TP-HSZ-VD-3.0T
TOPLIFT
| Quantity: | |
|---|---|

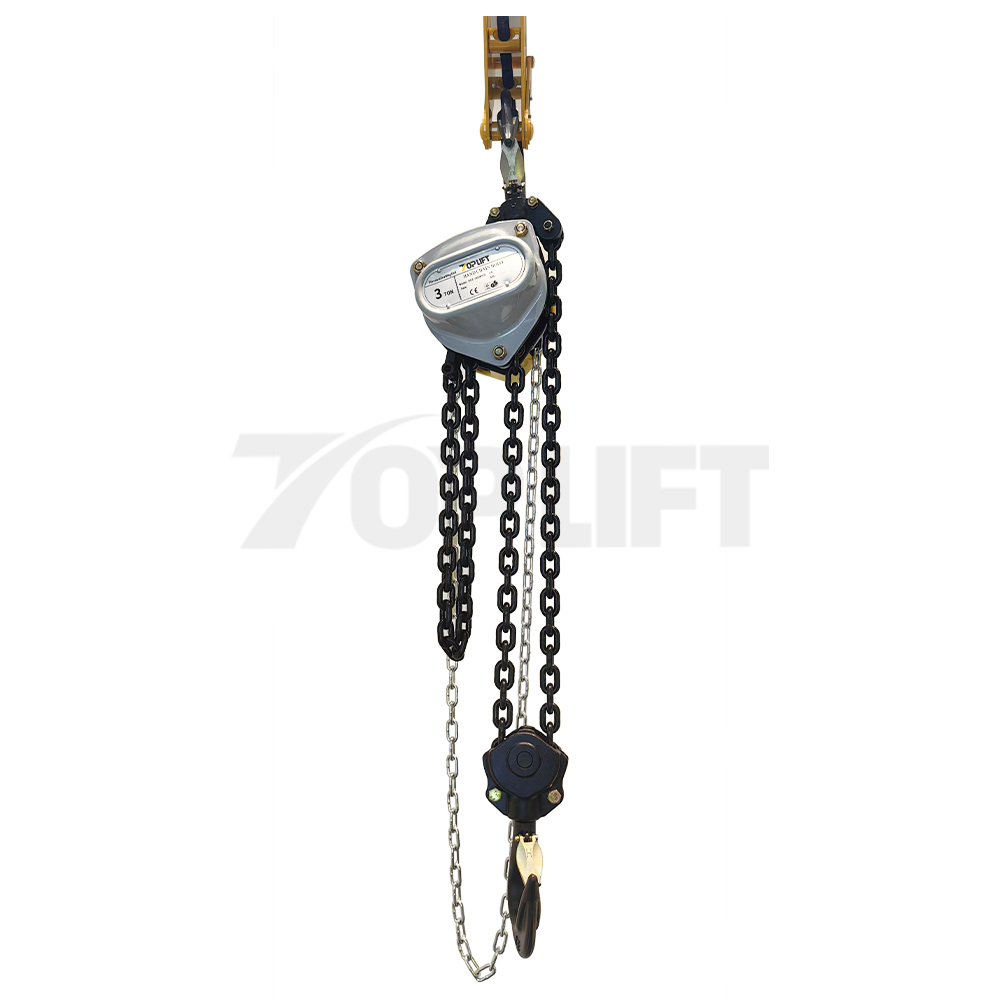

New VD-Type Manual Chain Hoist
Introducing the revamped VD-type triangle manual hoist, a marvel in modern engineering, boasting exceptional lifting power and unmatched performance enhanced by exquisite craftsmanship and meticulous attention to detail, ensuring unparalleled durability and unwavering reliability, even in the most demanding applications.
Key Features:

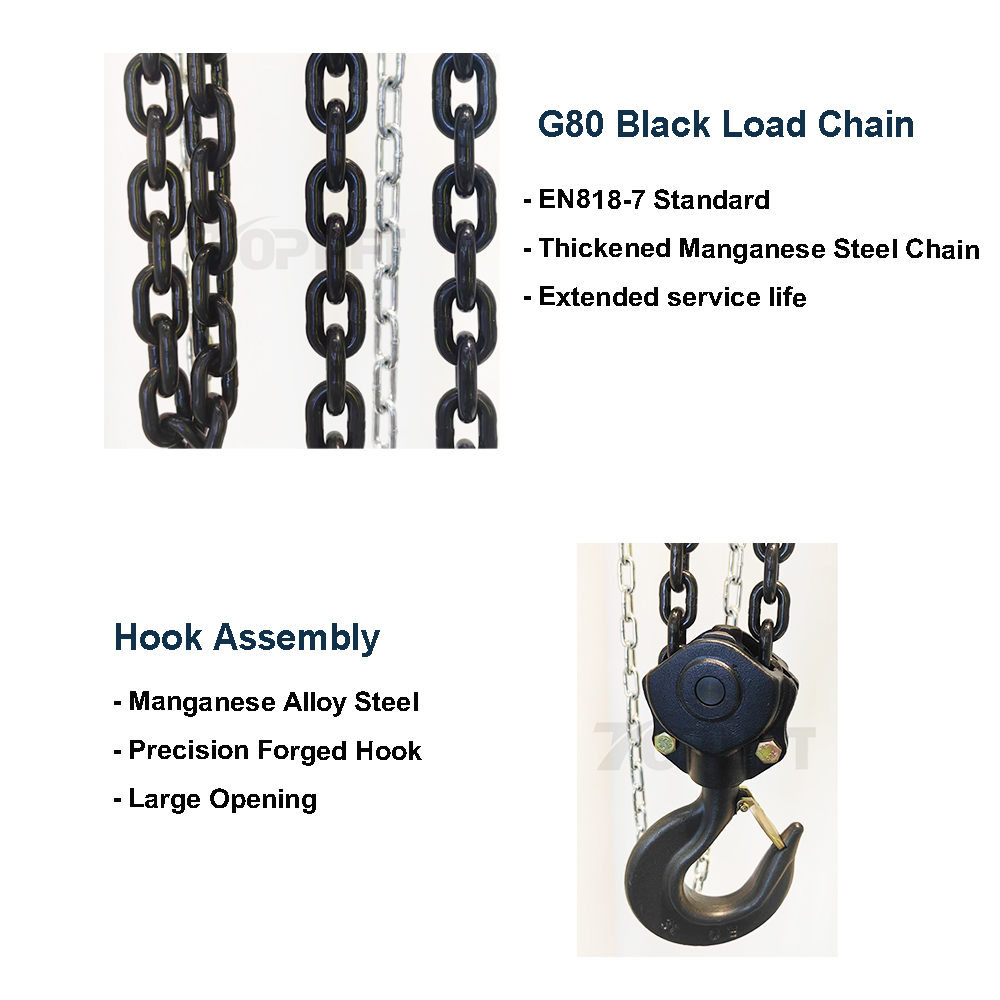

Impressively equipped with a international standard G80 manganese steel chain, thickened for strength, delivering outstanding resistance to wear and an excellent high load-bearing capacity.
Engineered with a robust double ratchet brake system that promises precise, secure braking and optimal safety.
Artfully designed with a needle bearing chain wheel, ensuring smooth, jam-free chain movement for enhanced efficiency.
This hoist is a perfect fit for industrial lifting tasks, offering unrivaled strength, superior safety, and enduring performance.
| Brand | TOPLIFT |
| Model | HSZ-NEW VD Chain Block |
| Bearing | 0.25T-50T |
| Chain Length | 3M/6/9/12M |
| Shell Material | Alloy Steel Pressing |
| Hook Materrial | Allloy Steel Hook |
| Package | Carton/Wooden Box |
TECHNICAL PARAMETER:
Capacity /T | Standard Lift /M | Running Test Load /KN | Effort Required to Lift Rated Load /N | Strands of Load Chain | Dia of Load Chain /MM | Net Weight /KG | Extra Weight per meter of Extra Lift/KG |
| 0.25 | 2.5 | 3.1 | 190 | 1 | 4 | 4.2 | 1 |
| 0.5 | 2.5 | 6.3 | 262 | 1 | 6 | 9.2 | 1.7 |
| 1 | 2.5 | 12.5 | 265 | 1 | 6 | 11.3 | 1.7 |
| 1.5 | 2.5 | 18.8 | 265 | 1 | 7.1 | 15.6 | 2 |
| 2 | 3 | 25 | 272 | 1 | 8 | 19 | 2.3 |
| 3 | 3 | 37.5 | 320 | 1 | 10 | 28 | 3.1 |
| 3 | 3 | 37.5 | 280 | 2 | 7.1 | 23.4 | 3.1 |
| 5 | 3 | 62.5 | 358 | 2 | 10 | 43.2 | 5.3 |
| 10 | 3 | 125 | 370 | 4 | 10 | 76.8 | 9.8 |
| 20 | 3 | 250 | 370*2 | 8 | 10 | 160 | 19.6 |
| 30 | 3 | 375 | 370*2 | 12 | 10 | 230 | 28.3 |
| 50 | 3 | 625 | 370*2 | 22 | 10 | 1085 | 50 |
| Attention: The diamensions are measured manually. For more details, please consult our customer service. | |||||||

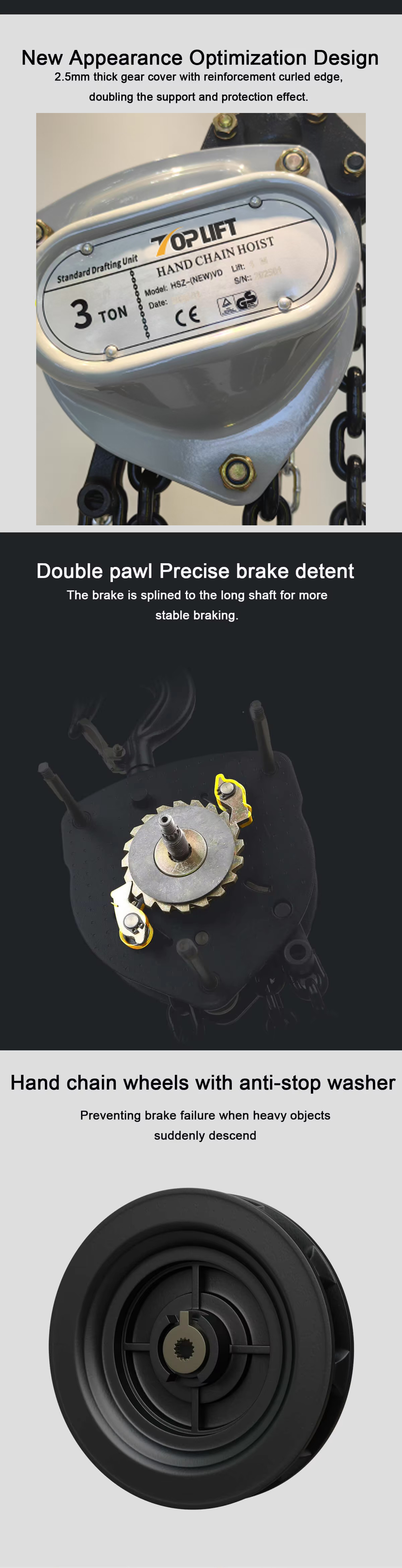

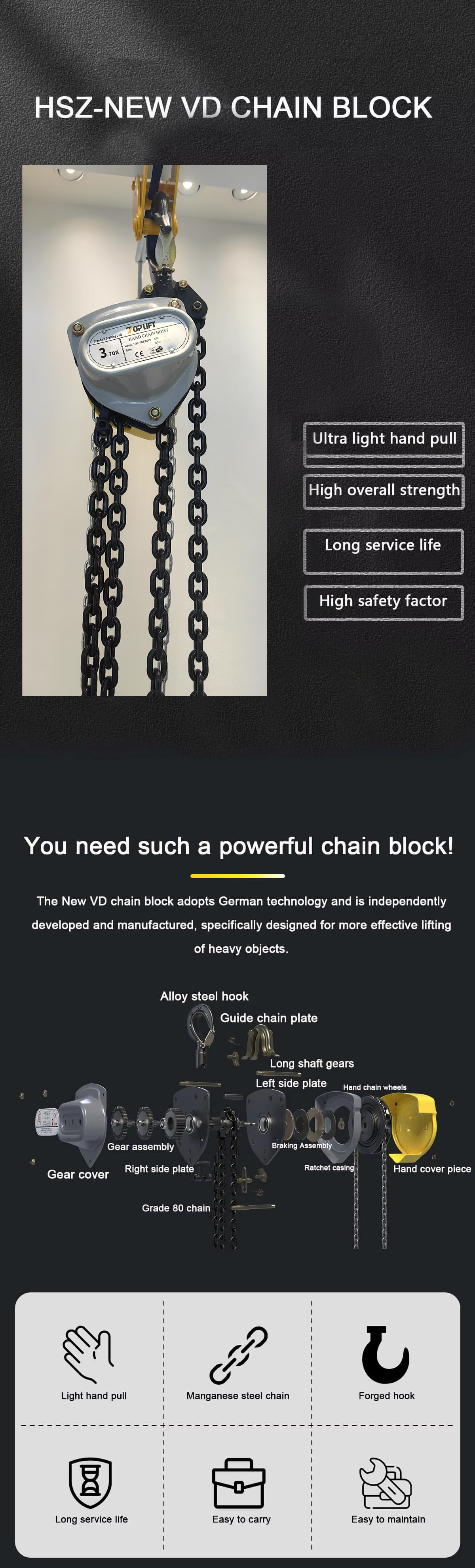

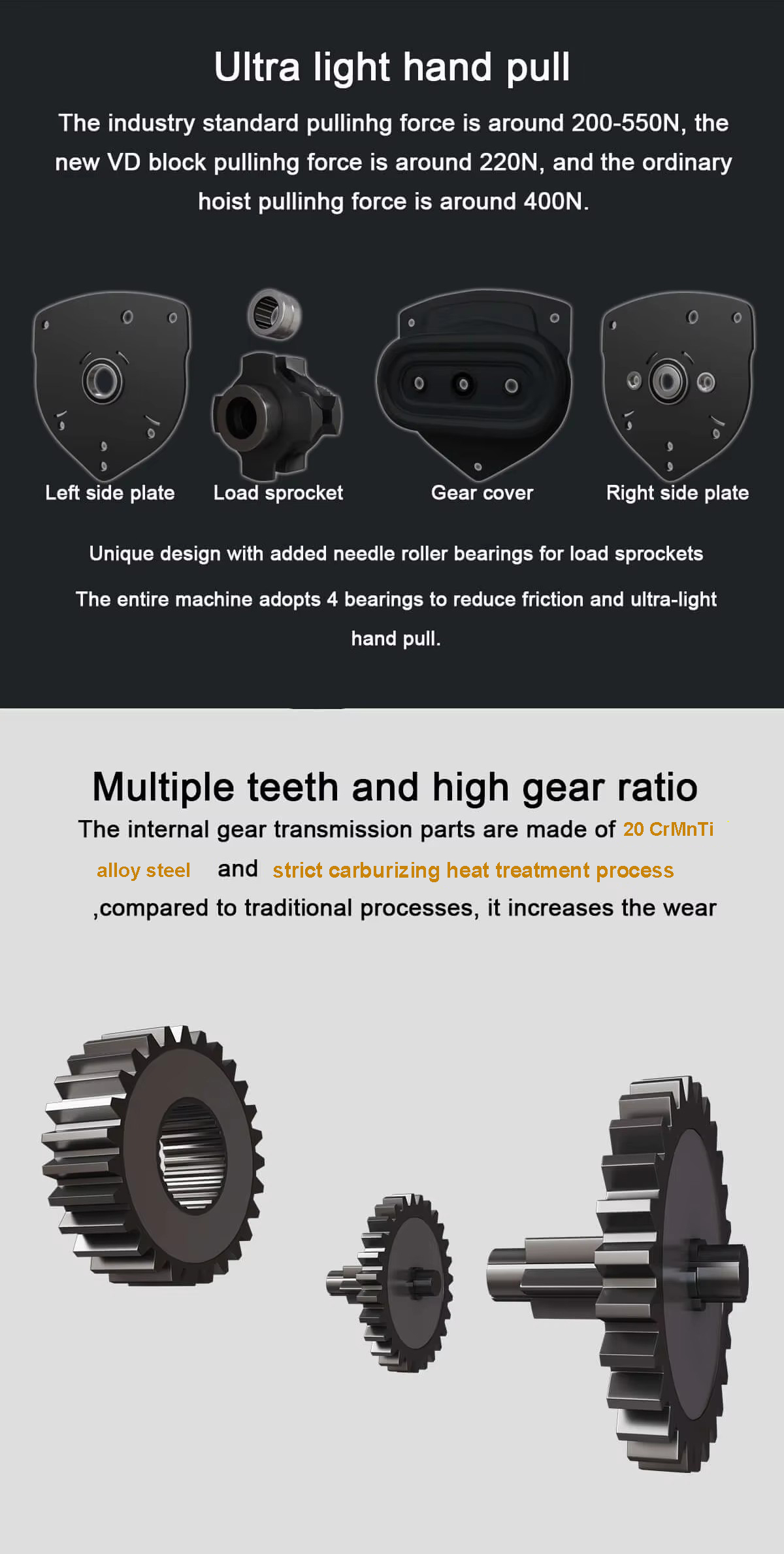

Details

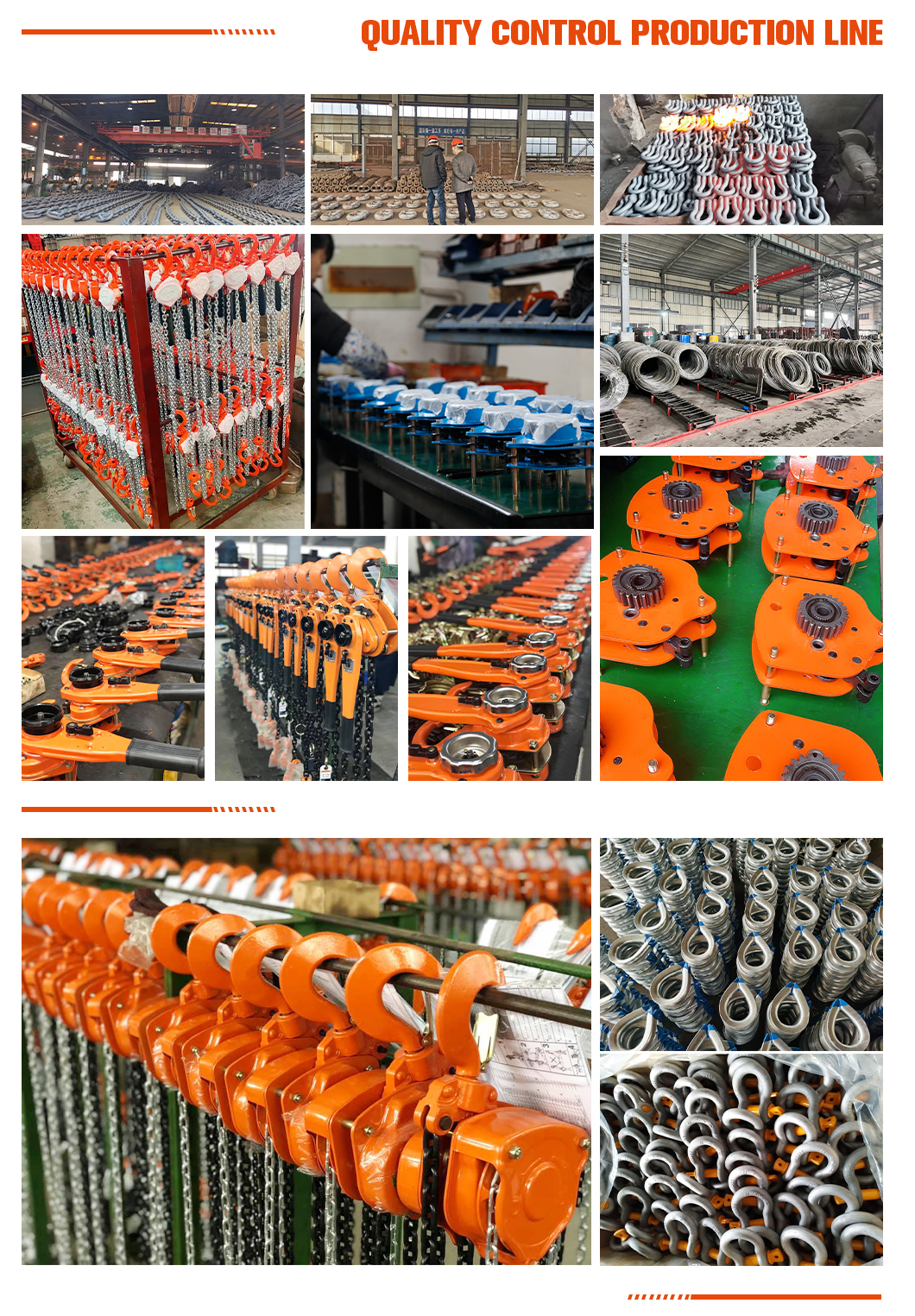

Our Company
FAQ
Q: Why choose us?
A: Professional technical guidance
B: Years of production experience
C: Support for customization and design
D: Fast delivery time!
F: Special technology on print.
Q: How long can I get the products?
A: For the existing sample order, 3-7 working days after payment.
B: For the customized sample order, 7-15 working days after the payment.
C: For bulk, it depends on your order quantity.
Q: Can you help me make my own design?
YES,we can. OEM and ODM are welcomed. You can tell me idea or provide us the drawing draft. We will develop for you.
