TP-C
| Quantity: | |
|---|---|

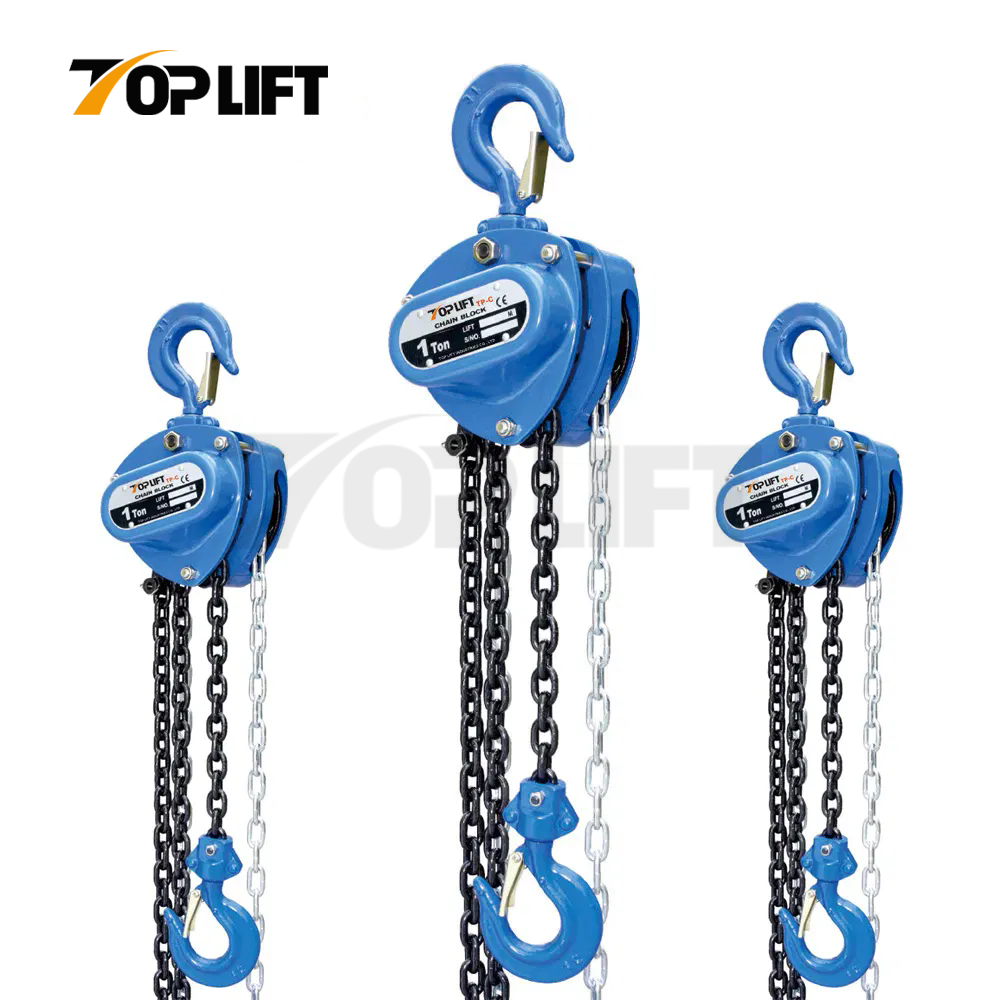

Flexible complete specifications high gravity high density aluminum alloy chain block
TP-C manual chain hoist features steel-casting housing, Grade 80 chain and a compact design ideal for cramped spaces. The chain hoist is equipped with a mechanical load brake that allow operator to better control lifting or positioning. Chain block is widely used in factories, miners, docks, warehouses, construction sites, agriculture and other fields, to lift goods and lifting equipment, especially in conditions with no power supply or narrow , demonstrate superiority.
Features:
1. With double brake pawl system.
2. Suspension and load hooks are equipped with safety latches.
3. Load chain links for long life.
4. Self-locking brake can hold loads at any desired height.
5. The capacity is from 0.5 to 30Ton
6.The load hook will bend under overload without breaking suddenly.
7. Thickened gear enhance strength, that can effectively protect the internal structure.
8. Upper and lower hooks are embedded designed to ensure that the safety latch is more flexible, easily to operate, and more importantly, to prevent from being out of loads
Our advantages
1. Provide OEM service.
2. We have our own brand of chain hoist: POLYTEX
3. The same quality product with the best price.
4. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
Specification
Model | Rated load (Ton) | Standard Lift (m) | Test Load (Ton) | Efforts Required at Capacity (N) | Dia. of Load Chain (mm) | No. of Load Chains | Major Dimensions(approx)(mm) | Net Weight (kg) | Extra Weight Per Meter of Extra Lift(kg) | |||
A | B | C | D | |||||||||
TP-50C | 0.5 | 2.5 | 0.75 | 262 | 5 | 1 | 120 | 116 | 285 | 28 | 9.3 | 1.5 |
TP-100C | 1.0 | 2.5 | 1.50 | 324 | 6 | 1 | 147 | 136 | 332 | 32 | 12 | 1.8 |
TP-150C | 1.5 | 2.5 | 2.25 | 395 | 7.1 | 1 | 181 | 147 | 410 | 38 | 17 | 2.0 |
TP-200C | 2.0 | 2.5 | 3.00 | 330 | 6 | 2 | 158 | 136 | 470 | 40 | 19.7 | 3.2 |
TP-300C | 3.0 | 3.0 | 4.50 | 402 | 7.1 | 2 | 202 | 148 | 550 | 44 | 33.1 | 3.2 |
TP-500C | 5.0 | 3.0 | 7.50 | 430 | 10 | 2 | 228 | 178 | 640 | 50 | 42.5 | 5.3 |
TP-1000C | 10.0 | 3.0 | 12.50 | 438 | 10 | 4 | 373 | 178 | 737 | 64 | 73.6 | 9.8 |
TP-2000C | 20.0 | 3.0 | 25.00 | 438 | 10 | 8 | 638 | 195 | 1022 | 82 | 186.2 | 19.6 |
TP-3000C | 30.0 | 3.0 | 37.50 | 442 | 10 | 12 | 703 | 397 | 1050 | 82 | 238 | 23.9 |
High Standard for Details
The chain block with high quality parts, includes double brakes, precise gear, G80 chain and high quality hook.
Real Shoot of Parts
The picture shows the real shoot of parts: forged shell, high-strength gear and other precise parts.
Packaging
The chain block is packed with carton box, wooden case or customized package.
Product Test Equipment
Before the product leaves the factory, it will pass strict testing.
Factory Environment
We strictly control every step in order to bring the best products to our customers.
FAQ
1.How about after-sales service?
We supply free spare parts to replace your hoists. Besides, we can send your the video to guide your engineers.
2.How to ensure the quality?
Before packing, our chain block will be sent to inspection center for checking. And we take detailed pictures for each hoist before packing. You can offer our serial Number and then know the details.
3.How about the spare parts?
We manufactures 60% spare parts in our own factory to ensure high quality, and the other 40% spare parts from our long term supplier. Before stocking in warehouse, we have strict inspection for each part.
