Product Description

Pear Shaped End Shackle – Durable Steel Connector for Rigging & Lifting

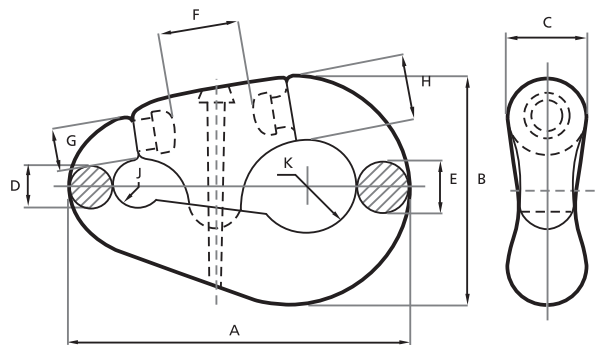

pear shaped end shackle

No.	Chain dia.	A	B	C	D	E	F	G	H	J	K	Weight	Proof- load	Break- load
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	Kgs	Kgs	Kgs
2	19–24	199	136	39	26	33	58	26	39	17	30	36	34000	48500
3	25–30	245	172	47	31	40	66	37	45	19	35	65	53000	75700
4	32–40	302	206	63	41	49	83	42	58	26	43	130	91367	130524
5	42–51	381	263	77	52	68	100	58	74	32	52	270	145513	207512
6	52–60	462	315	94	62	81	113	64	90	38	65	490	197825	282461
7	62–79	568	379	121	81	97	153	84	116	48	76	950	329674	469987
8	81–92	658	422	139	96	135	155	112	135	54	79	1500	434399	619987
9	94–95	700	440	148	98	130	159	124	148	57	89	2360	459892	656697
10	97–102	900	580	194	122	168	194	130	181	73	108	3860	522095	746432

The Pear Shape End Shackle is a high-performance rigging component designed for secure and reliable load handling in demanding applications. Featuring a distinctive pear-shaped design, this shackle offers a wider clearance for easy attachment of hooks, slings, or other rigging hardware.

Attention

Inspection Before Use

Thoroughly inspect the pear-shaped shackle and end shackle for any signs of damage, cracks, deformation, or excessive wear before each use
Ensure the pin threads are clean, undamaged, and properly engaged
Do not use if the shackle shows corrosion, bending, or elongation of the pin hole

Load Limits & Applications

Never exceed the Working Load Limit (WLL) stamped on the shackle
Avoid shock loads (sudden force), as they can exceed the rated capacity

Description of Product:

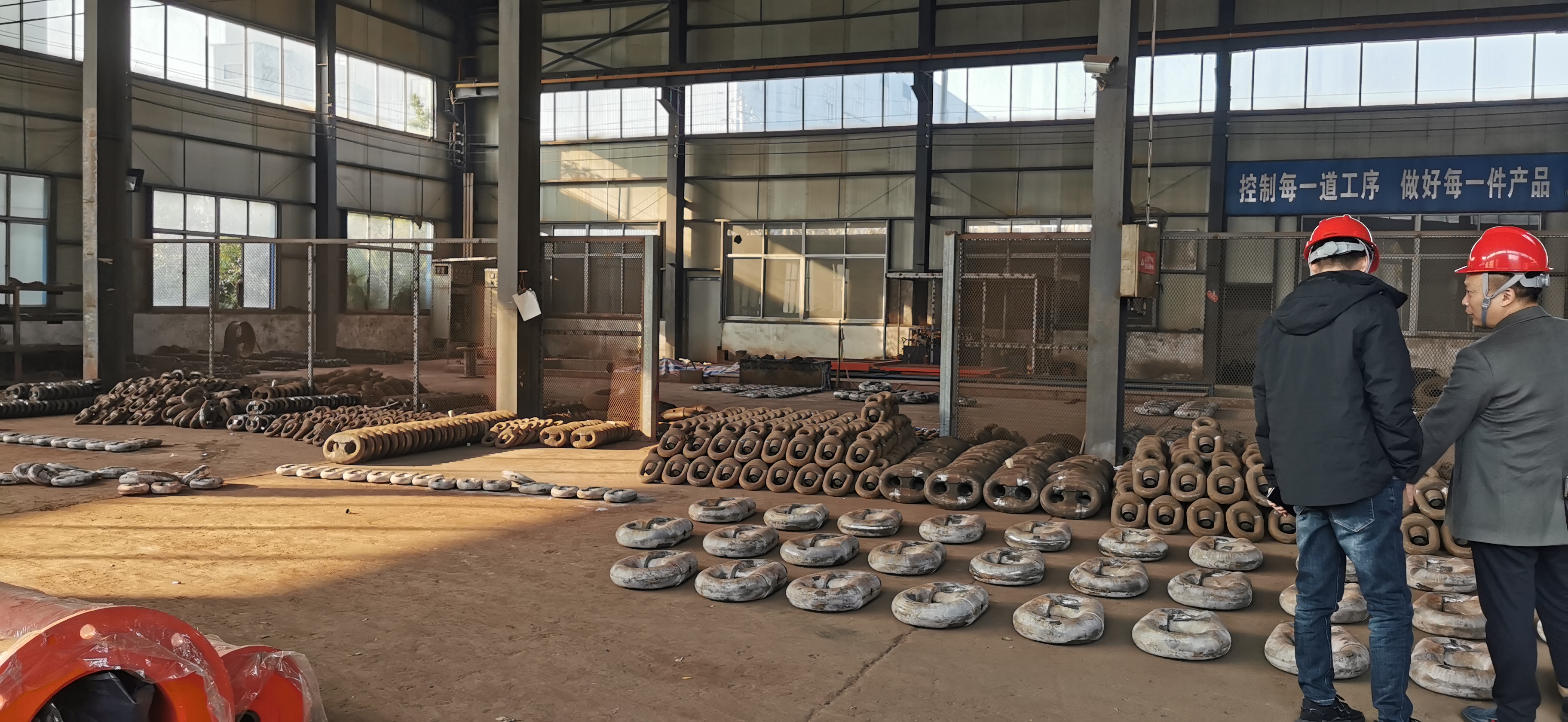

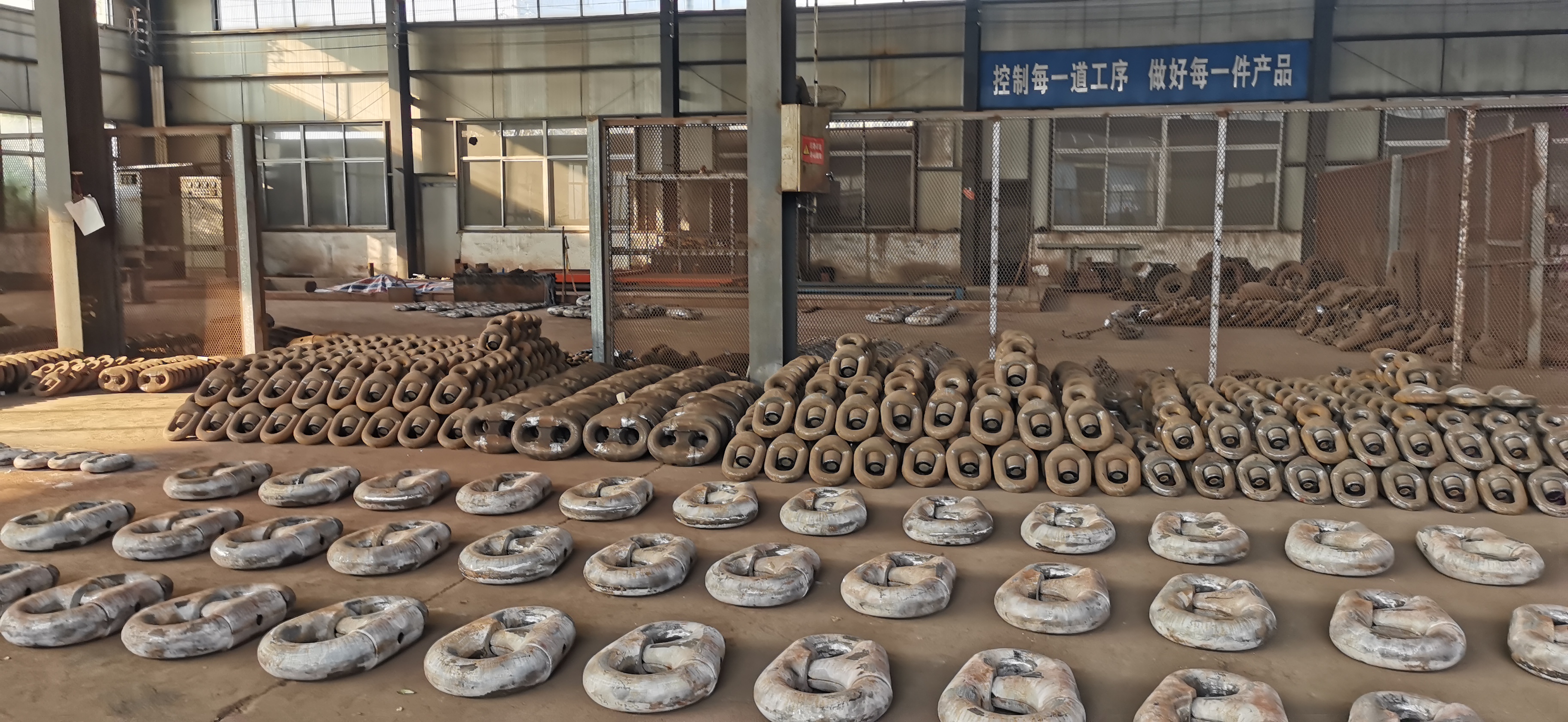

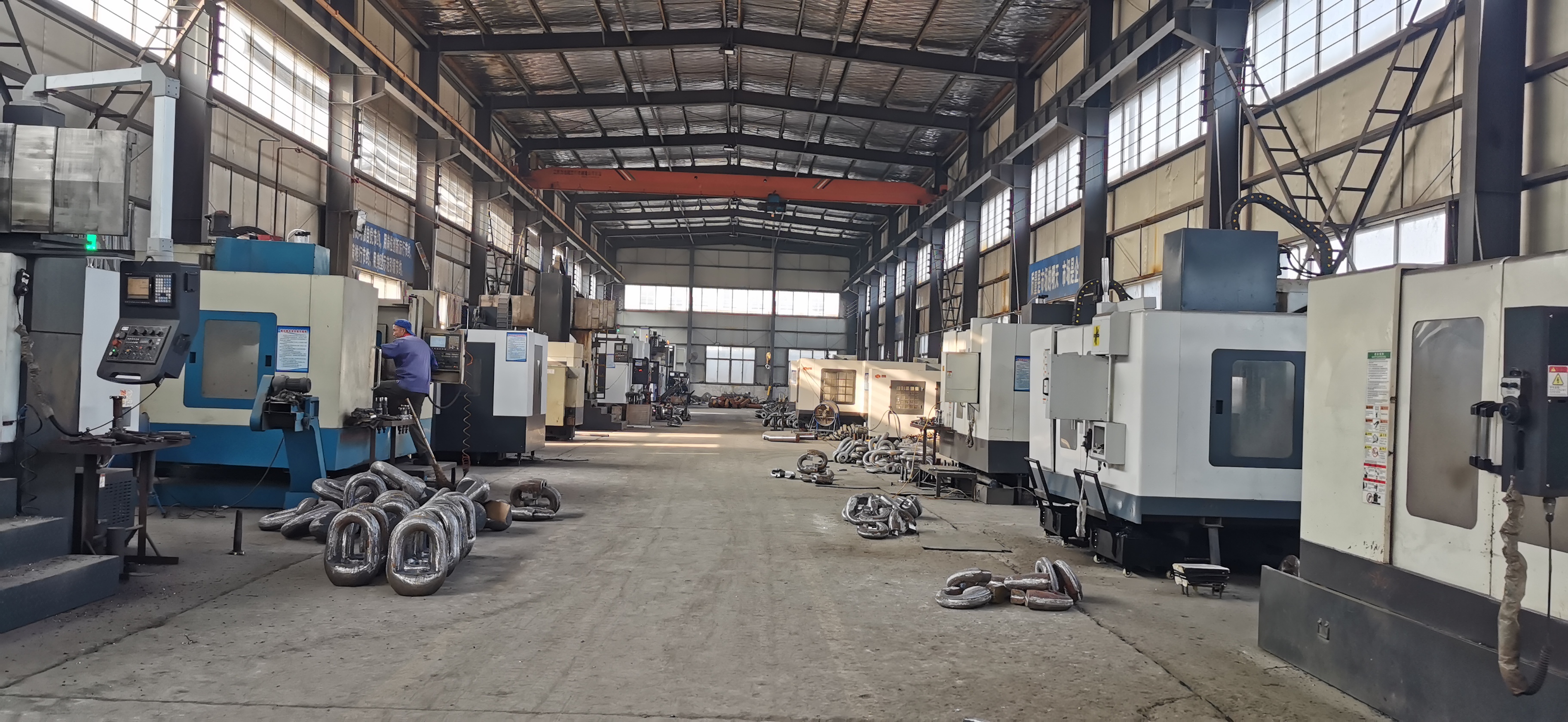

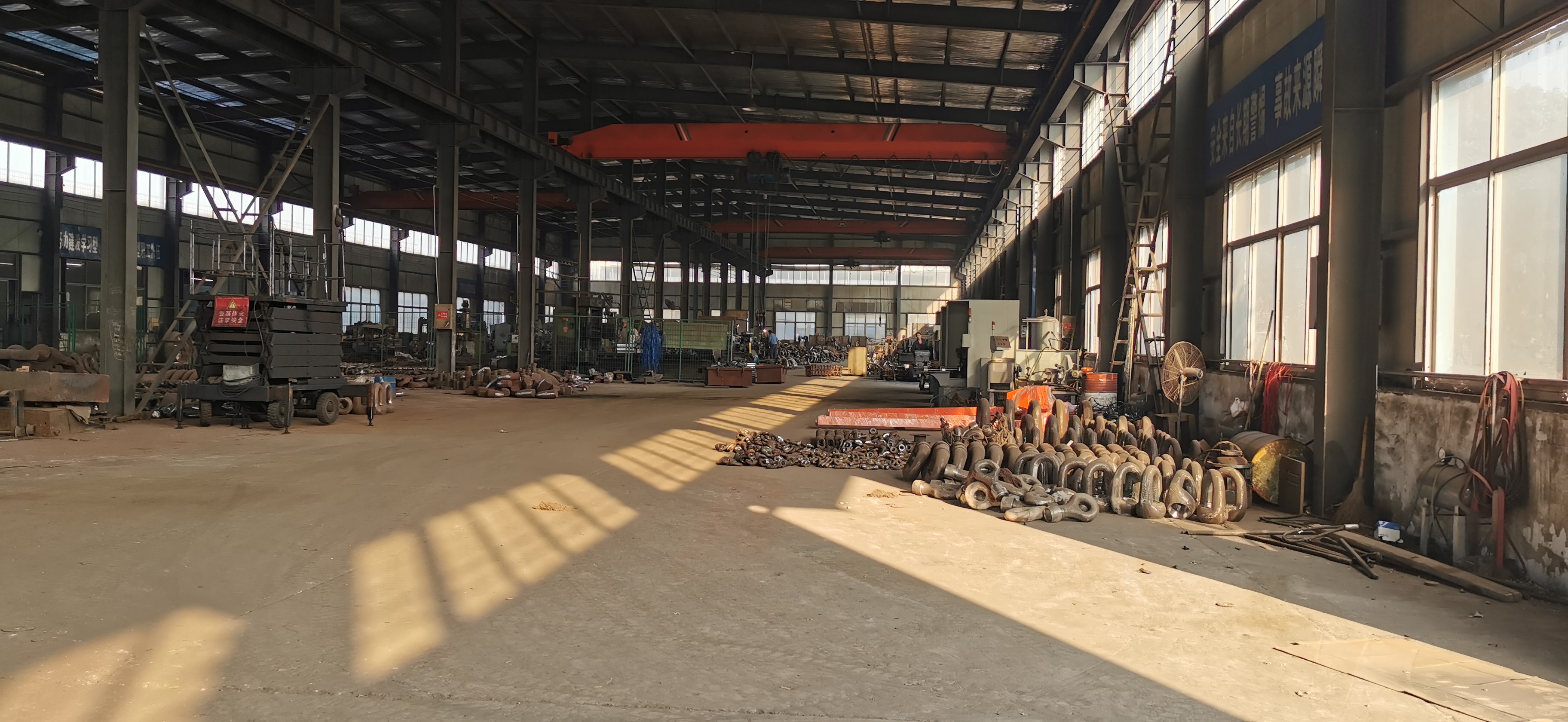

Factory Environment:

车间2

FAQ

Q:Do you offer OEM service?
A: OEM accepted and offer confidentiality agreement business secret contract for your design safe.
Q:Can we just customize the goods?
A:Yes,you can.Just give us your size and we will give you a quotation.
Q:Can I order products that aren't shown on your website?

A:If you're looking for a product that don't currently show on website, please contact us and we'll respond you in a positive and efficient style.
Q:Lowest price in China?
A:Definitely we offer very competitive price for single product, further more, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expecting.
Q:What makes you different with others?
A: 1) Our Excellent Service
For a quick, no hassle quote just send email to us.We promise to reply with a price within 24 hours - sometimes even within the hour.If you need an advice, just call our export office we will answer your questions immediately.
2) Our quick manufacturing time
For Normal orders, we will promise to produce within as we promised signed the contract. we can ensure the delivery time according to the formal contract.
Q:May I know the status of my order?
A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.
