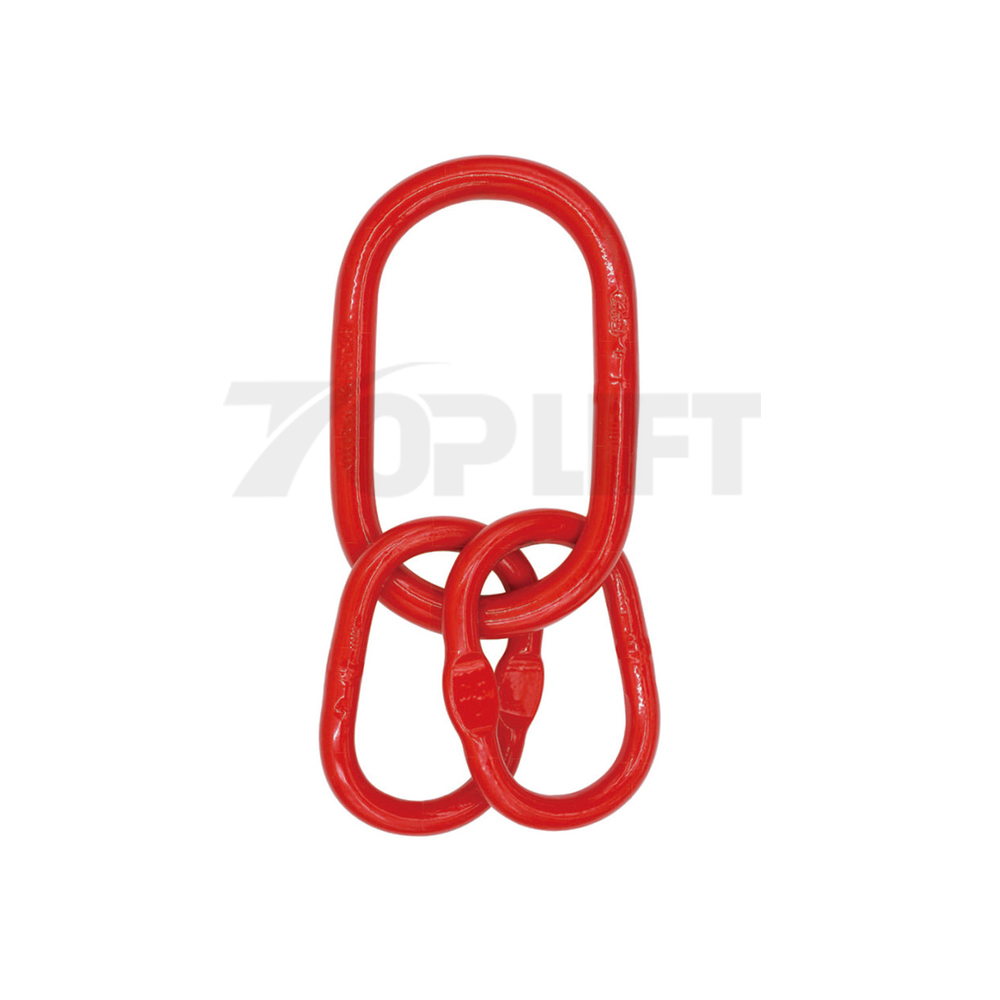

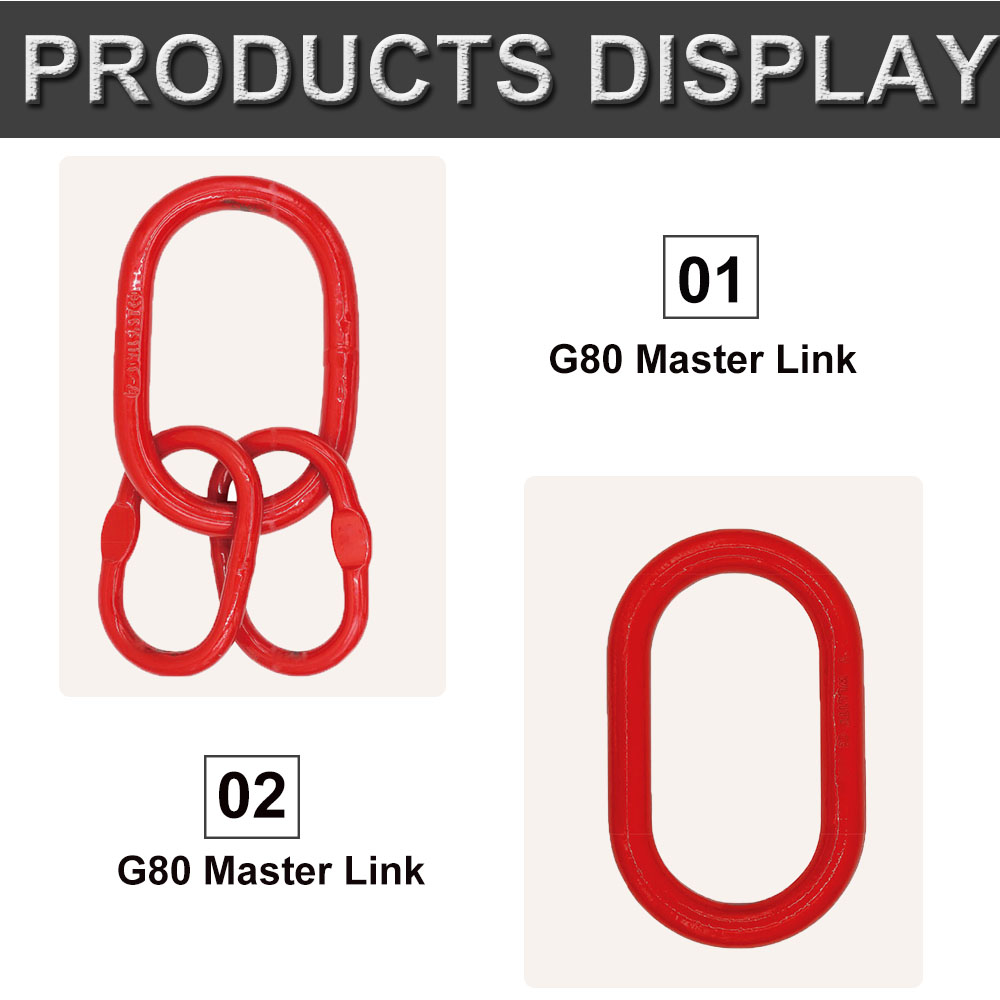

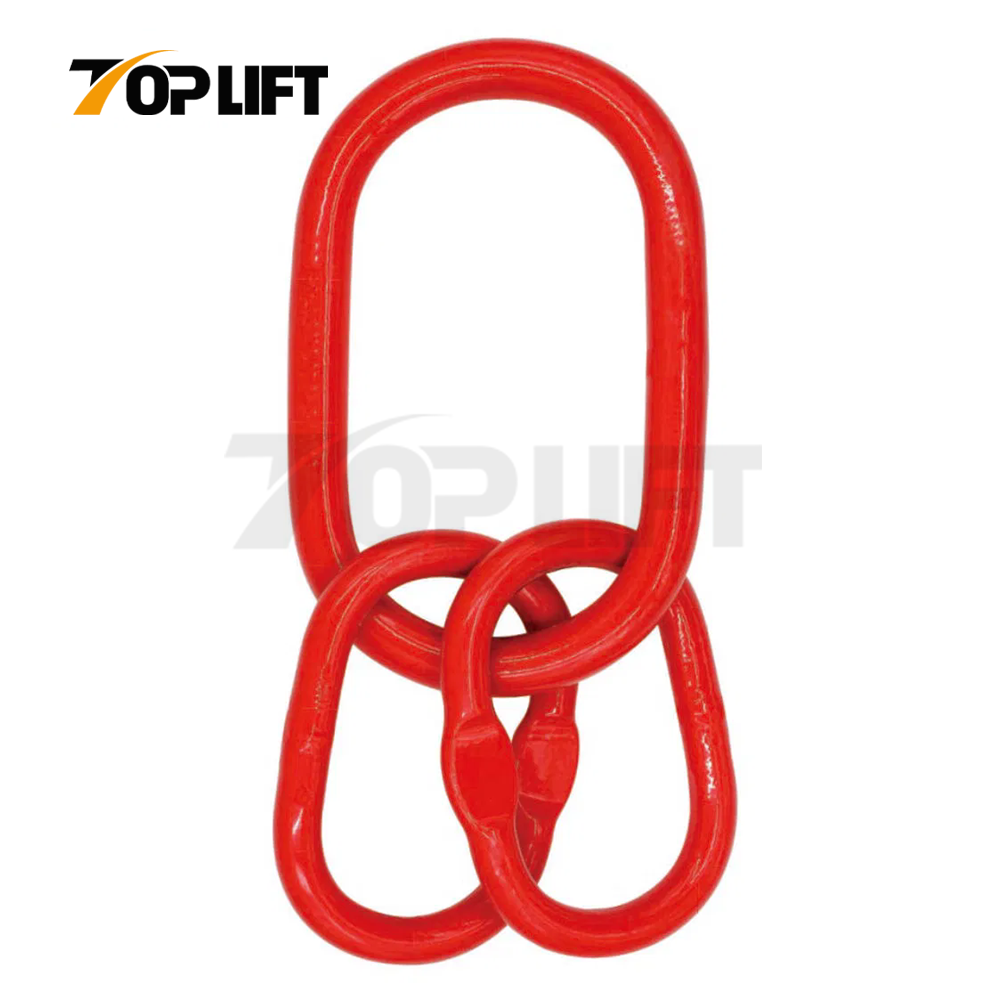

The Master Link Assembly consists of one main ring and two more sub-rings, in which the main ring is forged, and the sub-rings are welded. And the material is Alloy steel.
Features:
1. It can be used for machinery, industries.
2. It is mainly used for the assembly of spreader. The sub-ring is connected to the link chain and chain connection, and assembled into a synthetic rigging for lifting heavy objects and equipment.
3. The master link with the advantages of high strength, light weight, exquisite design, and strong versatility.
4. The whole surface with powder plastic coating.
5. Forged super alloy steel. Quenched and tempered to ensure it more stronger and more reliable.
6. 100% Magnaflux crack detection.
Our advantages
1. OEM accepted and offer confidentiality agreement business secret.
2. The same quality product with the best price.
3. We are specialized in the field of lifting equipment and rigging product supply for around 10 years, with rich experience in Production.
4. Rigging hardware with multiple patents. Good at custom and special-shaped products.

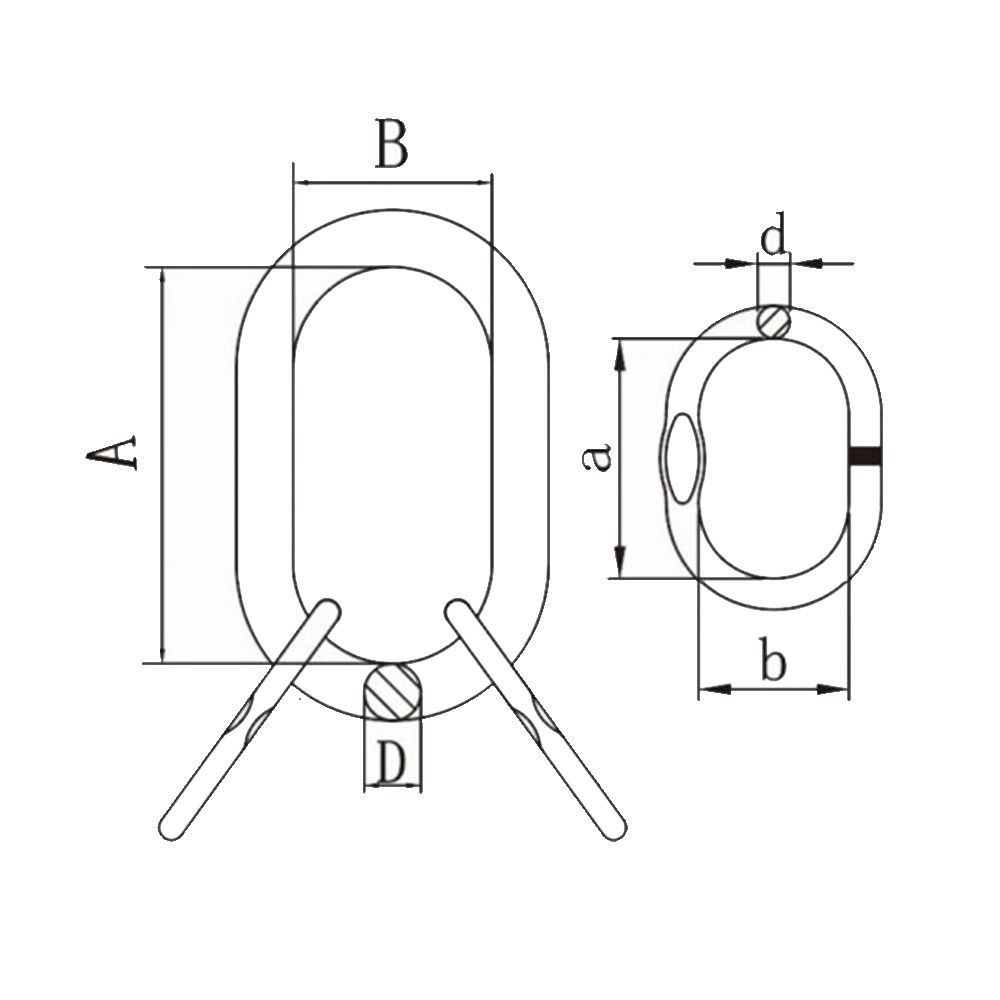

Specification
Model | W.L.L (T) | A (mm) | B (mm) | D (mm) | a (mm) | b (mm) | d (mm) | S (mm) | Weight (kg/pc) |
TP806-MA16 | 3.8 | 120±5 | 70±4 | 16±0.5 | 95±4 | 51±4 | 14±0.5 | 7.5±0.5 | 1.29 |
TP806-MA20 | 5.8 | 170±5 | 90±4 | 20±0.5 | 120±5 | 70±4 | 16±0.5 | 9±0.5 | 2.5 |
TP806-MA22 | 7.6 | 170±5 | 90±4 | 22±1 | 150±5 | 80±4 | 20±0.5 | 11±0.5 | 3.77 |
TP806-Q23B | 5.8 | 270±6 | 140±5 | 22±1 | 150±5 | 75±4 | 16±0.5 | 9±0.5 | 3.6 |
TP806-MA25 | 10 | 190±6 | 100±4 | 25±1 | 150±5 | 80±4 | 20±0.5 | 11±0.5 | 4.15 |
TP806-Q29B | 11.8 | 270±6 | 140±5 | 28±1 | 140±5 | 70±4 | 20±0.5 | 11±0.5 | 5.6 |
TP806-MA28 | 12.7 | 210±6 | 110±5 | 28±1 | 170±5 | 90±4 | 22±1 | 12±0.5 | 6.12 |
TP806-MA32 | 15.2 | 270±6 | 140±5 | 32±1 | 190±5 | 100±4 | 25±1 | 13±0.5 | 9.47 |
TP806-MA38 | 25 | 270±6 | 140±5 | 38±1 | 270±6 | 140±5 | 32±1 | 17±0..5 | 17.4 |
TP806-MA45 | 34 | 320±7 | 170±5 | 45±1 | 270±6 | 140±5 | 38±1 | 20±0.5 | 26.76 |
TP806-MA50 | 40 | 380±7 | 200±6 | 50±1 | 270±6 | 140±5 | 38±1 | - | 33.2 |
TP806-MA60 | 58 | 4301±0 | 220±6 | 60±2 | 380±7 | 200±6 | 50±1 | - | 65 |
TP806-MA70 | 84 | 500±10 | 250±6 | 70±2 | 430±10 | 220±6 | 60±1 | - | 103 |

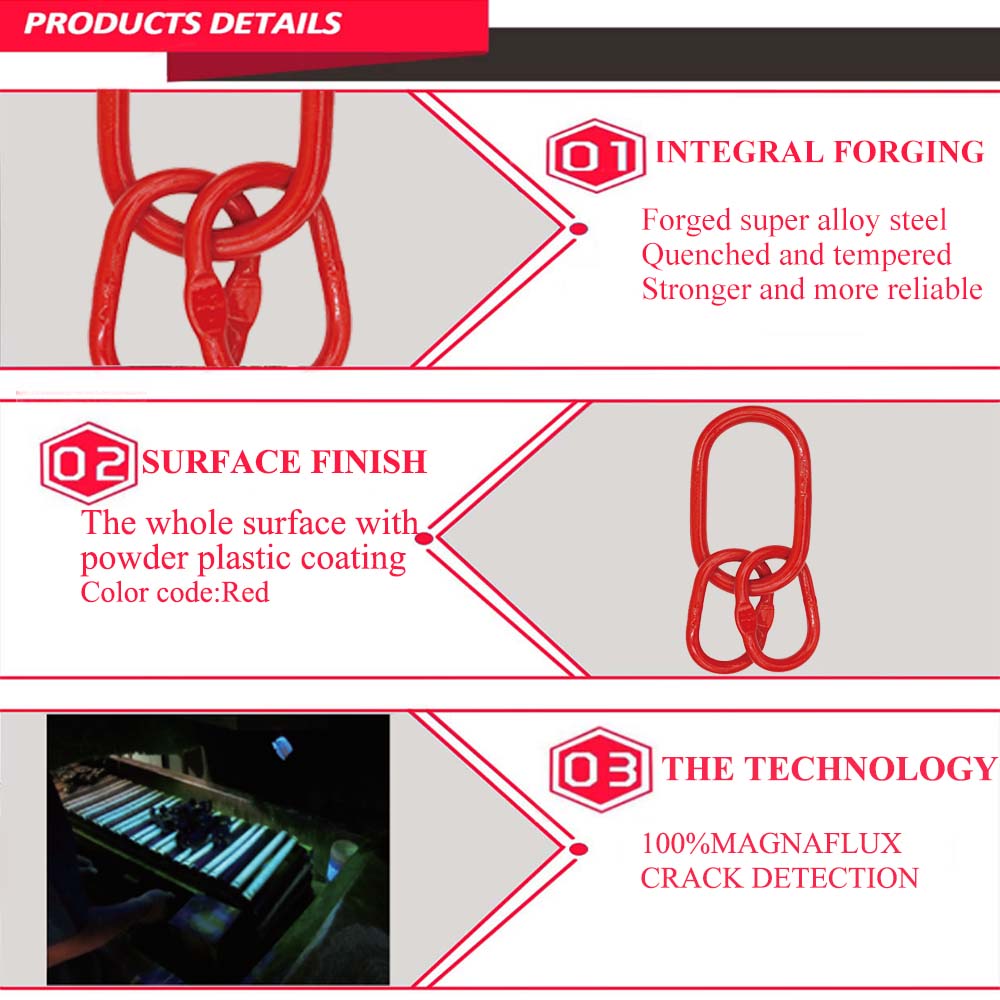

Product Details
The master link covered powder plastic coating is integral forged and pass the 100% magnaflux crack detection.
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packaging
The master link is packed with bag or carton with pallet.

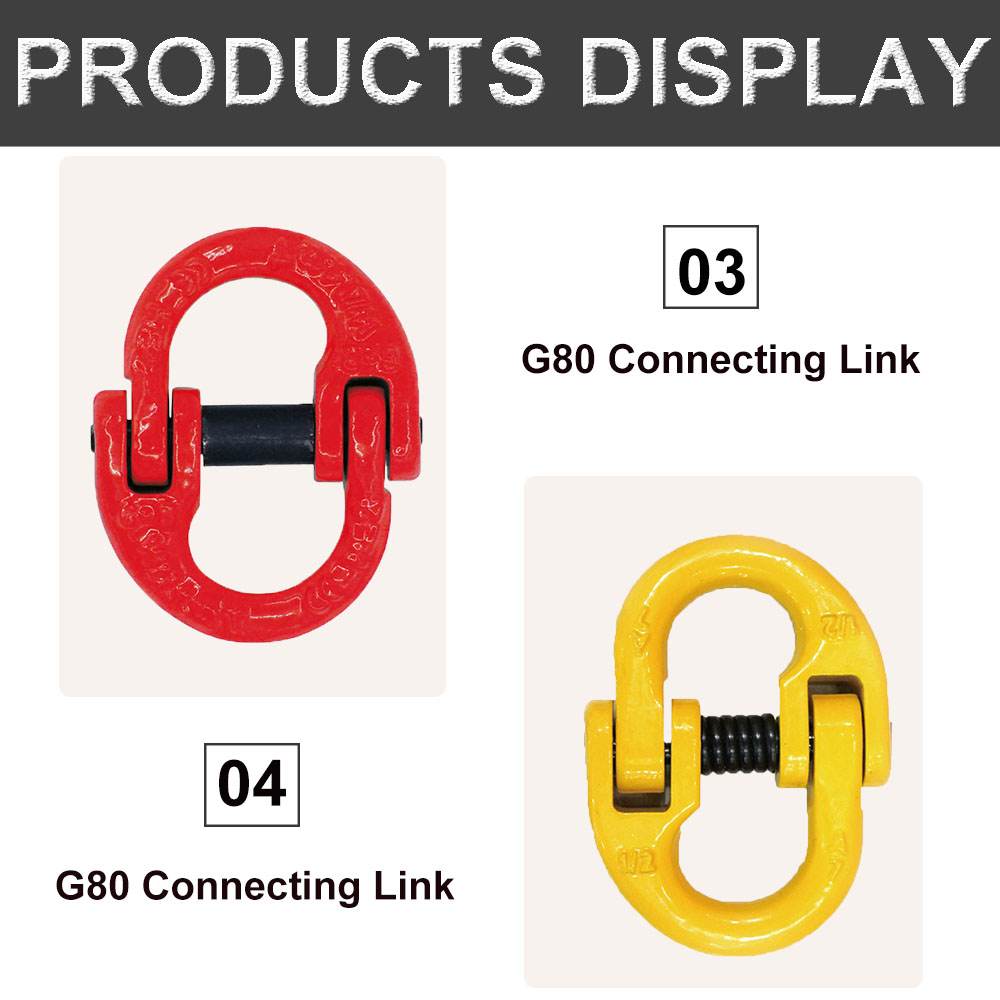

Other Products
We also have other types products to satisfy customers’ different needs.
Application
Our products are widely used in industry, transport, and construction.
FAQ
What can we do?
1. Meet all of your lifting equipment &rigging’s needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from famous steel group.
2. Production process standardization, process standardization, refinement.
3. 100% Finished Product Testing.
4. The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in the field of lifting equipment and rigging product supply for around 10 years, having rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
