Features:
Surface finish: Powder plastified.
Color: Blue RAL5015\
Forged super alloy steel - Quenched and Tempered
25% stronger than G80
Individually proof tested at 1.5 times Working Load Limit
100% Magnaflux Crack Detection
Fatigue tested at 1.5 times Working Load Limit for 20,000 cycles
Breakage test
All load pins are 100% individually inspected and tested
Positive lock latch is self-locking when hook is loaded
Our advantages

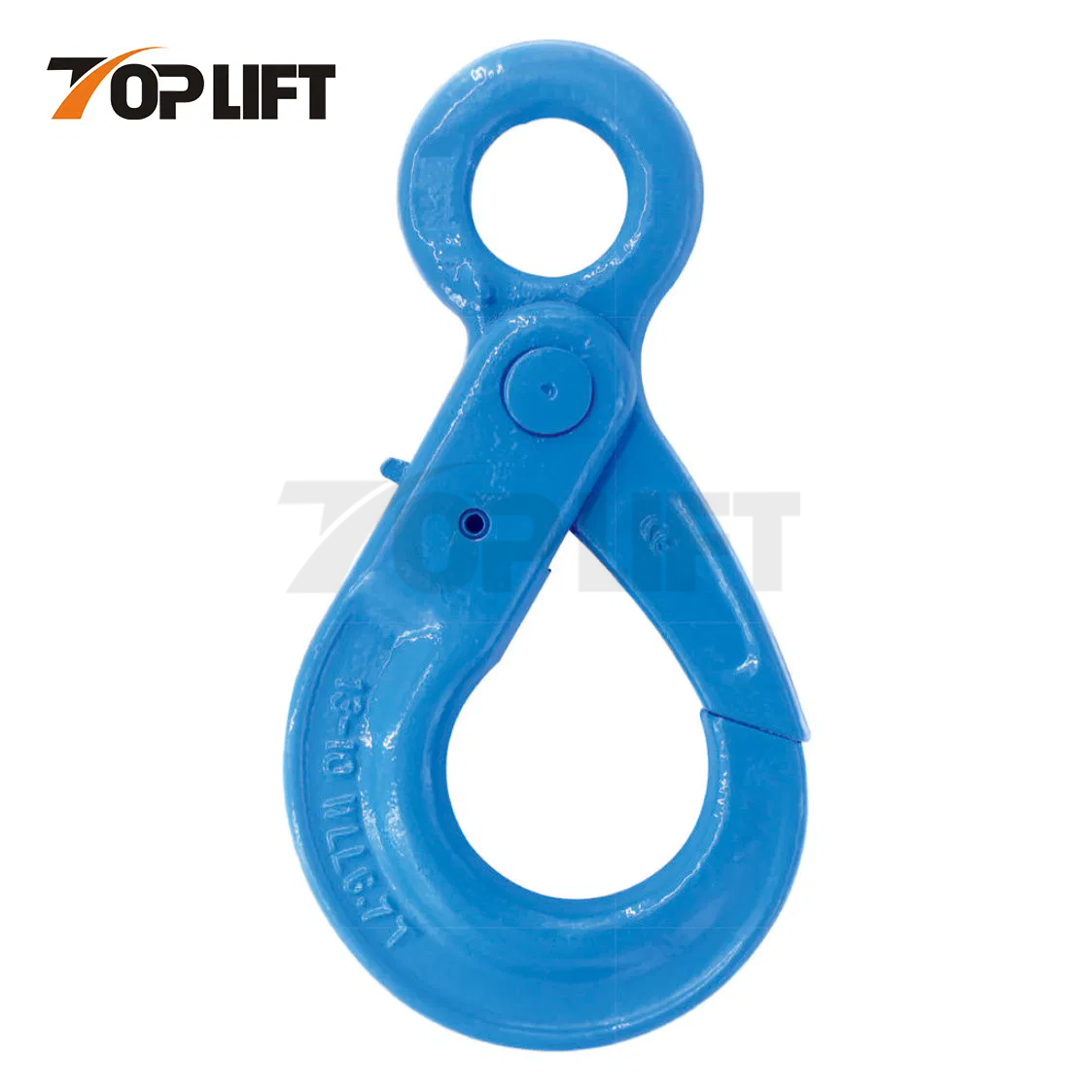

The TOPLIFT G100 eye self-lock hook is with the standard of CE.
The logo we can use TOP LIFT, also we accept you to customize the logo.

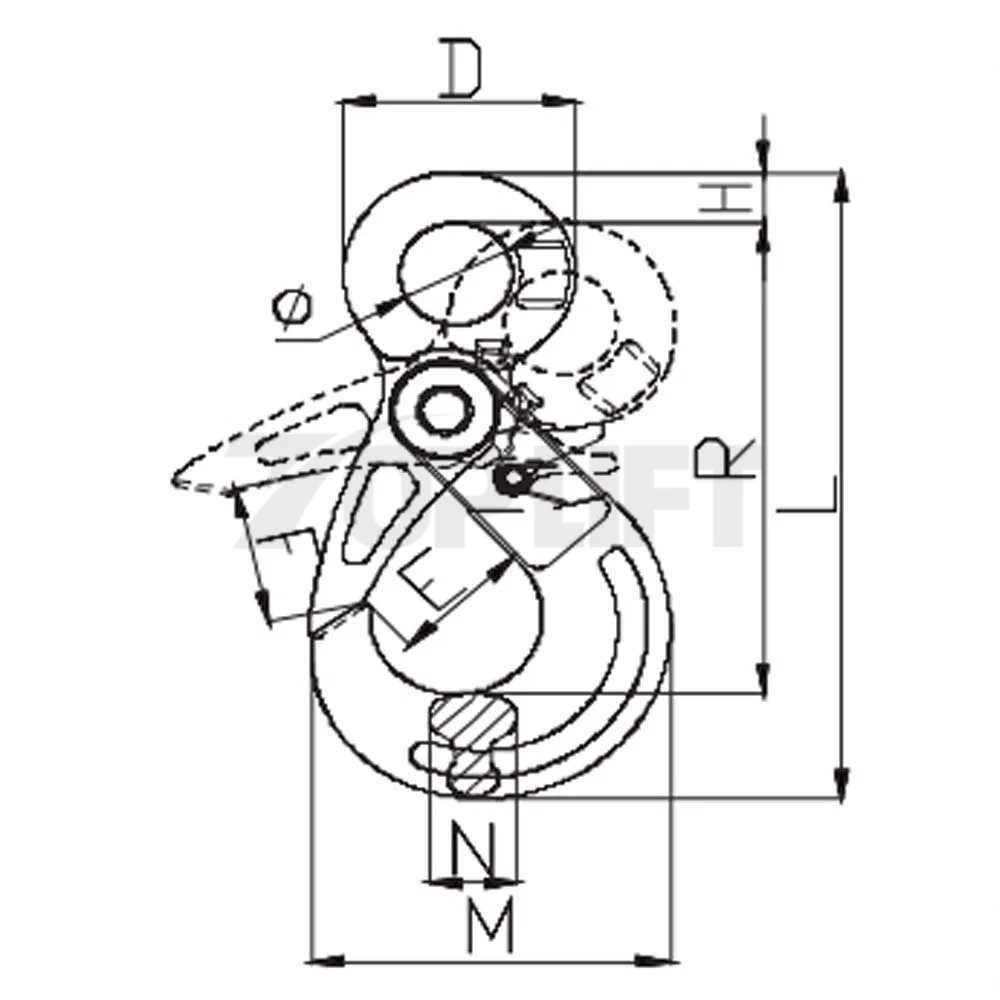

Model | W.L.L. | B.L. | DIMENSION(mm) | Weight | ||||||||
φ | D | E | F | R | M | N | L | H | ||||
10-TP1006-06 | 1.4T | 5.6T | 21±1 | 43±1 | 27±2 | 30±2 | 110±4 | 70±2 | 15±1 | 141±4 | 11±1 | 0.50 |
10-TP1006-07 | 1.9T | 7.6T | 27±1 | 51±1 | 30±2 | 33.5±2 | 127±4 | 81±2 | 17±1 | 162±4 | 12±1 | 0.81 |
10-TP1006-08 | 2.5T | 10T | 27±1 | 51±1 | 35±3 | 38±3 | 137±4 | 90±3 | 20±1 | 175±4 | 12±1 | 0.90 |
10-TP1006-10 | 4T | 16T | 34.5±2 | 64.5±2 | 43±3 | 52±3 | 170±5 | 108±3 | 26±2 | 212±5 | 15±1 | 1.50 |
10-TP1006-13 | 6.7T | 26.8T | 40±2 | 80±2 | 51.5±3 | 63±4 | 209±5 | 137.5±4 | 32.5±2 | 269±5 | 20±2 | 2.70 |
10-TP1006-16 | 10T | 40T | 50±3 | 104±3 | 59±4 | 71±4 | 256±6 | 170.5±4 | 38±3 | 333±6 | 27±2 | 5.70 |
10-TP1006-20 | 16T | 64T | 60±3 | 124±3 | 74.5±4 | 77±5 | 277±6 | 191.5±5 | 50±3 | 368.5±6 | 30±2 | 7.90 |
| 19T | 76T | 70±3 | 139±3 | 78±4 | 92±5 | 319±8 | 205±5 | 52±3 | 417±8 | 33±2 | 11.20 |
PRODUCTS DETAILS
PRODUCTS TEST
APPLICATION
FACTORY
FAQ
What can we do?
1. Meet all of your lifting equipment & rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from a famous steel group.
2. Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4. Third-party product inspections are acceptable.
5.ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in lifting equipment and rigging product supply for around 10 years, we have rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of a 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
