TP322
| Quantity: | |
|---|---|
Basic Info.

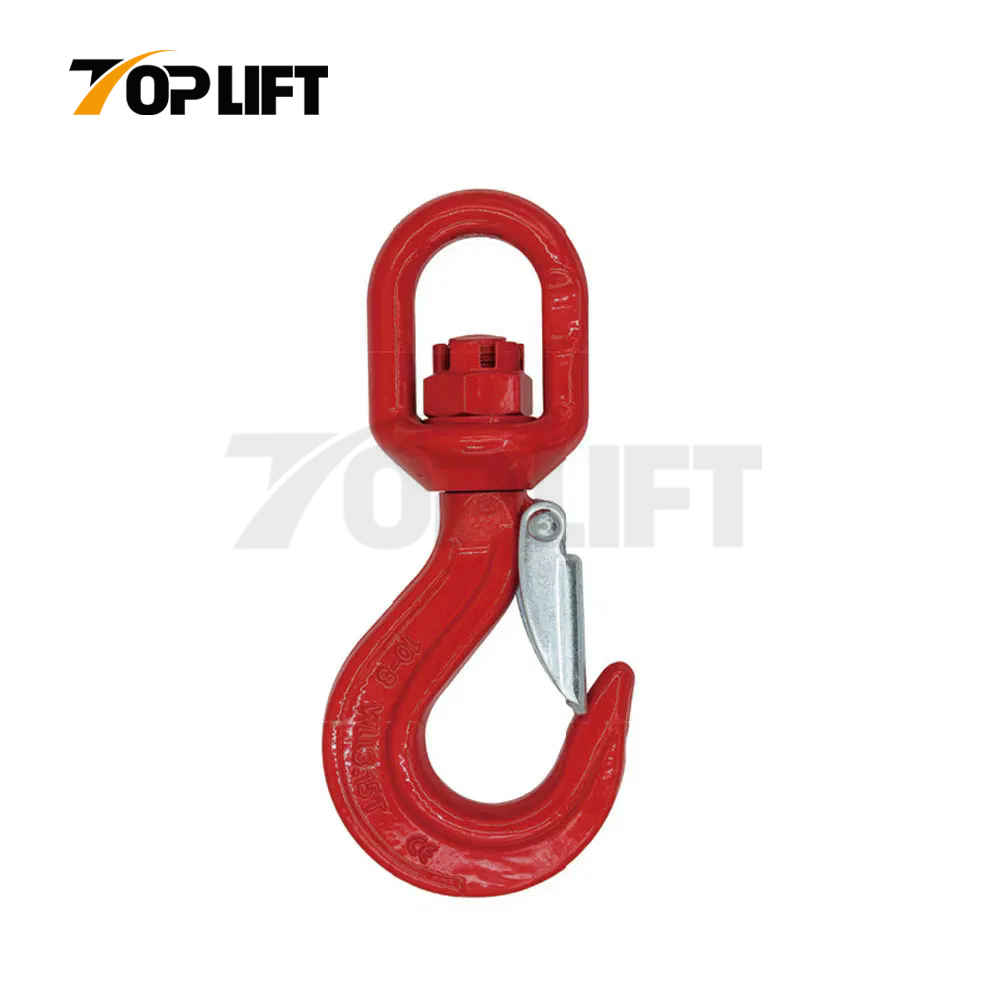

High Strength Alloy Steel Construction: Made from durable alloy steel/carbon steel, this swivel hook offers exceptional strength, making it suitable for lifting loads from 0.5T to 30T.
Anti-Corrosive and Rust-Resistant: Solid pin design and polished treatment enhance the hook's corrosion resistance, helping it resist rust and discoloration for long-term use.
Safe and Secure Rotation: Features deep internal threads with sharp screw teeth, preventing slipping during rotation and ensuring uniform force distribution during use.
Efficient Locking Mechanism: The anti-slip buckle line in the inner groove of the bayonet ensures better rope fastening, providing secure locking for lifting operations.
Versatile and Durable: With a powder plastified surface finish, this swivel hook is highly resistant to wear and tear, ideal for lifting slings, hoists, and a variety of heavy-duty applications.
| Model No. | TP322 | Material | Alloy Steel/ Carbon Steel | |
| Surface Finish | Powder plastified | Delivery Time | Within 30 Days | |
| Function | Lifting Sling,Hoist | Transport Package | Carton with Pallet | |
| Specification | 0.75-30T | Trademark | TOPLIFT or OEM | |
| Origin | China | HS Code | 73269090 |
Features
Available in carbon steel and alloy steel.
Forged -Quenched and Tempered.
100% Magnaflux Crack Detection.
With safety Latch.
Breakage test.
Surface finish : Powder plastified.
Colour : Red RAL3020 / Yellow RAL1028.
Alloy Steel: Ultimate load is 4.5 times the working Load Limit.
Carbon Steel: Ultimate load is 5 times the working Load Limit.
Can be rotated under Non-load conditions!
Specification
| TP322-322 U.S.TYPE EYE HOOK | ||||||||||||
| Ultimate load is 5 times the Working Load Limit. | ||||||||||||
| Model | Alloy | Carbon | A±1 (mm) | B±2 (mm) | E±2 (mm) | H±0.6 (mm) | K±4 (mm) | L±5 (mm) | M±1 (mm) | Weight (kg/pc) | ||
| W.L.L | B.L. | W.L.L | B.L. | |||||||||
| TP322-A0.75T/C0.5T | 0.75T | 3.375T | 0.5T | 2.5T | 32 | 22.5 | 17 | 9 | 110 | 137 | 15 | 0.3 |
| TP322-A1T/C0.75T | 1T | 4.5T | 0.75T | 3.75T | 32 | 22.5 | 17 | 9 | 108 | 136 | 16 | 0.34 |
| TP322-A1.5T/C1T | 1.5T | 6.75T | 1T | 5T | 37.5 | 29.5 | 22.5 | 12 | 130 | 163.5 | 17.5 | 0.64 |
| TP322-A2T/C1.5T | 2T | 9T | 1.5T | 7.5T | 42.5 | 33 | 21.5 | 15.8 | 150 | 192 | 21 | 1.05 |
| TP322-A3T/C2T | 3T | 13.5T | 2T | 10T | 42.5 | 33 | 26 | 15.8 | 163 | 209 | 23 | 1.24 |
| TP322-A5T/C3T | 5T | 22.5T | 3T | 15T | 48 | 39 | 32.5 | 18 | 191 | 246 | 33 | 3.98 |
| TP322-A7T/C5T | 7T | 31.5T | 5T | 25T | 64 | 53 | 43 | 21.5 | 243.5 | 313 | 34 | 4 |
| TP322-A11T/C7.5T | 11T | 49.5T | 7.5T | 37.5T | 68 | 53 | 49.5 | 26 | 277 | 364 | 41.5 | 7.09 |
| TP322-A15T/C10T | 15T | 67.5T | 10T | 50T | 79 | 62 | 54.5 | 32 | 332 | 431 | 55.7 | 12.77 |
| TP322-A22T/C15T | 22T | 99T | 15T | 75T | 105 | 108 | 87 | 40 | 427 | 543 | 70 | 24.5 |
| TP322-A30T/C20T | 30T | 135T | 20T | 100T | 105 | 96 | 97.5 | 40 | 465 | 596 | 76.2 | 34.5 |
Product Details
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packing
Our Advantages
1.Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2.Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3.Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4.Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5.Competitive price
We provide best price among same quality products.
6.One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7.OEM service.
8.Customization Supported
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9.Numerous Patents in Rigging Hardware.
