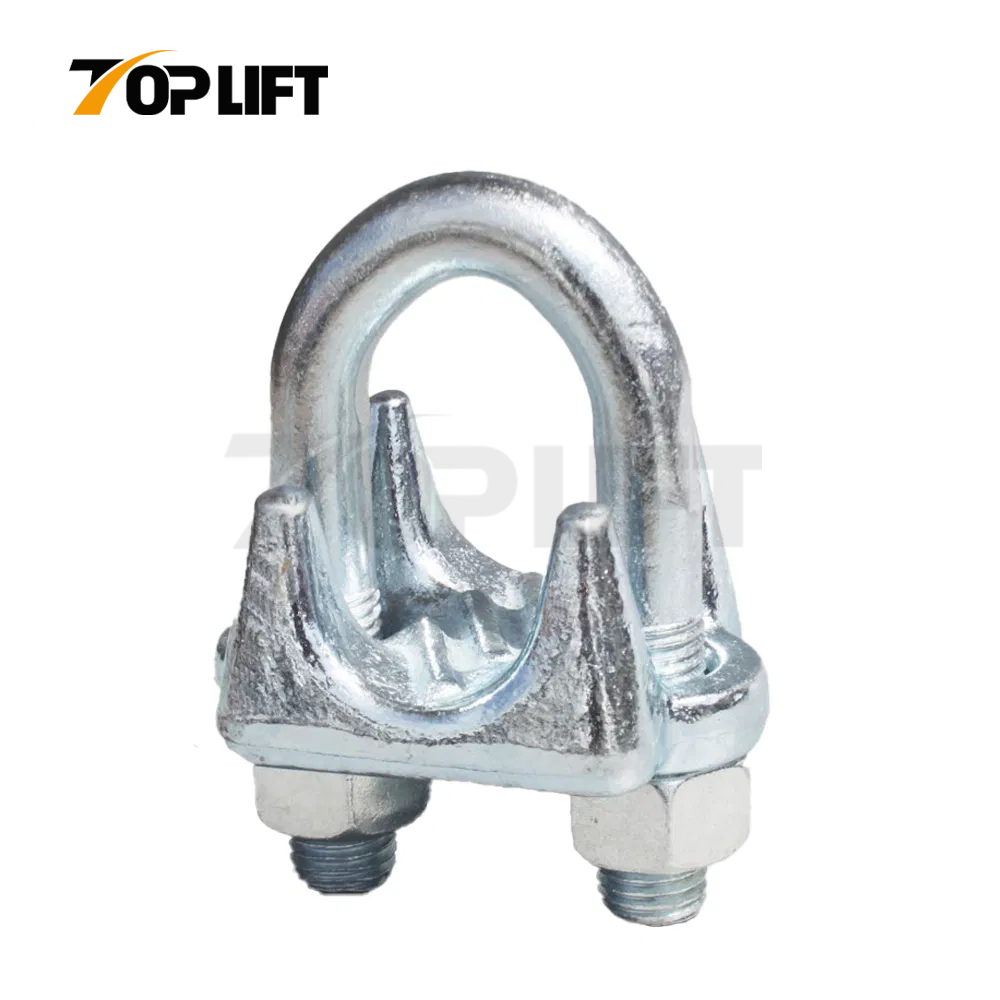

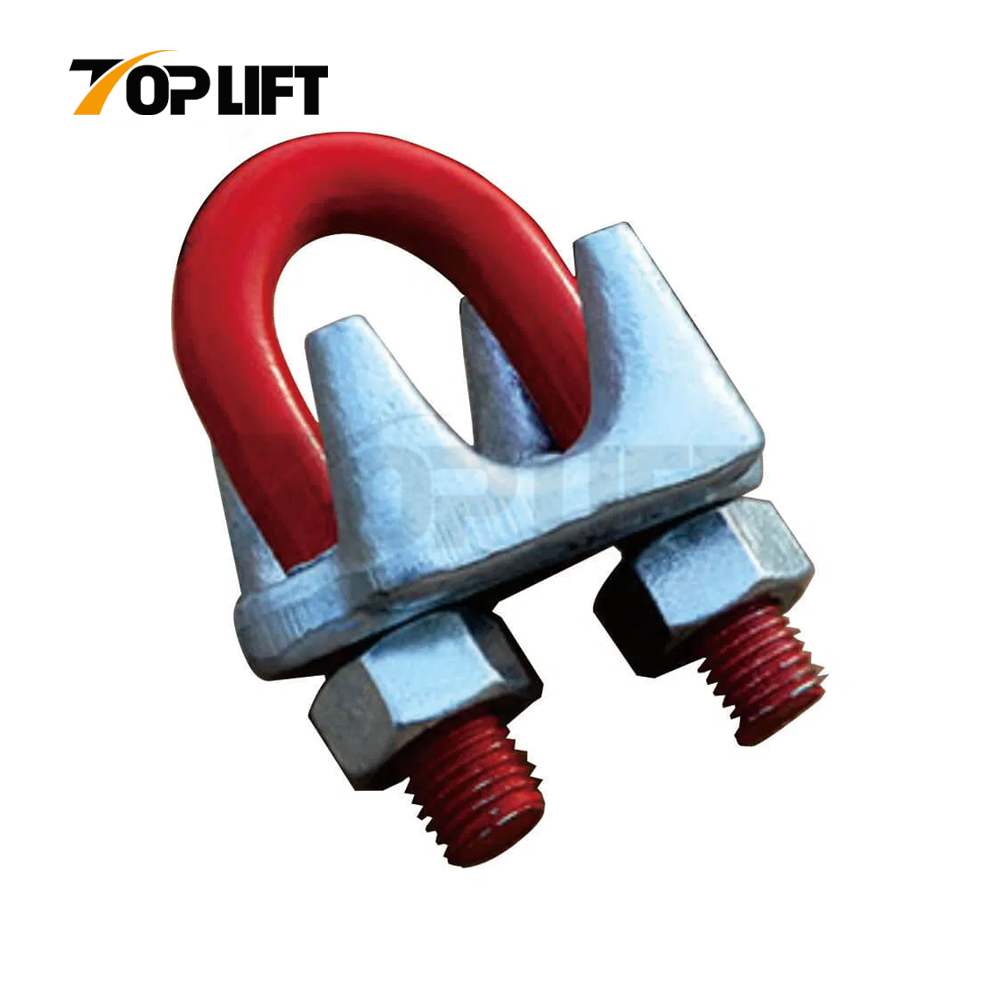

TP-LIFTING Wire Rope Clips G450
Basic Info.
We supply quality guaranteed Wire Rope Clips, which is used to fix the loose end of the loop back to the wire rope. It consists of a U-shaped bolt, a forged saddle and two nuts. Three or more clamps are usually used to terminate a wire rope.
| Model No. | P-WRC | Function | Lifting Sling,Hoist | |
| Transport Package | Carton with Pallet | Specification | 1/8-3-1/2mm | |
| Trademark | TOPLIFT or OEM | Origin | China | |
| HS Code | 73269090 |
Features
Based on the catalog breaking strength of wire rope, wire rope clips have an efficiency rating of 80% for 1/8” through 7/8” sizes, and 90% for sizes 1” through 3-1/2”.
Entire clip is galvanized to resist corrosive and rusting action.
Sizes 1/8” through 2-1/2” and 3” have forged bases.
All clips are individually bagged or tagged with proper application instructions and warning information.
Clip sizes up through 1-1/2” have rolled threads.
Selection of high-quality steel material.
Production process standardization, refinement.
100% Finished Product Testing.
Specification
| Ultimate load is 5 times the Working Load Limit. | |||||||||
| Model | Dimension （in） | Weight (lbs /100 pc) | |||||||
| A | B | C | D | E | F | G | H | ||
| TPWRC-1/8 | 0.22 | 0.72 | 0.44 | 0.47 | 0.37 | 0.38 | 0.81 | 0.99 | 6 |
| TP-WRC-3/16 | 0.25 | 0.97 | 0.56 | 0.59 | 0.5 | 0.44 | 0.94 | 1.18 | 10 |
| TP-WRC-1/4 | 0.31 | 1.03 | 0.5 | 0.75 | 0.66 | 0.56 | 1.19 | 1.43 | 19 |
| TP-WRC-5/16 | 0.38 | 1.38 | 0.75 | 0.88 | 0.73 | 0.69 | 1.31 | 1.66 | 28 |
| TP-WRC-3/8 | 0.44 | 1.5 | 0.75 | 1 | 0.91 | 0.75 | 1.63 | 1.94 | 48 |
| TP-WRC-7/16 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 78 |
| TP-WRC-1/2 | 0.5 | 1.88 | 1 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 80 |
| TP-WRC-9/16 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.5 | 109 |
| TP-WRC-5/8 | 0.56 | 2.25 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.5 | 110 |
| TP-WRC-3/4 | 0.62 | 2.75 | 1.44 | 1.5 | 1.39 | 1.06 | 2.25 | 2.84 | 142 |
| TP-WRC-7/8 | 0.75 | 3.12 | 1.62 | 1.75 | 1.58 | 1.25 | 2.44 | 2.16 | 212 |
| TP-WRC-1 | 0.75 | 3.5 | 1.81 | 1.88 | 1.77 | 1.25 | 2.63 | 3.47 | 252 |
| TP-WRC-1-1/8 | 0.75 | 3.88 | 2 | 2 | 1.91 | 1.25 | 2.81 | 3.59 | 283 |
| TP-WRC-1-1/4 | 0.88 | 4.44 | 2.22 | 2.34 | 2.17 | 1.44 | 3.13 | 4.13 | 438 |
| TP-WRC-1-3/8 | 0.88 | 4.44 | 2.22 | 2.34 | 2.31 | 1.44 | 3.13 | 4.19 | 442 |
| TP-WRC-1-1/2 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 1.44 | 3.41 | 4.44 | 544 |
| TP-WRC-1-5/8 | 1 | 5.31 | 2.62 | 2.75 | 2.66 | 1.63 | 3.63 | 4.75 | 704 |
| TP-WRC-1-3/4 | 1.13 | 5.75 | 2.75 | 3.06 | 2.92 | 1.81 | 3.81 | 5.24 | 934 |
| TP-WRC-2 | 1.25 | 6.44 | 3 | 3.38 | 3.03 | 2 | 4.44 | 5.88 | 1,300 |
| TP-WRC-2-114 | 1.25 | 7.13 | 3.19 | 3.88 | 3.19 | 2 | 4.56 | 6.38 | 1,600 |
| TP-WRC-2-1/2 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 2 | 4.69 | 6.63 | 1,900 |
| TP-WRC-2-3/4 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 2 | 5 | 6.88 | 2,300 |
| TP-WRC-3 | 1.5 | 9.19 | 3.88 | 4.75 | 4.44 | 2.38 | 5.31 | 7.61 | 3,100 |
| TP-WRC-3-1/2 | 1.5 | 10.75 | 4.5 | 5.5 | 6 | 2.38 | 6.19 | 8.38 | 4,000 |

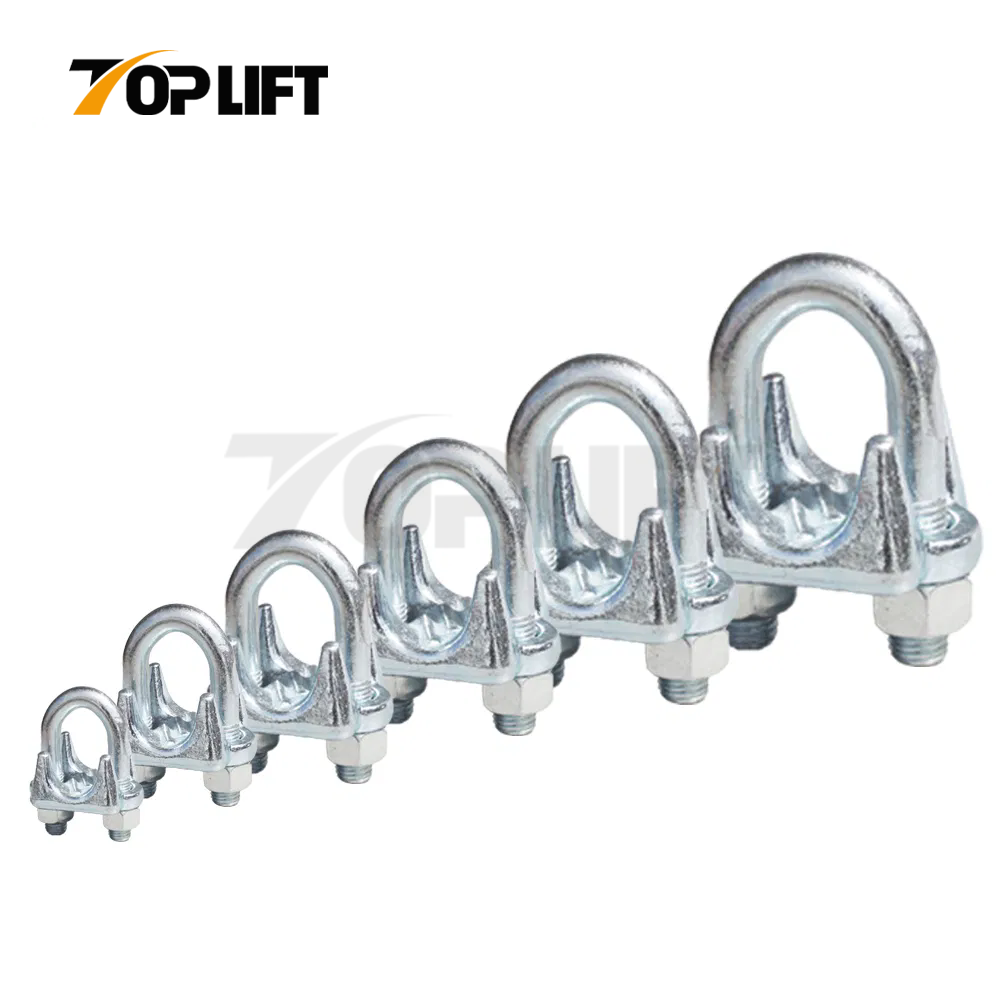

Product Details
Factory Environment
Our factory has professional equipment and we strictly control every step in order to bring the best products to our customers.
Packing
Our Advantages
1.Sharp insight:
Over 10 years’ experience in exporting and familiar with lifting market.
2.Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3.Quick Response:
We feedback your questions immediately in 24 hours by experienced staffs.
4.Stable supply:
With more than 3000 sq.m plant to ensure timely delivery.
5.Competitive price:
We provide best price among same quality products.
6.One-stop solution:
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7.OEM service.
8.Customization Supported：
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9.Numerous Patents in Rigging Hardware.
