TP-H019R
TOP LIFT/OEM
| Quantity: | |
|---|---|

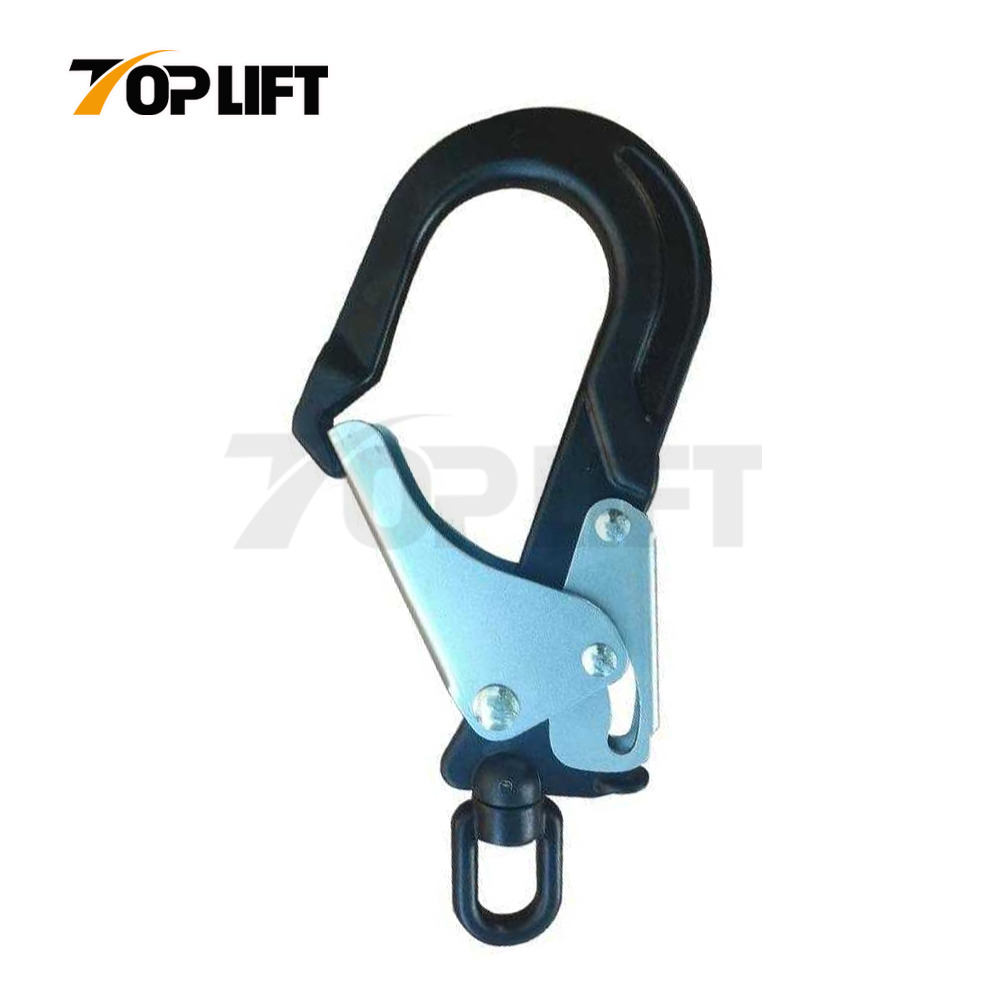

this is an aluminium double-action swivel pin opening eye scaffold hook. It is a type of connector used in personal fall protection systems, particularly for scaffolding and general industrial safety work.
Key features and specifications:
-Material: Constructed from aluminum alloy, which makes it lightweight but strong.
-Operation: Features a double-action locking mechanism for enhanced safety, requiring two distinct actions to open the gate.
-Design: Includes a patented pin eye opening and a 360° swivel eye, offering versatility and preventing the attached lanyard or rope from twisting.

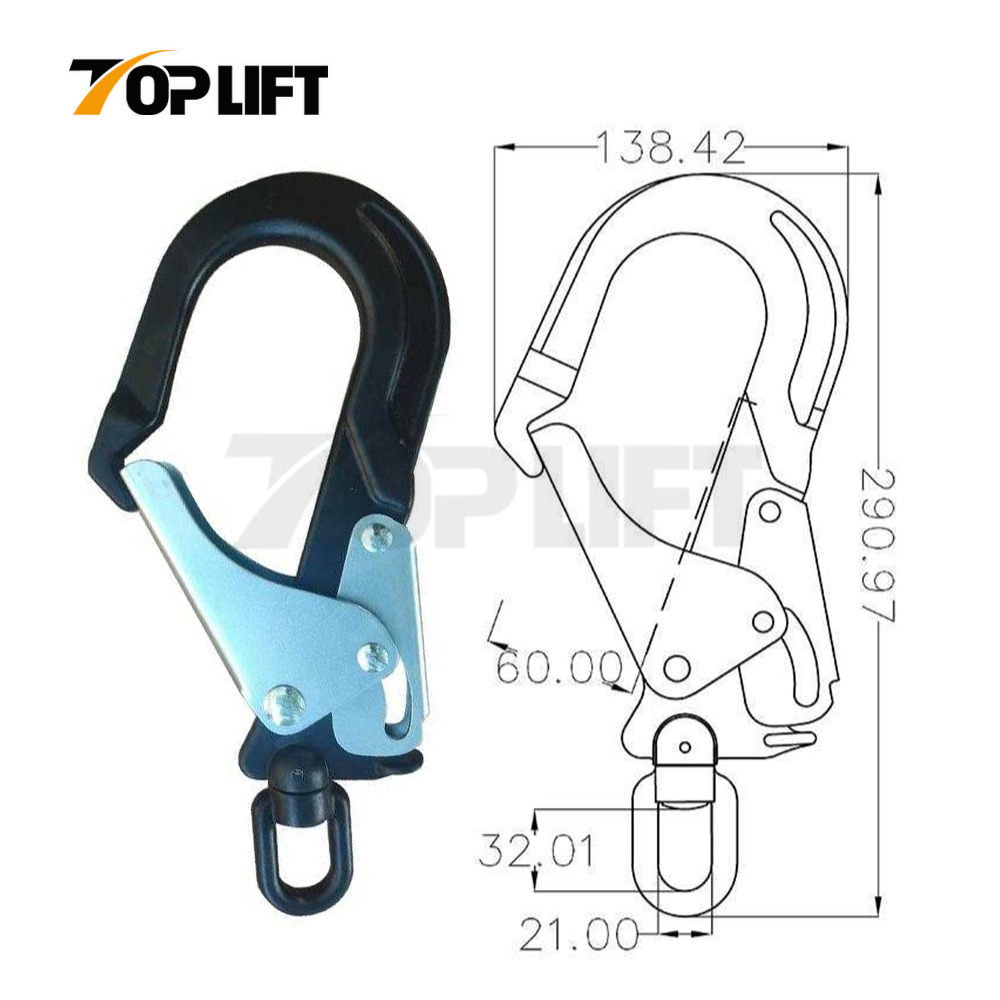

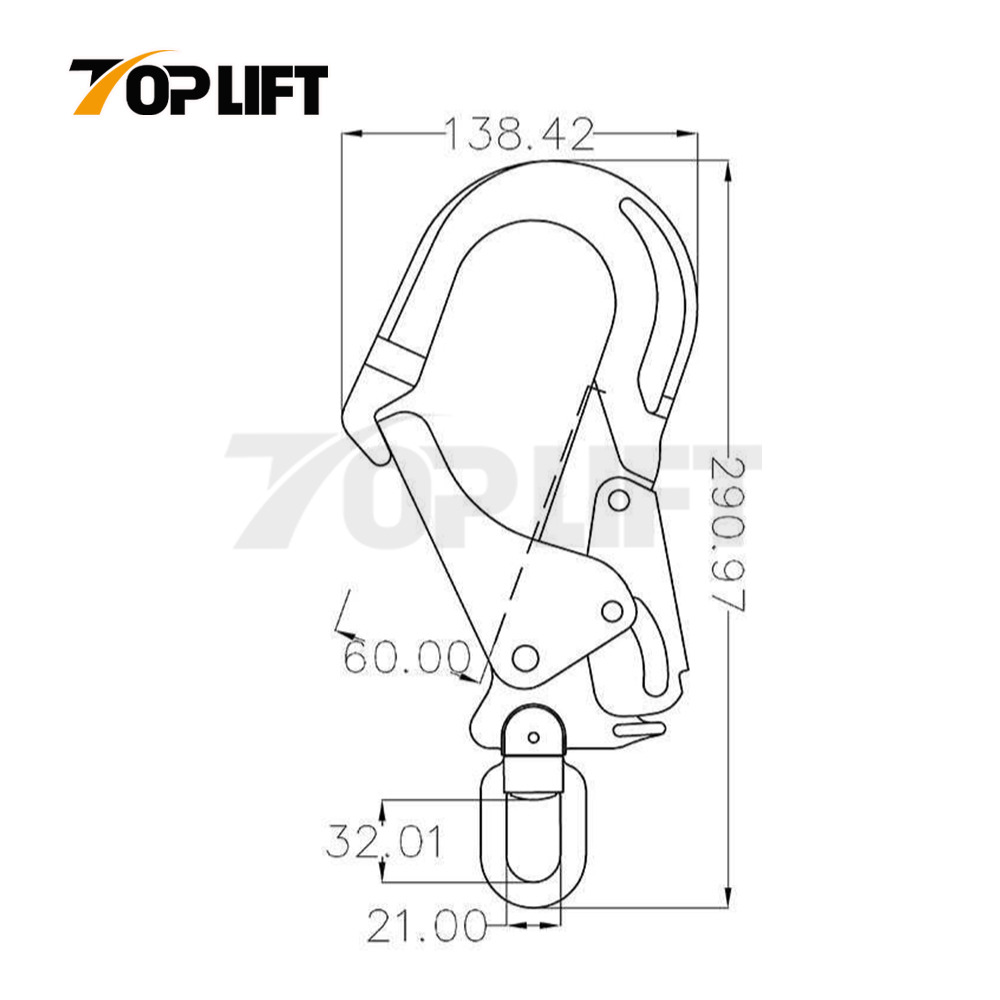

-Gate Opening: It has a large gate opening, around 60mm, to connect easily to scaffolding tubes or other large structures.
-Strength: The minimum breaking strength is generally around 28 kN(approximately 6300 lbs).
-Safety Features: includes a fall indicator to show if the hook has been subjected to a significant fall arrest force.

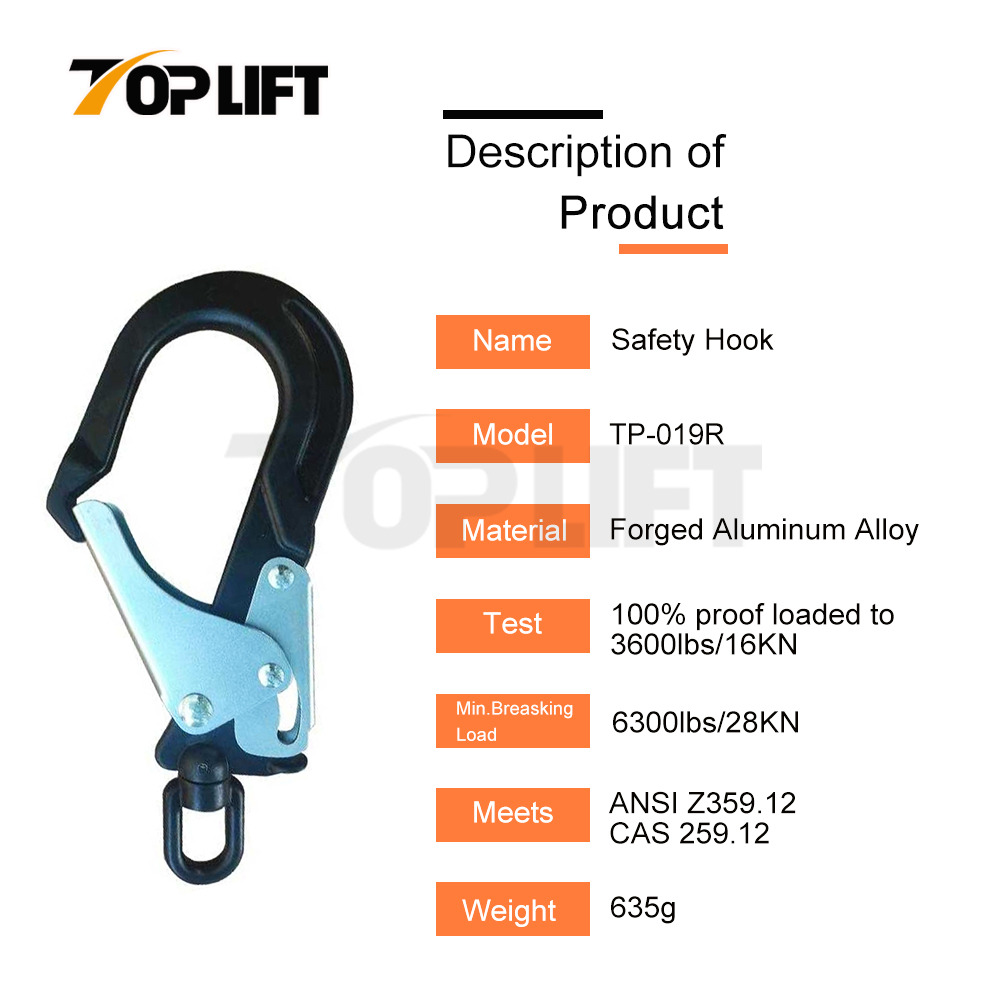

| Name | Hook |
| Material | Forged Aluminum Alloy |
| Test | 100% proof loaded to 3600lbs/16KN |
| Min Breaking Load | 6300Lbs/28kN |
| Meets | ANSI Z359.12 CSA 259.12 |
| Weight | 635g |
FAQ
Q:Do you offer OEM service?
A: OEM accepted and offer confidentiality agreement business secret contract for your design safe.
Q:Can we just customize the goods?
A:Yes,you can.Just give us your size and we will give you a quotation.
Q:Can I order products that aren't shown on your website?
