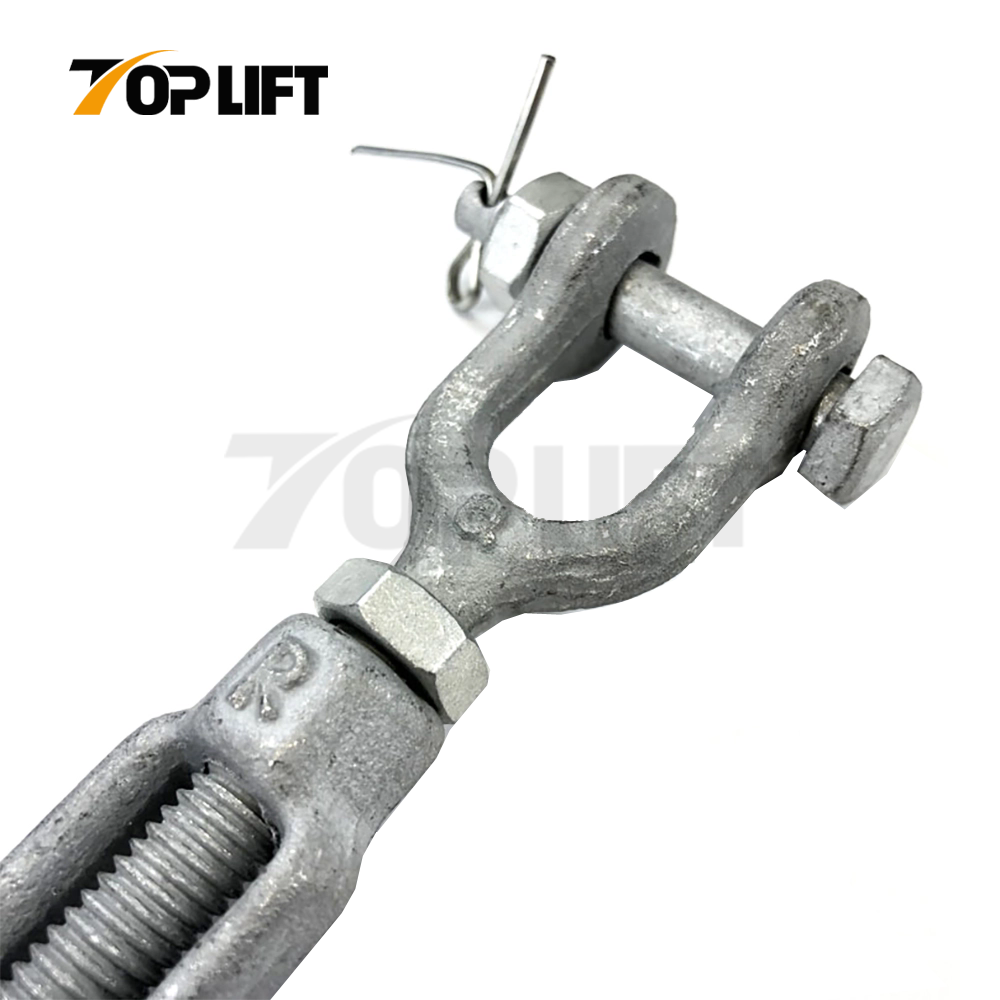

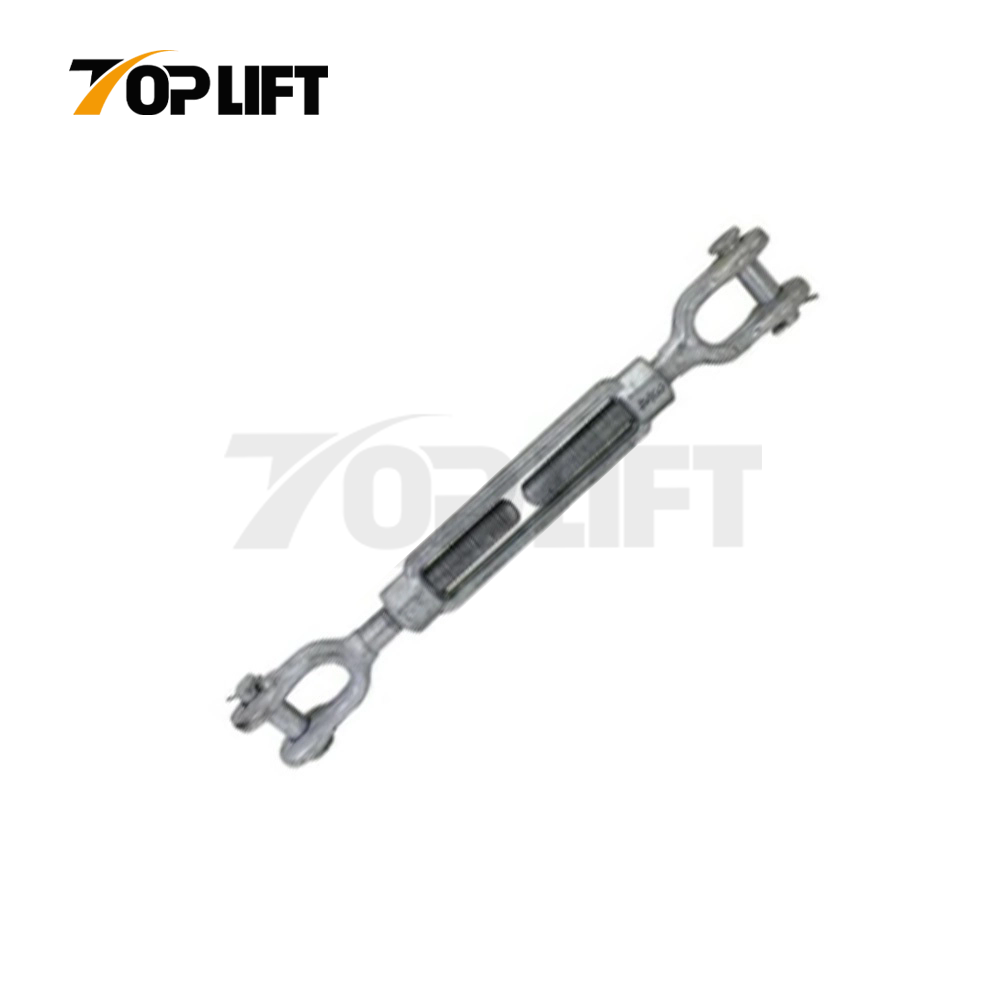

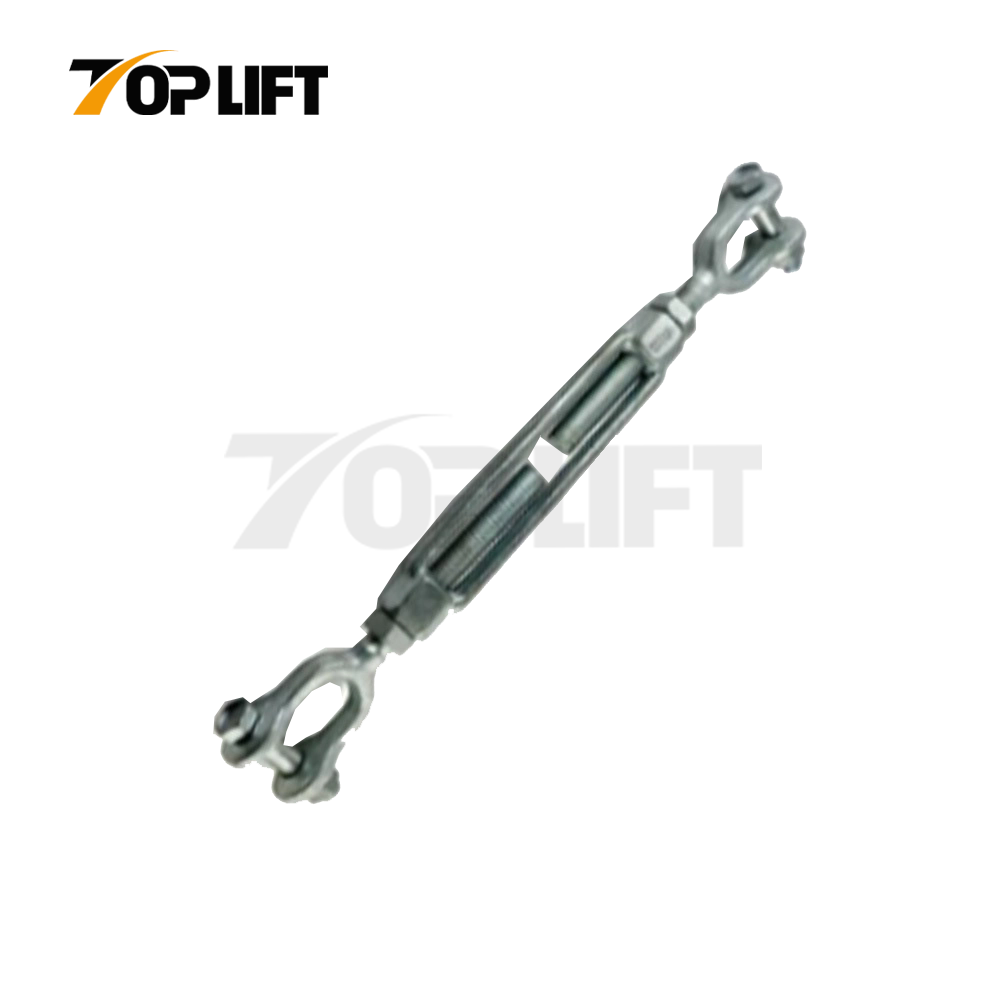

US Type Turnbuckle Jaw & Jaw
Basic Info.
A turnbuckle is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It Normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.
Product name | US Type Turnbuckle | Type | open body Jaw & Jaw | |
Material | Carbon steel | Finish | Hot Dipped Galvanized | |
Usage | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings | HS Code | 7318190000 |
Features
Standard: Meet US Federal Specification FF-T-791B, Type 1, Form1
Production Process: Drop Forged
Material: Carbon Steel
Safety Factor: 5:1
Finish: Hot Dipped Galvanized
Notice:Turnbuckle srecommended for straight orin-Line pull Only
Specification
US Turnbuckle,Type Jaw and Jaw | 单位 | Unit:mm | |||||||
规格Size | 安全拉力WLL(T) | 重量Weight(Kg) | 尺寸 Dimensions | 公差Tolerance | |||||
A | B | D | E | C | O | ||||
1/4×4 | 0.23 | 0.16 | 120 | 101.5 | 11.5 | 15.75 | 200 | 301.5 | ±5% |
5/16×4-1/2 | 0.36 | 0.24 | 138 | 114 | 12.7 | 21.2 | 244 | 358 | ±5% |
3/8×6 | 0.54 | 0.37 | 180 | 152 | 13.7 | 21.5 | 290 | 442 | ±5% |
1/2×6 | 1 | 0.71 | 190 | 152 | 16 | 26.5 | 330 | 482 | ±5% |
1/2×9 | 1 | 0.79 | 267 | 229 | 16 | 26.5 | 406 | 635 | ±5% |
1/2×12 | 1 | 1.09 | 343 | 305 | 16 | 26.5 | 480 | 785 | ±5% |
5/8×6 | 1.59 | 1.346 | 203 | 152 | 21 | 33 | 378 | 530 | ±5% |
5/8×9 | 1.59 | 1.526 | 279 | 228 | 21 | 33 | 454 | 682 | ±5% |
5/8×12 | 1.59 | 1.786 | 355 | 304 | 21 | 33 | 530 | 834 | ±5% |
3/4×6 | 2.36 | 1.998 | 213 | 152 | 26 | 37.25 | 422 | 574 | ±5% |
3/4×9 | 2.36 | 2.478 | 289 | 229 | 26 | 37.25 | 498 | 727 | ±5% |
3/4×12 | 2.36 | 2.678 | 365 | 305 | 26 | 37.25 | 574 | 879 | ±5% |
3/4×18 | 2.36 | 3.318 | 517 | 457 | 26 | 37.25 | 726 | 1183 | ±5% |
7/8×6 | 2.36 | 3.148 | 222 | 152 | 31 | 42.75 | 466 | 618 | ±5% |
7/8×12 | 3.27 | 3.958 | 374 | 304 | 31 | 42.75 | 618 | 922 | ±5% |
7/8×18 | 3.27 | 5.088 | 527 | 457 | 31 | 43.75 | 770 | 1227 | ±5% |
1×6 | 4.54 | 4.44 | 233 | 152 | 33 | 52 | 510 | 662 | ±5% |
1×12 | 4.54 | 5.5 | 385 | 305 | 33 | 52 | 662 | 967 | ±5% |
1×18 | 4.54 | 6.74 | 537 | 457 | 33 | 52 | 814 | 1271 | ±5% |
1×24 | 4.54 | 8.03 | 690 | 610 | 33 | 52 | 966 | 1576 | ±5% |
1 1/4×6 | 6.89 | 8.55 | 236 | 152 | 47 | 70.5 | 598 | 750 | ±5% |
1 1/4×12 | 6.89 | 10.27 | 388 | 304 | 47 | 70.5 | 750 | 1054 | ±5% |
1 1/4×18 | 6.89 | 11.99 | 541 | 457 | 47 | 70.5 | 902 | 1359 | ±5% |
1 1/4×24 | 6.89 | 14.0 | 693 | 609 | 47 | 70.5 | 1054 | 1663 | ±5% |
1 1/2×12 | 9.71 | 14.0 | 403 | 305 | 57 | 60.5 | 800 | 1105 | ±5% |
1 1/2×18 | 9.71 | 16.5 | 555 | 457 | 57 | 70.5 | 952 | 1409 | ±5% |
1 1/2×24 | 9.71 | 19.5 | 708 | 610 | 57 | 70.5 | 1104 | 1714 | ±5% |
1 3/4×18 | 12.7 | 25.15 | 571 | 457 | 66 | 85 | 1046 | 1503 | ±5% |
1 3/4×24 | 12.7 | 28.06 | 724 | 610 | 66 | 85 | 1198 | 1808 | ±5% |
2×24 | 16.8 | 43.5 | 740 | 610 | 66.5 | 92 | 1340 | 1950 | ±5% |
2 1/2×24 | 27.2 | 81.8 | 795 | 610 | 78 | 110.75 | 1478 | 2088 | ±5% |
2 3/4×24 | 34 | 95.14 | 795 | 610 | 93.5 | 104.5 | 1562 | 2172 | ±5% |
Product Details
Our Products
Our Advantages
1.Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2.Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3.Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4.Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5.Competitive price
We provide best price among same quality products.
6.One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7.OEM service.
8.Customization Supported：
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9.Numerous Patents in Rigging Hardware.
