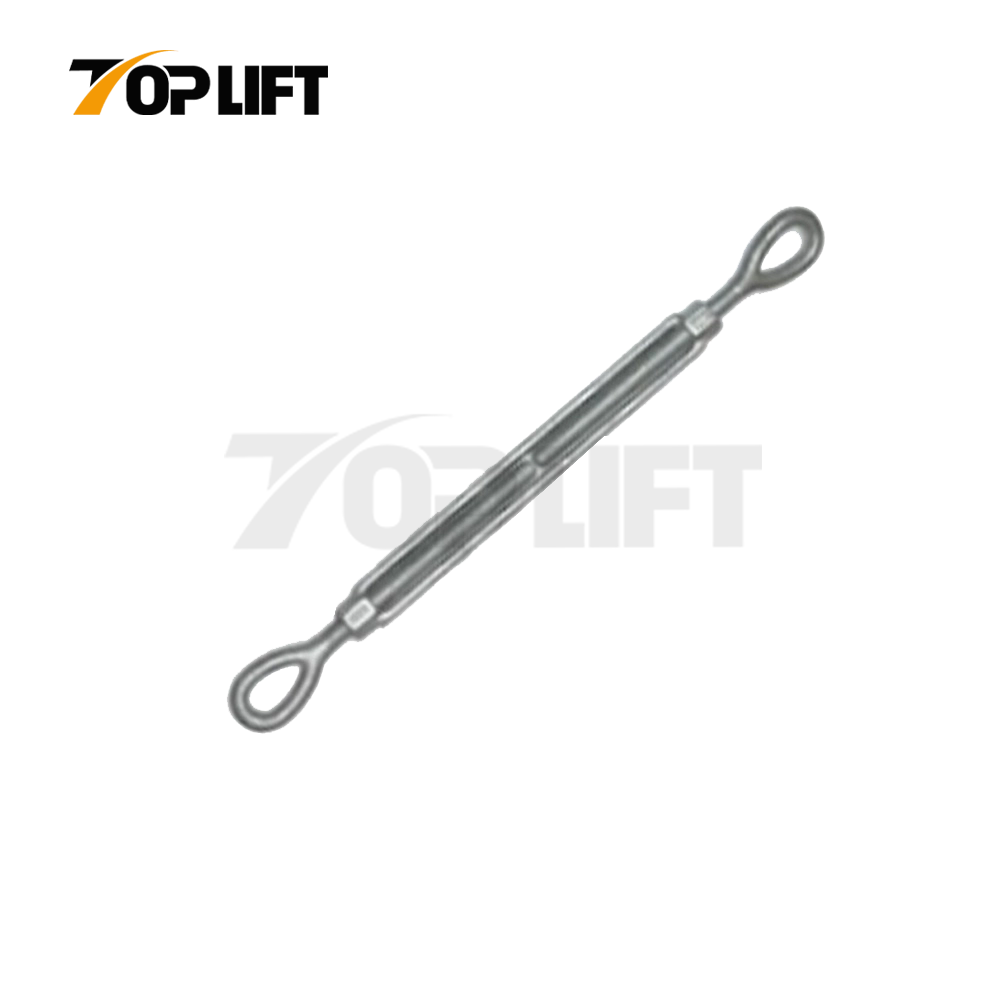

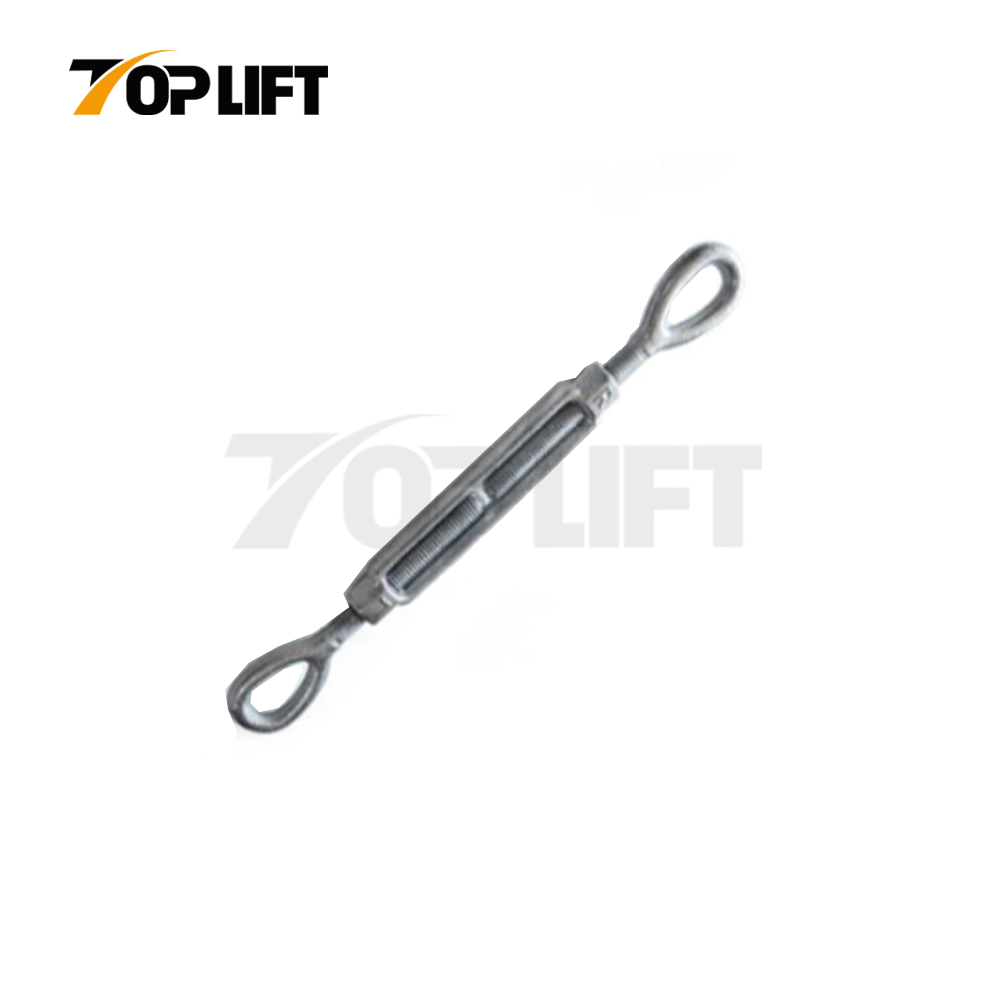

US Type Turnbuckle EYE & EYE
Basic Info
A turnbuckle is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It Normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.
Eye-eye turnbuckles are a three piece assembly that consists of eye end fittings and a turnbuckle body. The turnbuckle body is left hand threaded on one end and right hand threaded at the opposite end. Slack is removed from the rigging assembly and tension is adjusted by turning only the turnbuckle body, drawing both end fittings into the body simultaneously. The turnbuckle fittings are threaded opposite, also. Eye end fittings provide a secure point of attachment to other rigging hardware that can be opened such as jaw ends, clevises, and wire rope eyes.
Product name | US Type Turnbuckle | Type | EYE & EYE | |
Material | Carbon steel | Finish | Hot Dipped Galvanized | |
Usage | Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings | HS Code | 7318190000 |
Features
Standard: Meet US Federal Specification FF-T-791B, Type 1, Form1
Production Process: Drop Forged
Material: Carbon Steel
Safety Factor: 5:1
Finish: Hot Dipped Galvanized
Notice:Turnbuckle srecommended for straight orin-Line pull Only
Specification

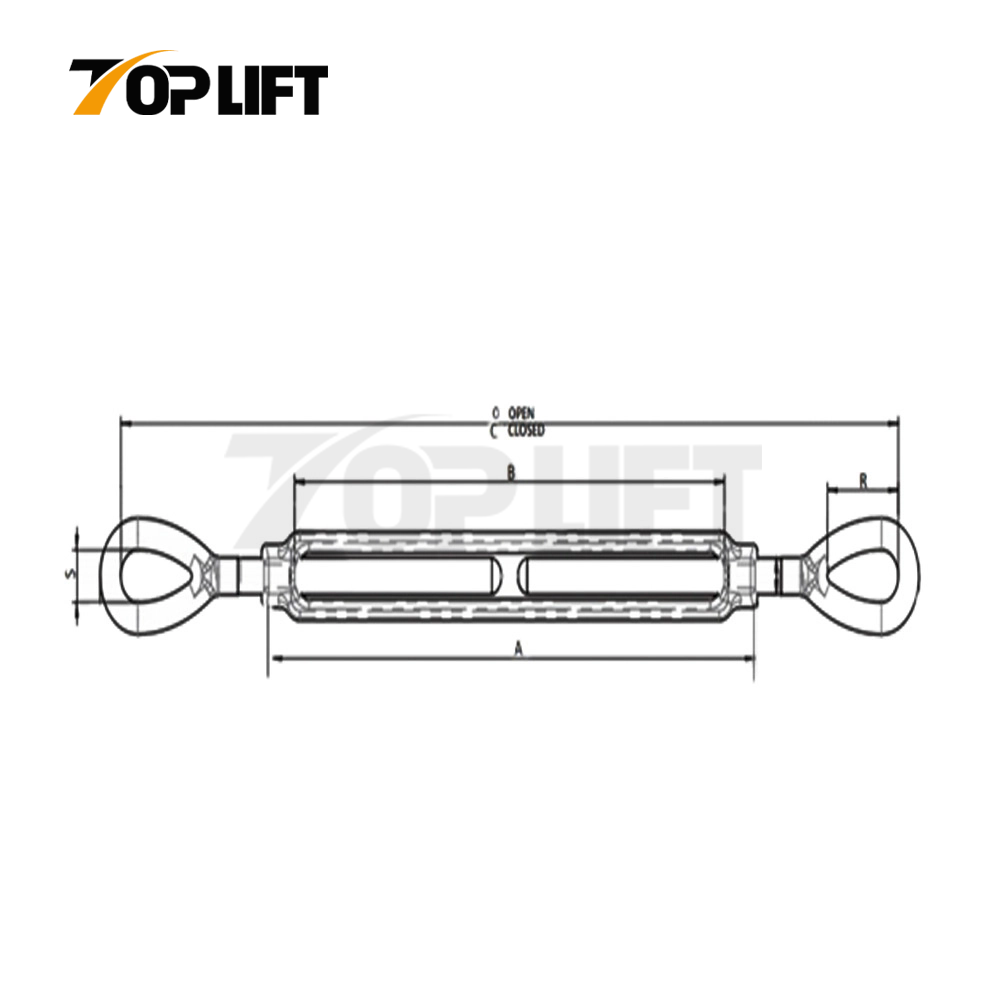

US Turnbuckle,Type Eye and Eye | 单位 | Unit:mm | |||||||
规格Size | 安全拉力WLL(T) | 重量Weight(Kg) | 尺寸 Dimensions | 公差Tolerance | |||||
A | B | R | S | C | O | ||||
1/4×4 | 0.23 | 0.12 | 120.5 | 101.5 | 20 | 8.5 | 218 | 319.5 | ±5% |
5/16×4-1/2 | 0.36 | 0.2 | 138 | 114 | 24 | 11.2 | 246 | 360 | ±5% |
3/8×6 | 0.54 | 0.34 | 180 | 152 | 28.5 | 13.5 | 308 | 460 | ±5% |
1/2×6 | 1 | 0.54 | 190 | 152 | 36.5 | 18 | 380 | 532 | ±5% |
1/2×9 | 1 | 0.72 | 267 | 229 | 36.5 | 18 | 456 | 685 | ±5% |
1/2×12 | 1 | 1 | 343 | 305 | 36.5 | 18 | 532 | 837 | ±5% |
1/2×18 | 1 | 1.6 | 495 | 457 | 36.5 | 18 | 684 | 1141 | ±5% |
5/8×6 | 1.59 | 1.17 | 203 | 152 | 45 | 22.5 | 398 | 550 | ±5% |
5/8×9 | 1.59 | 1.31 | 279 | 228 | 45 | 22.5 | 474 | 702 | ±5% |
5/8×12 | 1.59 | 1.58 | 355 | 304 | 45 | 22.5 | 550 | 854 | ±5% |
3/4×6 | 2.36 | 1.96 | 213 | 153 | 53 | 25.4 | 448 | 601 | ±5% |
3/4×9 | 2.36 | 2.1 | 289 | 229 | 53 | 25.4 | 524 | 753 | ±5% |
3/4×12 | 2.36 | 2.42 | 365 | 305 | 53 | 25.4 | 600 | 905 | ±5% |
3/4×18 | 2.36 | 3.2 | 517 | 457 | 53 | 25.4 | 752 | 1209 | ±5% |
7/8×12 | 3.27 | 3.54 | 374 | 304 | 60 | 32 | 630 | 934 | ±5% |
7/8×18 | 3.27 | 4.5 | 527 | 457 | 60 | 32 | 782 | 1239 | ±5% |
1×6 | 4.54 | 4.1 | 232 | 152 | 76 | 37 | 552 | 704 | ±5% |
1×12 | 4.54 | 5.33 | 385 | 305 | 76 | 37 | 704 | 1009 | ±5% |
1×18 | 4.54 | 6.26 | 537 | 457 | 76 | 37 | 856 | 1313 | ±5% |
1×24 | 4.54 | 7.42 | 690 | 610 | 76 | 37 | 1010 | 1620 | ±5% |
1 1/4×12 | 6.89 | 8.8 | 388 | 304 | 90 | 46 | 776 | 1080 | ±5% |
1 1/4×18 | 6.89 | 11.13 | 541 | 457 | 90 | 46 | 928 | 1385 | ±5% |
1 1/4×24 | 6.89 | 12.75 | 693 | 609 | 90 | 46 | 1080 | 1689 | ±5% |
1 1/2×12 | 9.71 | 12.3 | 400 | 305 | 103 | 53.8 | 838 | 1143 | ±5% |
1 1/2×18 | 9.71 | 15.04 | 552 | 457 | 103 | 53.8 | 990 | 1447 | ±5% |
1 1/2×24 | 9.71 | 17.6 | 705 | 610 | 103 | 53.8 | 1144 | 1754 | ±5% |
1 3/4×18 | 12.7 | 24.0 | 571 | 457 | 117 | 60.5 | 1076 | 1533 | ±5% |
1 3/4×24 | 12.7 | 27.0 | 724 | 610 | 117 | 60.5 | 1230 | 1840 | ±5% |
2×24 | 16.8 | 38.5 | 740 | 610 | 146 | 68 | 1400 | 2010 | ±5% |
2 1/2×24 | 27.2 | 73 | 795 | 610 | 165 | 79 | 1490 | 2100 | ±5% |
2 3/4×24 | 34 | 76 | 795 | 610 | 178 | 82.5 | 1562 | 2172 | ±5% |
