US Type Rigging Hardware Turnbuckle Jaw & Eye

Share to:

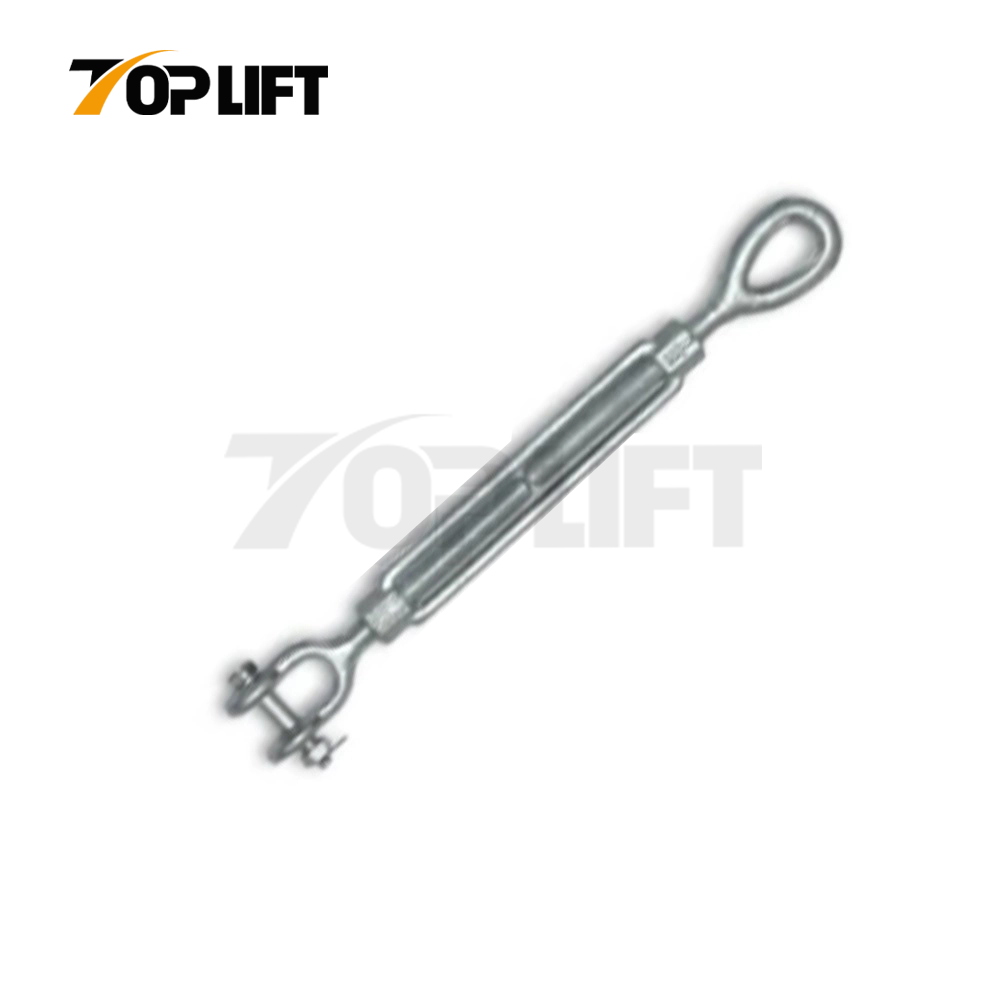

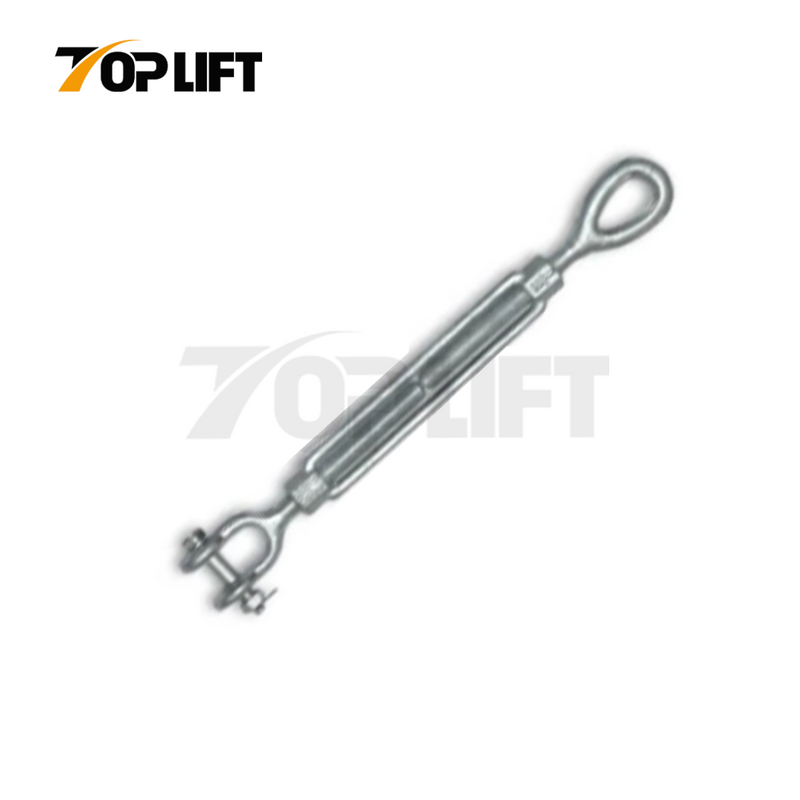

US Type Jaw & Eye Rigging Hardware Turnbuckle

Availability:

Quantity:



Inquire Add to Basket

Product Description

US Type Turnbuckle Jaw & Eye

Basic Info.

A turnbuckle is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems. It Normally consists of two threaded eye bolts, one screwed into each end of a small metal frame, one with a left-hand thread and the other with a right-hand thread.

Product name	US Type Turnbuckle	Type	open body Jaw & Eye
Material	Carbon steel	Finish	Hot Dipped Galvanized
Usage	Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings	HS Code	7318190000

Features

Standard: Meet US Federal Specification FF-T-791B, Type 1, Form1
Production Process: Drop Forged
Material: Carbon Steel
Safety Factor: 5:1
Finish: Hot Dipped Galvanized

Notice:Turnbuckle srecommended for straight orin-Line pull Only

Specification

US Turnbuckle,Type Jaw and Eye										单位	Unit:mm
规格Size	安全拉力WLL(T)	重量Weight(Kg)	尺寸 Dimensions								公差Tolerance
规格Size	安全拉力WLL(T)	重量Weight(Kg)	A	B	D	E	R	S	C	O	公差Tolerance
1/4×4	0.23	0.15	120.5	101.5	11.5	15.75	20	8.5	209	310.5	±5%
5/16×4-1/2	0.36	0.24	138	114	12.7	21.2	24	11.2	245	359	±5%
3/8×6	0.54	0.37	180	152	13.7	21.5	28.5	13.5	299	451	±5%
1/2×6	1	0.72	190	152	16	26.5	36.5	18	355	507	±5%
1/2×9	1	0.86	267	229	16	26.5	36.5	18	431	660	±5%
1/2×12	1	1.2	343	305	16	26.5	36.5	18	506	811	±5%
5/8×6	1.59	1.35	203	152	21	33	45	22.5	388	540	±5%
5/8×9	1.59	1.53	279	228	21	33	45	22.5	464	692	±5%
5/8×12	1.59	1.68	355	304	21	33	45	22.5	540	844	±5%
3/4×6	2.36	2.20	213	152	26	37.25	53	25.4	435	587	±5%
3/4×9	2.36	2.48	289	229	26	37.25	53	25.4	511	740	±5%
3/4×12	2.36	2.53	365	305	26	37.25	53	25.4	587	892	±5%
3/4×18	2.36	3.32	517	457	26	37.25	53	25.4	739	1196	±5%
7/8×12	3.27	3.96	374	304	31	42.75	60	32	548	852	±5%
7/8×18	3.27	5.01	527	457	31	43.75	60	32	700	1157	±5%
1×6	4.54	4.44	232	152	33	52	76	37	531	683	±5%
1×12	4.54	5.69	385	305	33	52	76	37	683	988	±5%
1×18	4.54	6.5	537	457	33	52	76	37	835	1292	±5%
1×24	4.54	7.8	690	610	33	52	76	37	988	1598	±5%
1 1/4×12	6.9	10.7	388	304	47	70.5	90	46	763	1067	±5%
1 1/4×18	6.9	11.99	541	457	47	70.5	90	46	915	1372	±5%
1 1/4×24	6.9	13.4	693	609	47	70.5	90	46	1067	1676	±5%
1 1/2×12	9.7	13.56	400	305	57	60.5	103	53.8	819	1124	±5%
1 1/2×18	9.7	16.2	552	457	57	70.5	103	53.8	971	1428	±5%
1 1/2×24	9.7	18.88	705	610	57	70.5	103	53.8	1124	1734	±5%
1 3/4×18	12.7	25	571	457	66	85	117	60.5	1061	1518	±5%
1 3/4×24	12.7	27.6	724	610	66	85	117	60.5	1214	1824	±5%
2×24	16.8	43.5	740	610	66.5	92	146	68	1370	1980	±5%
2 1/2×24	27.22	81.8	795	610	78	110.75	165	79	1484	2094	±5%
2 3/4×24	34.02	95.14	795	610	93.5	104.5	178	82.5	1562	2172	±5%
