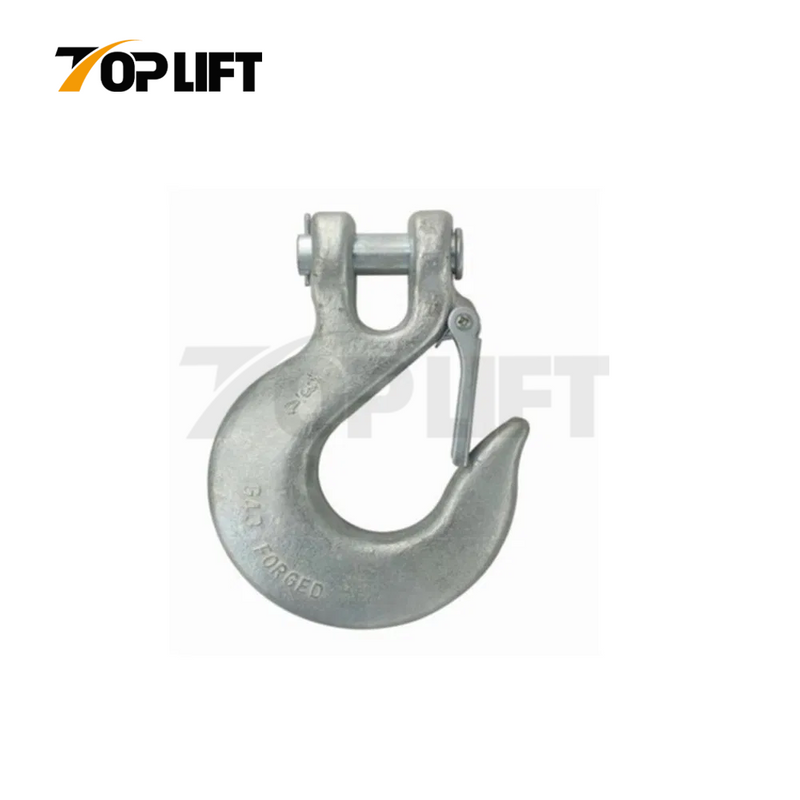

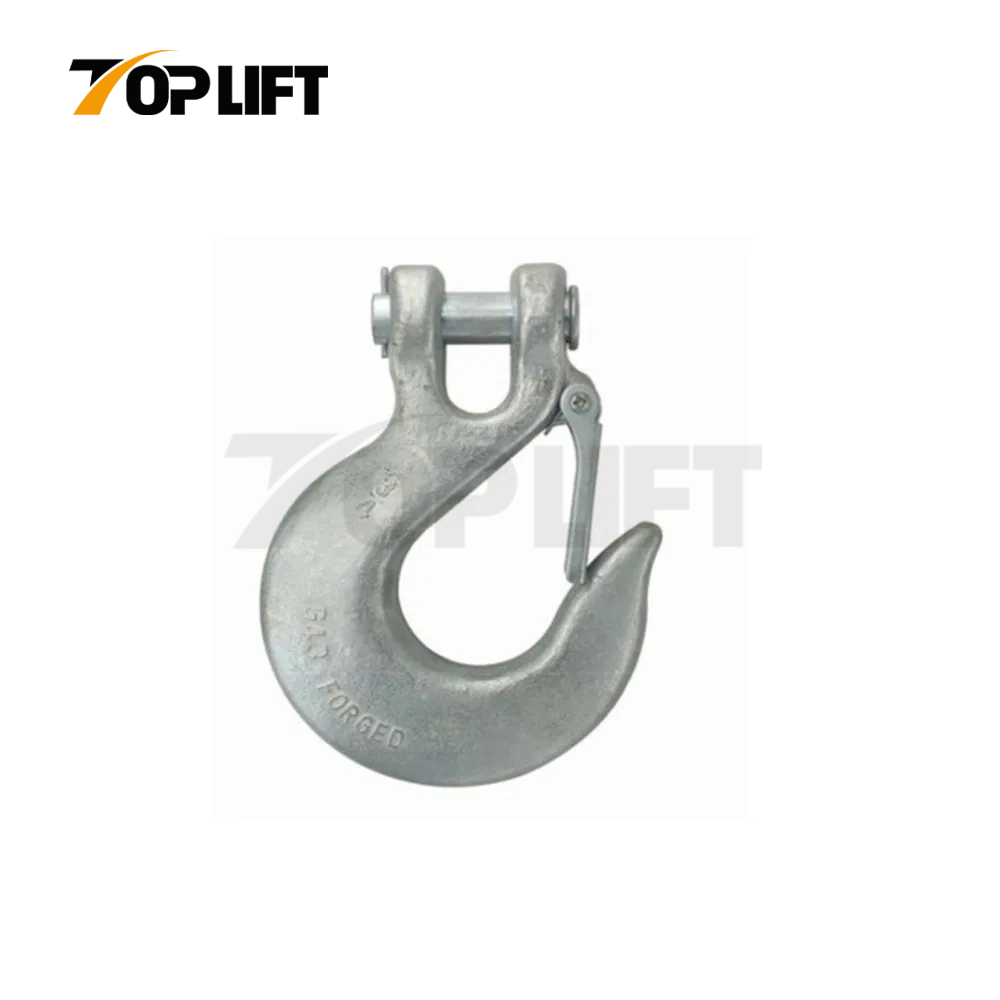

TP-LIFTING G70 Clevis Slip Hook
Basic Info.
Model NO. | TP-127 | Surface Finish | Powder Plastic | |
Dlivery Time | Within 30 Days | Function | Lifting, Sling, Hoist | |
W.L.L | 1950-19250lbs | Transport Package | Carton/Gunny Bag/Pallet | |
Specification | 1/4-3/4 | Trademark | TOPLIFT or OEM | |
Origin | China | HS Code | 73269090 |
Features
uForged super alloy steel or carbon steel
u100% magnaflux crack detection
uNot for lifting, only for lashing or pulling
uBreakage test
uSurface finish: Powder plastified
uColor: Red RAL 3020/ Yellow RAL 1028
Specification
ITEM NO. | W.L.L 4:1( lbs ) | A±2 (mm) | B±2 (mm) | E±2 (mm) | L±3 (mm) | M±3 (mm) | Weight (kg) | |
CARBON | ALLOY | |||||||
TP-127-1/4 | 1950 | 2750 | 11 | 27 | 21.5 | 103 | 70.5 | 0.53 |
TP-127-5/16 | 2875 | 4300 | 12.5 | 32 | 26 | 117 | 79 | 0.77 |
TP-127-3/8 | 4000 | 5250 | 15 | 38 | 32 | 134 | 93.5 | 1.26 |
TP-127-7/16 | 5000 | 7000 | 14.5 | 44 | 39 | 151.5 | 111 | 2.25 |
TP-127-1/2 | 6500 | 9000 | 19 | 48 | 37.5 | 168 | 124.5 | 3.06 |
TP-127-5/8 | 9250 | 13500 | 18.5 | 58.7 | 46.5 | 200.5 | 143 | 5.18 |
TP-127-3/4 | 12500 | 19250 | 30 | 81 | 58 | 256 | 188 | 12.4 |
Product Details
Application
FAQ
How is rigging inspected and maintained?
1. Regular inspection: Regularly inspect all parts of the rigging, such as ropes, joints, pulleys, slings, etc., to ensure that there is no obvious wear, breakage or other damage.
2. Cleaning and maintenance: Depending on the environment in which it is used, the rigging should be cleaned regularly to avoid corrosion by dirt, salt and other substances. For steel ropes and chains, regular lubrication may be required.
3. Storage: Store the rigging in a dry, cool place and avoid prolonged exposure to sunlight or humidity.
How do you select suitable rigging?
The following factors need to be considered when choosing the right rigging:
1. Load capacity: Select rigging that can withstand the load weight to ensure safe use.
2. Working environment: Consider the temperature, humidity, corrosive substances and other factors in the working environment.
3. Use: Select the appropriate type of rigging (e.g. slings, cables, chains, etc.) according to the need to lift, tow or secure the object.
What are the precautions for the use of rigging?
1. Check the condition of the rigging: you need to check the rigging for wear, corrosion, cracks or damage before use.
2. Avoid overloading: always ensure that the load of the rigging in use does not exceed its rated carrying capacity.
3. Select the correct type of rigging: choose the right type of rigging according to the characteristics of the object to be handled (e.g. weight, shape, etc.).
4. Keep clean and dry: Avoid contacting the rigging with corrosive substances such as oil, acid and alkali, and keep the rigging clean and dry.
