TP-1016
| Quantity: | |
|---|---|
Features

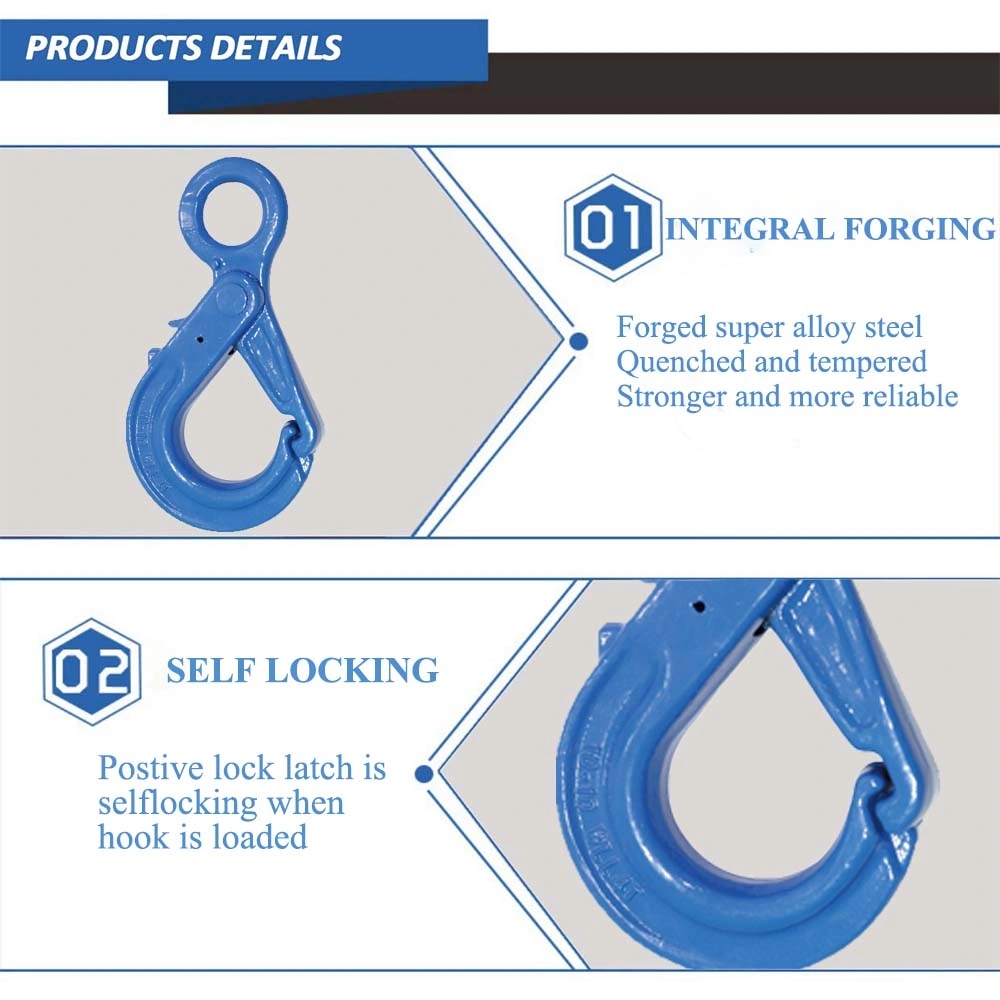

Superior Strength: Made from forged super alloy steel, this hook is 25% stronger than G80 hooks, offering enhanced lifting capacity and safety.
Durable Powder Coated Finish: Features a powder plastified surface with a blue RAL5015 finish, providing resistance to corrosion and wear in harsh conditions.
Self-locking Positive Lock Latch: The hook includes a self-locking mechanism that automatically locks when under load, ensuring secure lifting operations.
Rigorous Testing for Safety: Proof-tested at 2.5 times the Working Load Limit (WLL) and fatigue-tested for 20,000 cycles, ensuring reliability and performance.
Comprehensive Inspection Process: Load pins undergo Magnaflux crack detection and thorough inspection to ensure safe and reliable operation.
Our Advantage

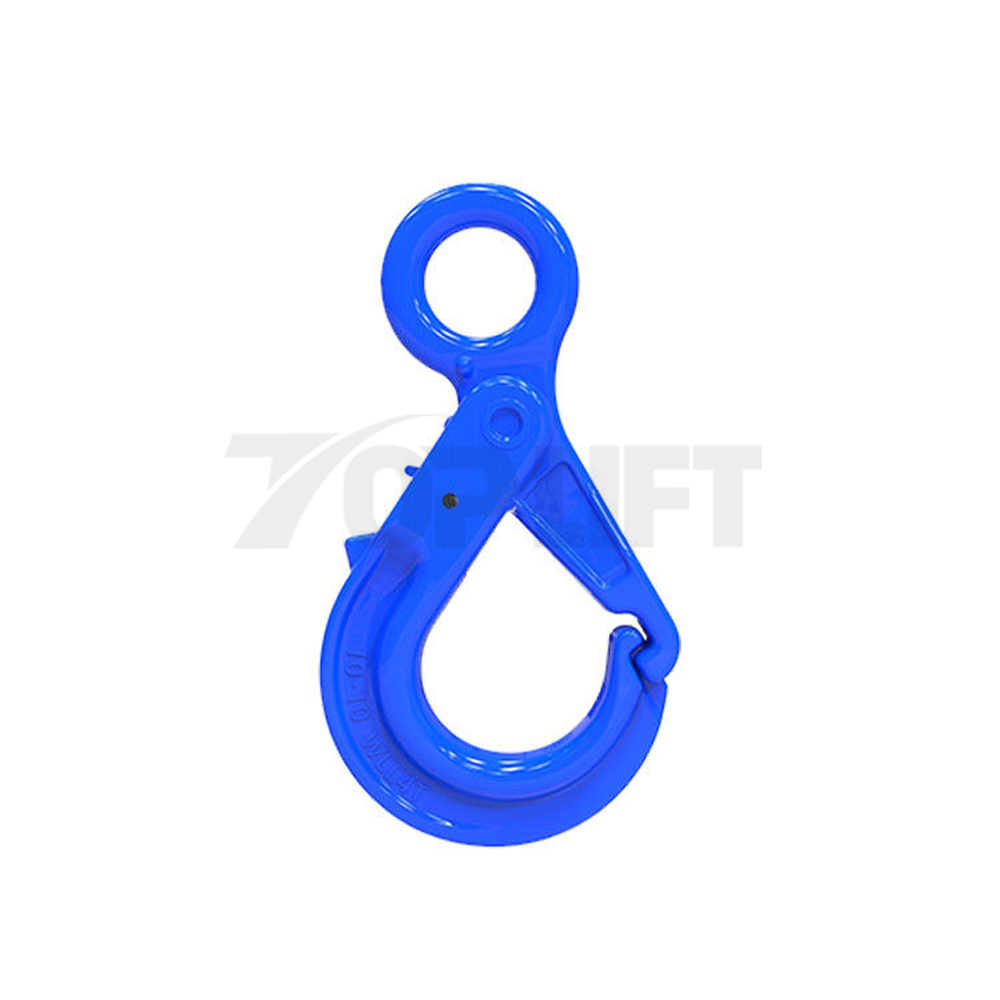

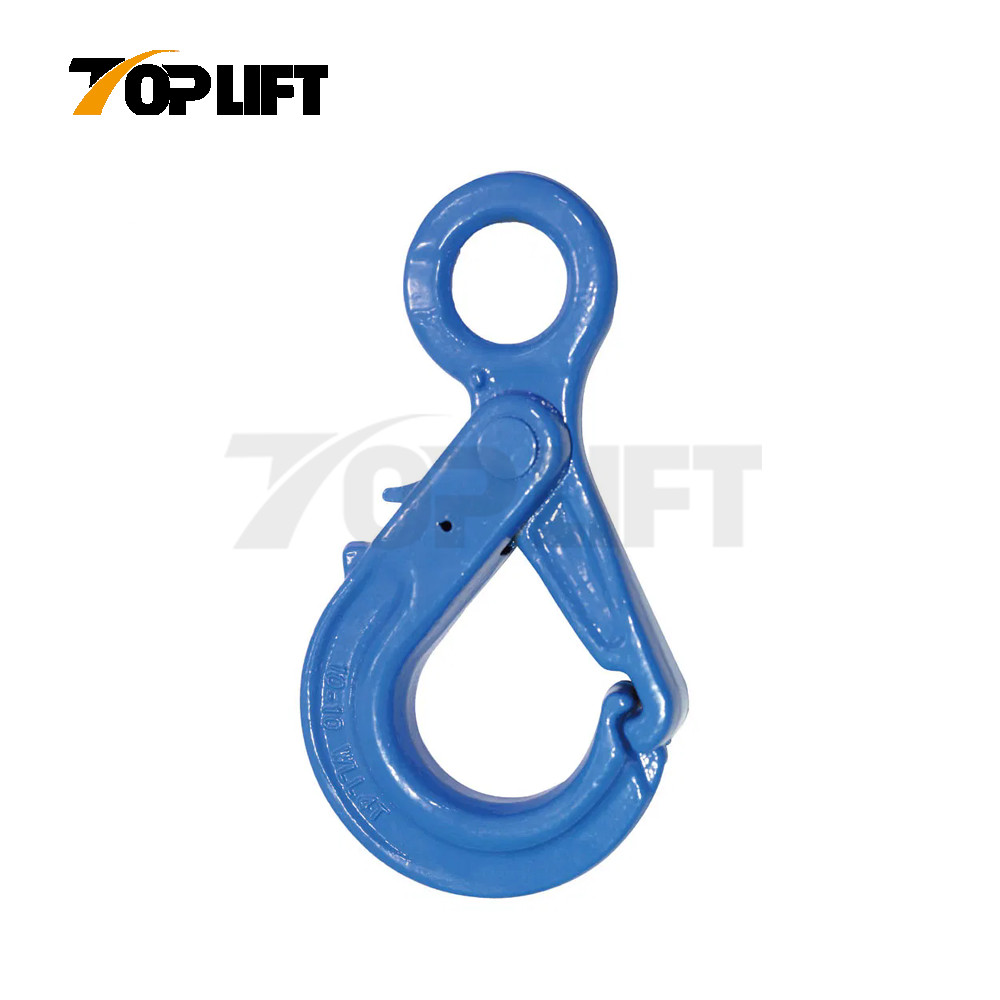

The TOPLIFT G100 special eye selflocking hook is with the standard of CE
The logo we can use TOP LIFT, also we accept you to customize the logo
| Model | W.L.L. (T) | B.L. (T) | B | ∅ | G | K | H | ∅D | N | M | L | Weight (kg) |
| 10-TP1016-08 | 2.5 | 10 | 37.5±2 | 27±1.5 | 38±2 | 136.5±3 | 21±1 | 12±1 | 21.5±1 | 91±2 | 169.5±3 | 0.81 |
| 10-TP1016-10 | 4 | 16 | 48±3 | 34.5±1.5 | 45±3 | 168.5±3 | 30.5±1.5 | 15±1 | 23±1.5 | 113±2 | 214±3 | 1.41 |
| 10-TP1016-13 | 6.7 | 26.8 | 52.5±3 | 40±2 | 57±3 | 205±4 | 39±1.5 | 20±1 | 30±1.5 | 135±3 | 264±4 | 2.61 |
| 10-TP1016-16 | 10 | 40 | 68±3 | 50±2.5 | 59±3 | 252±4 | 49.5±2 | 27±1 | 32±2 | 168±3 | 328.5±4 | 4.45 |
DESCRIPTION
PRODUCT DETAILS
PRODUCT TESTS
PACKING
FACTORY
APPLICATION
FAQ
What can we do?
1. Meet all of your lifting equipment & rigging needs.
2. Service on inspection for lifting equipment and rigging material.
How do you control your quality?
1. Selection of high-quality steel material from a famous steel group.
2. Production process standardization, process standardization, refinement.
3.100% Finished Product Testing.
4. Third-party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Inspection before loading
What are your advantages compared with others?
1. Specializing in lifting equipment and rigging product supply for around 10 years, we have rich experience in Production.
2. The same quality product, the best price.
3. Timely Delivery with the support of a 3000 square meters workshop.
4. Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.
5. Over 20 Professional Staff in Trading Team, let you enjoy worry-free and effective communication.
Features
Superior Strength: Made from forged super alloy steel, this hook is 25% stronger than G80 hooks, offering enhanced lifting capacity and safety.
Durable Powder Coated Finish: Features a powder plastified surface with a blue RAL5015 finish, providing resistance to corrosion and wear in harsh conditions.
Self-locking Positive Lock Latch: The hook includes a self-locking mechanism that automatically locks when under load, ensuring secure lifting operations.
Rigorous Testing for Safety: Proof-tested at 2.5 times the Working Load Limit (WLL) and fatigue-tested for 20,000 cycles, ensuring reliability and performance.
Comprehensive Inspection Process: Load pins undergo Magnaflux crack detection and thorough inspection to ensure safe and reliable operation.
Our Advantage
The TOPLIFT G100 special eye selflocking hook is with the standard of CE
The logo we can use TOP LIFT, also we accept you to customize the logo
| Model | W.L.L. (T) | B.L. (T) | B | ∅ | G | K | H | ∅D | N | M | L | Weight (kg) |
| 10-TP1016-08 | 2.5 | 10 | 37.5±2 | 27±1.5 | 38±2 | 136.5±3 | 21±1 | 12±1 | 21.5±1 | 91±2 | 169.5±3 | 0.81 |
| 10-TP1016-10 | 4 | 16 | 48±3 | 34.5±1.5 | 45±3 | 168.5±3 | 30.5±1.5 | 15±1 | 23±1.5 | 113±2 | 214±3 | 1.41 |
| 10-TP1016-13 | 6.7 | 26.8 | 52.5±3 | 40±2 | 57±3 | 205±4 | 39±1.5 | 20±1 | 30±1.5 | 135±3 | 264±4 | 2.61 |
| 10-TP1016-16 | 10 | 40 | 68±3 | 50±2.5 | 59±3 | 252±4 | 49.5±2 | 27±1 | 32±2 | 168±3 | 328.5±4 | 4.45 |
