TP-1066
| Quantity: | |
|---|---|
Features
Surface finish: Powder plastified.
Color: Blue RAL5015
Forged super alloy steel - Quenched and Tempered
Suitable for using with G100 chain
25% stronger than G80
Individually proof tested at 2.5 times Working Load Limit
100% Magnaflux Crack Detection
Fatigue tested at 1.5 times Working Load Limit for 20,000 cycles
Breakage test
All load pins are 100% individually inspected and tested
Positive lock latch is self-locking when hook is loaded
Our Advantage
The TOPLIFT G100 clevis master link is with the standard of CE
The logo we can use TOP LIFT, also we accept you to customize the logo

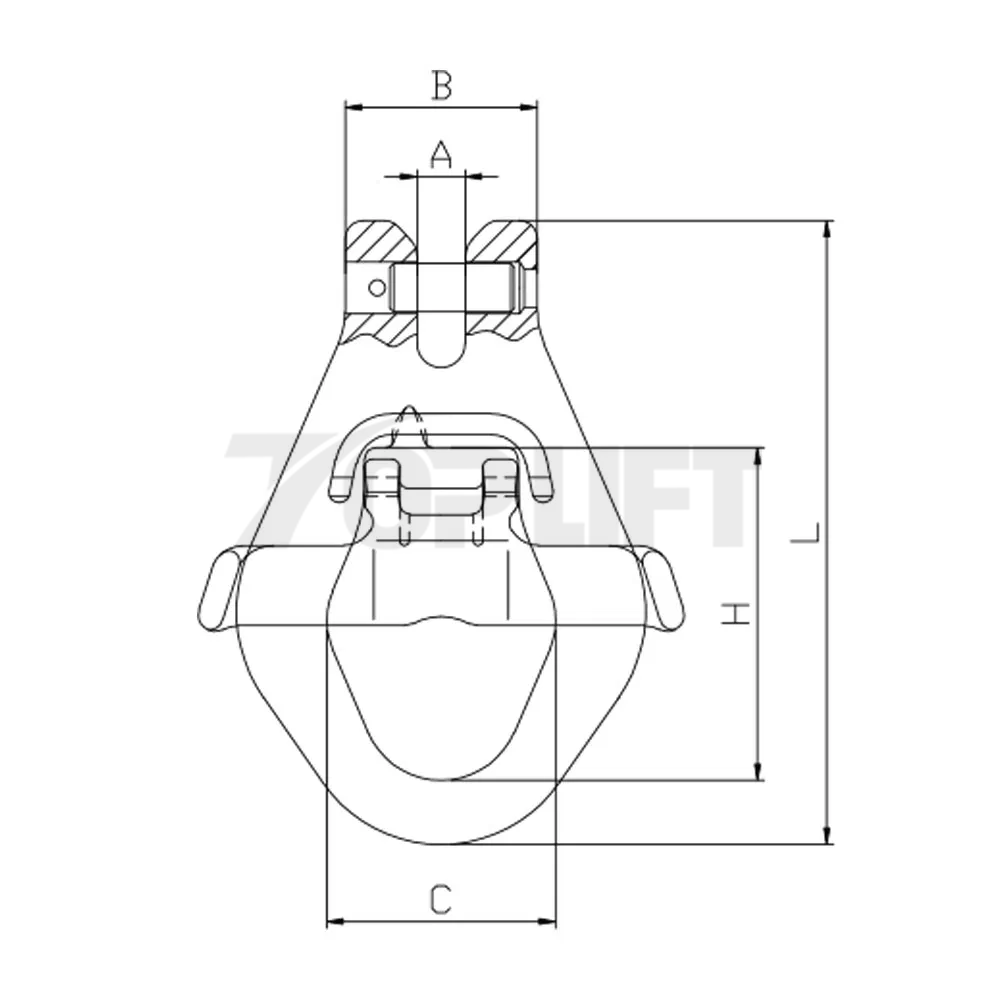

| Model | W.L.L. (T) | B.L. (T) | DIMENSION(MM) | Weight (kg) | ||||
| A | B | C | H | L | ||||
| 10-TP1066-13 | 6.7 | 26.8 | 15.5±1 | 60±1 | 71.5±1 | 104±2 | 195±2 | 1.90 |
DESCRIPTION
PRODUCT DETAILS
PRODUCT TESTS
PACKING
FACTORY
APPLICATION
FAQ
How is rigging inspected and maintained?
1. Regular inspection: Regularly inspect all parts of the rigging, such as ropes, joints, pulleys, slings, etc., to ensure that there is no obvious wear, breakage or other damage.
2. Cleaning and maintenance: Depending on the environment in which it is used, the rigging should be cleaned regularly to avoid corrosion by dirt, salt and other substances. For steel ropes and chains, regular lubrication may be required.
3. Storage: Store the rigging in a dry, cool place and avoid prolonged exposure to sunlight or humidity.
How do you select suitable rigging?
The following factors need to be considered when choosing the right rigging:
1. Load capacity: Select rigging that can withstand the load weight to ensure safe use.
2. Working environment: Consider the temperature, humidity, corrosive substances and other factors in the working environment.
3. Use: Select the appropriate type of rigging (e.g. slings, cables, chains, etc.) according to the need to lift, tow or secure the object.
Features
Surface finish: Powder plastified.
Color: Blue RAL5015
Forged super alloy steel - Quenched and Tempered
Suitable for using with G100 chain
25% stronger than G80
Individually proof tested at 2.5 times Working Load Limit
100% Magnaflux Crack Detection
Fatigue tested at 1.5 times Working Load Limit for 20,000 cycles
Breakage test
All load pins are 100% individually inspected and tested
Positive lock latch is self-locking when hook is loaded
Our Advantage
The TOPLIFT G100 clevis master link is with the standard of CE
The logo we can use TOP LIFT, also we accept you to customize the logo
| Model | W.L.L. (T) | B.L. (T) | DIMENSION(MM) | Weight (kg) | ||||
| A | B | C | H | L | ||||
| 10-TP1066-13 | 6.7 | 26.8 | 15.5±1 | 60±1 | 71.5±1 | 104±2 | 195±2 | 1.90 |
DESCRIPTION
PRODUCT DETAILS
PRODUCT TESTS
PACKING
FACTORY
APPLICATION
FAQ
How is rigging inspected and maintained?
1. Regular inspection: Regularly inspect all parts of the rigging, such as ropes, joints, pulleys, slings, etc., to ensure that there is no obvious wear, breakage or other damage.
2. Cleaning and maintenance: Depending on the environment in which it is used, the rigging should be cleaned regularly to avoid corrosion by dirt, salt and other substances. For steel ropes and chains, regular lubrication may be required.
3. Storage: Store the rigging in a dry, cool place and avoid prolonged exposure to sunlight or humidity.
How do you select suitable rigging?
The following factors need to be considered when choosing the right rigging:
1. Load capacity: Select rigging that can withstand the load weight to ensure safe use.
2. Working environment: Consider the temperature, humidity, corrosive substances and other factors in the working environment.
3. Use: Select the appropriate type of rigging (e.g. slings, cables, chains, etc.) according to the need to lift, tow or secure the object.
