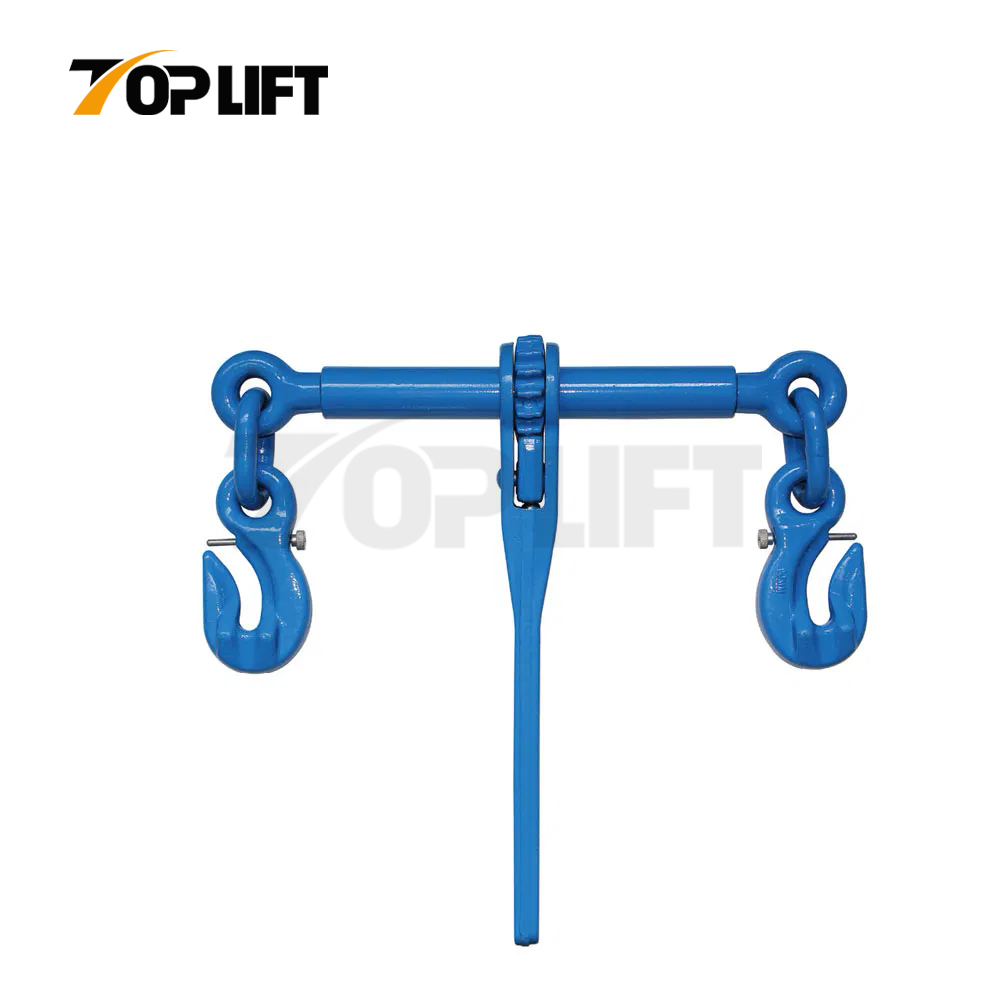

TP-10-1030
| Quantity: | |
|---|---|
Introduction
Ratchet load binders are a type of tool used to secure cargo during transportation by roadrail, or sea. They are also known as ratchet binders, lever binders, or chain binders. Thesetools are commonly used in the trucking and shipping industry to secure heavy loads suchas machinery,construction materials, or vehicles.Ratchet load binders consist of a lever and a ratcheting mechanism that allows the user totighten and secure chains or straps around the cargo. The lever is connected to the chain orstrap, and the ratcheting mechanism allows the user to tighten the chain or strap until it issecurely held in place.
Our binder ratchet is a professional piece of load equipment.
1. Safety, reliable design for easy operation.
2. No requirement for locking of handle than lever type load binders.
3. High quality drop forged construction.
4. Heat treated for extra strength.
5. Short reach hooks provide optimum take-up.
6. Each binder individually proof tested.
7. Cradle grab hook with safety pin is available upon request
Features:
1. Comply with EU standard EN12195-3.
2. The breaking force is twice the working force.
3. Suitable for G100 chain.
4. Equipped with a 100-level eye-type grapple with a stop pin, which is safe from falling off.
5. Surface Finish: Powder Plastified(Colour code :Blue RAL 5015)
6. The hook can be rotated 360 degrees, flexible operation, and can be applied to various angles.
Not for lifting,only for lashing
Caution
Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use. Maintain adequate vertical down (tongue) load to have control of the trailer (generally 10%), but do not exceed the above rated capacities. Other steps and inspections are also required.

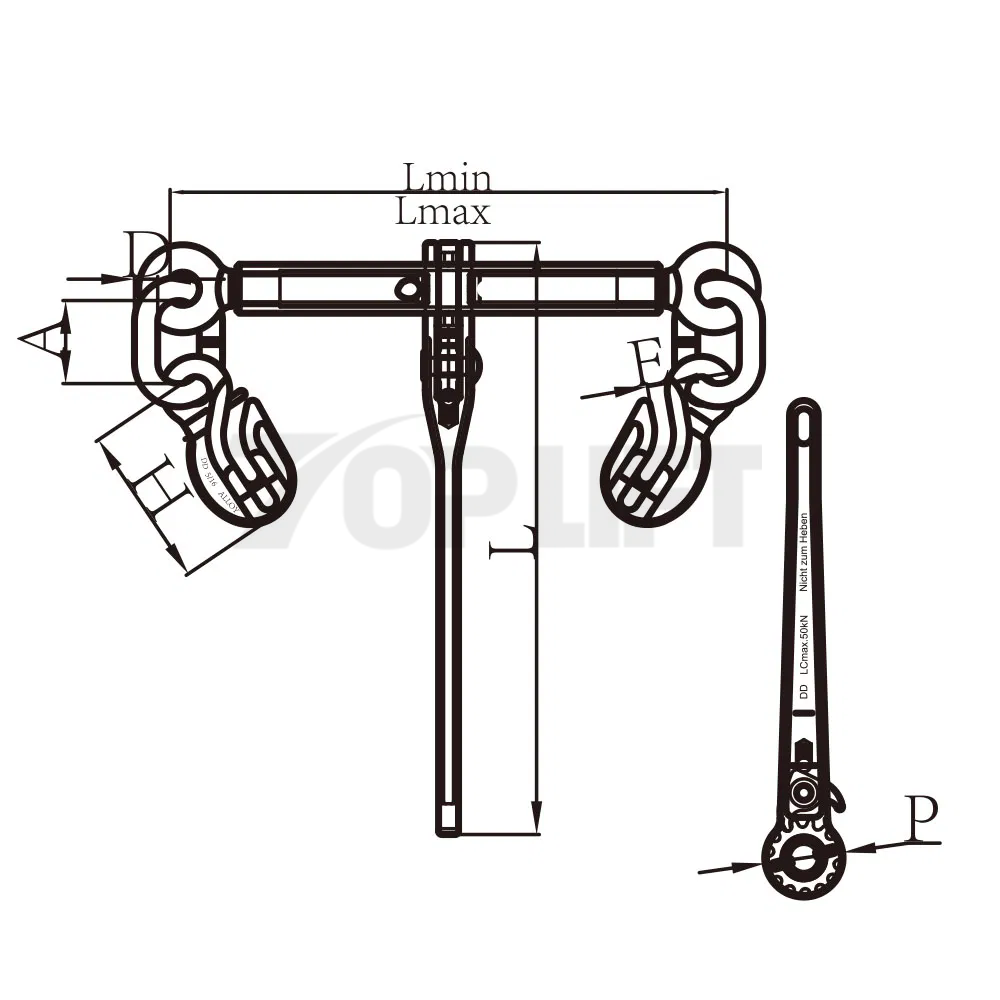

Specification
| G100 RATCHET BINDER WITH SAFETY HOOKS | |||||||||||
| ITEM NO. | WEIGHT (kg) | LC (KN) | BF (KN) | A±4 (mm) | D±1.5 (mm) | H±2 (mm) | E±2 (mm) | L±3 (mm) | P±1 (mm) | Lmin±4 (mm) | Lmax±4 (mm) |
| TP-10-1030-8 | 3.71 | 50 | 100 | 50 | 12 | 98 | 10.5 | 383 | 56 | 340 | 500 |
| TP-10-1030-10 | 5.85 | 80 | 160 | 50 | 14 | 121.5 | 13 | 390 | 65 | 365 | 525 |
| TP-10-1030-13 | 9.34 | 134 | 268 | 72 | 20 | 159.5 | 15.5 | 392.5 | 69 | 365 | 525 |
Details
Material: carbon steel /alloy steel
1. High Strength Ratchet
Gear quenching, safer and more wear-resistant
2. High Quality Hook
It is made of alloy steel die forging and supplied after several reasonable heat treatments. It has the advantages of beautiful appearance, high strength, high wear resistance and high fit.
3. High Strength Eye Nut
Made by the forging process, the hook of the car sealer is squared on the chain ring by the mutual force between the chain rings to effectively prevent it from falling off.
4. G100 Chain
The chain adopts international advanced chain-making equipment and chain-making technology.
5. Surface Spray Treatment
Uniform surface and beautiful appearance.
