Steel Wire Rope Pear Shaped Socket

Availability:

Quantity:



Inquire Add to Basket

Product Description

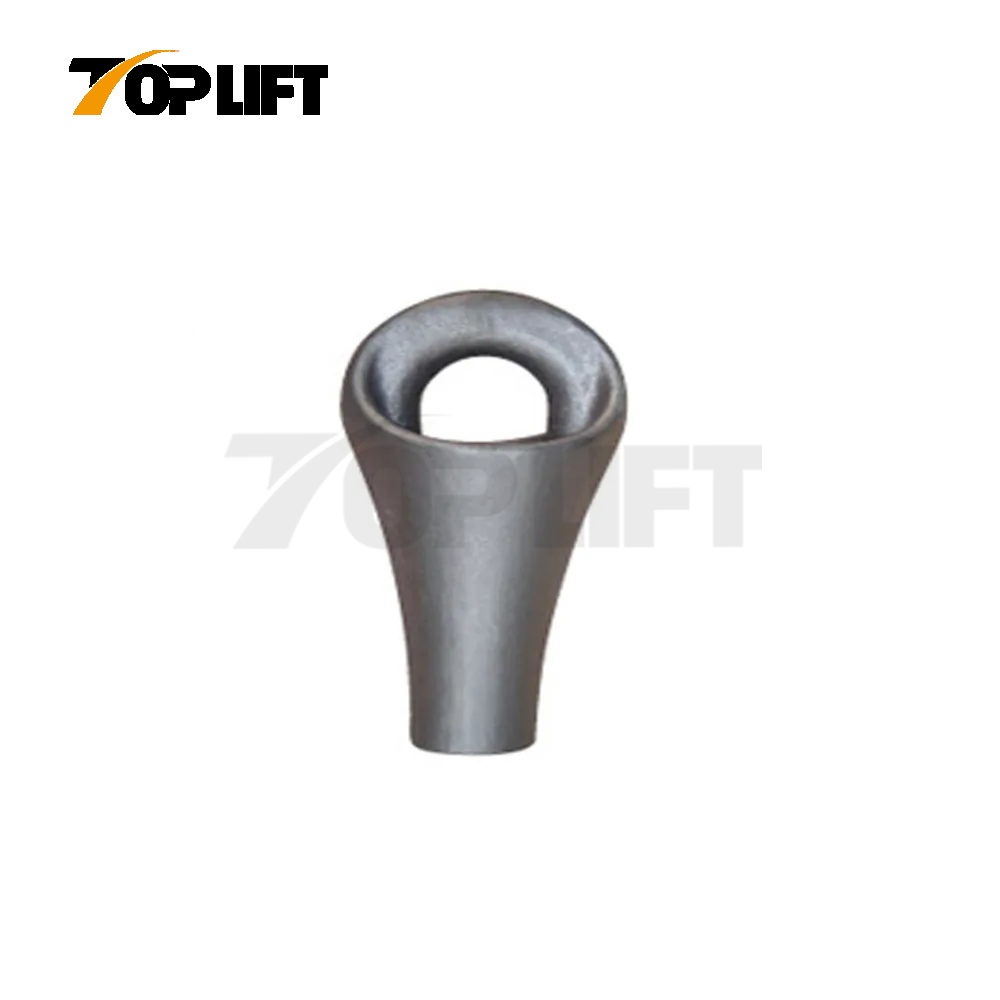

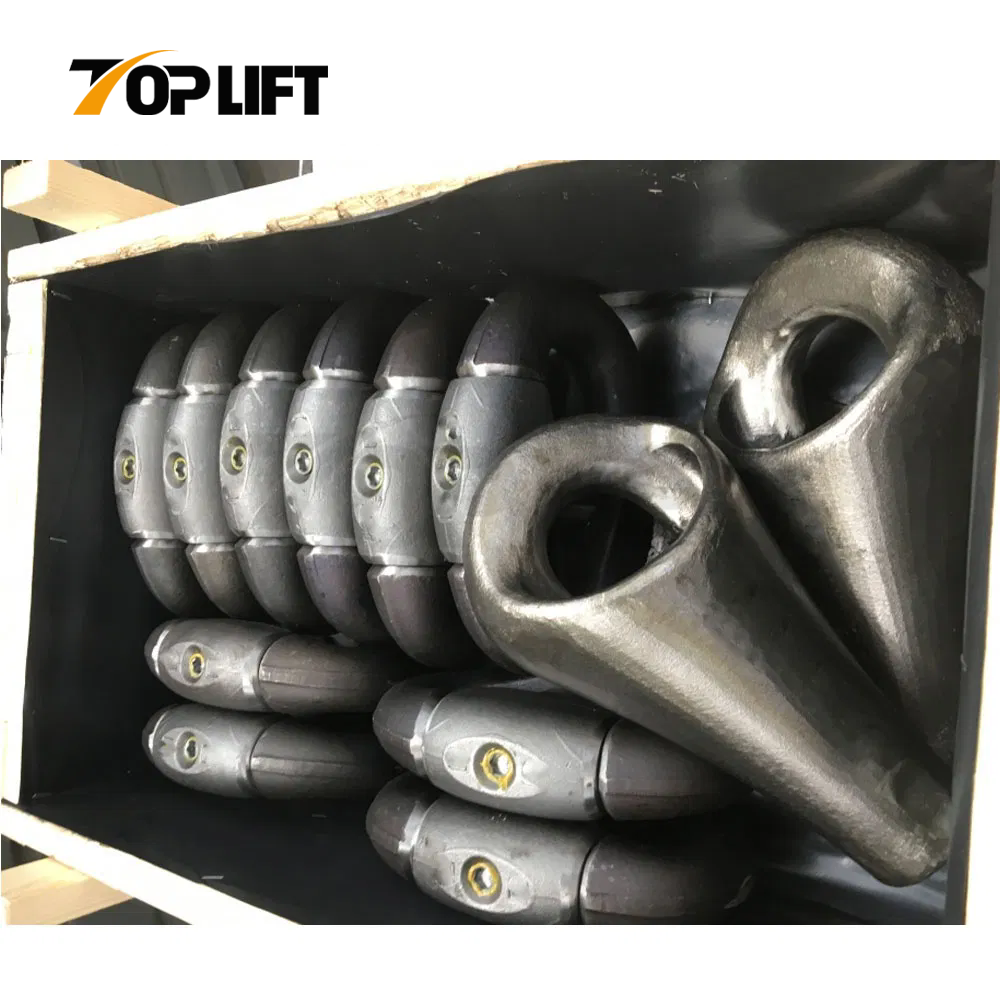

Pear Shaped Wire Rope Socket

Basic Info.

Socket is manufactured specifically for use in wire rope slings for lifting purposes. It is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption.

Features

Widely used in lifting conditions, sling conditions,trailer condition, marine conditions,container and port lashing conditions and logging conditions.
Easier to be connected with shackles, thimbles, wire clips, chain links and rings, chain slings, hooks,pulleys,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working

Specification

尺寸小图

Product Code	Industry Code	Rope Dia /mm	Size(mm)
Product Code	Industry Code	Rope Dia /mm	A	B	C	D	E	F	G	H	I
TP-PSS1	1	10-11	69	48	22	195	12	12	20	24	12
TP-PSS2	2	12-13	79	56	25	195	15	14	22	25	14
TP-PSS3	3	14-15	91	64	28	220	17	16	24	29	16
TP-PSS4	4	16-17	103	70	31	220	19	18	25	31	18
TP-PSS5	5	18-19	114	84	36	310	21	19	30	38	20
TP-PSS6	6	20-21	129	84	36	310	23	21	33	42	22
TP-PSS7	7	22-24	140	100	40	310	26	23	37	44	26
TP-PSS8	8	25-27	158	100	43	350	28	25	39	48	29
TP-PSS10	9	28-30	171	120	45	350	31	27	40	56	31
TP-PSS11	10	31-33	190	120	52	445	32	29	45	58	35
TP-PSS12	11	34-36	203	142	55	445	32	29	45	58	35
TP-PSS13	12	37-39	225	142	60	495	39	35	51	68	40
TP-PSS14	13	40-42	242	166	63	563	43	37	59	70	43
TP-PSS15	14	43-45	265	166	63	565	41	47	62	72	47
TP-PSS16	15	46-48	288	166	75	595	49	43	68	80	51
TP-PSS17	17	56	340	220	84	880	60	54	75	90	59
