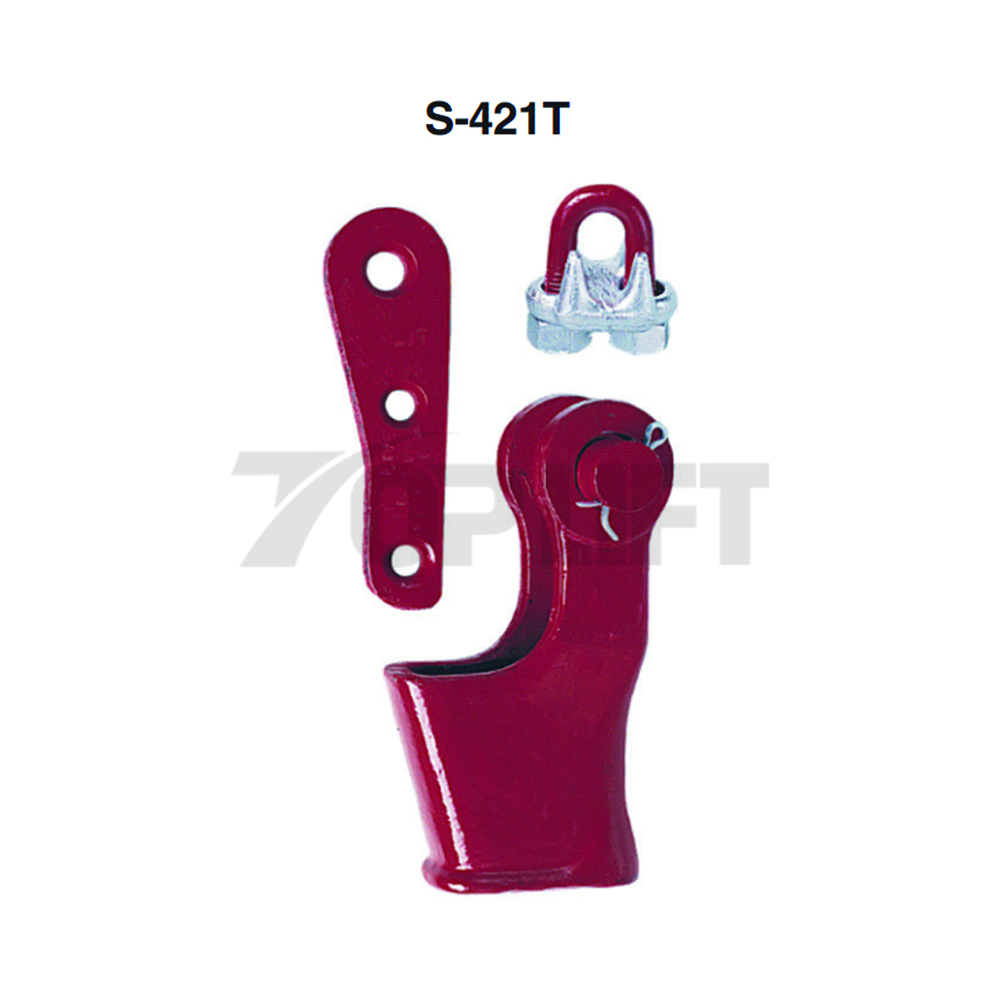

S-421T WEDGE SOCKETS
Basic Info.

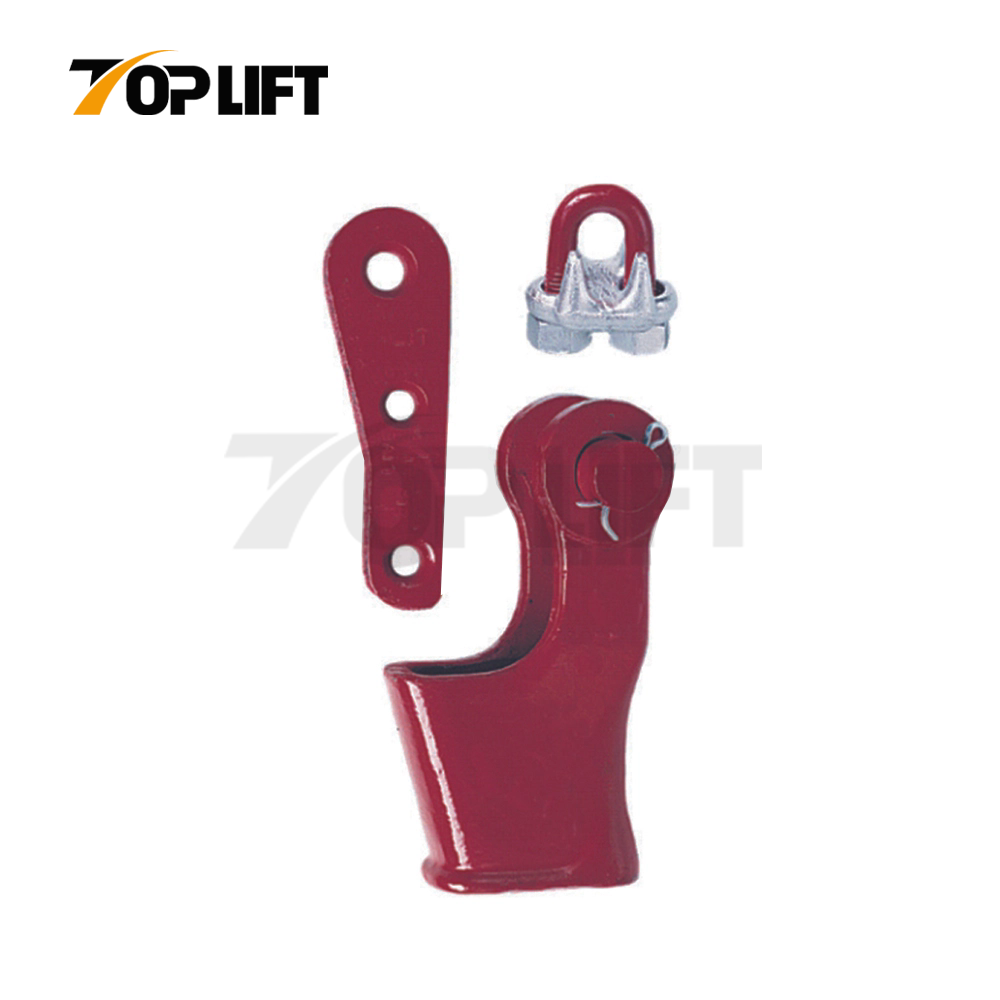

Assembly includes socket, wedge, pin and wire rope clip. It is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption.
Model NO. | TP S-421T | Specification | 3/8 " -- 1-1/4 | |
Surface | Spray or HDG | Transport Package | Carton, Pallet, Bags | |
HS Code | 73269090 | Trademark | TOPLIFT or OEM | |
Origin | China | Capacity | 50000PCS/Month |
Features
Basket is cast steel and individually magnetic particle inspected.
Pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets.
Secures the tail or dead end of the wire rope to the wedge, thus eliminates loss or punch out of the wedge.
Eliminates the need for an extra piece of rope and is easily installed.
The Terminator wedge eliminates the potential breaking off of the tail due to fatigue.
Specification
Dia.Of Rope | Dimension /mm | N.W. | |||||||||||||||
in | mm | A | B | C | D | G | H | I | K | L | P | R | S | T | U | V | kg |
3/8 | 9-10 | 145 | 69.1 | 20.6 | 20.6 | 35.1 | 77.7 | 198 | 47.8 | 22.4 | 39.6 | 11.2 | 54.1 | 11.2 | 31.8 | 35.1 | 1.44 |
1/2 | 11-13 | 175 | 88.1 | 25.4 | 25.4 | 41.1 | 95.5 | 226 | 32 | 26.9 | 49.3 | 12.7 | 65 | 13.5 | 44.5 | 47.8 | 2.79 |
5/8 | 14-16 | 210 | 109 | 31.8 | 30.2 | 53.8 | 114 | 273 | 50.5 | 31 | 57.2 | 14.2 | 82.6 | 17.5 | 51 | 55.5 | 4.4 |
3/4 | 18-19 | 251 | 130 | 38.1 | 35.1 | 62 | 134 | 314 | 61.2 | 35.6 | 66.8 | 16.8 | 92.2 | 19.8 | 59.5 | 65 | 6.58 |
7/8 | 20-22 | 286 | 149 | 44.5 | 41.4 | 68.5 | 156 | 365 | 63 | 42.4 | 79.5 | 19.1 | 109 | 22.4 | 68.5 | 74.5 | 9.75 |
1 | 24-26 | 325 | 161 | 51 | 51 | 74.7 | 177 | 414 | 77.2 | 51 | 95.5 | 22.4 | 119 | 26.2 | 73 | 83.5 | 13.9 |
1 1/8 | 28 | 365 | 176 | 57 | 57 | 84 | 194 | 466 | 65 | 57 | 108 | 25.4 | 138 | 27.9 | 82.6 | 90.5 | 20.5 |
1 1/4 | 30-32 | 415 | 222 | 66.5 | 63.5 | 90.5 | 239 | 520 | 74.7 | 59.5 | 114 | 26.9 | 156 | 30.2 | 117 | 125 | 29.4 |
Nominal note: For intermediate wire rope sizes, use next larger size socket. | |||||||||||||||||
Product Details
FAQ
1. Q: Do you offer OEM service?
A: OEM accepted and offer a confidentiality agreement and business secret contract for your design safe.
2. Q: Can we just customize the goods?
A: Yes, you can. Just give us your size and we will give you a quotation.
3. Q: Can I order products that aren't shown on your website?
A: If you're looking for a product that doesn't currently show on the website, please contact us and we'll respond to you in a positive and efficient style.
4. Q: Lowest price in China?
A: Definitely we offer very competitive prices for a single product, further, you can save more when you have a complicated purchasing list to handle. Long-term partnership is what we expect.5. Q: What makes you different from others?
A: 1) Our Excellent Service6. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stages of your order. You will get the latest information in time.
