Basic Info.

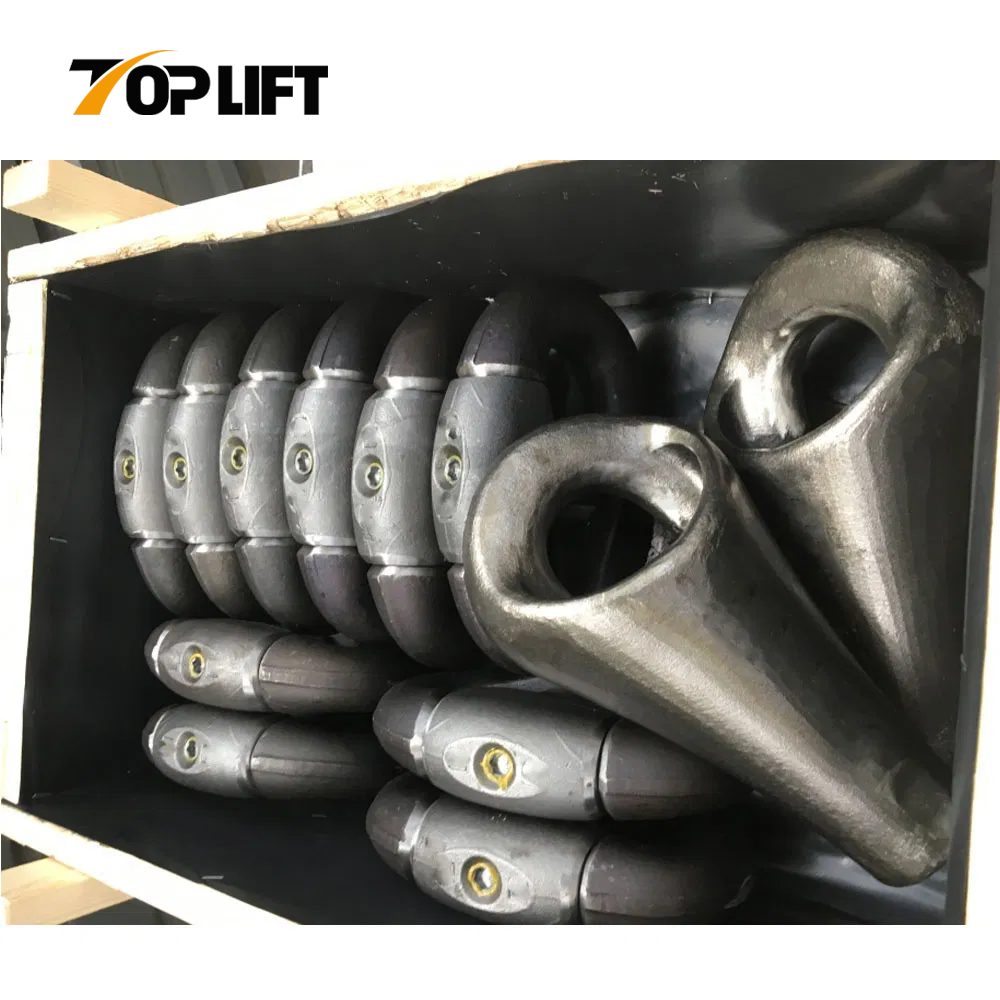

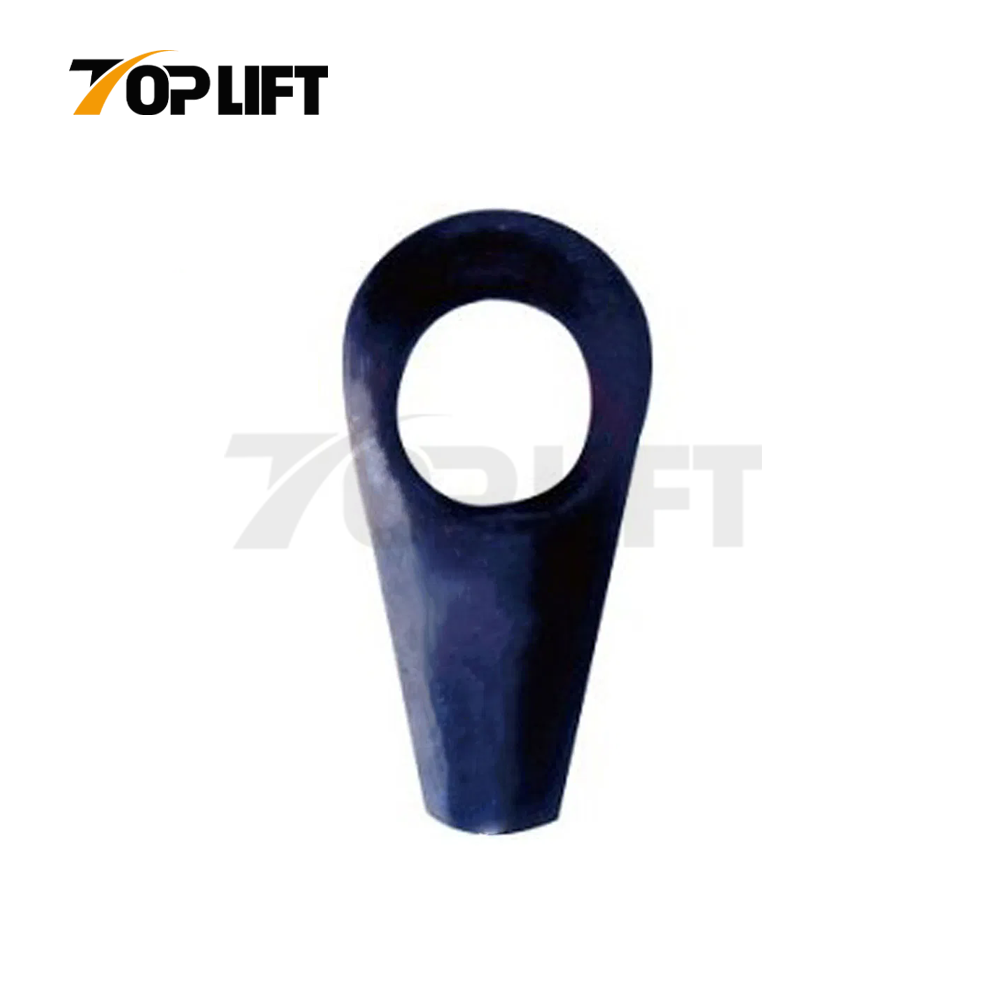

Wire rope pear sockets' pin diameter and jaw opening allows wedge and socket to be used in conjunction with closed swage and spelter sockets .80% efficiency rating .The wire rope should pass through the "Go" hole and should not pass through the "No Go" hole on the wedge.
Wedge socket is manufactured specifically for use in wire rope slings for lifting purposes. It is heat treated for tensile strength and resistance to wear whilst also allowing for shock absorption.
Features
Widely used in lifting conditions, sling conditions,trailer condition, marine conditions,container and port lashing conditions and logging conditions.
Easier to be connected with shackles, thimbles, wire clips, chain links and rings, chain slings, hooks,pulleys,etc
Stronger performance during working
Many sizes can be choosed according to the different daily working
Specification
Code | Rope Dia | Size | Weight(kg) | ||||||
in. | mm | B | C | φA | K | E | L | ||
TP-G517 | 1-1/2~1-5/8 | 37~42 | 103 | 40 | 44 | 92 | 127 | 305 | 9 |
TP-G519 | 1-3/4~1-7/8 | 43~48 | 120 | 48 | 51 | 112 | 178 | 356 | 15 |
TP-G522 | 2~2-1/8 | 49~54 | 132 | 54 | 57 | 120 | 200 | 390 | 22 |
TP-G524 | 2-1/4~2-3/8 | 55~60 | 148 | 62 | 63 | 135 | 220 | 440 | 27 |
TP-G526 | 2-1/2~2-5/8 | 61~68 | 165 | 68 | 73 | 150 | 250 | 468 | 40 |
TP-G527 | 2-3/4~2-7/8 | 69~75 | 178 | 75 | 79 | 164 | 274 | 540 | 54 |
TP-G528 | 3~3-1/8 | 76~80 | 195 | 76 | 86 | 175 | 295 | 585 | 75 |
TP-G529 | 3-1/4~3-3/8 | 81~86 | 216 | 82 | 92 | 194 | 320 | 625 | 81 |
TP-G530 | 3-12~3-5/8 | 87~93 | 220 | 92 | 99 | 202 | 350 | 670 | 115 |
TP-G531 | 3-1/4~4 | 94~102 | 235 | 100 | 105 | 215 | 375 | 700 | 130 |
TP-G533 | 4-1/4~4-1/2 | 108~115 | 270 | 110 | 115 | 240 | 410 | 800 | 180 |
Product Details
Application
Our Products
Our Advantages
1.Sharp insight
Over 10 years’ experience in exporting and familiar with lifting market.
2.Guaranteed Quality
Strictly quality control regulation and QC team to ensure the quality qualified.
3.Quick Response
We feedback your questions immediately in 24 hours by experienced staffs.
4.Stable supply
With more than 3000 sq.m plant to ensure timely delivery.
5.Competitive price
We provide best price among same quality products.
6.One-stop solution
Effective communication, Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.
7.OEM service.
8.Customization Supported：
Available in standard specification, also special specifications and marks can be made according to customers requirements.
9.Numerous Patents in Rigging Hardware.
